Spatial Cues Enhanced Multi-Channel Band-Split RNN for Regional Sound Extraction

Shengjie Lu¹, Xiang Zhou¹, Yichen Yang¹, Bing Zhu¹, and Wen Zhang¹
¹Center of Intelligent Acoustics and Immersive Communications, School of Artificial Intelligence, Northwestern Polytechnical University, Xi'an, Shaanxi, China

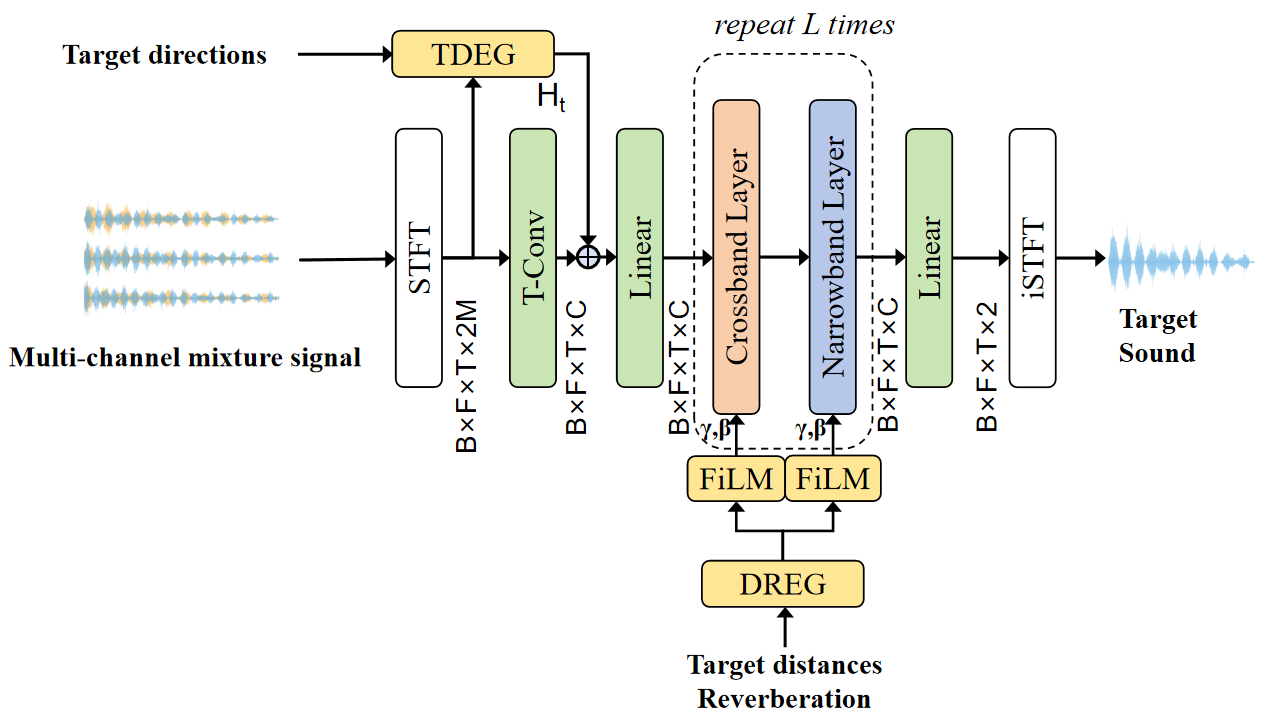

overview

Abstract: Target speaker extraction (TSE) aims to isolate a desired talker from mixtures, but performance often collapses when an interferer is close to the target direction and when reverberation blurs spatial cues. We propose a spatially informed TSE framework built on the SpatialNet separation backbone and explicitly conditioned on direction, distance, and room acoustics. To improve angular discriminability, we introduce a high-resolution DOA embedding module that performs direction-aware convolution over a target angular region. To resolve spatial ambiguity when DOA cues are insufficient, we encode the target distance with a Gaussian-kernel soft representation rather than injecting a raw scalar. In addition, we provide explicit reverberation guidance using global room acoustic metrics and fuse these cues through Feature-wise Linear Modulation within the backbone. Experiments show consistent gains over recent DOA- and distance-conditioned baselines, and yield large improvements in extreme cases where target and interferer are nearly co-located in azimuth.

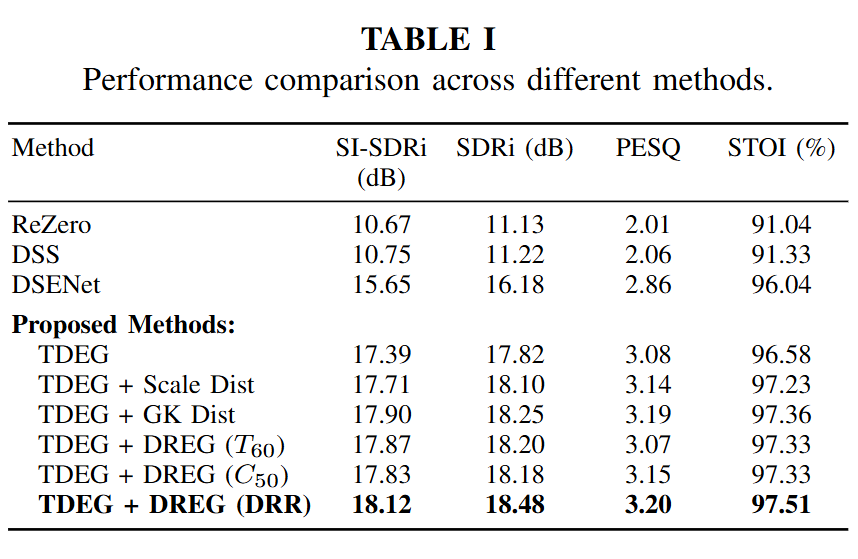

The separation performance on the Spatialized WSJ0-2mix and RealMAN datasets (click to expand)

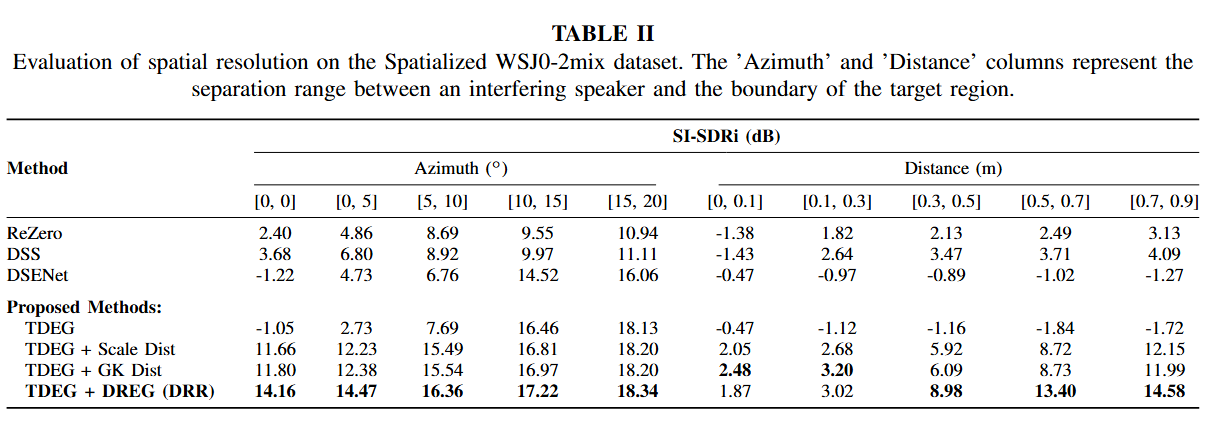

Evaluation of spatial resolution on the Spatialized WSJ0-2mix dataset (click to expand)

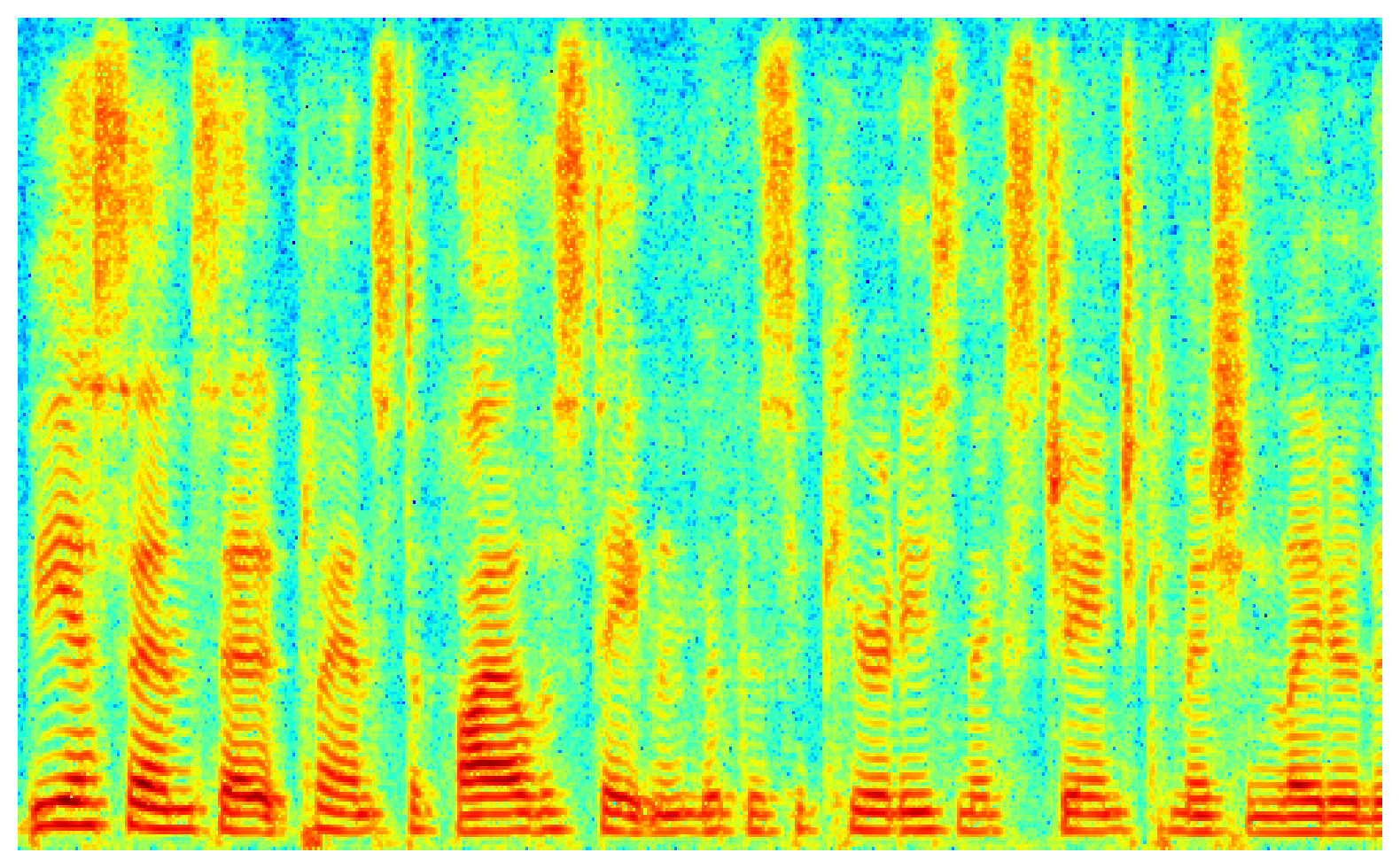

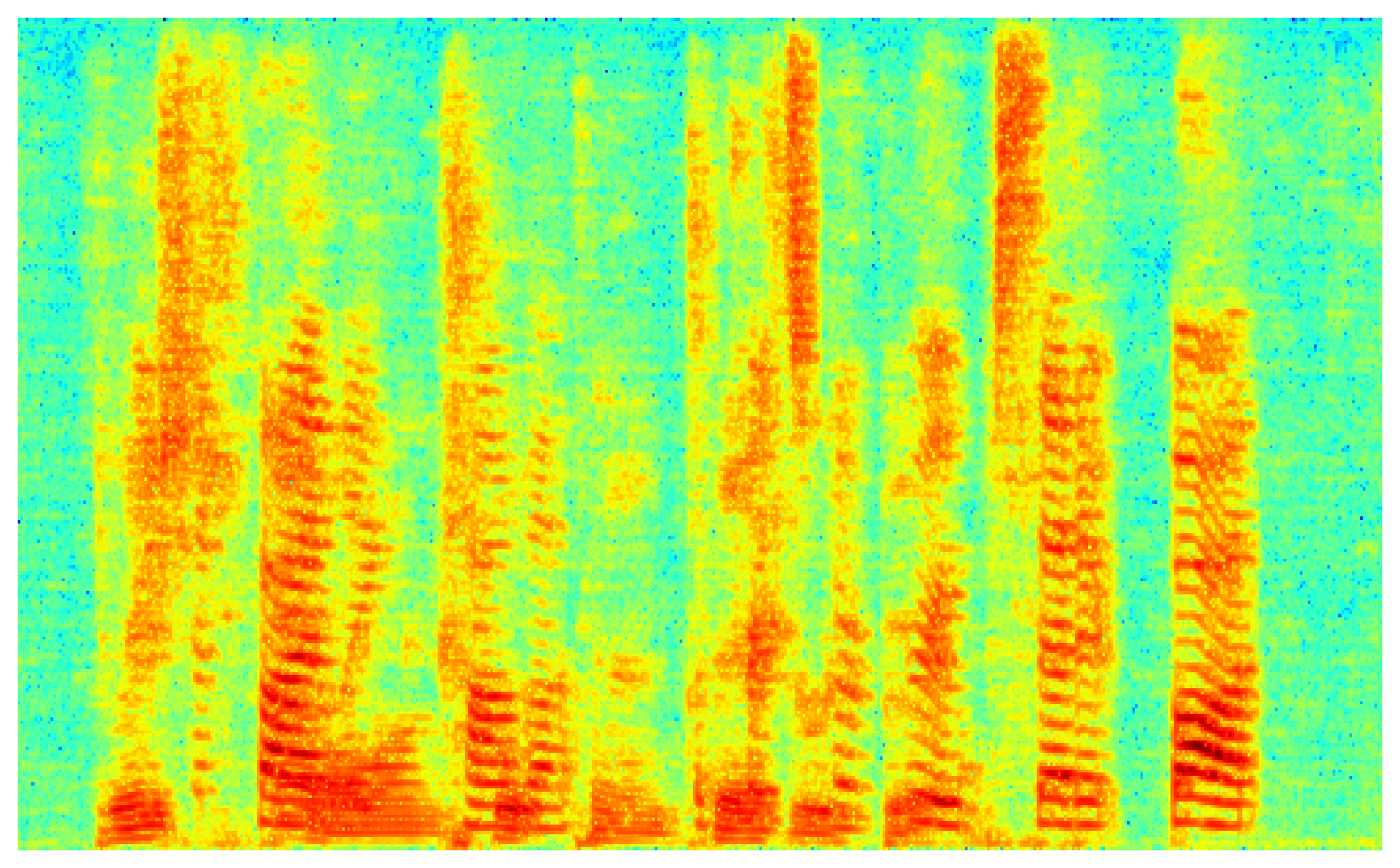

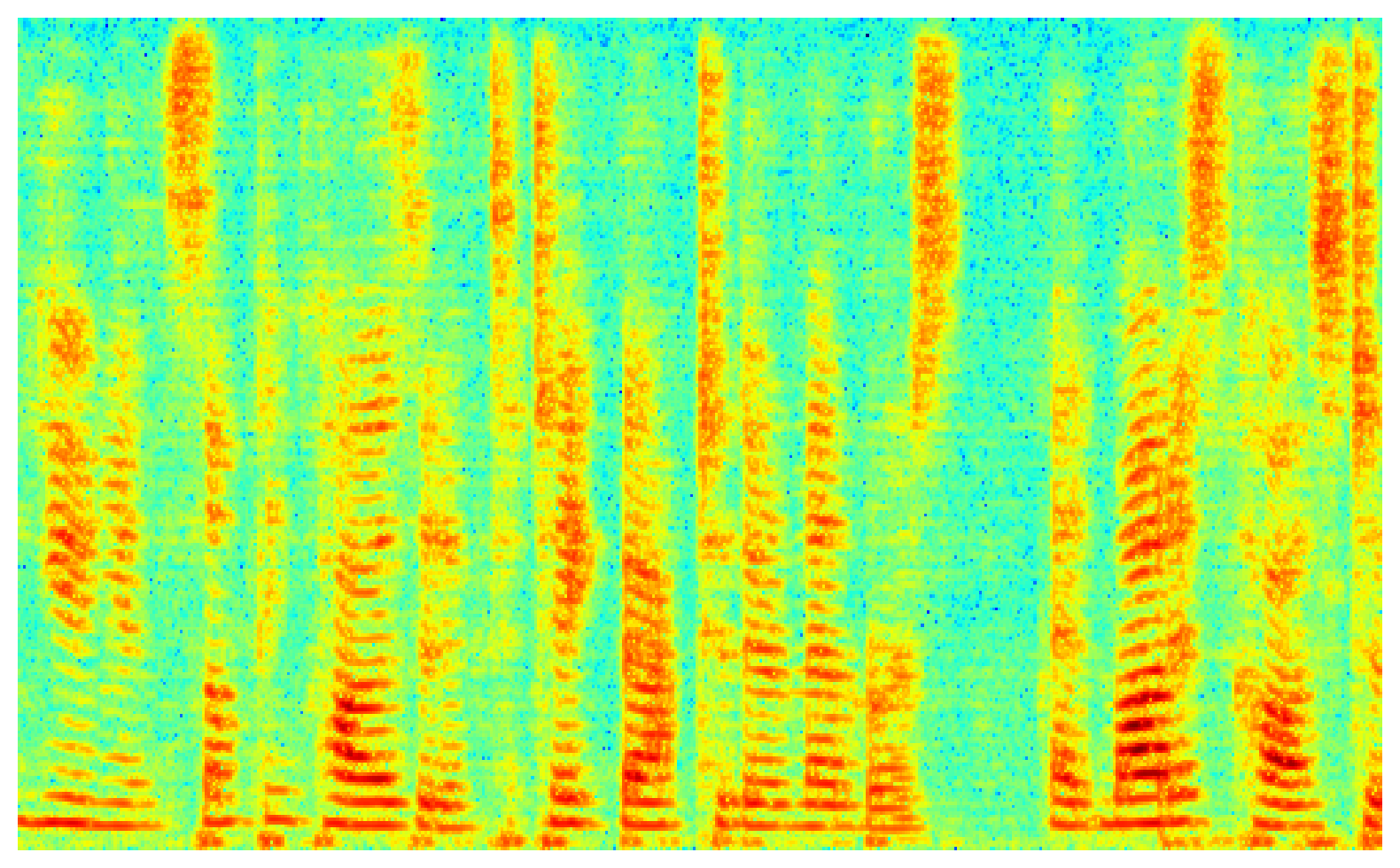

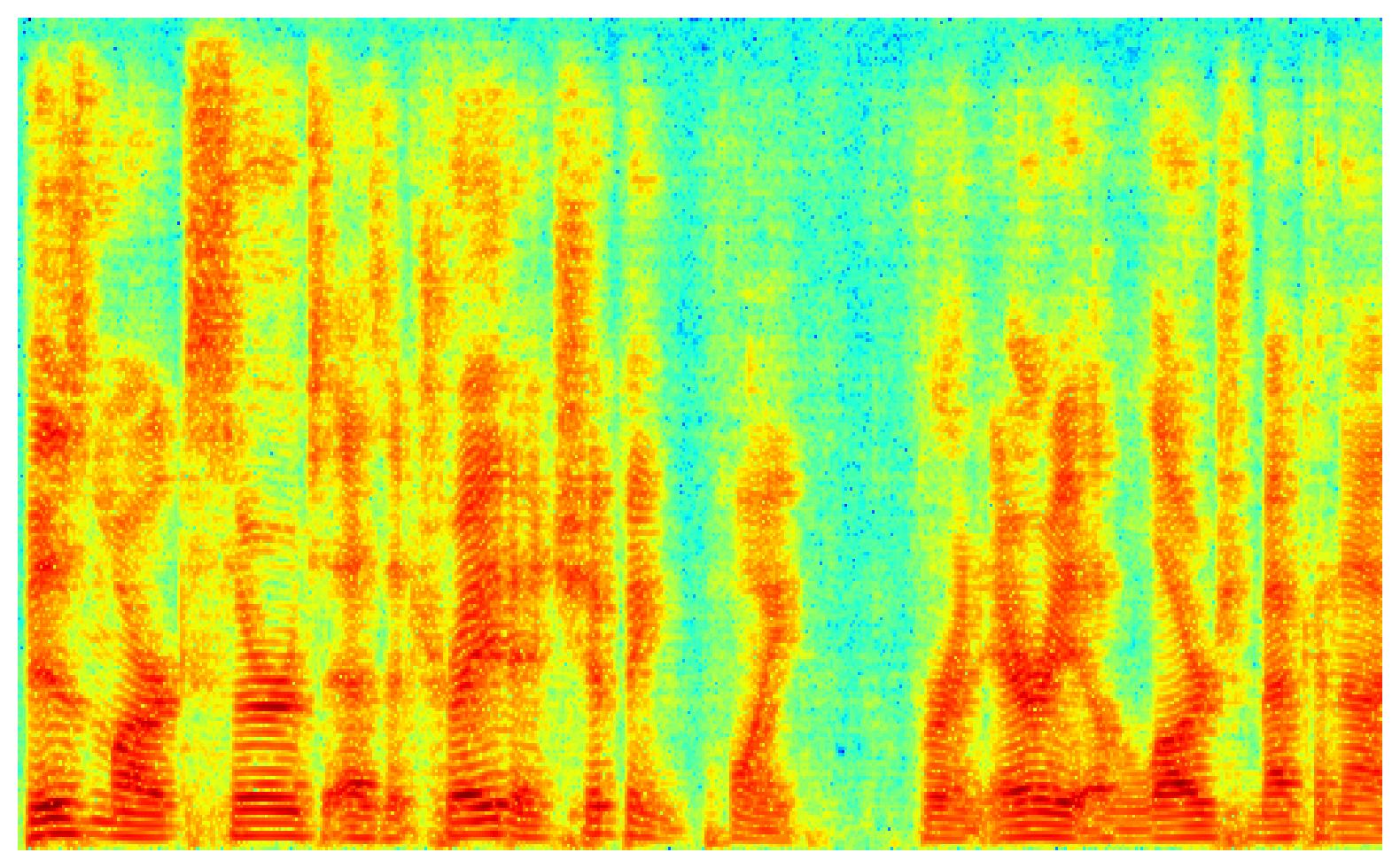

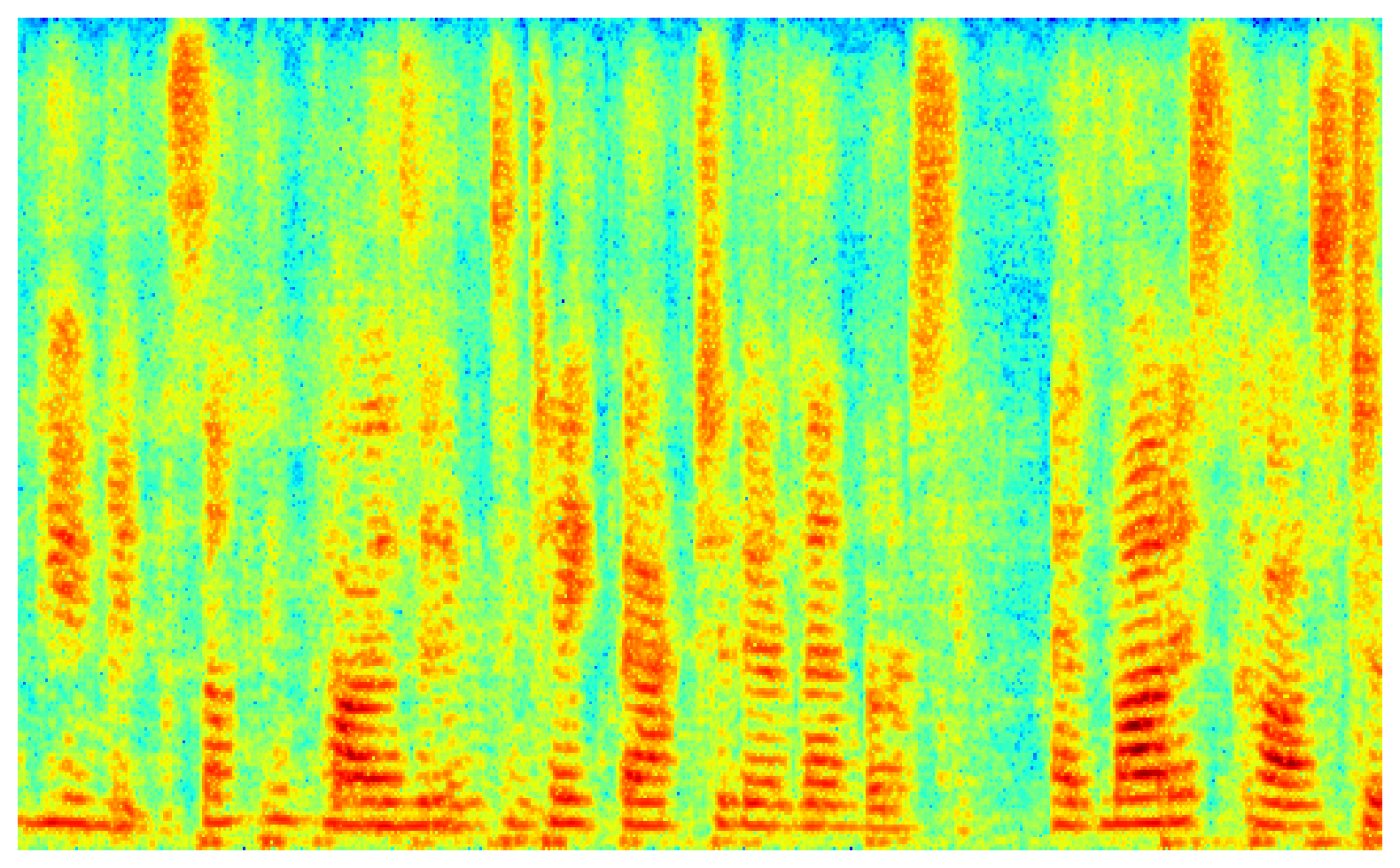

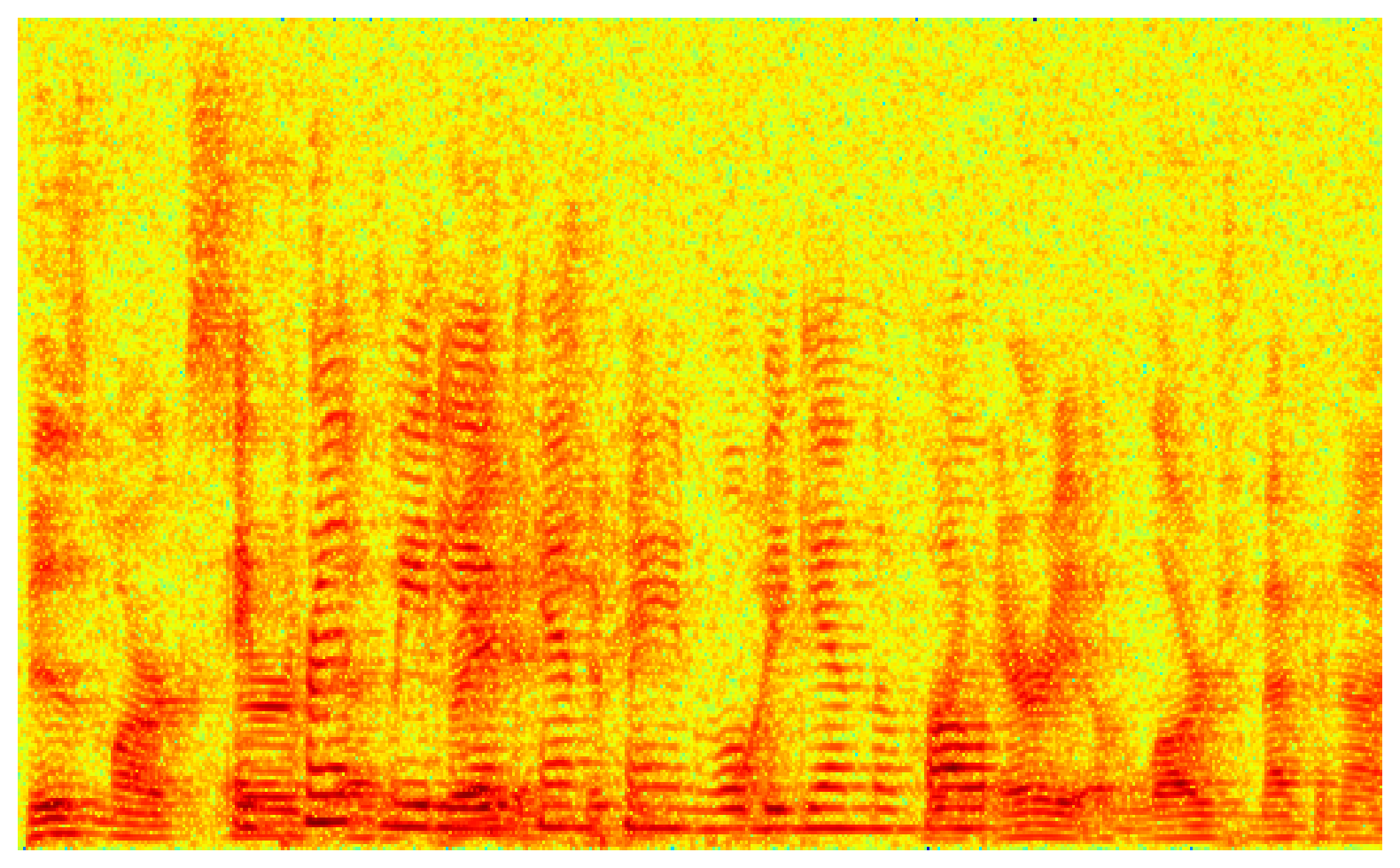

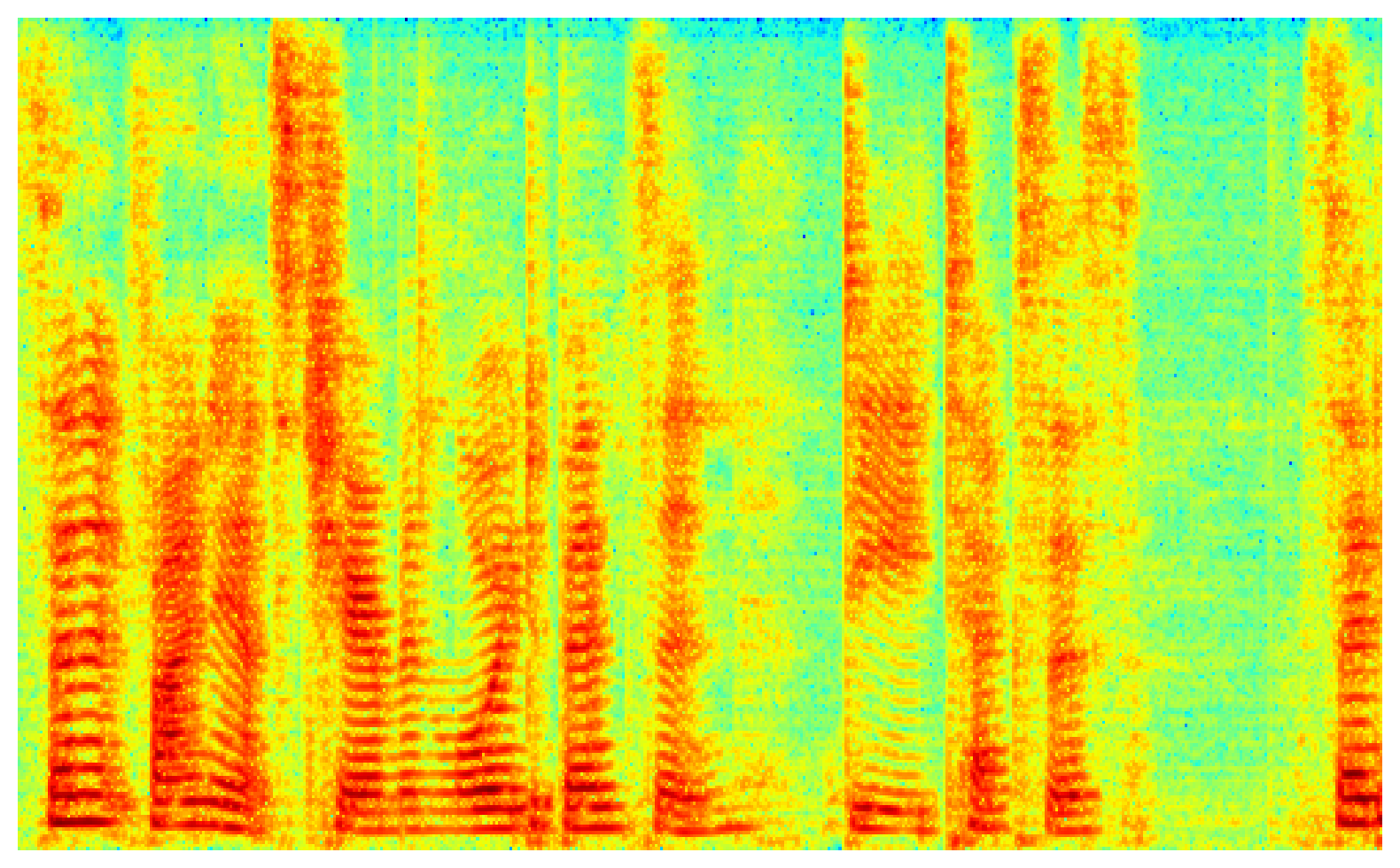

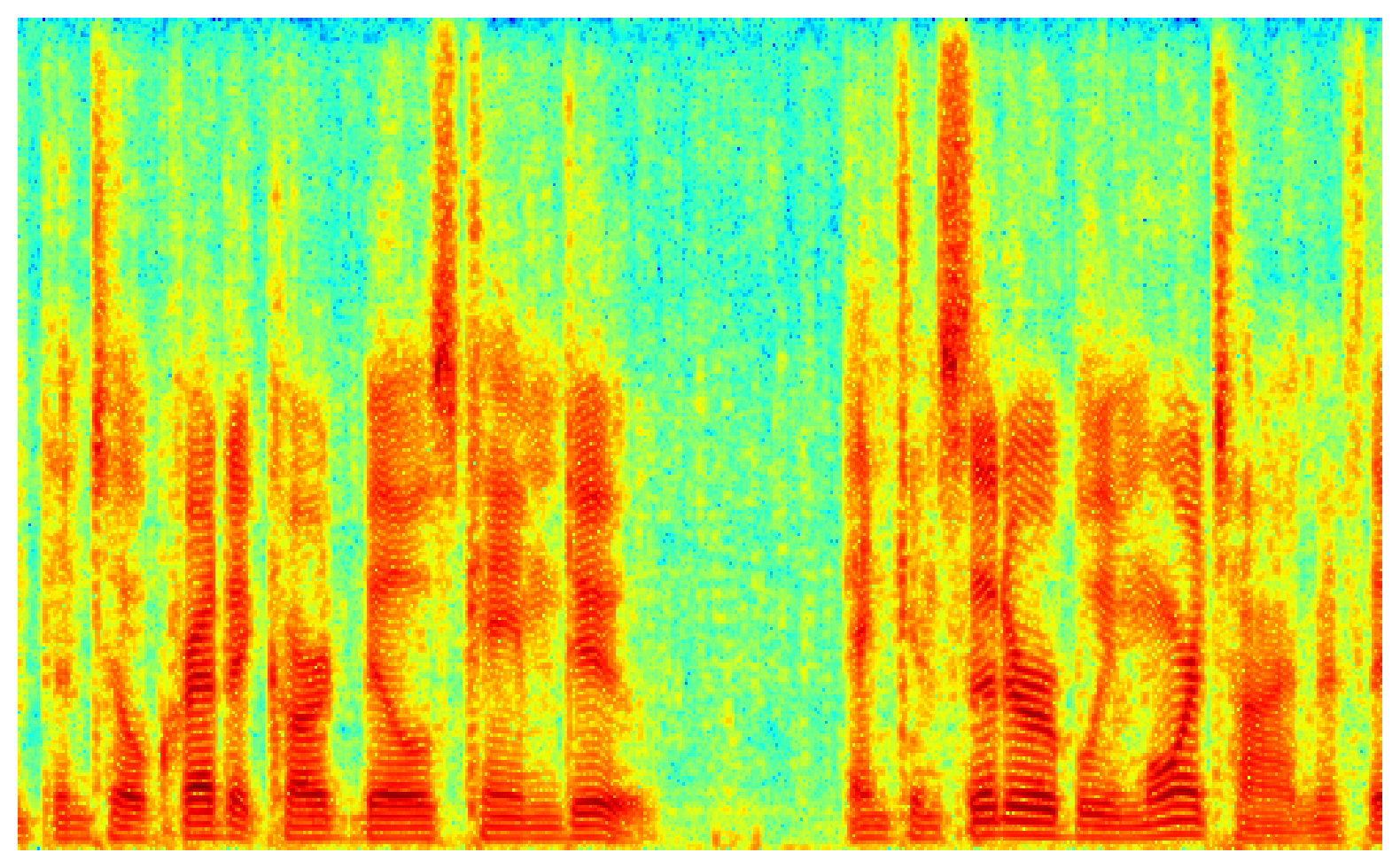

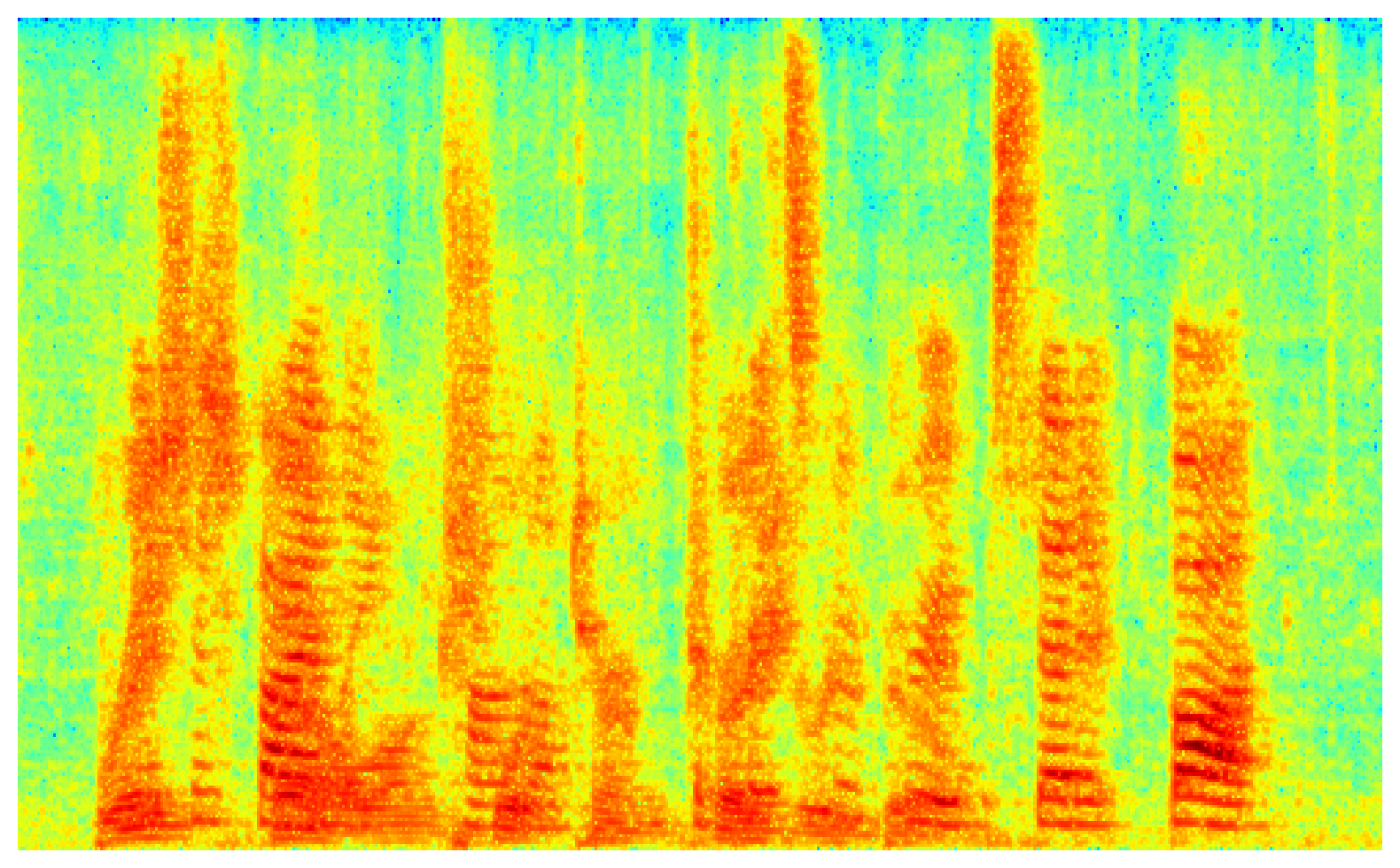

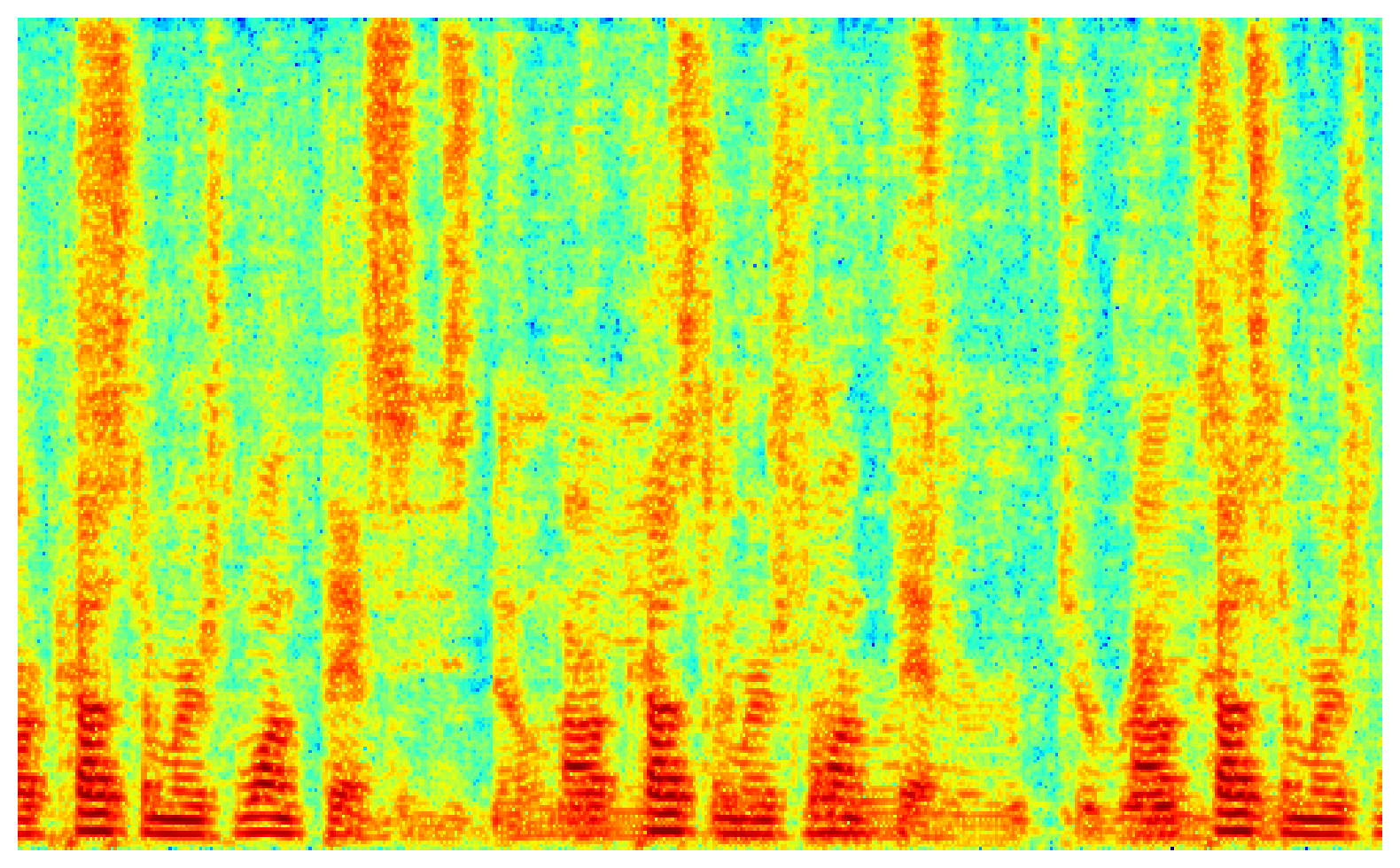

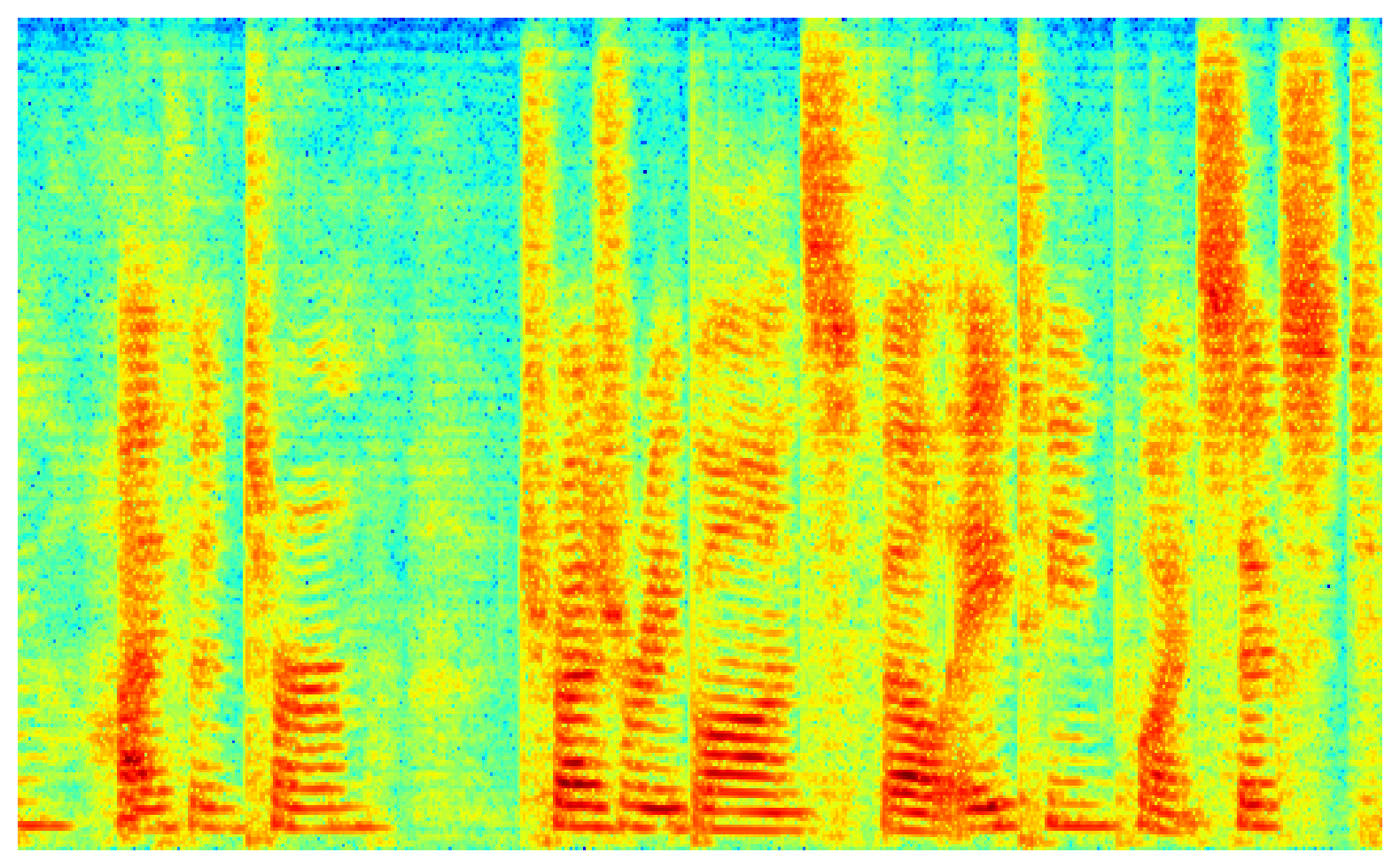

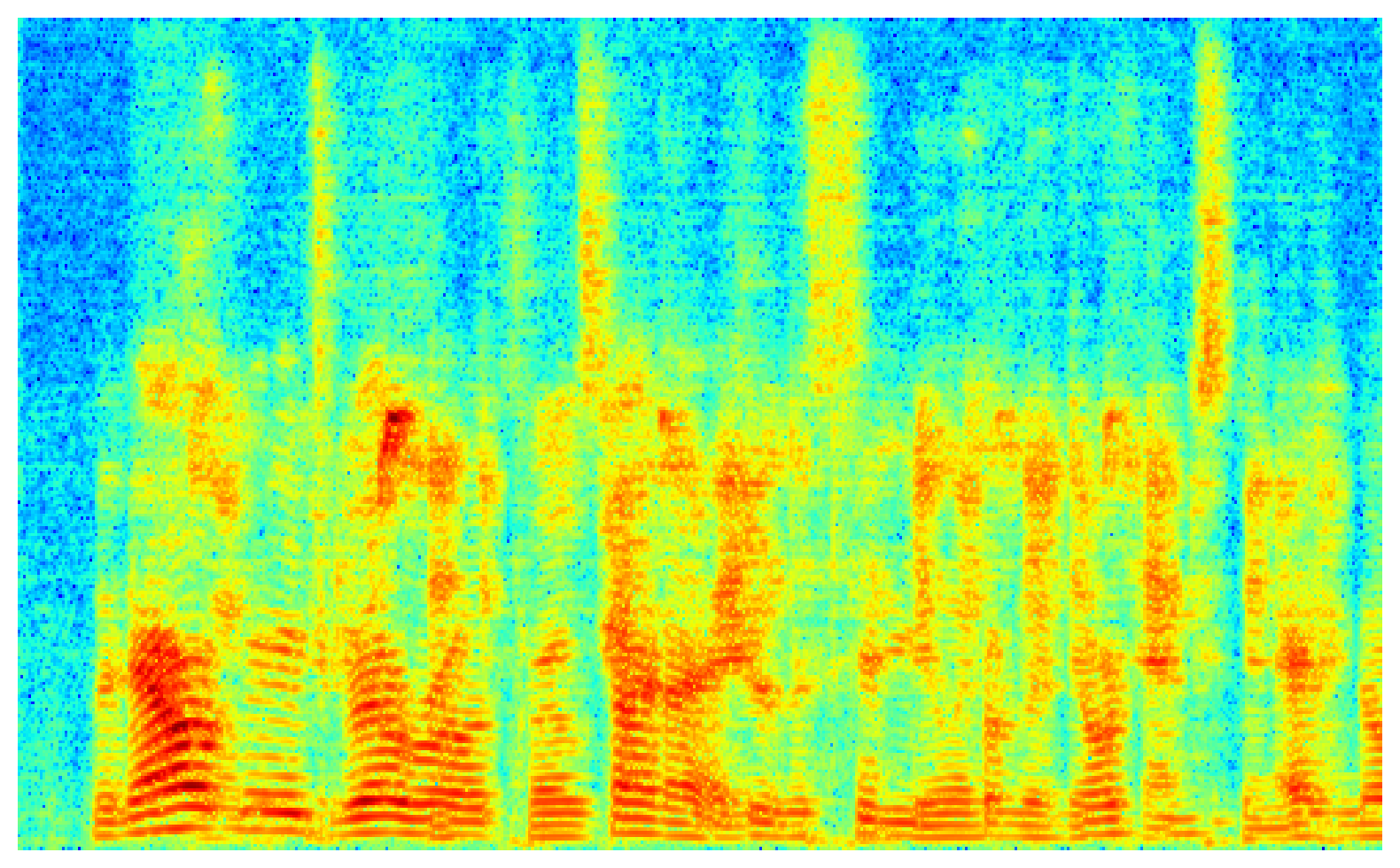

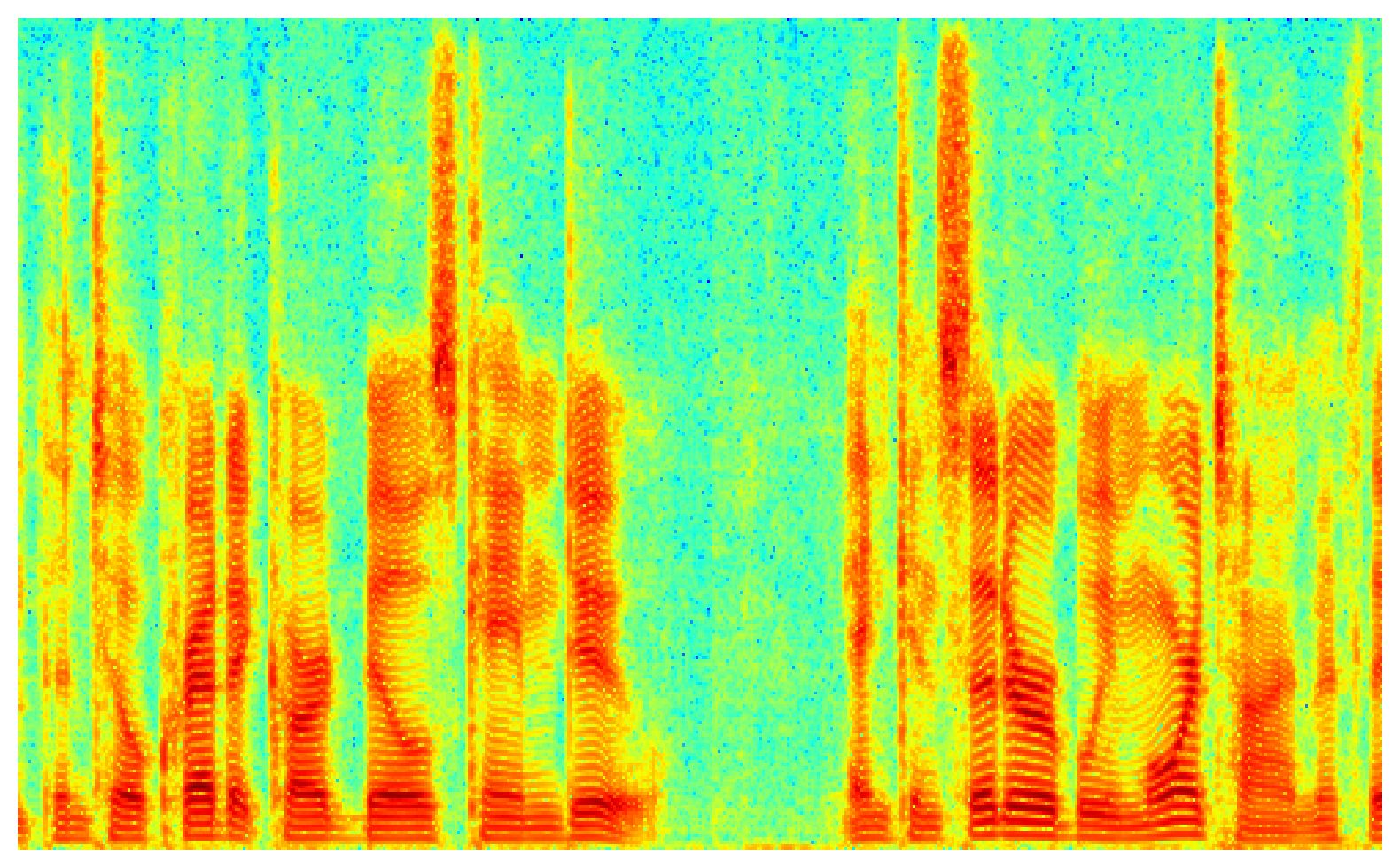

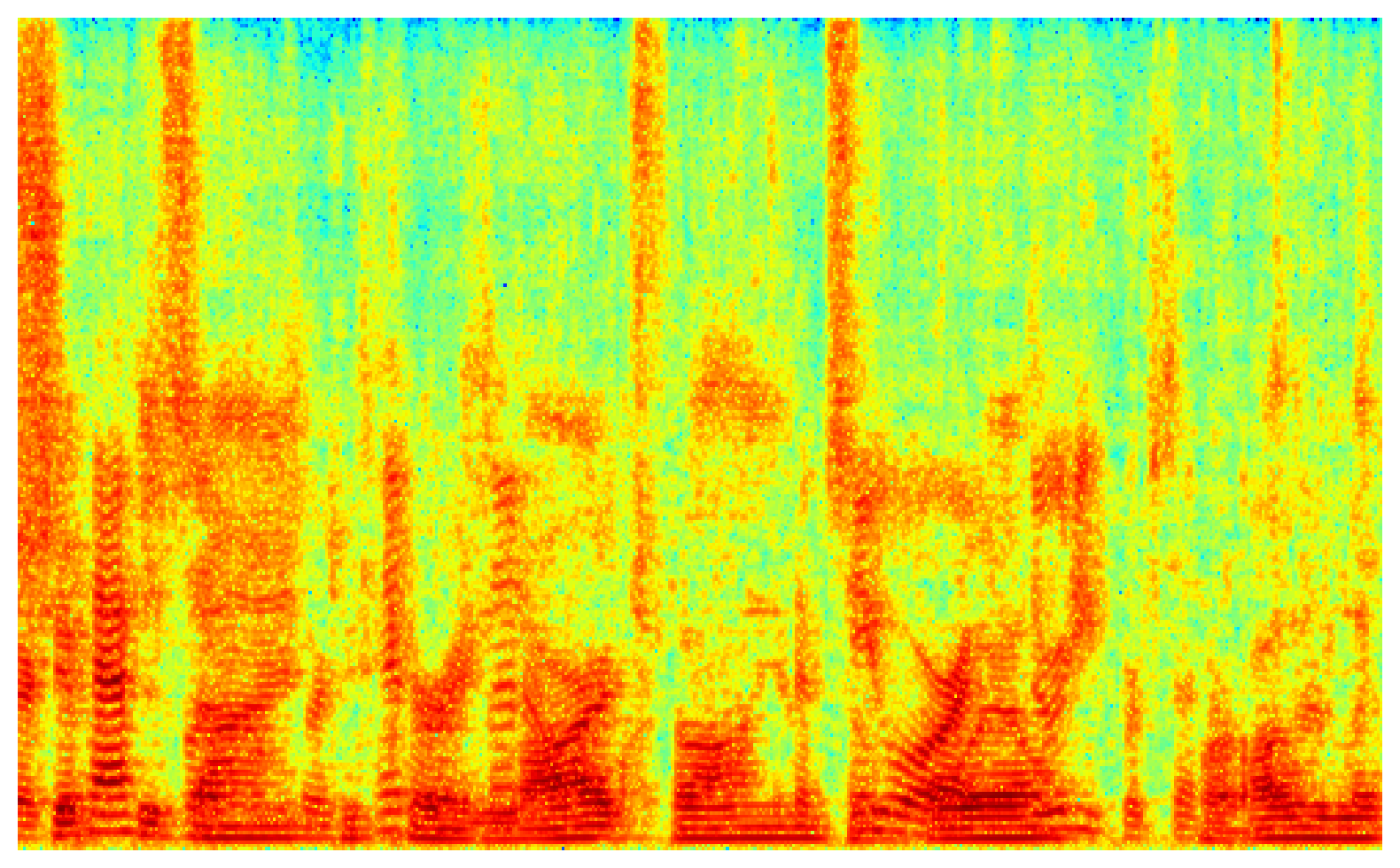

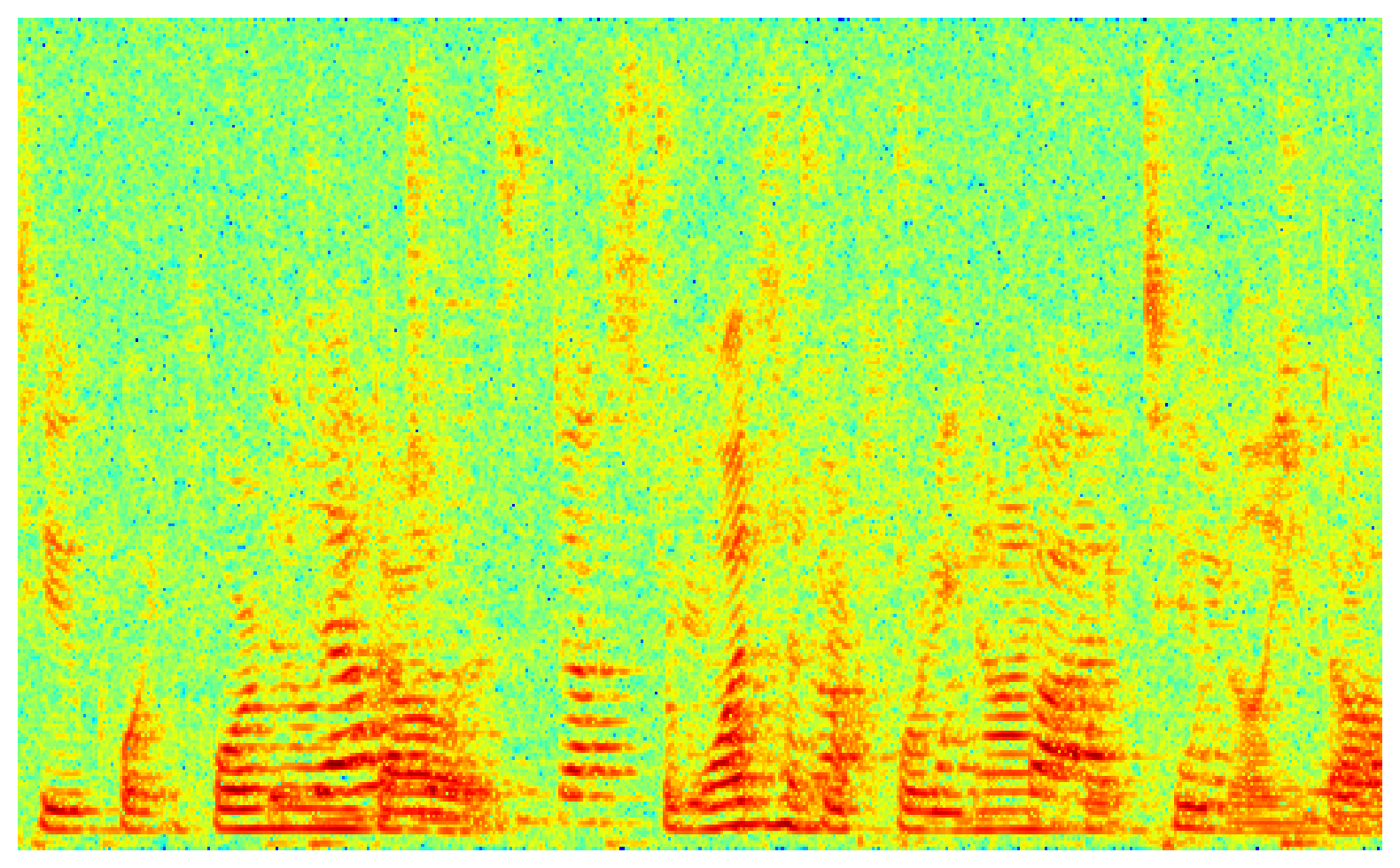

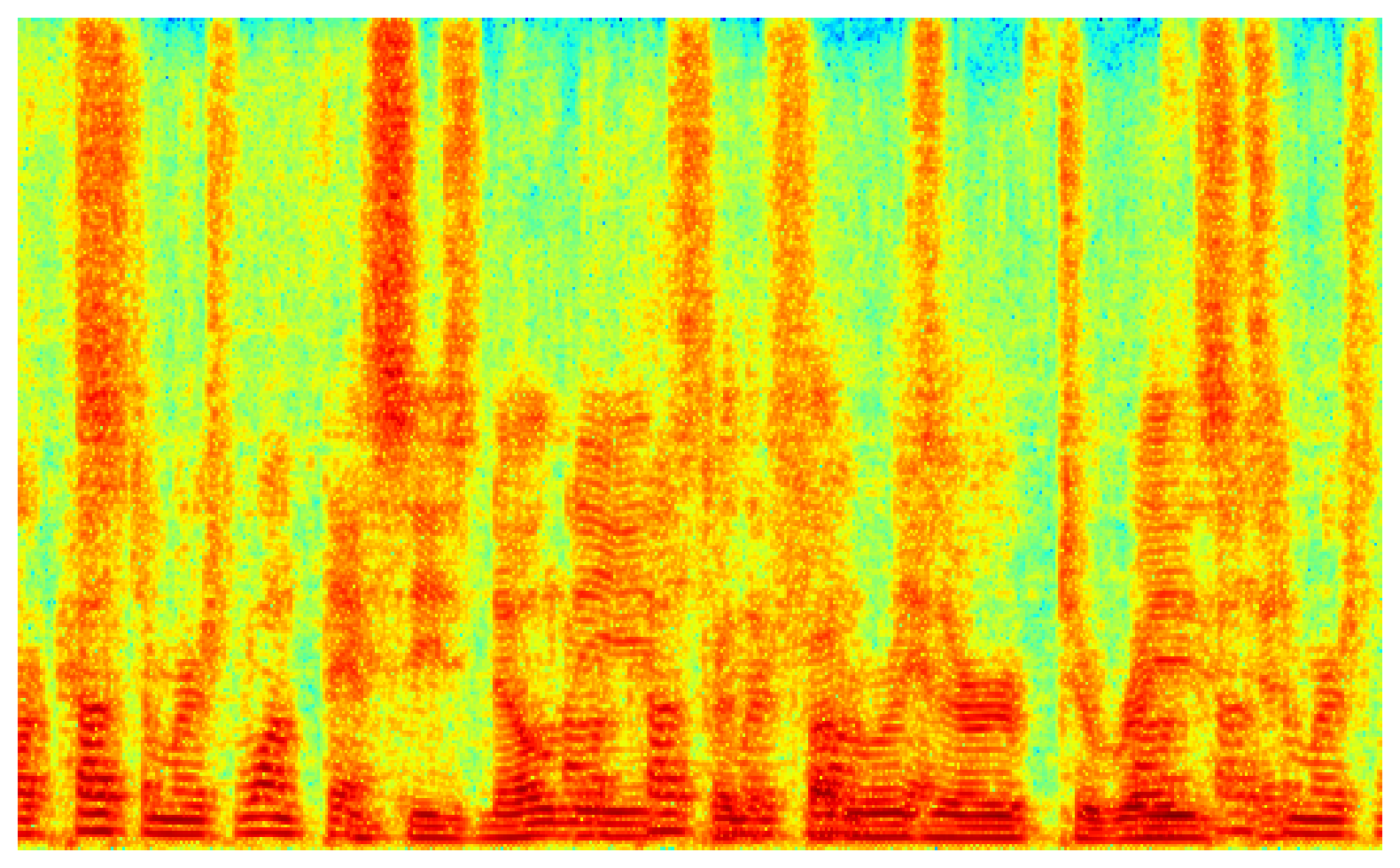

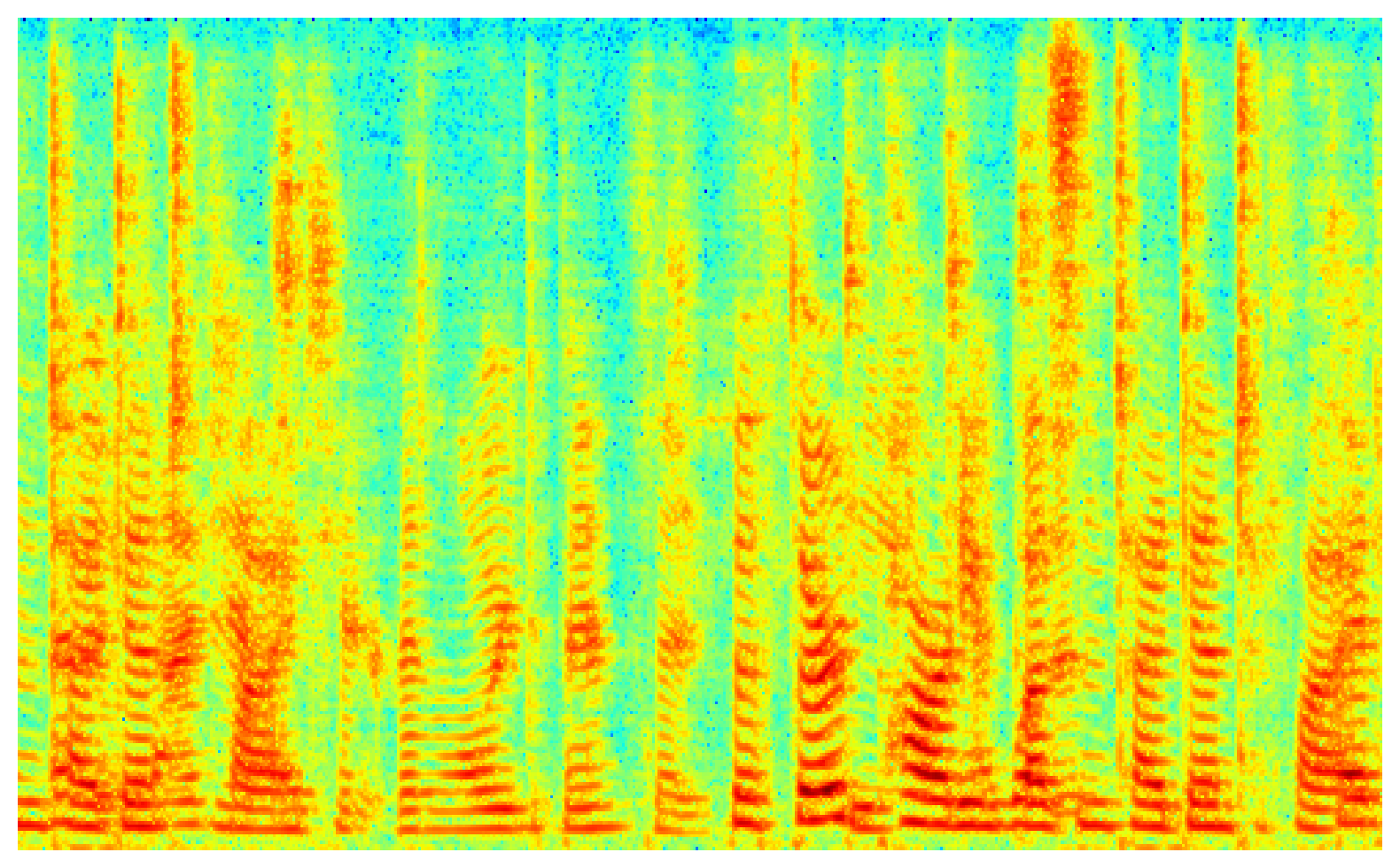

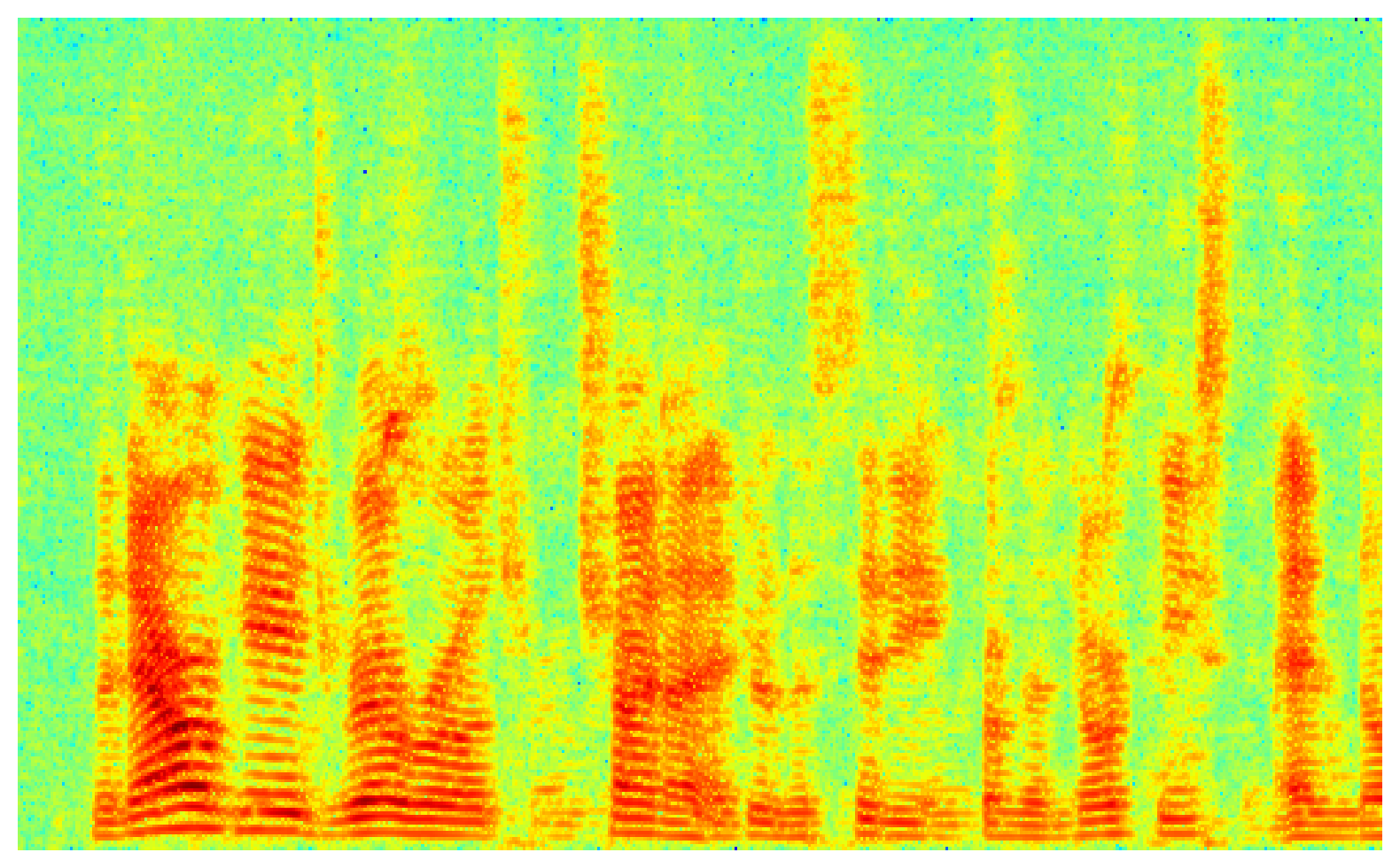

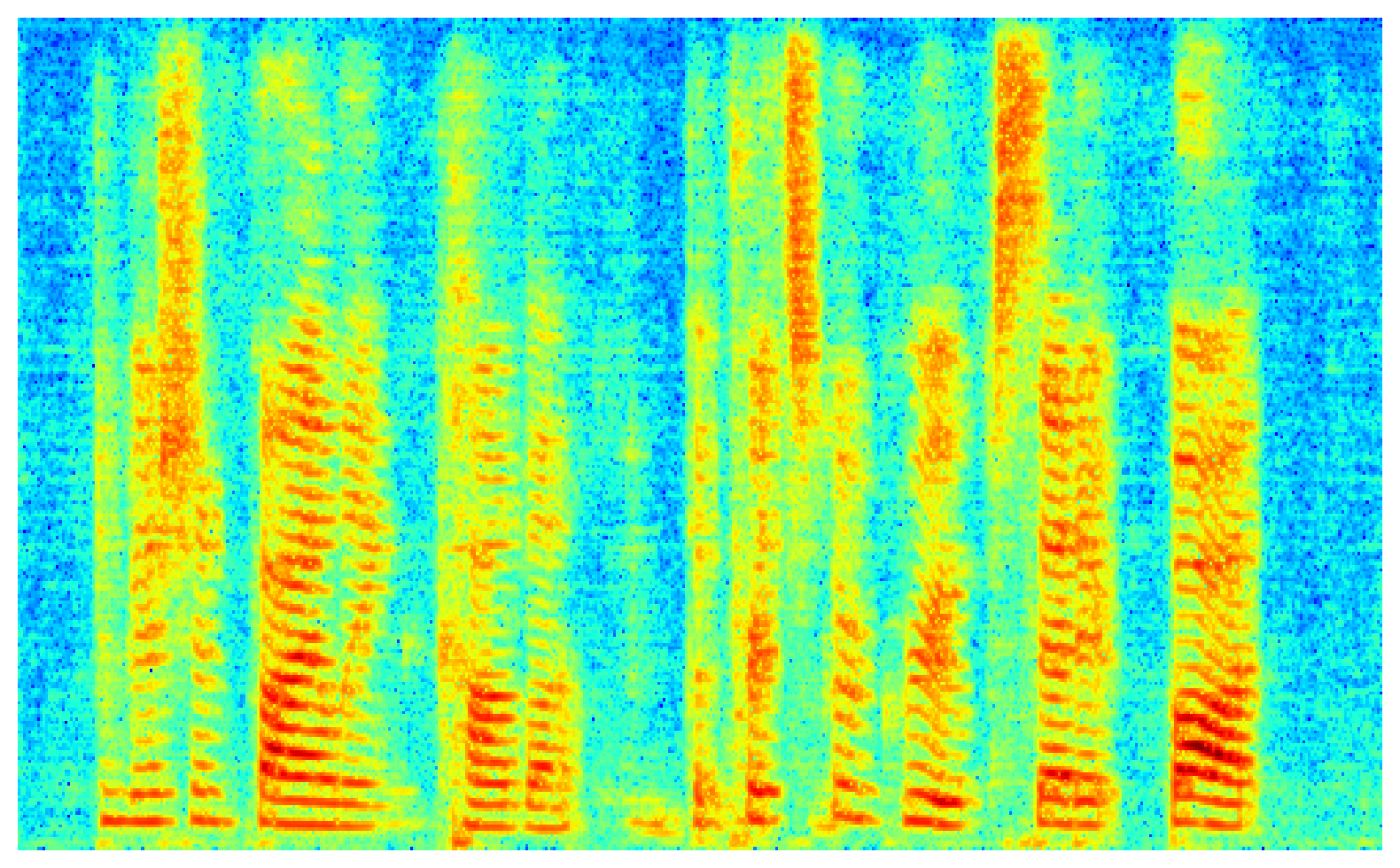

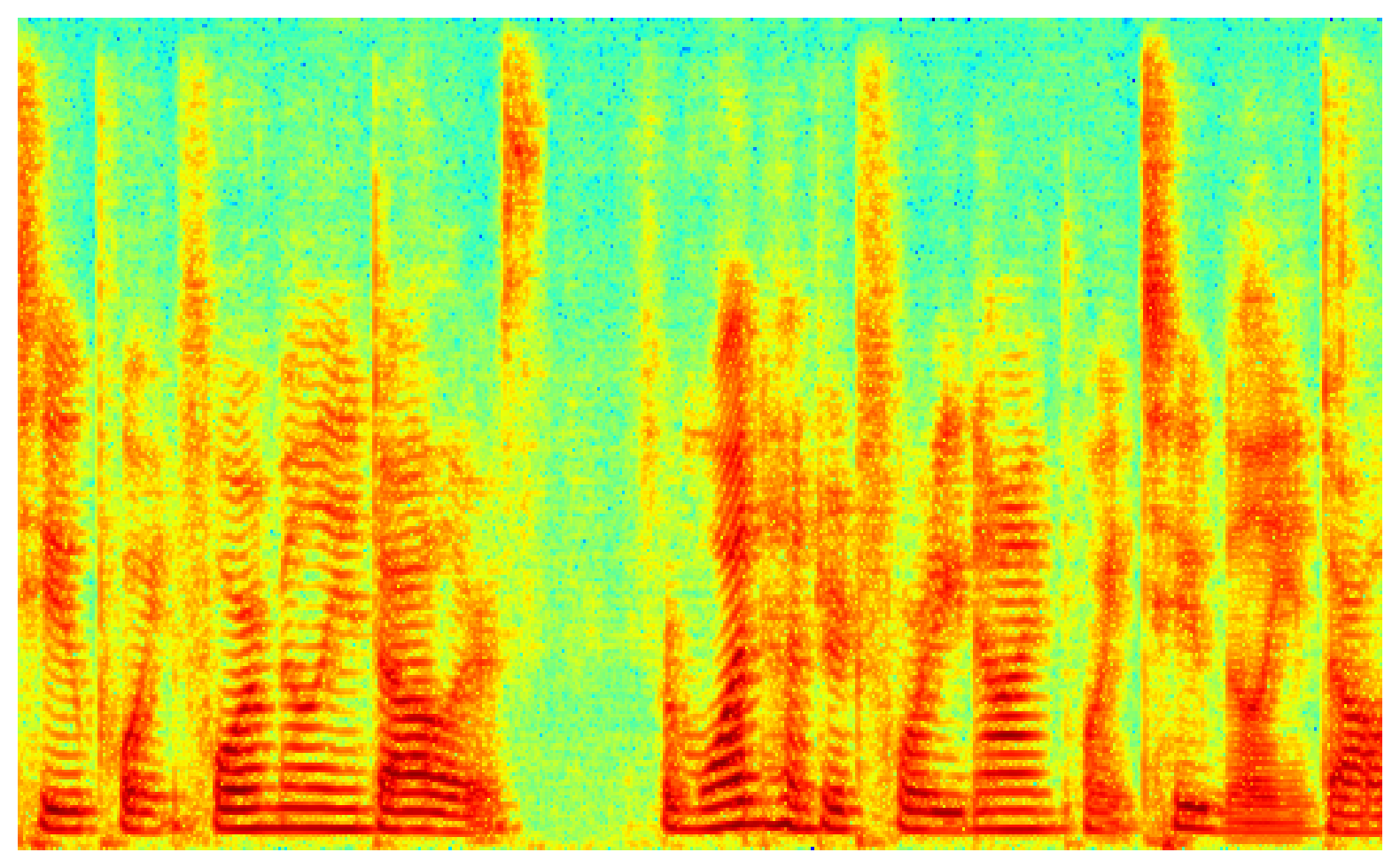

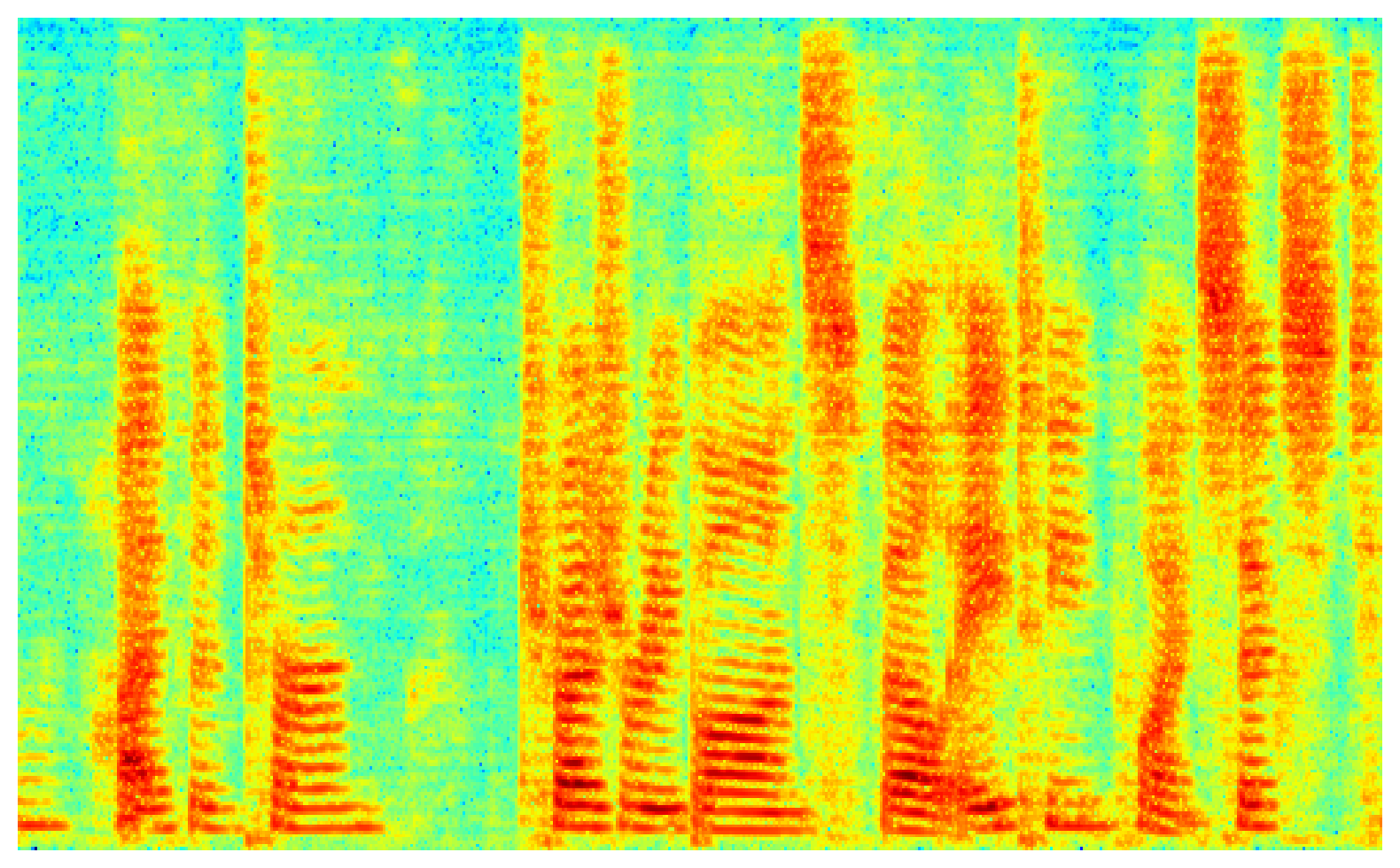

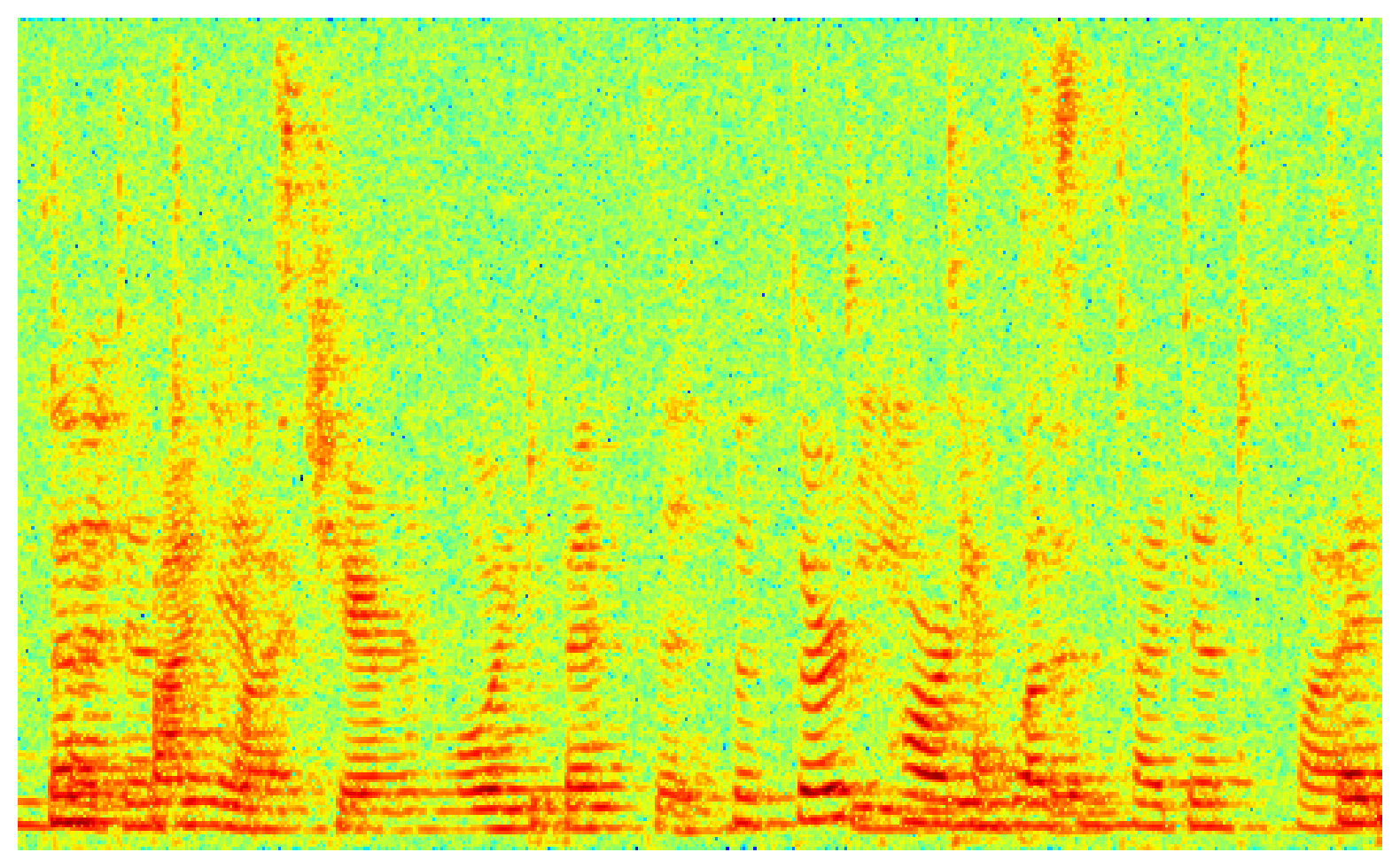

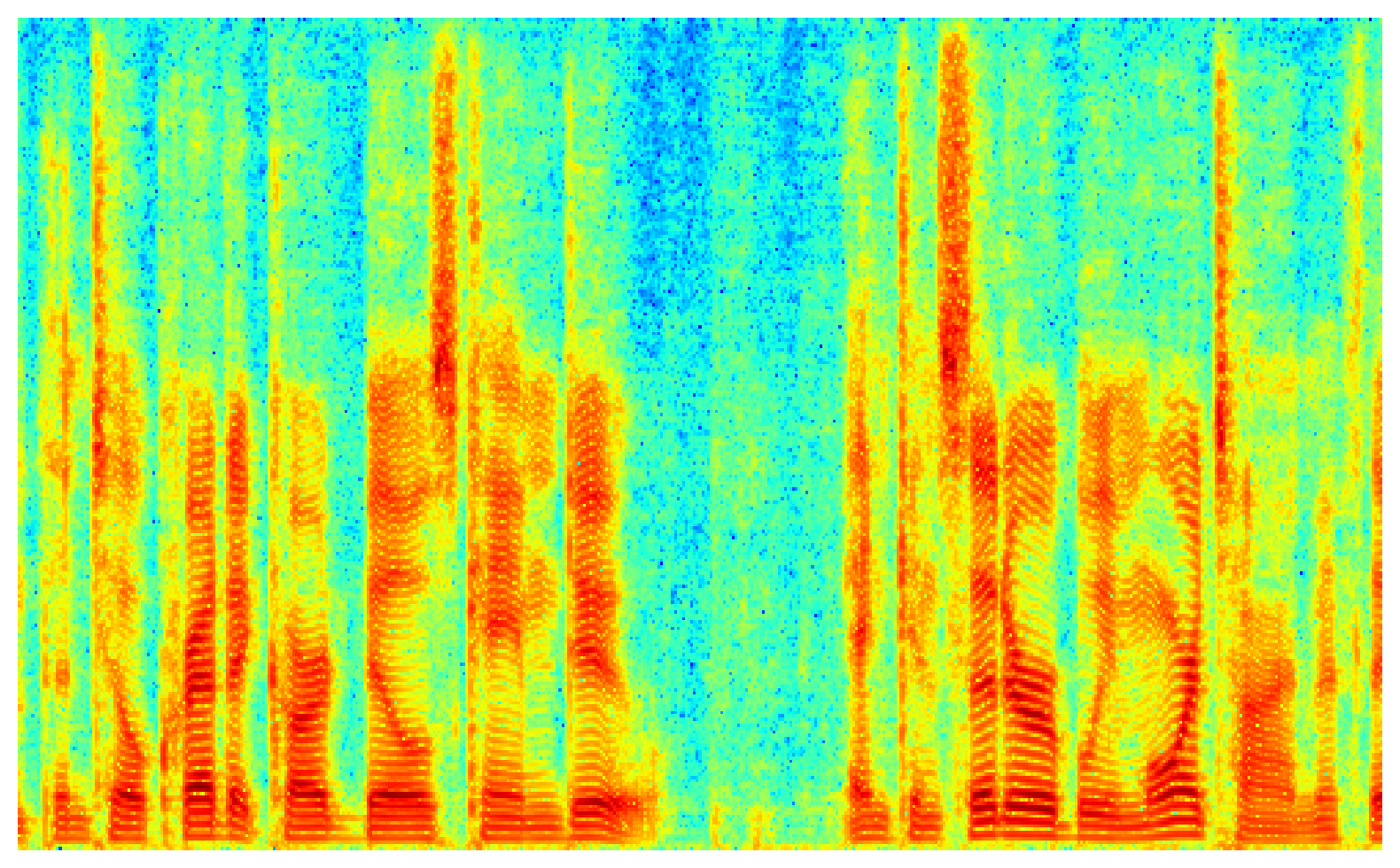

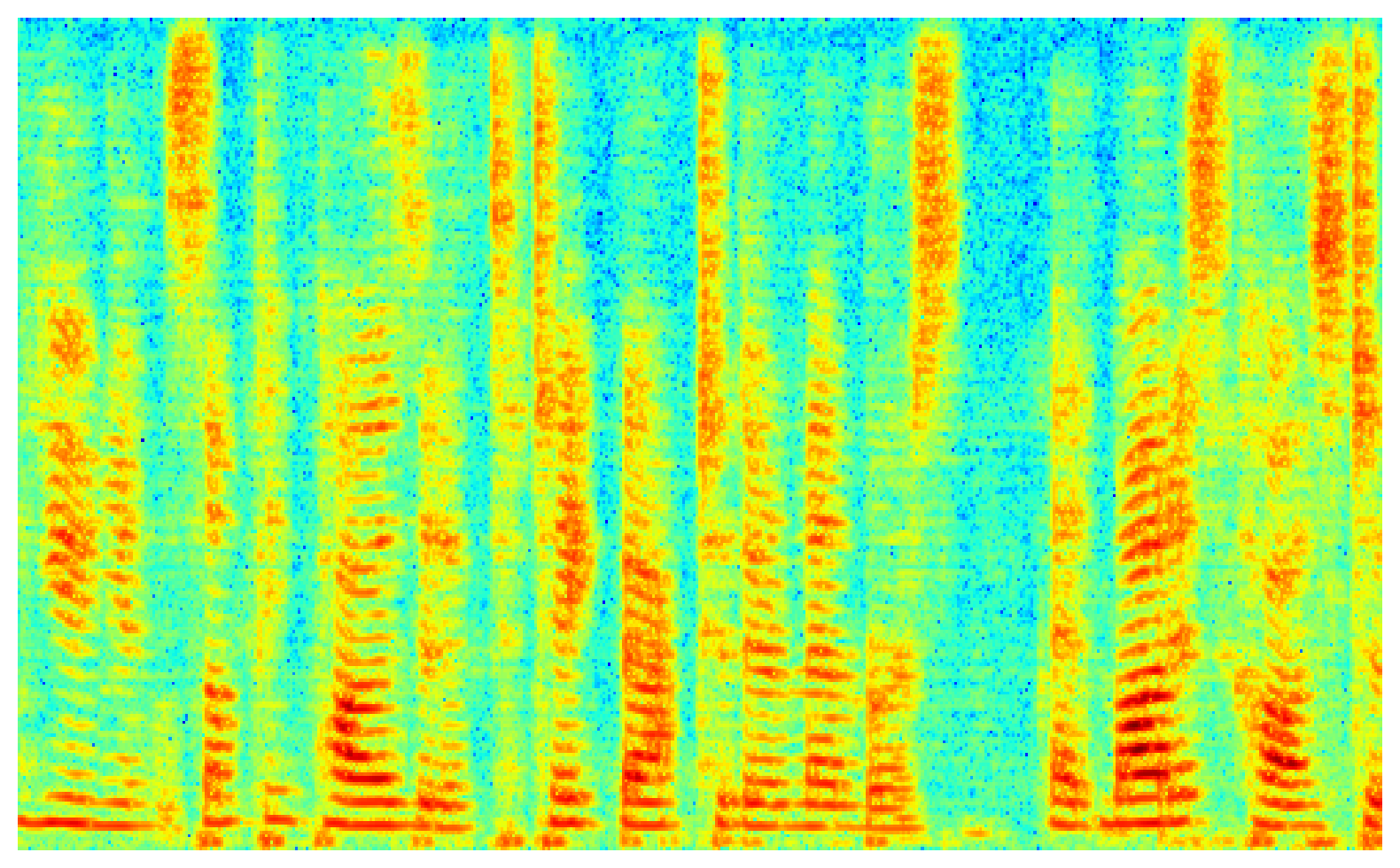

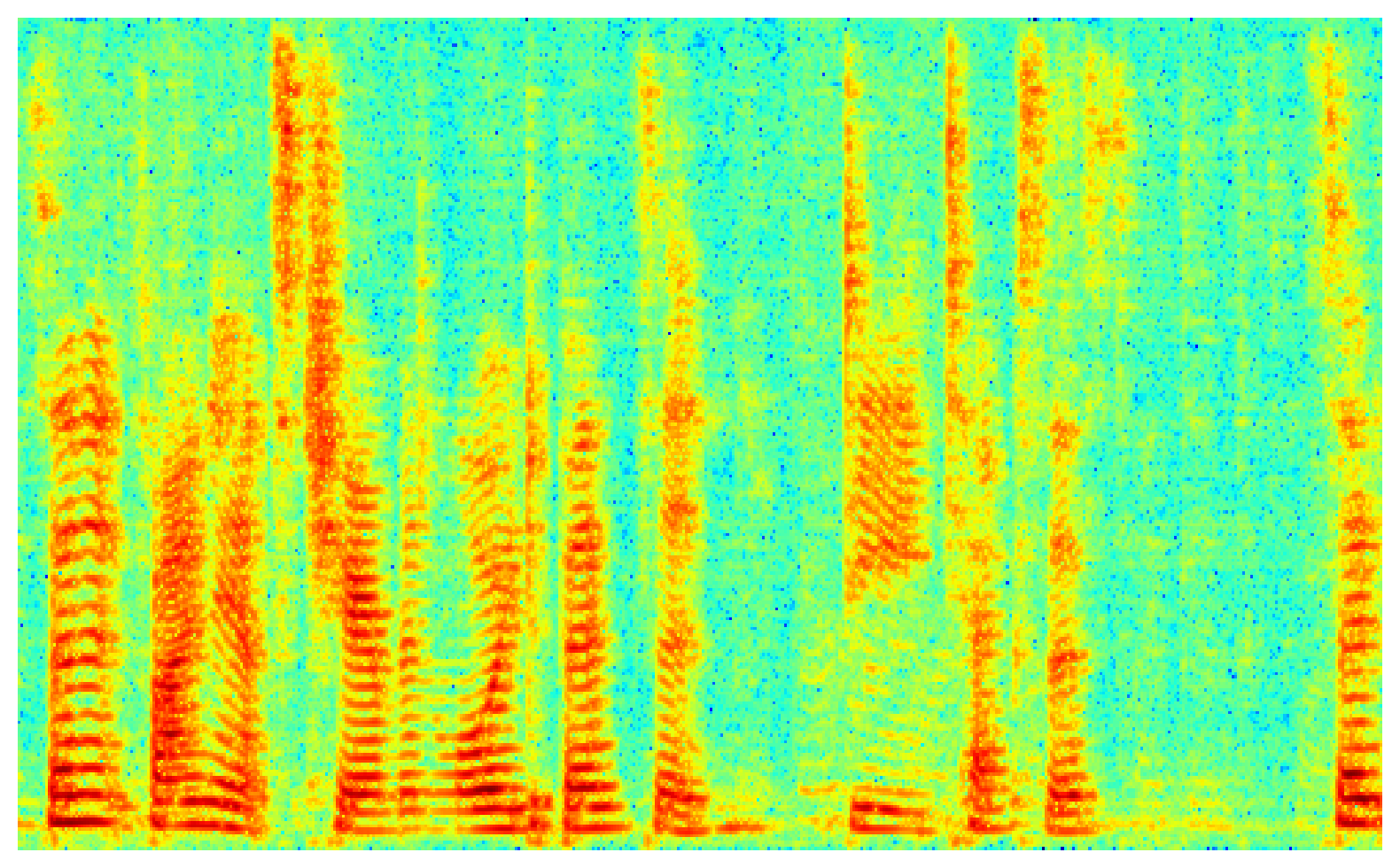

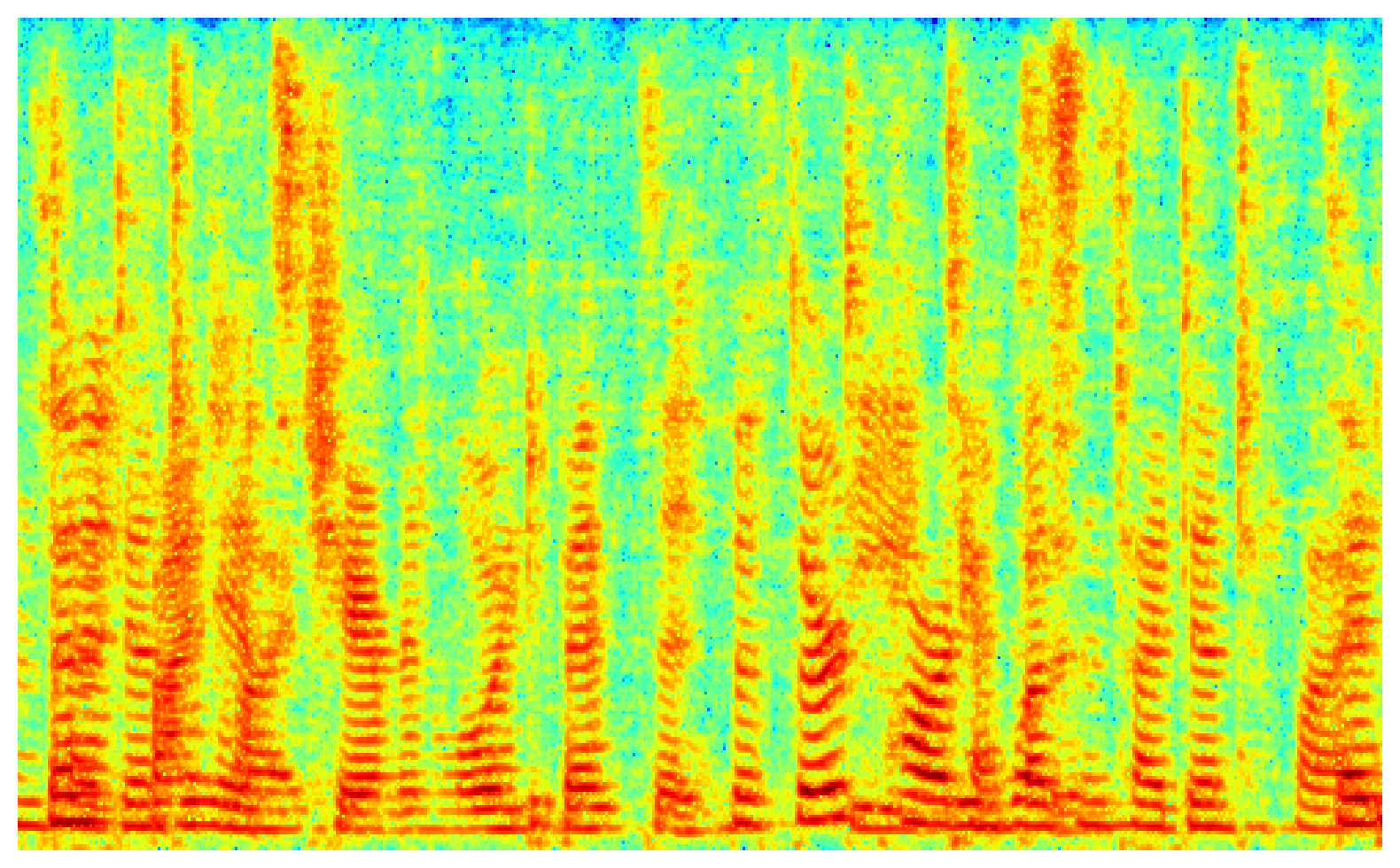

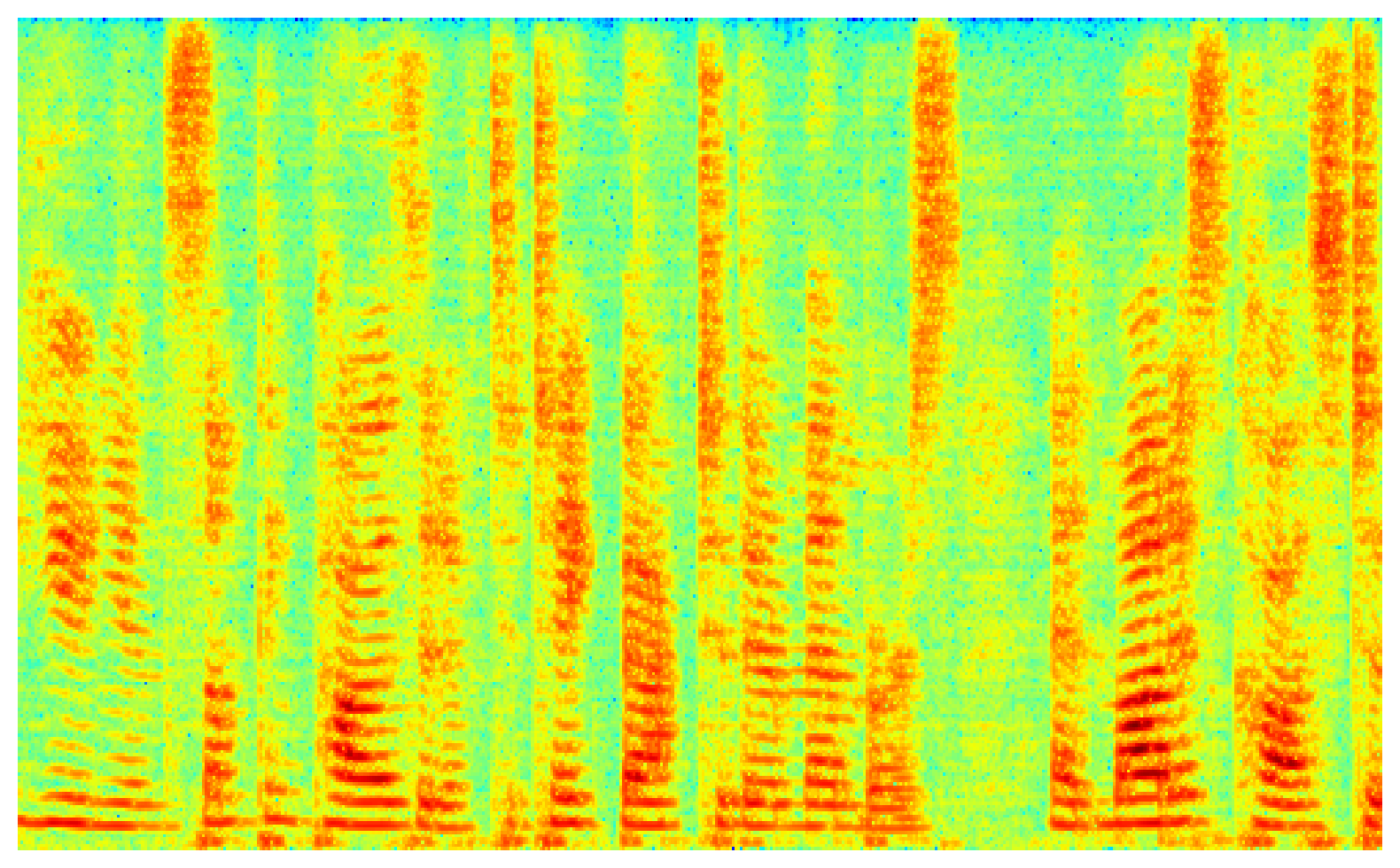

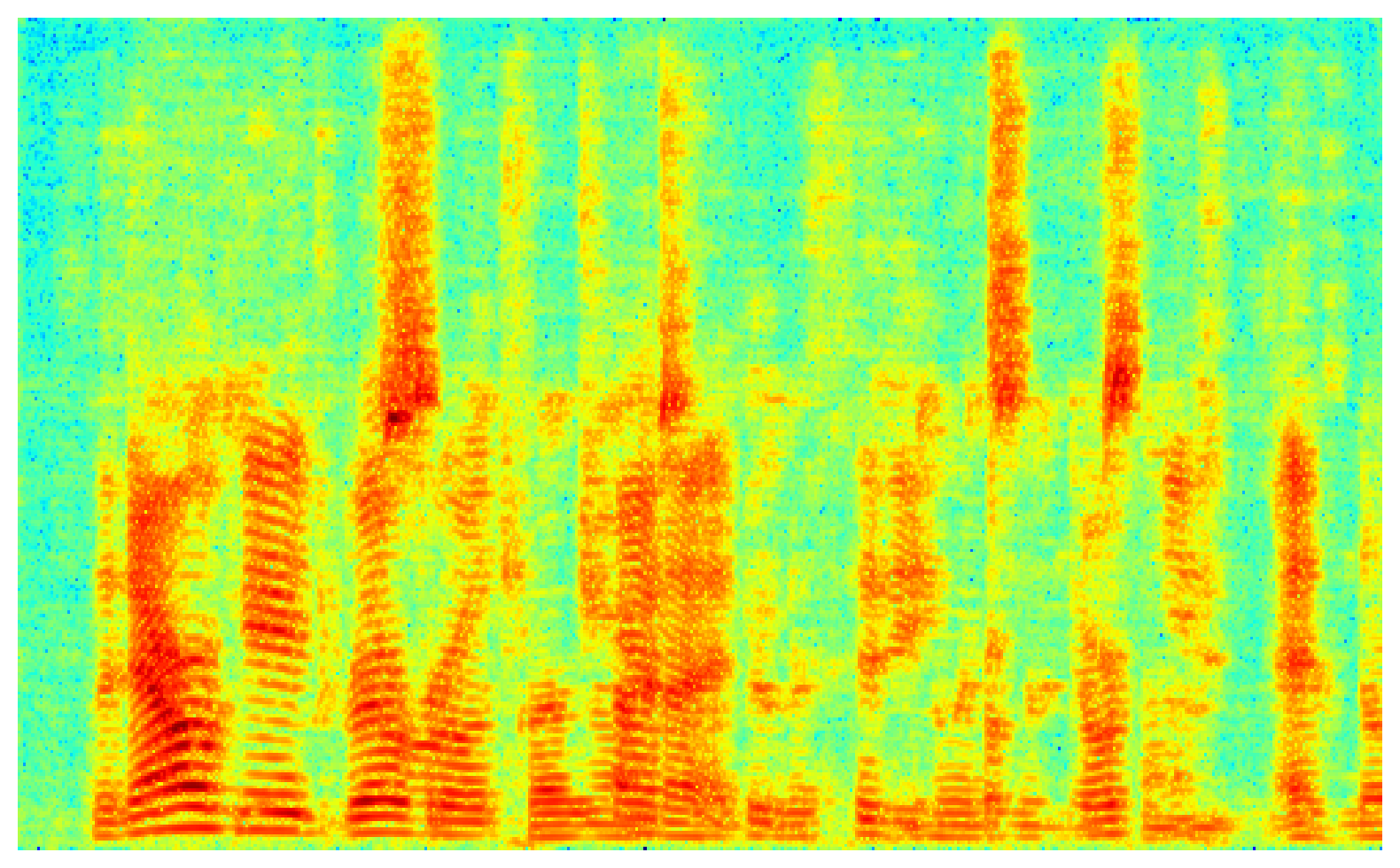

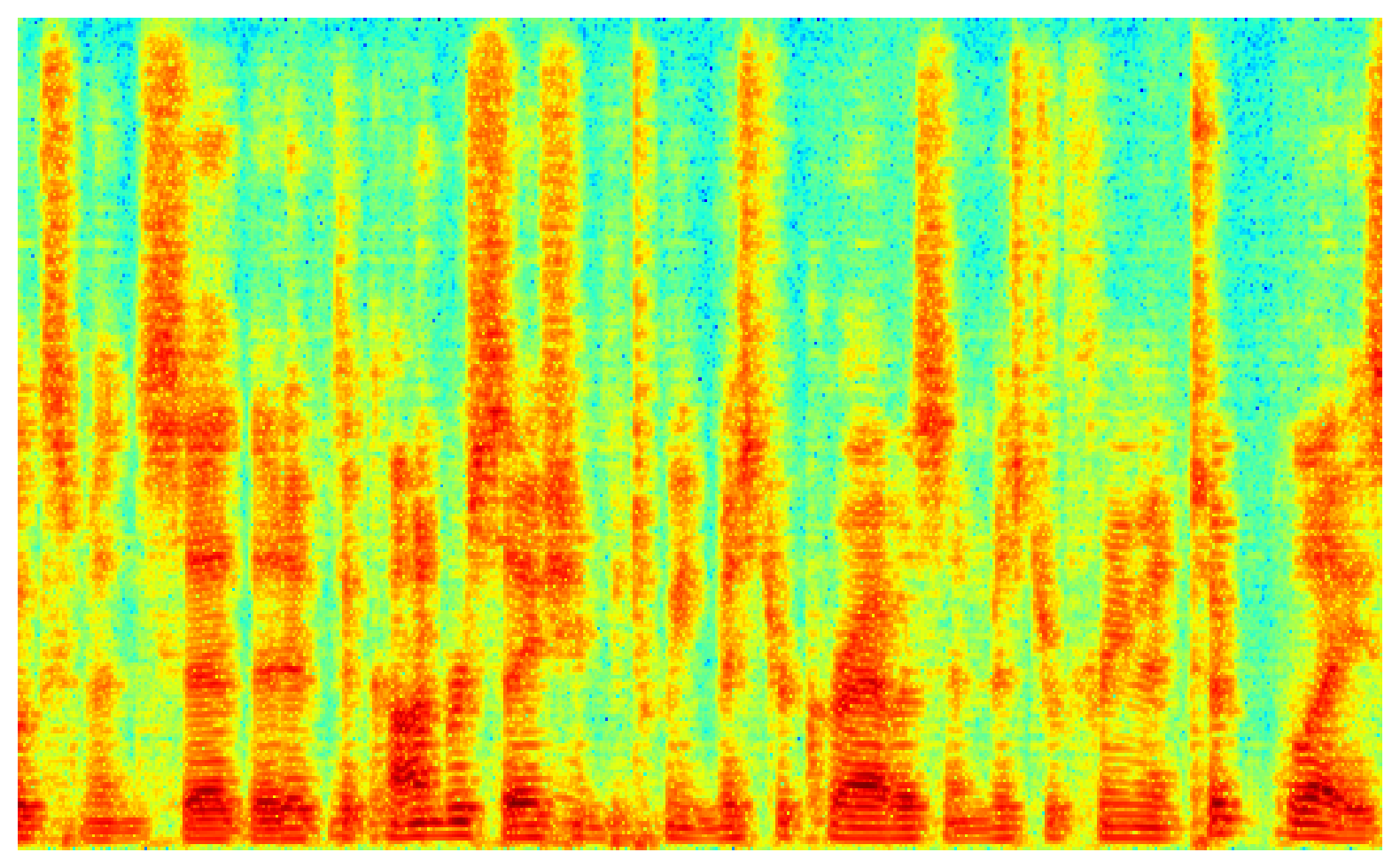

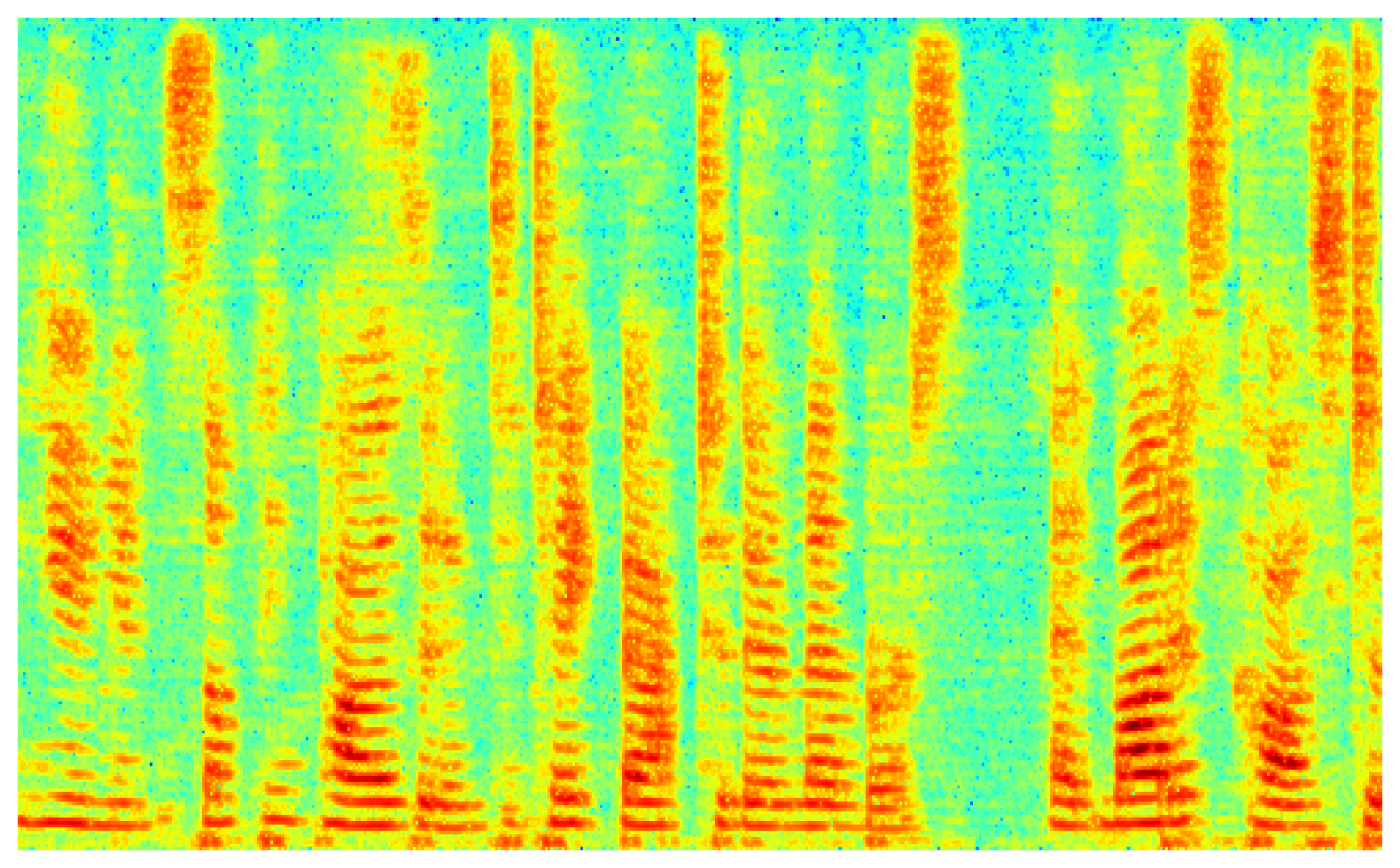

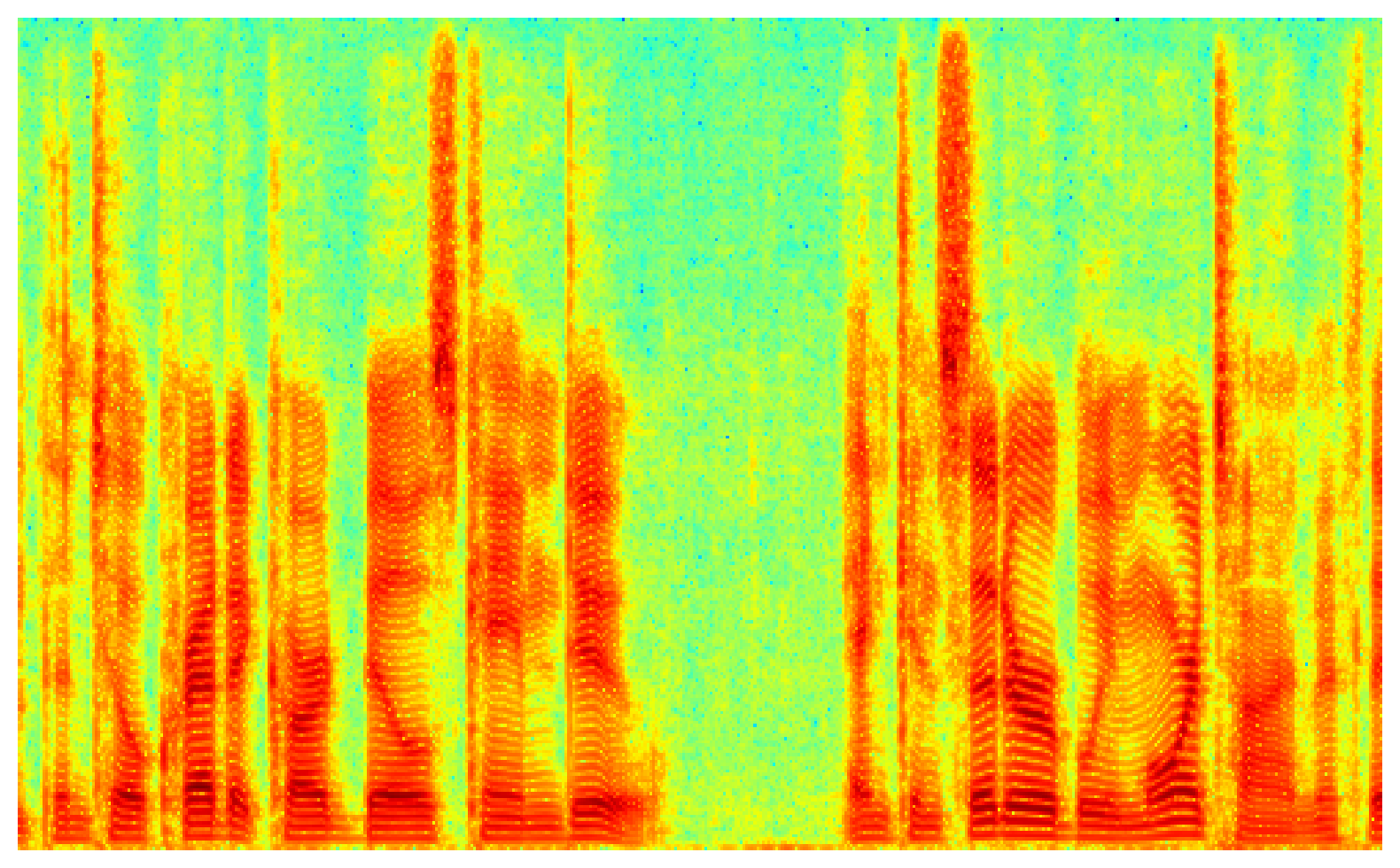

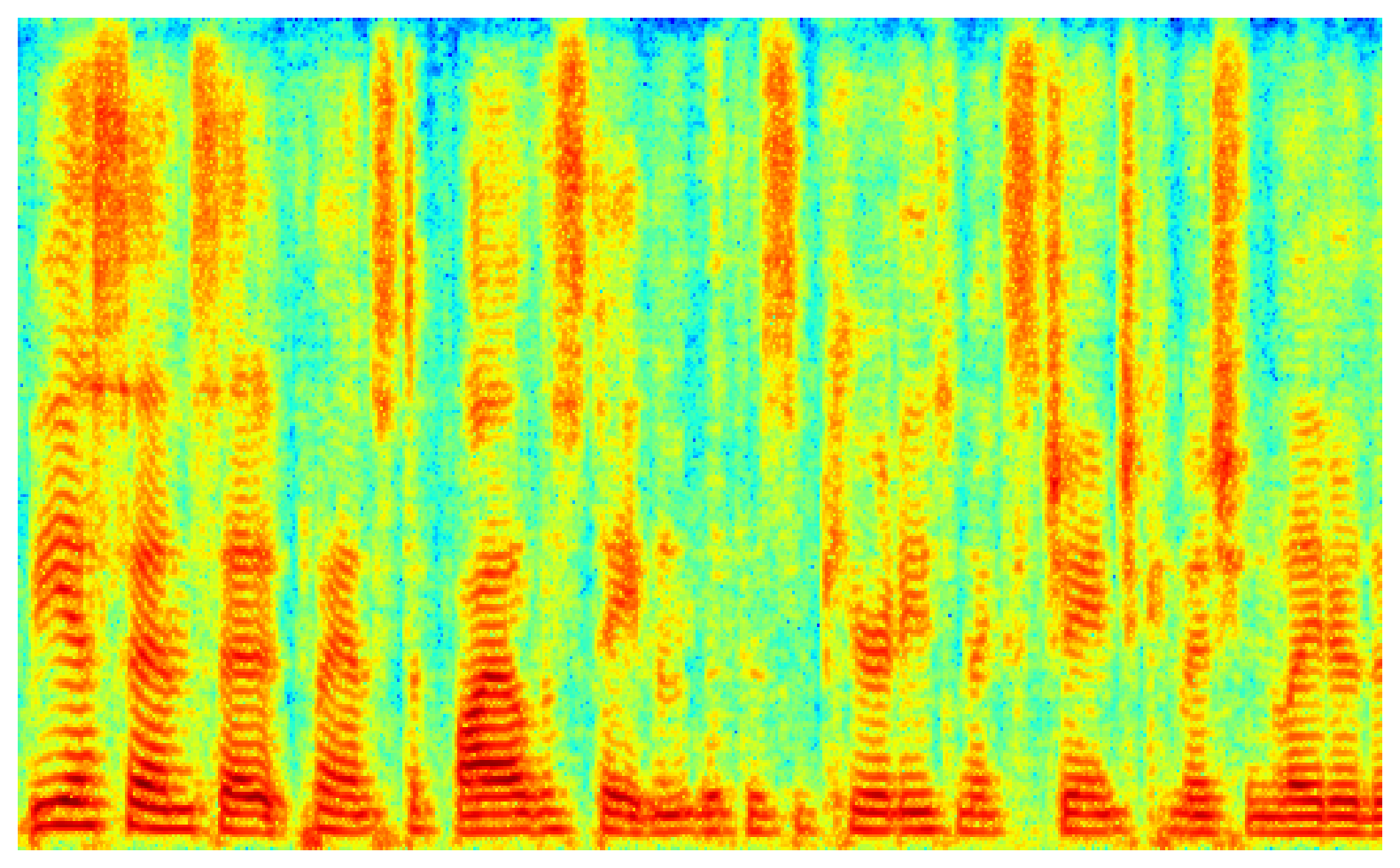

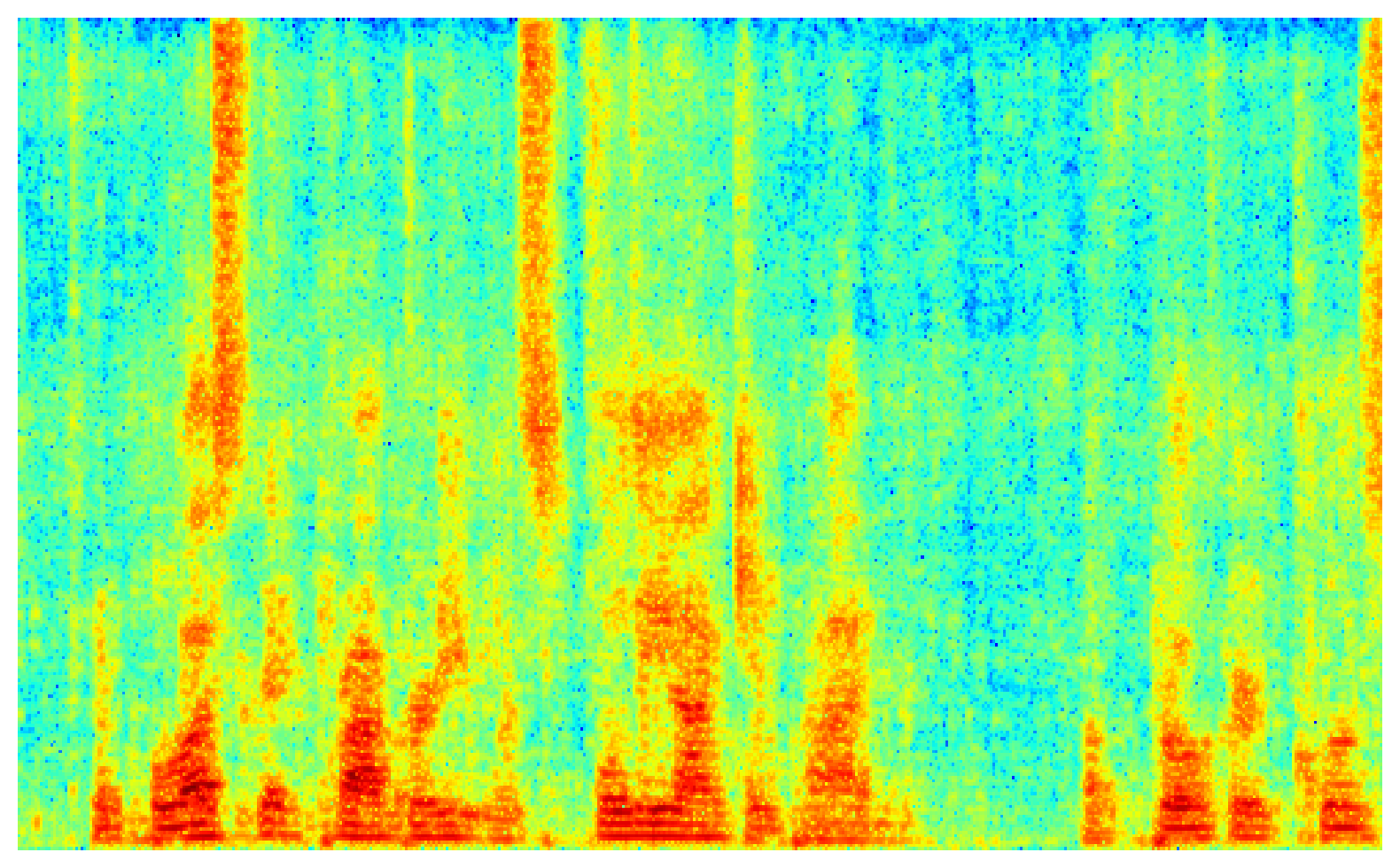

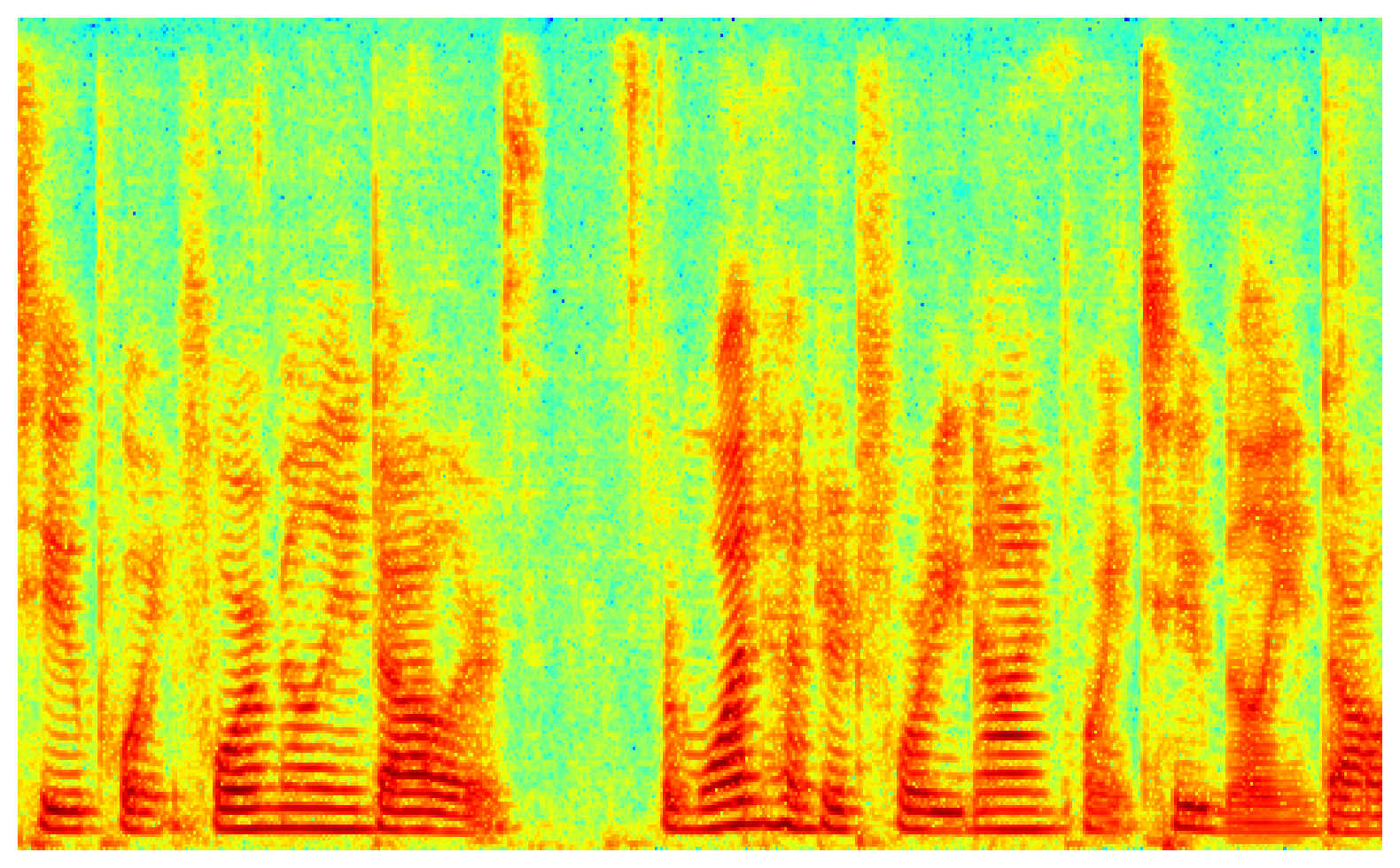

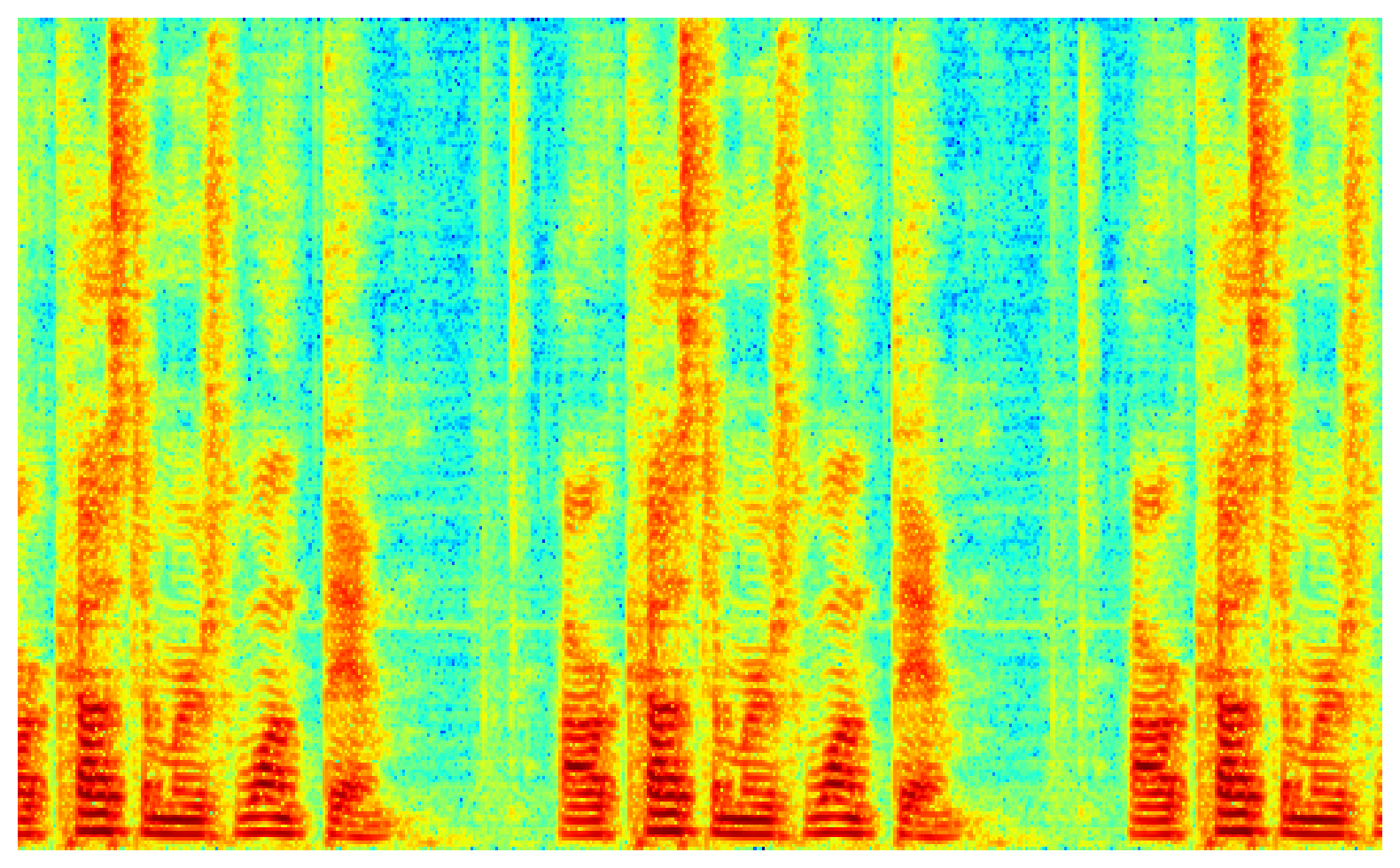

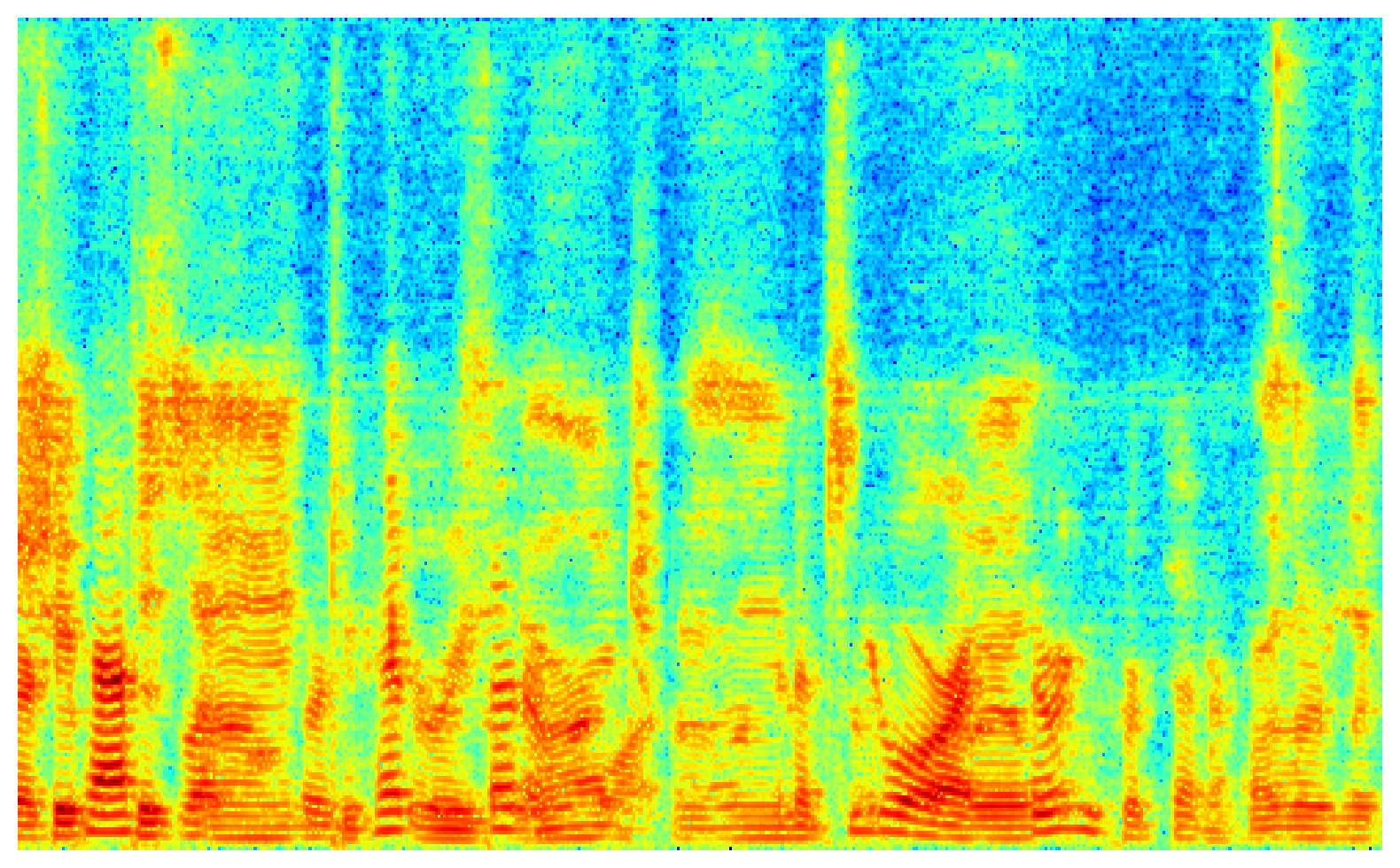

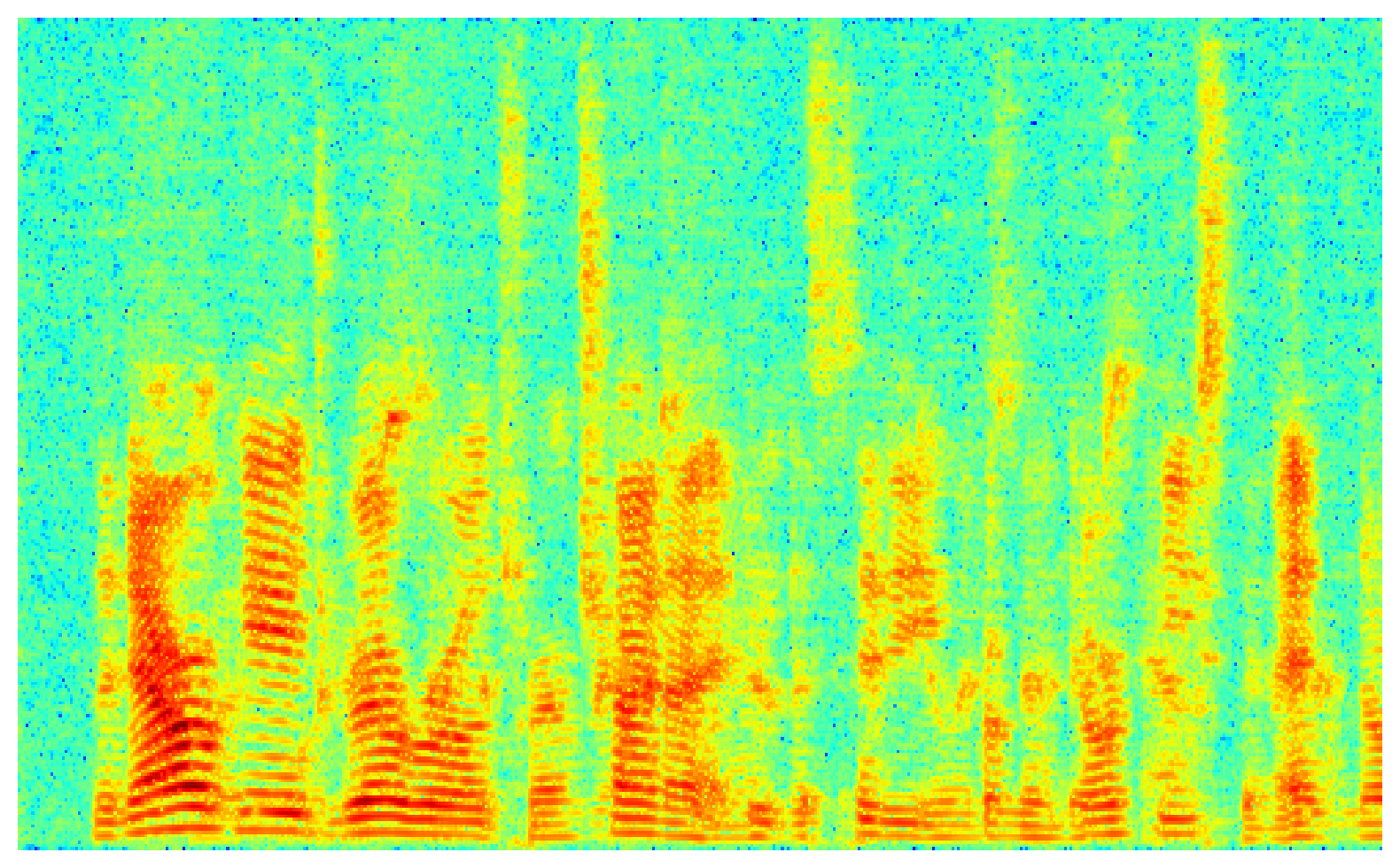

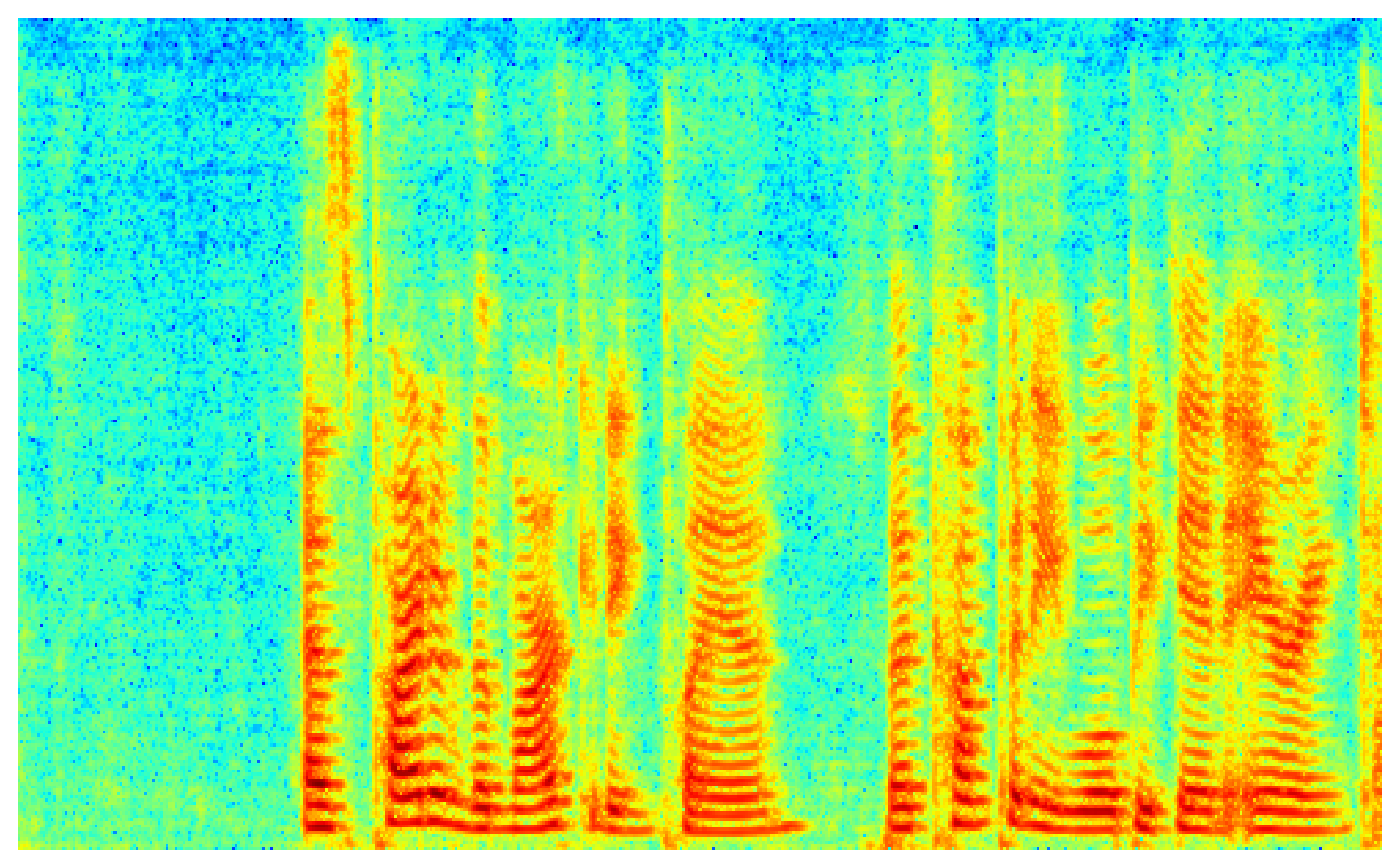

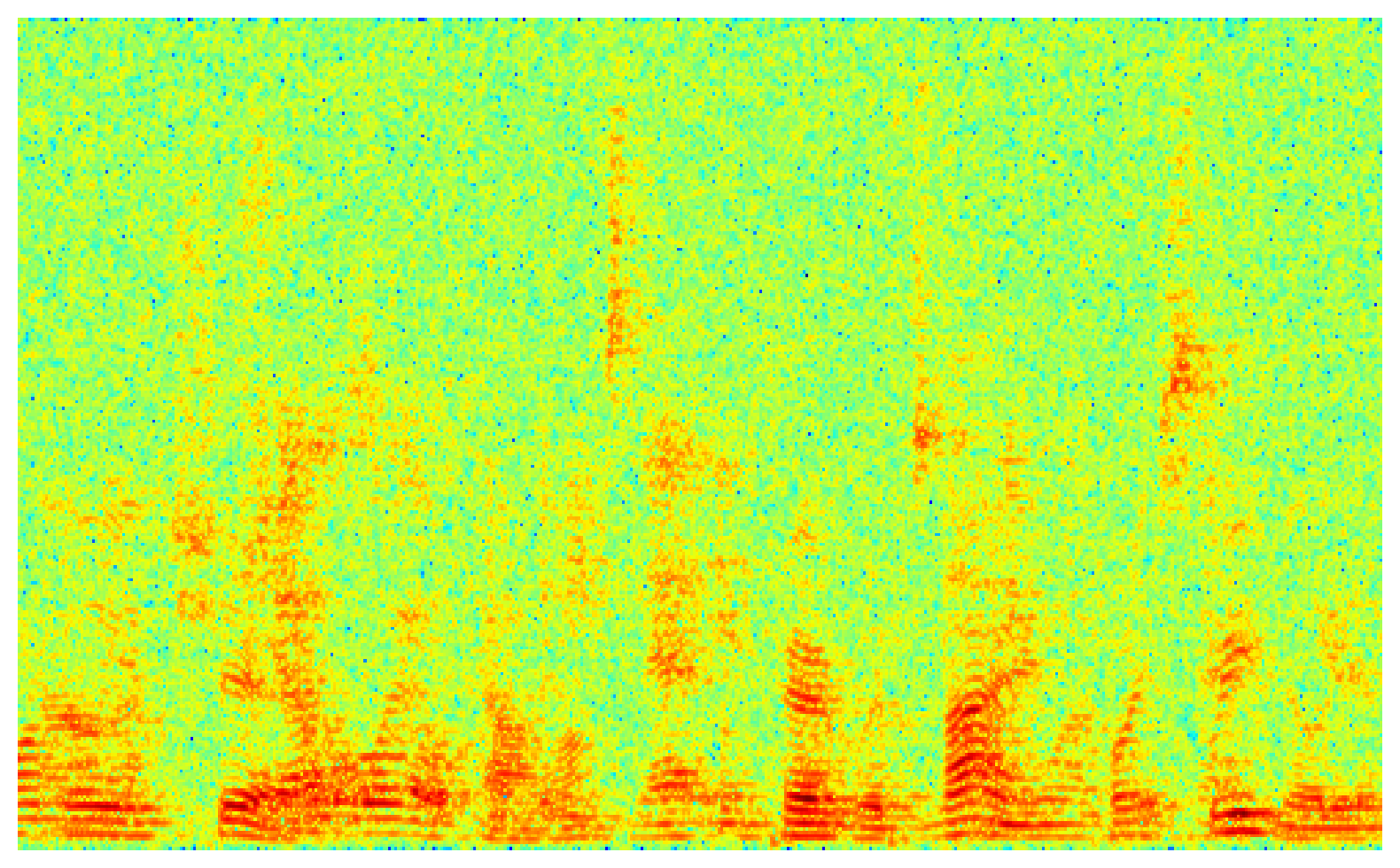

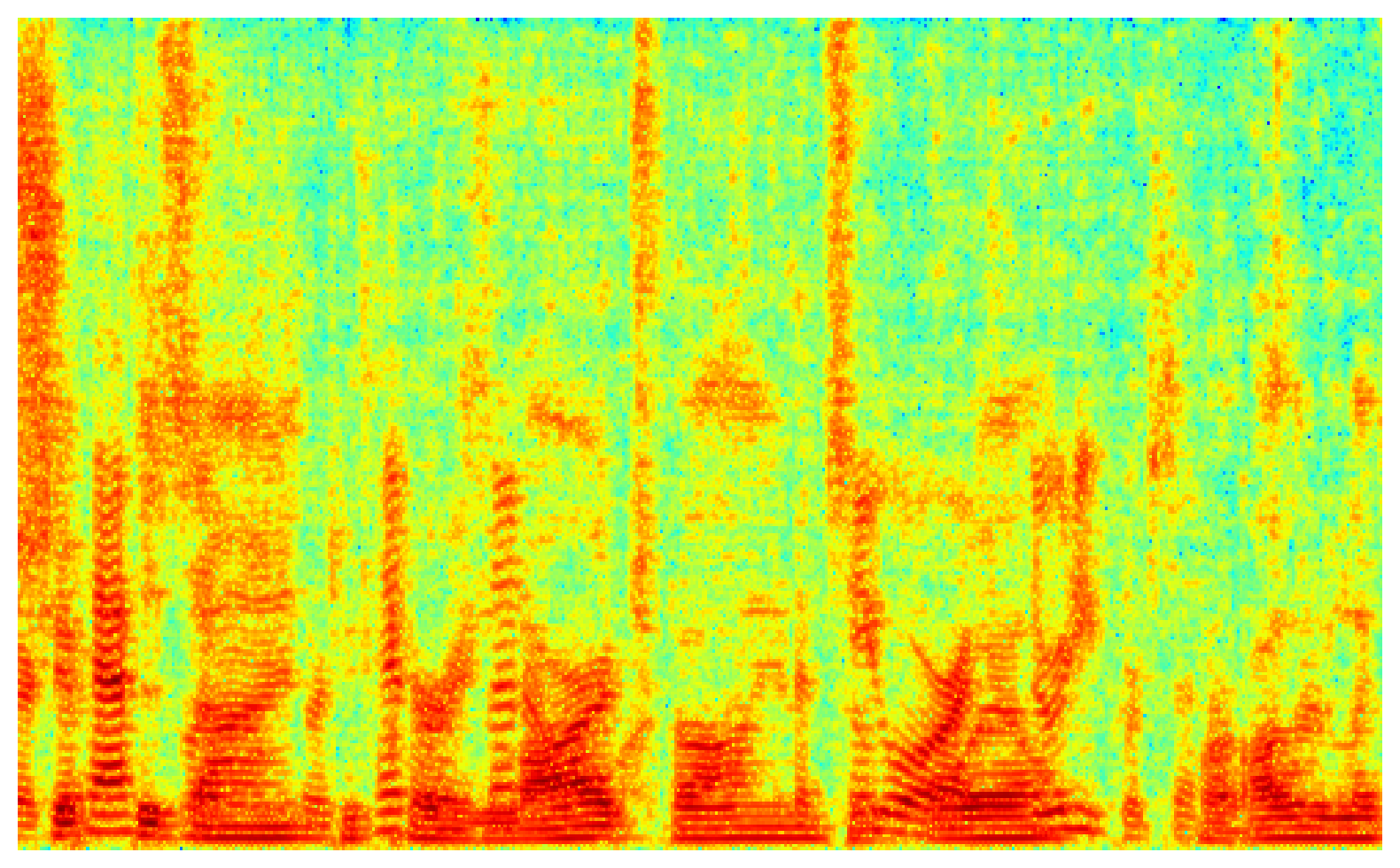

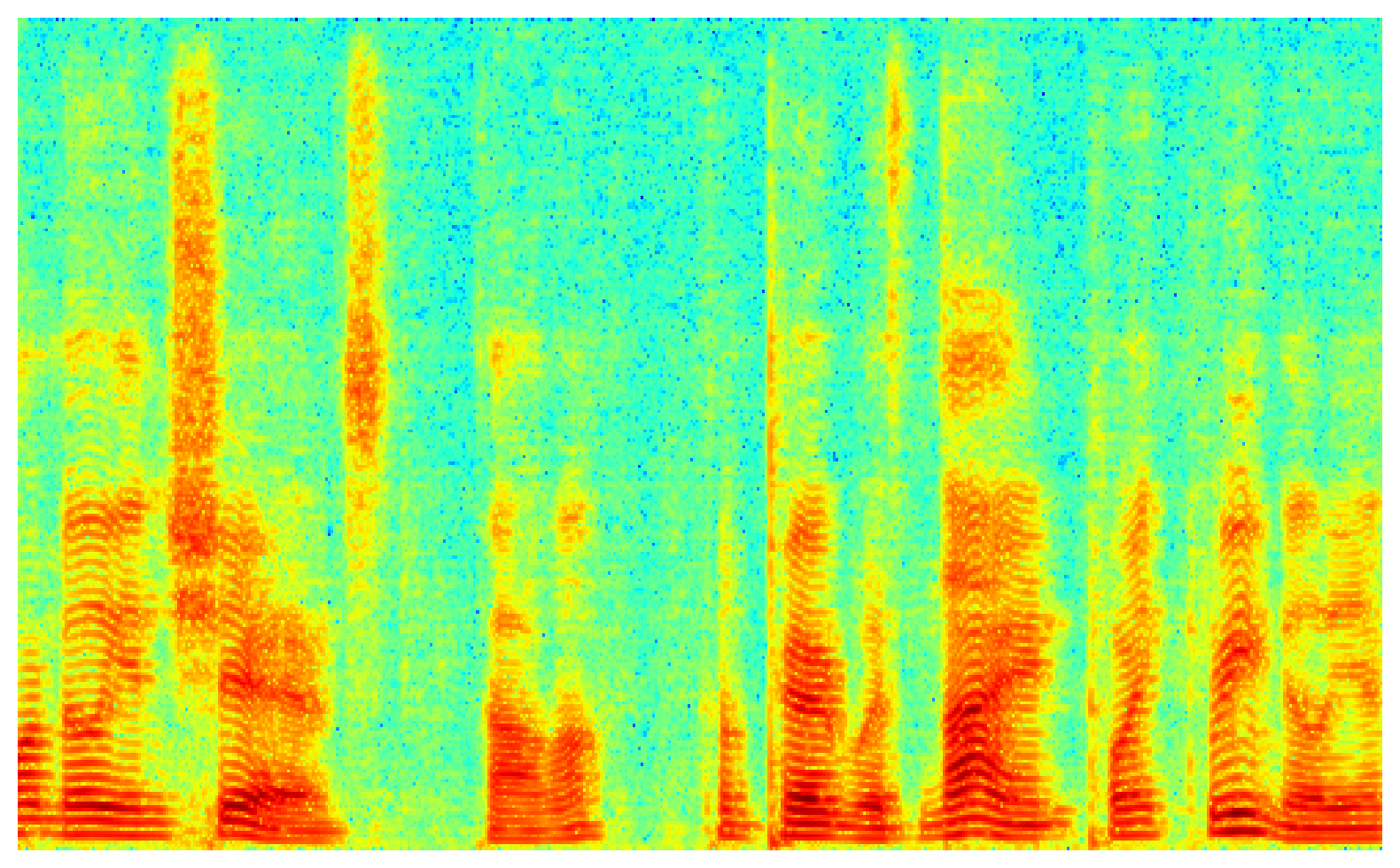

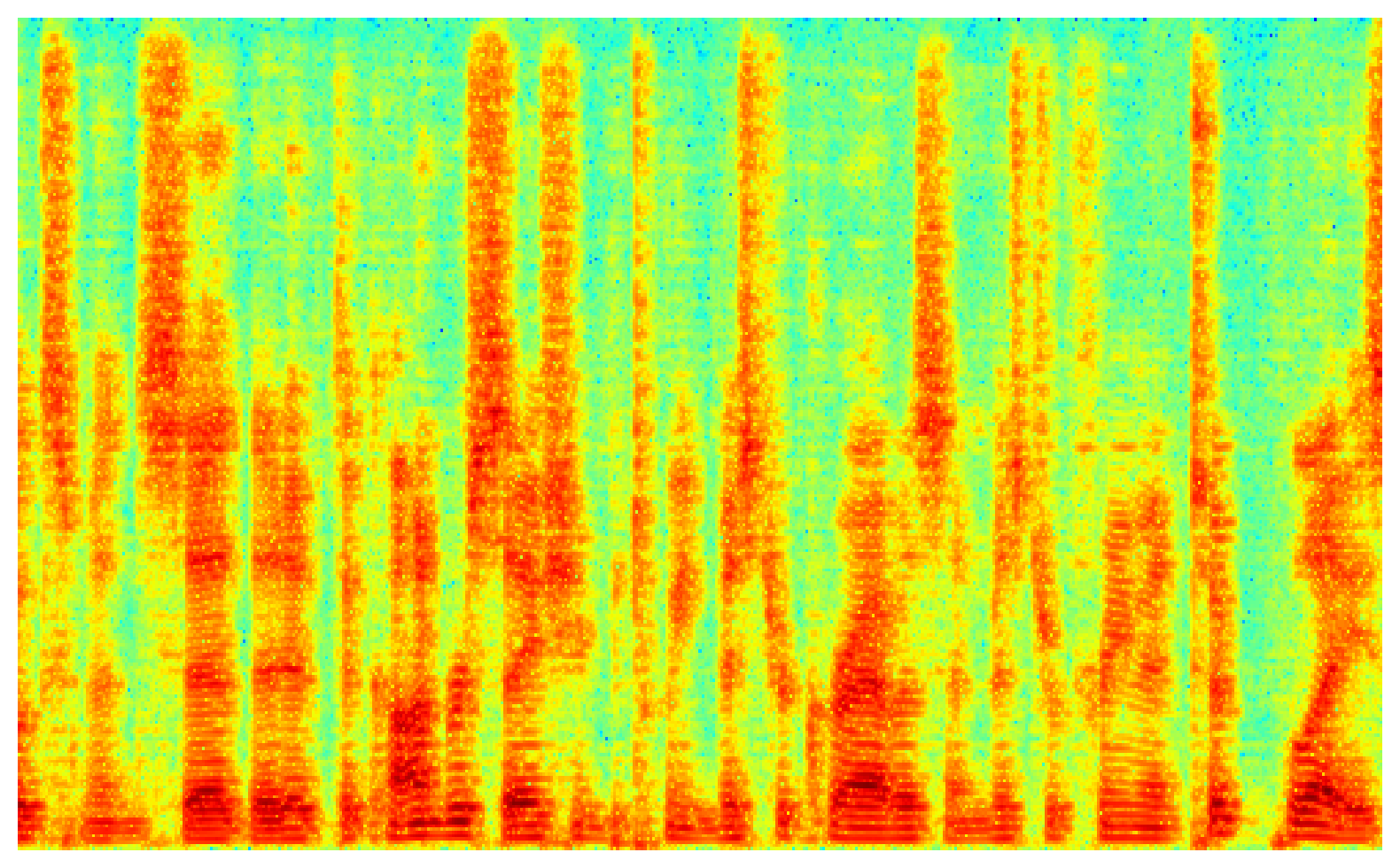

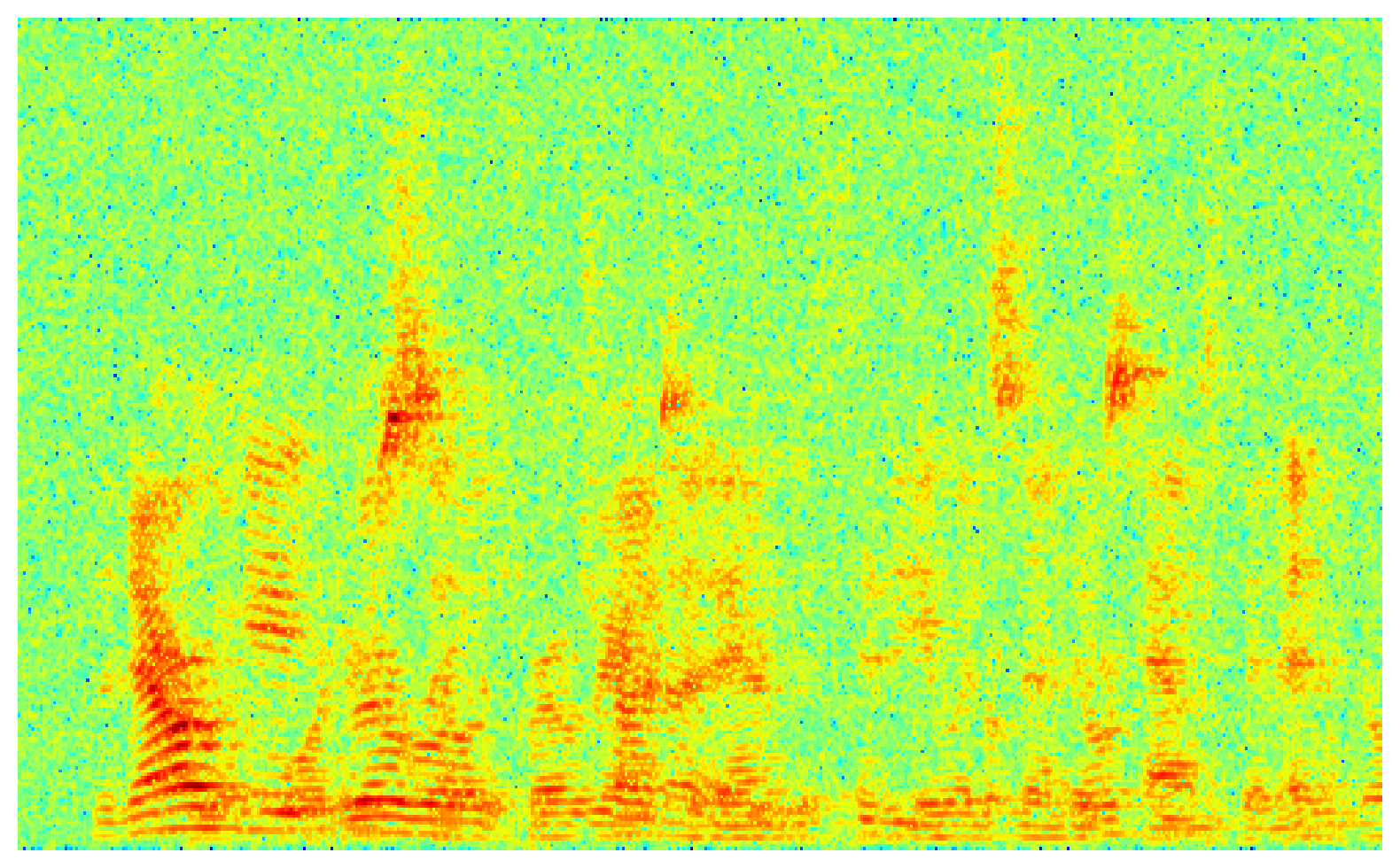

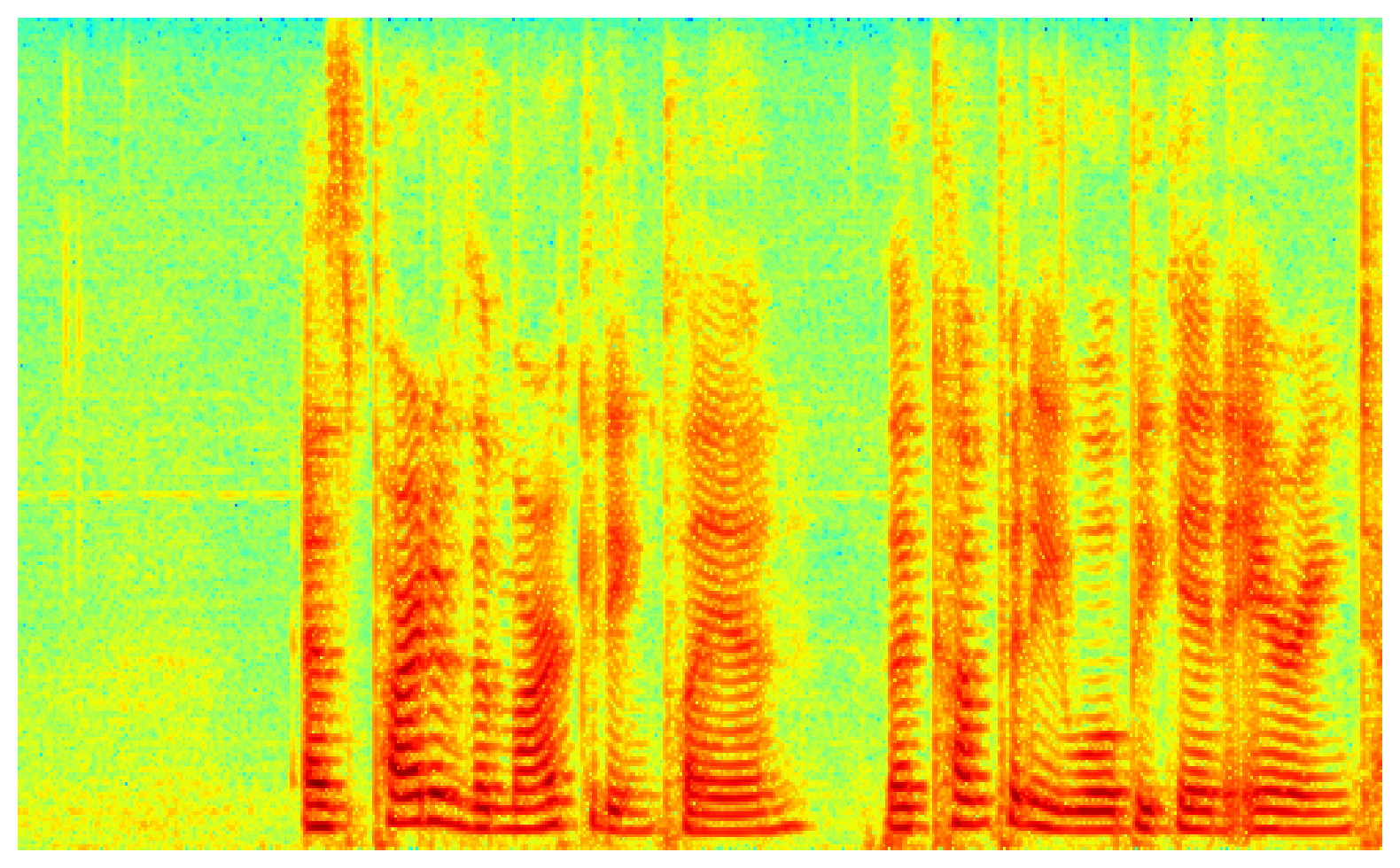

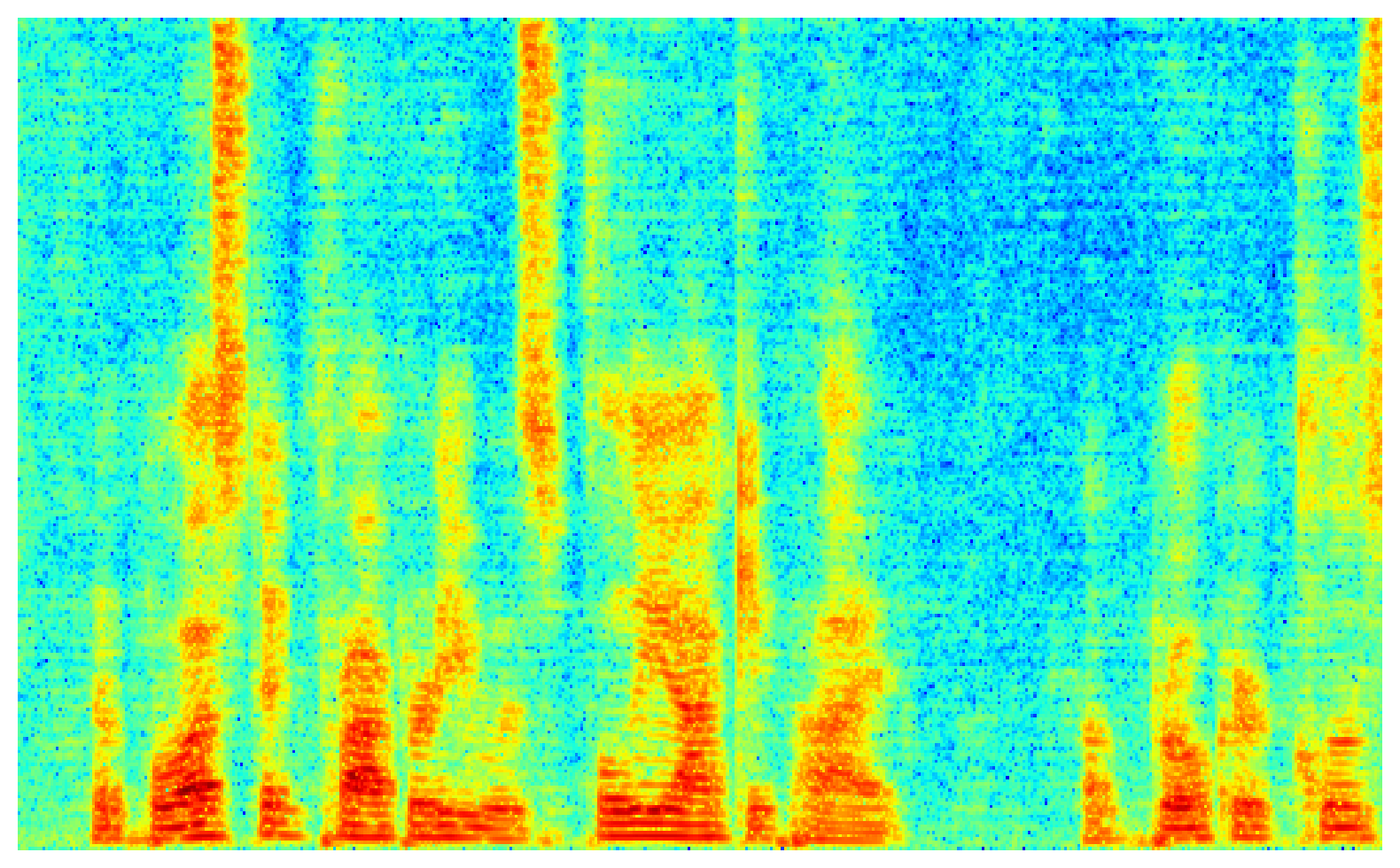

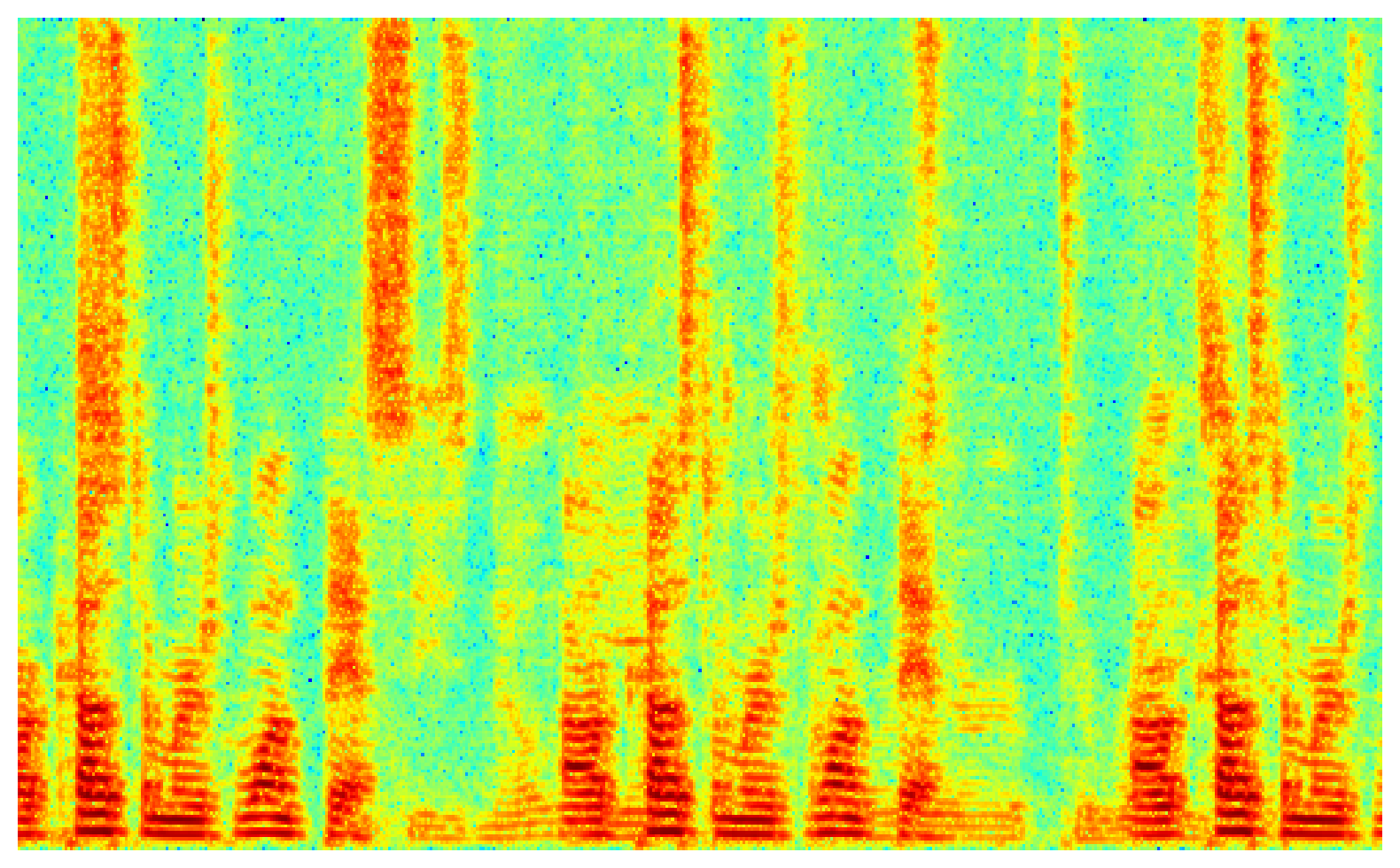

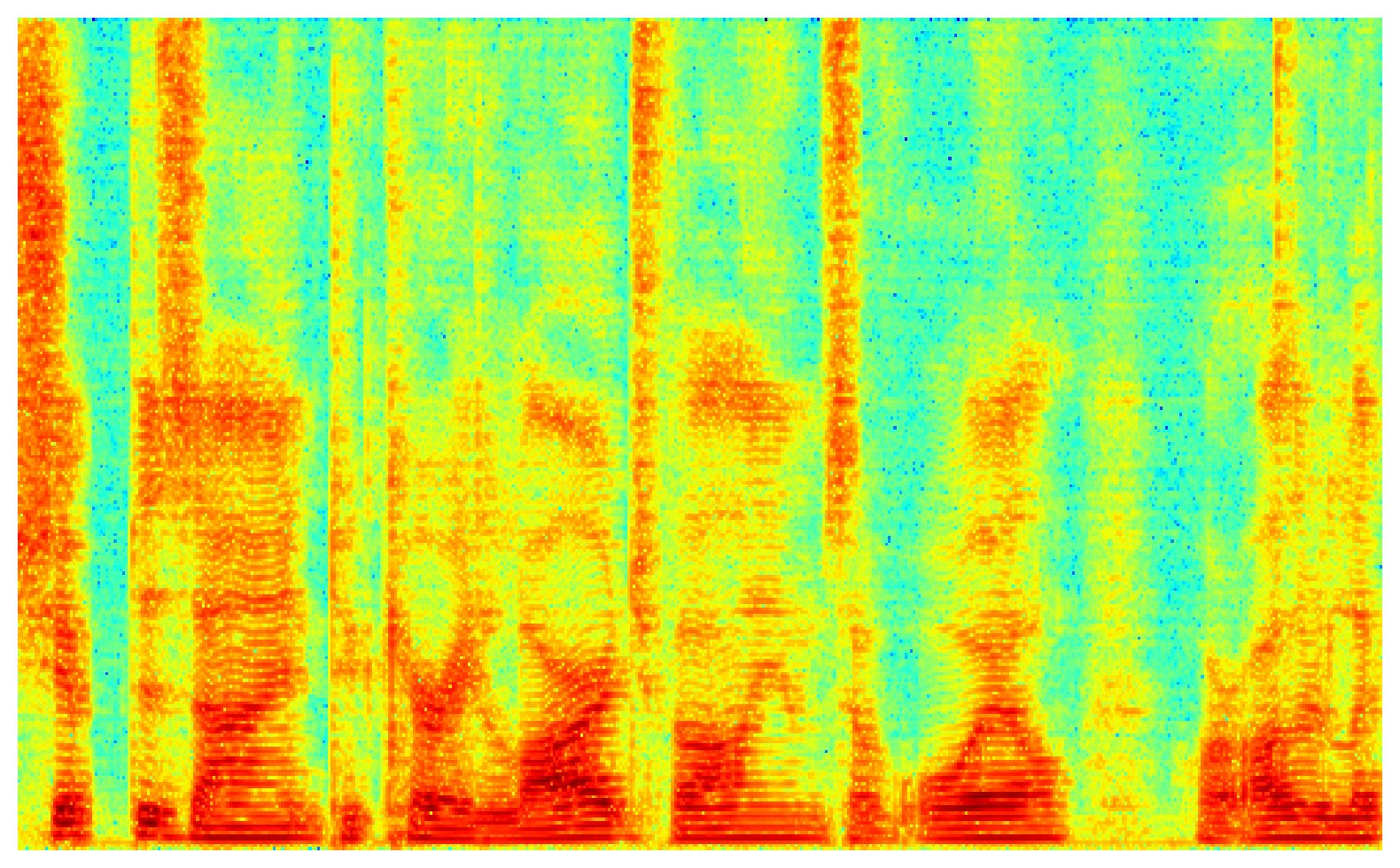

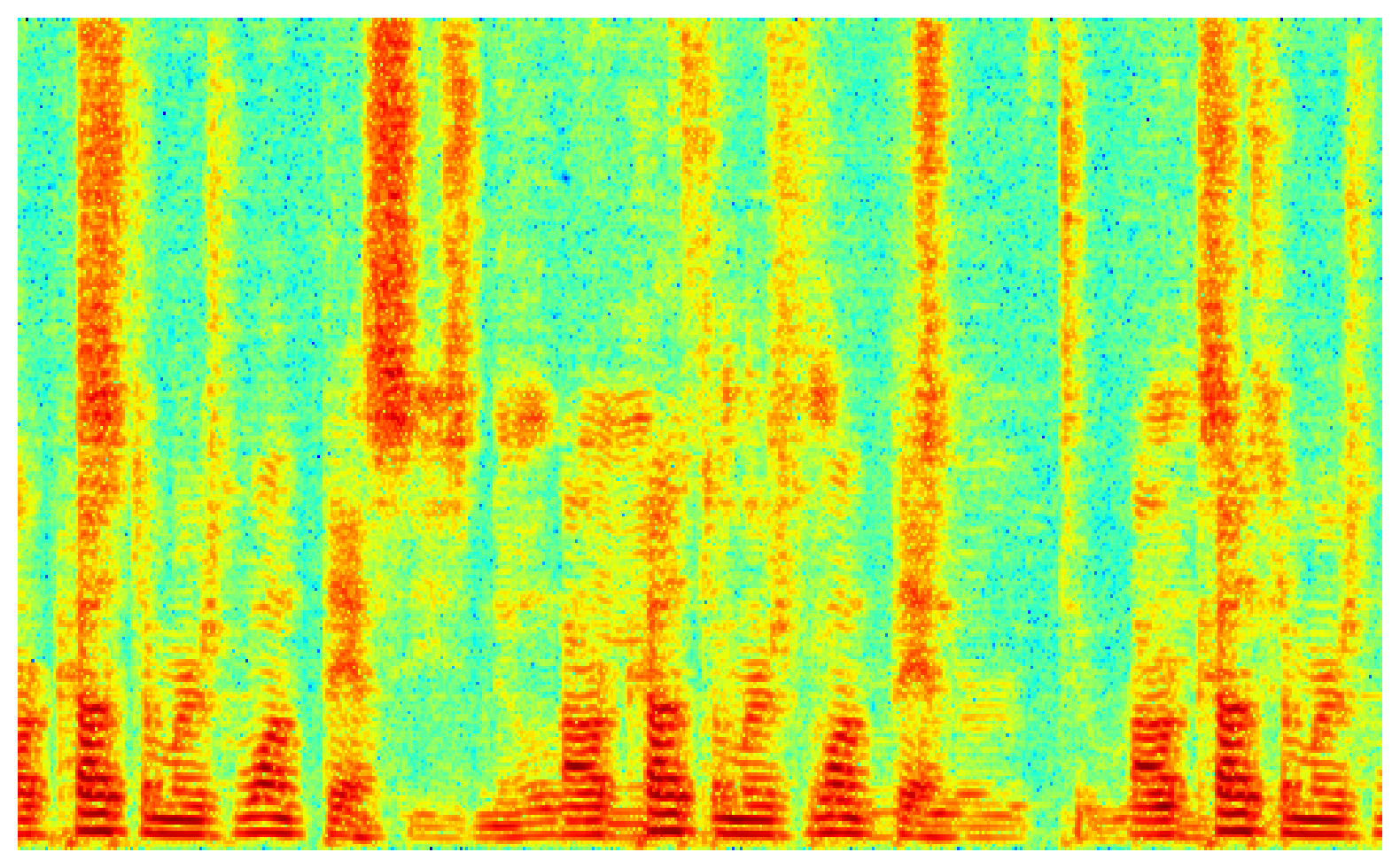

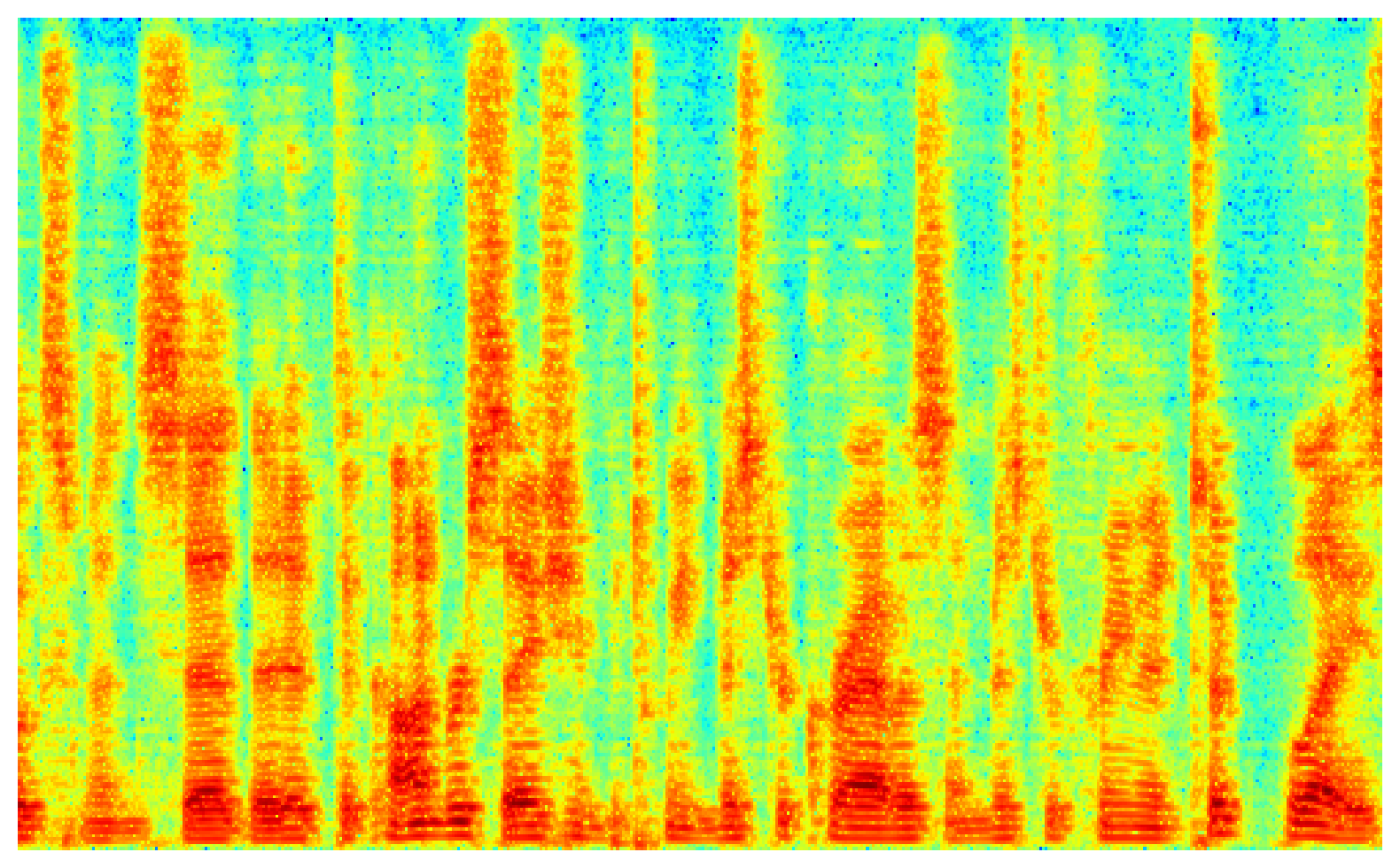

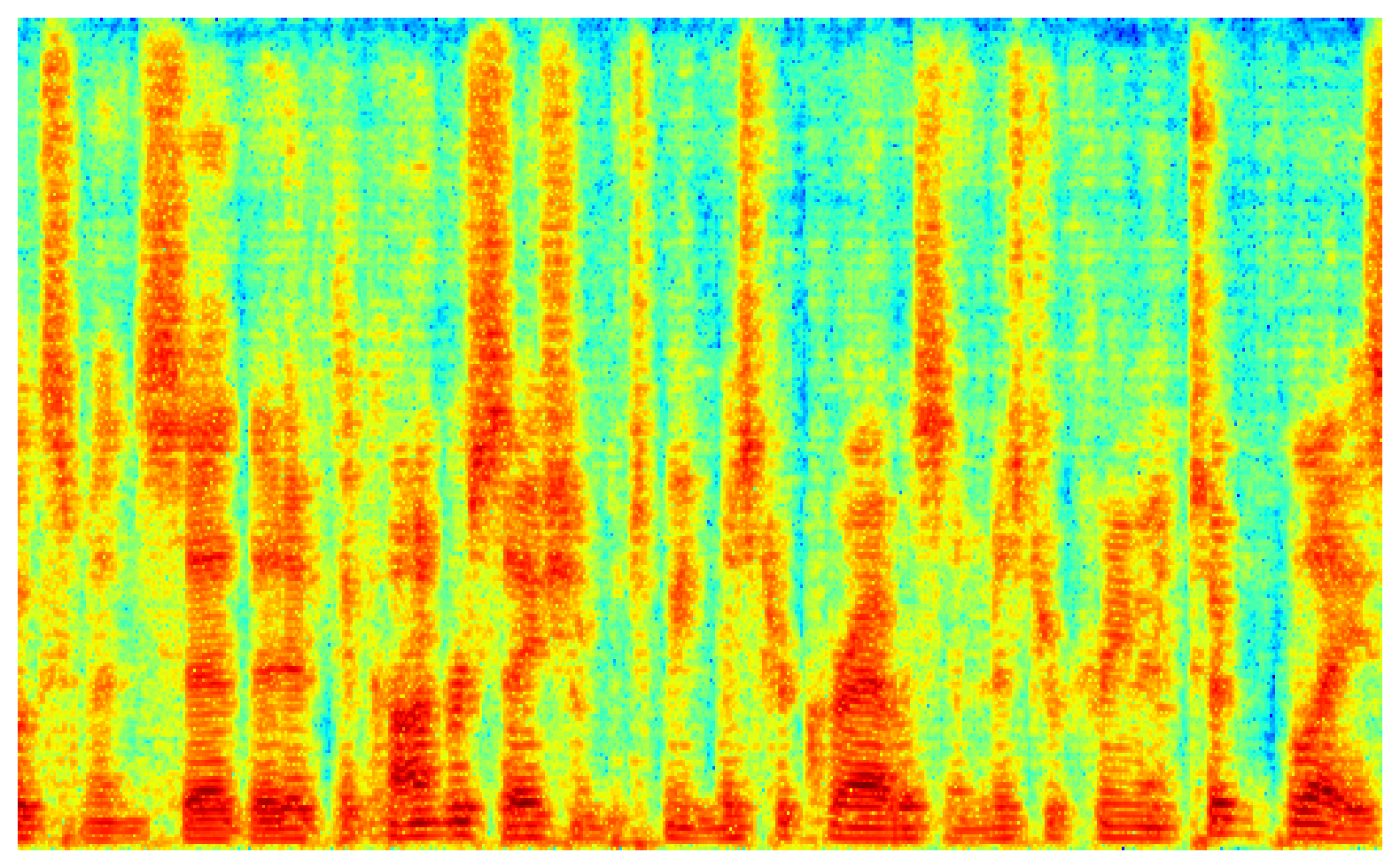

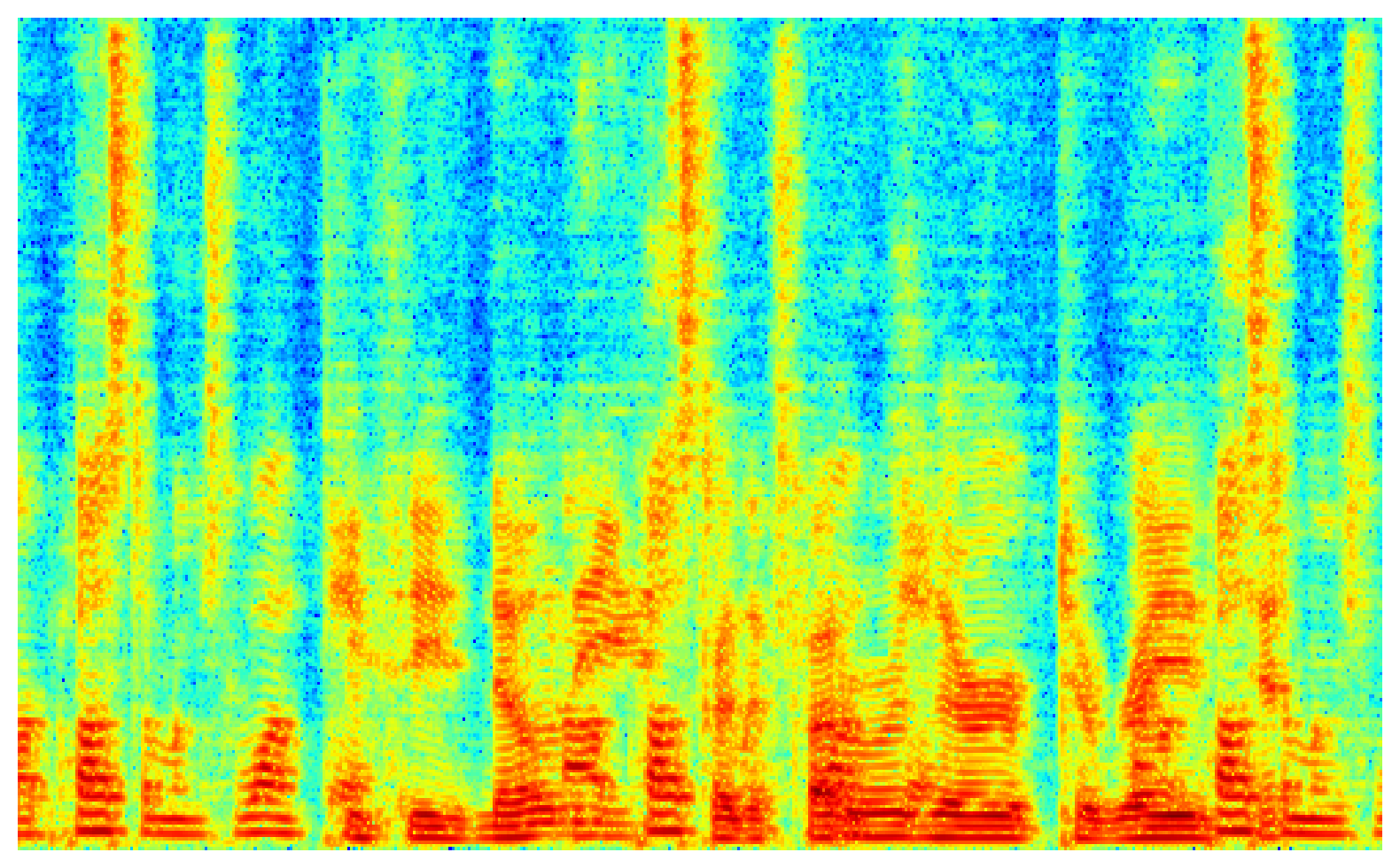

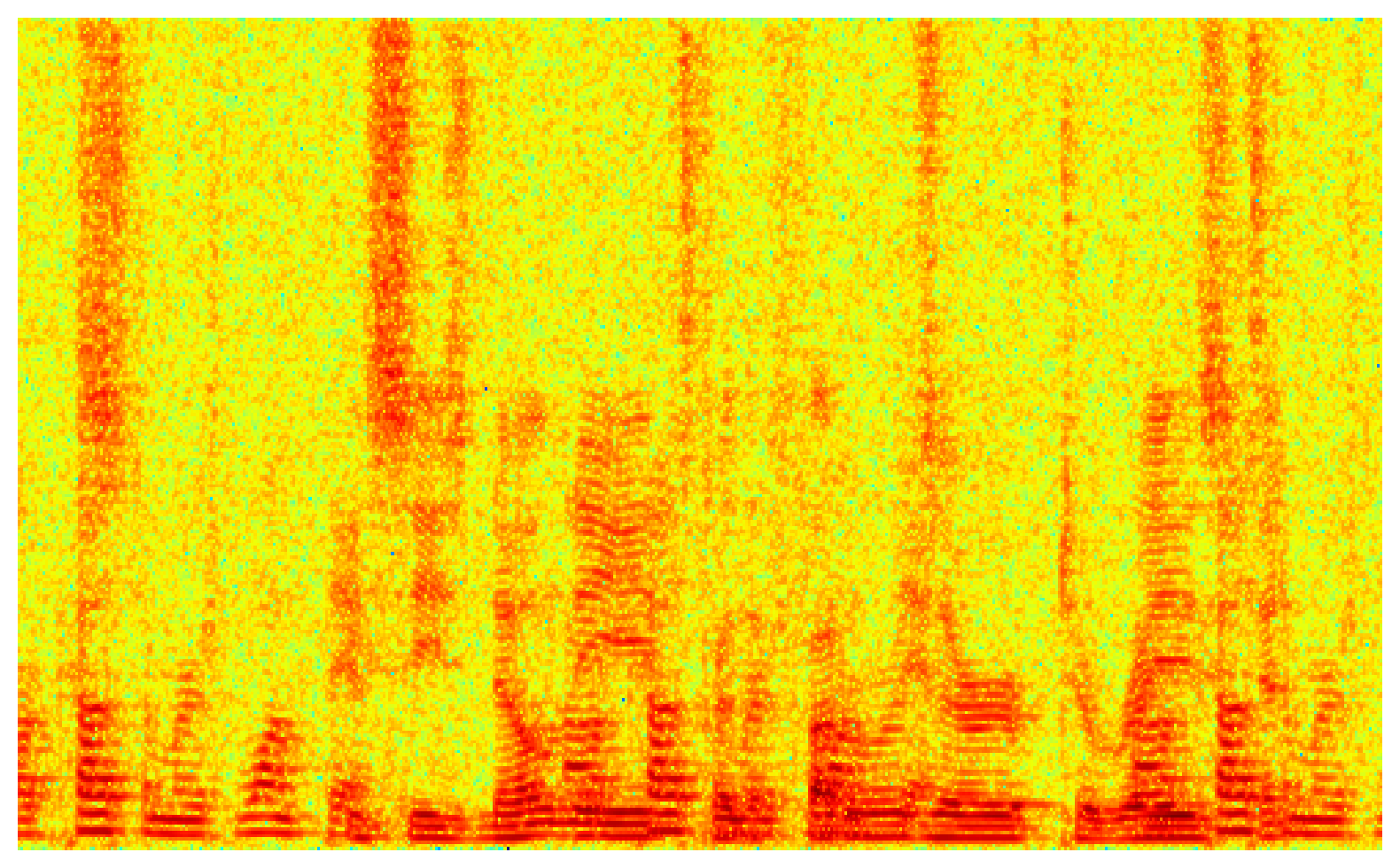

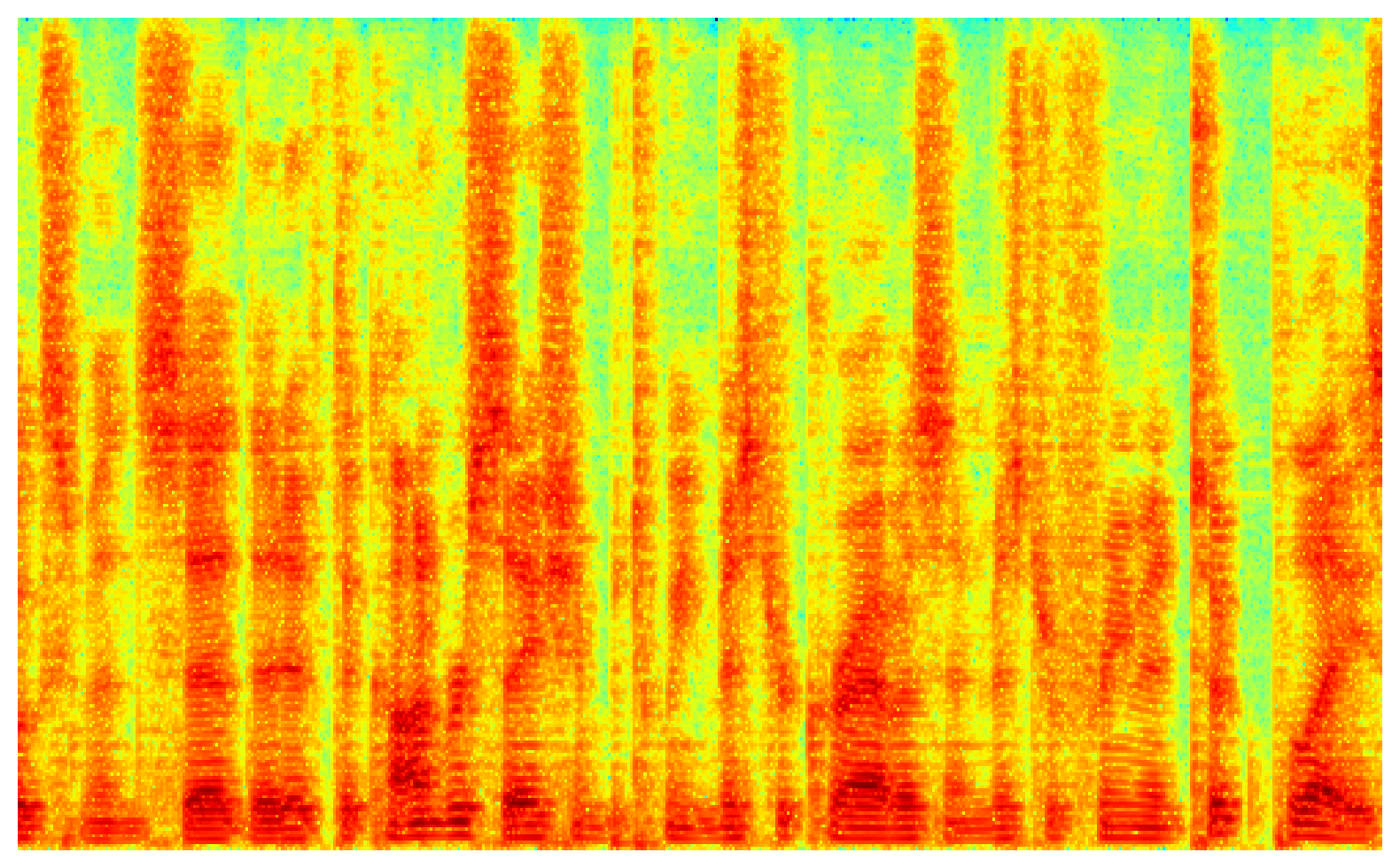

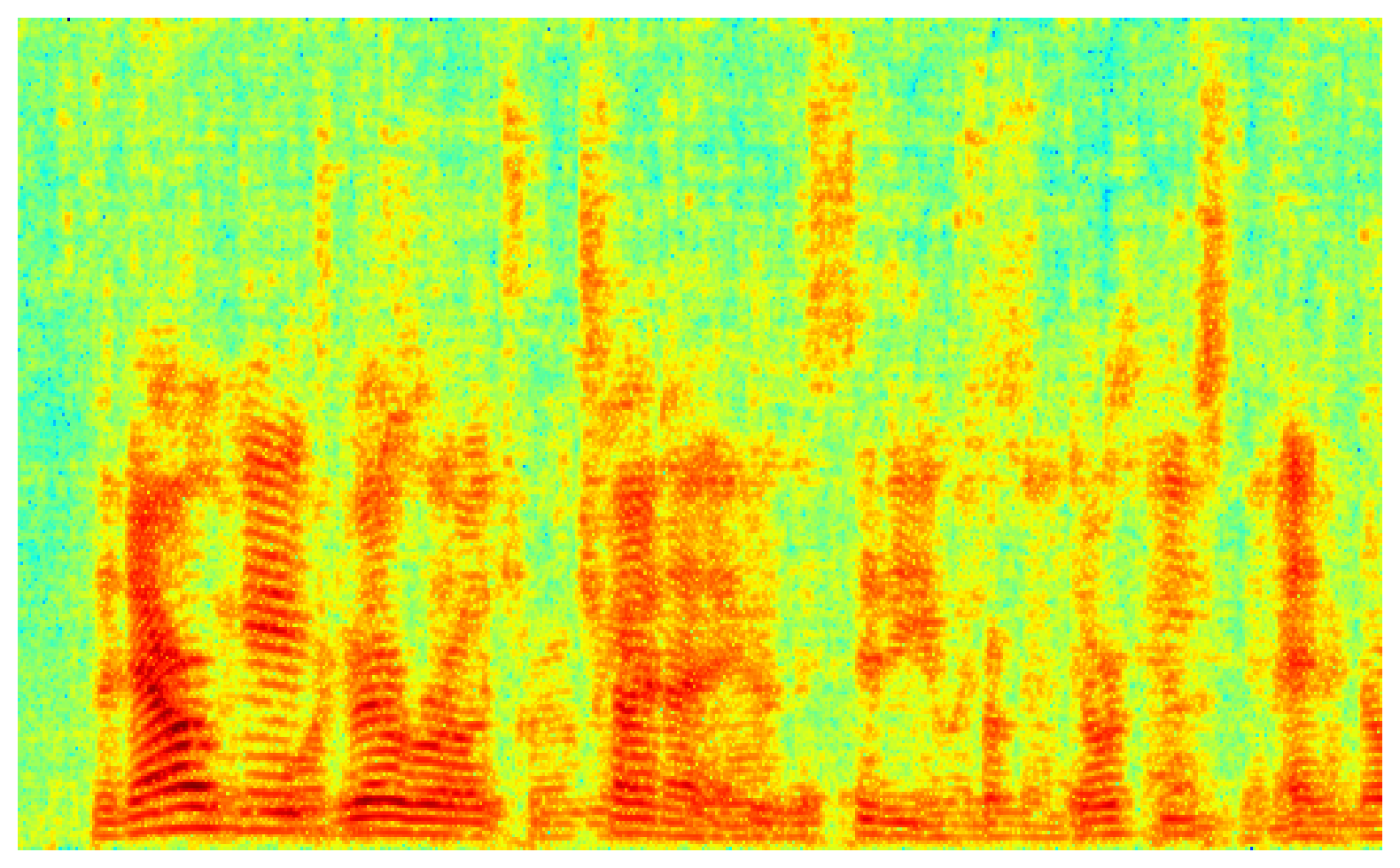

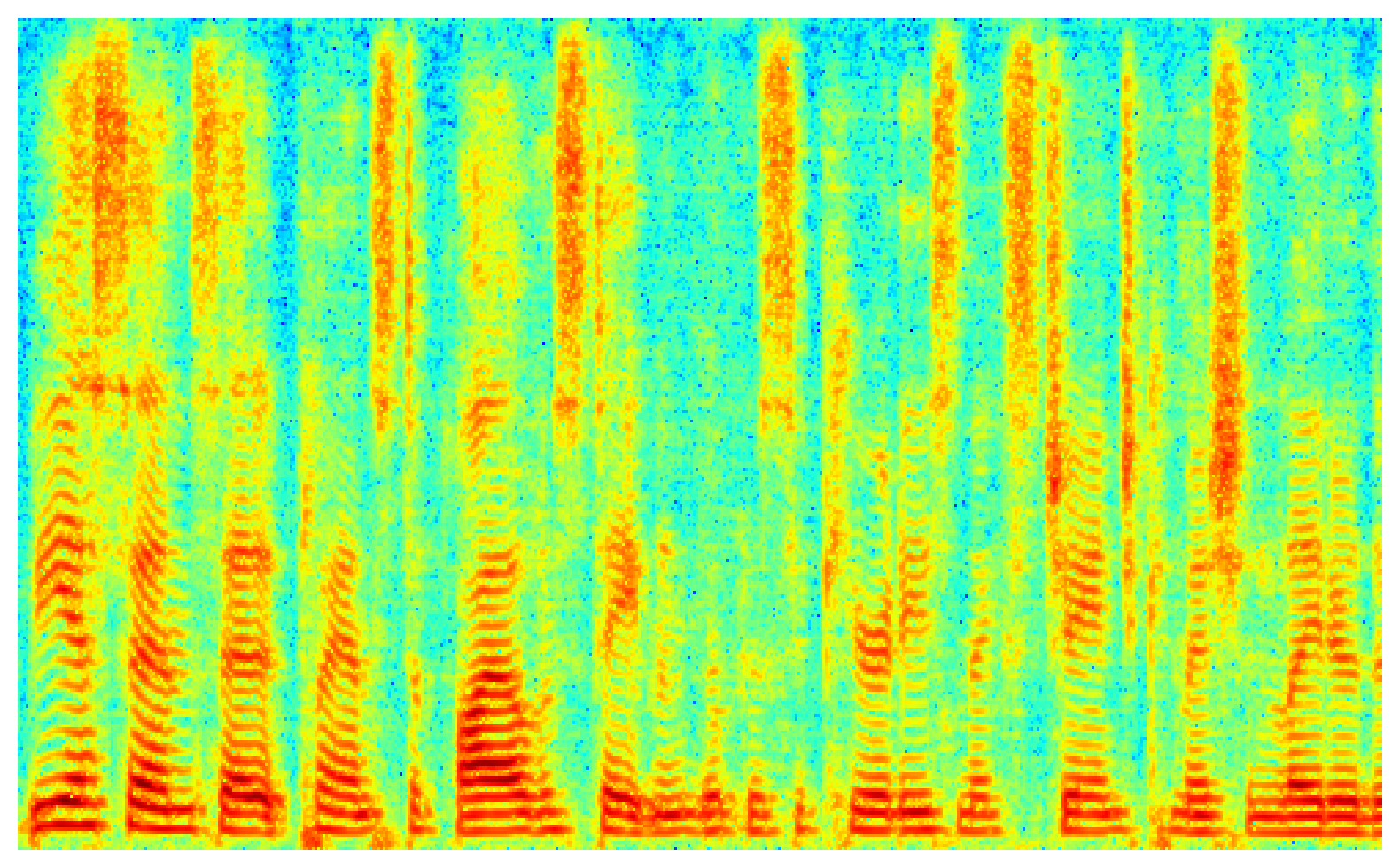

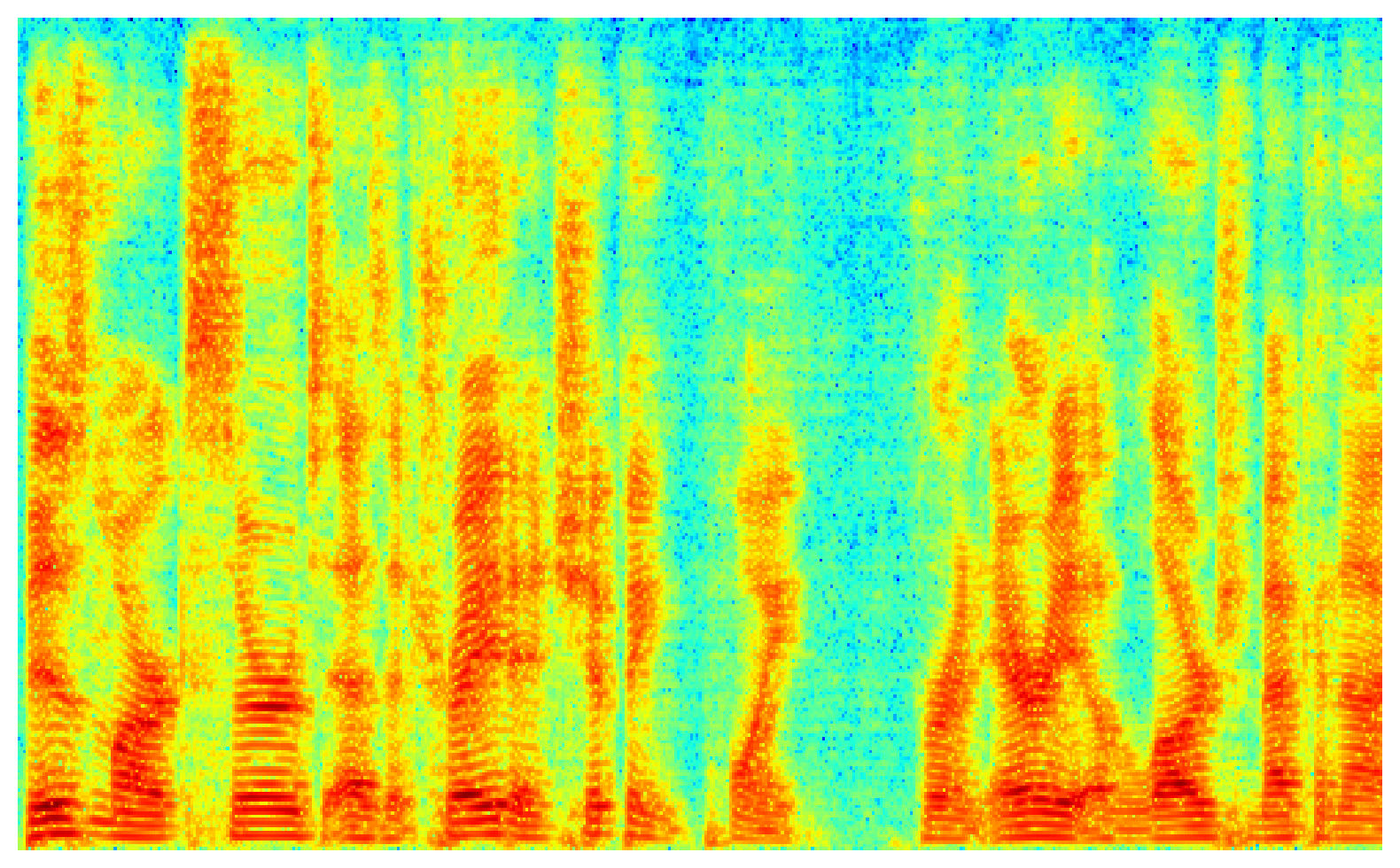

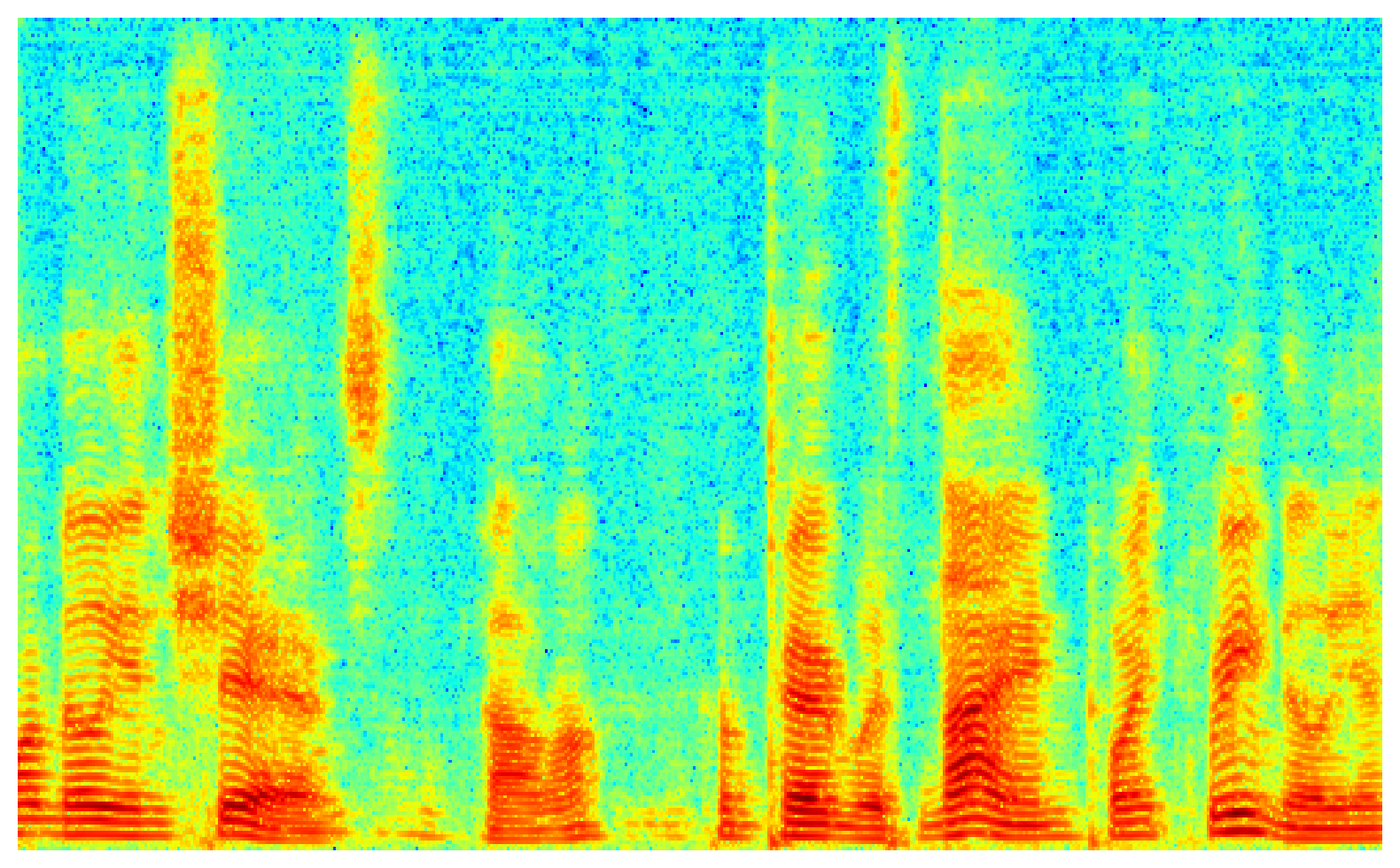

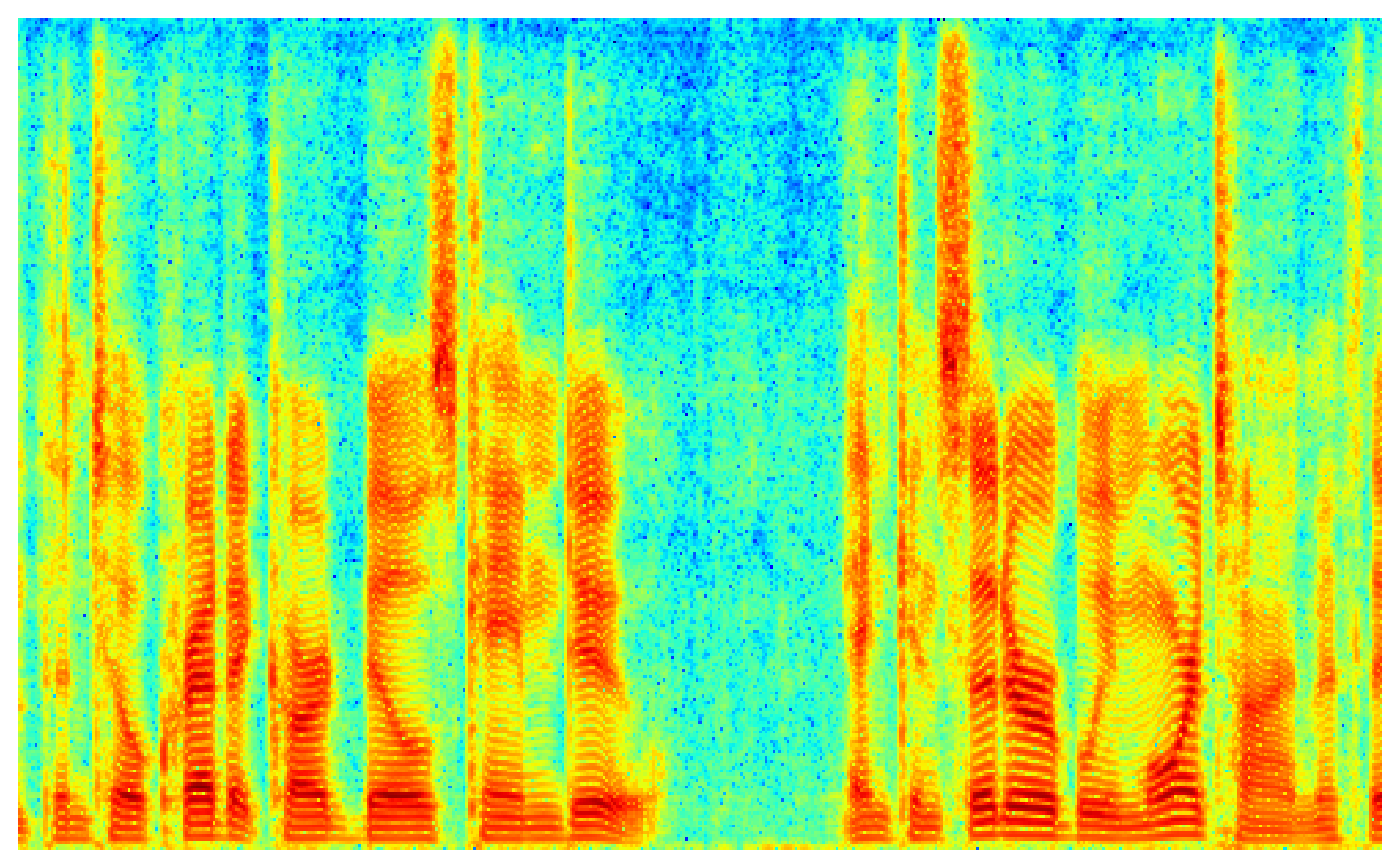

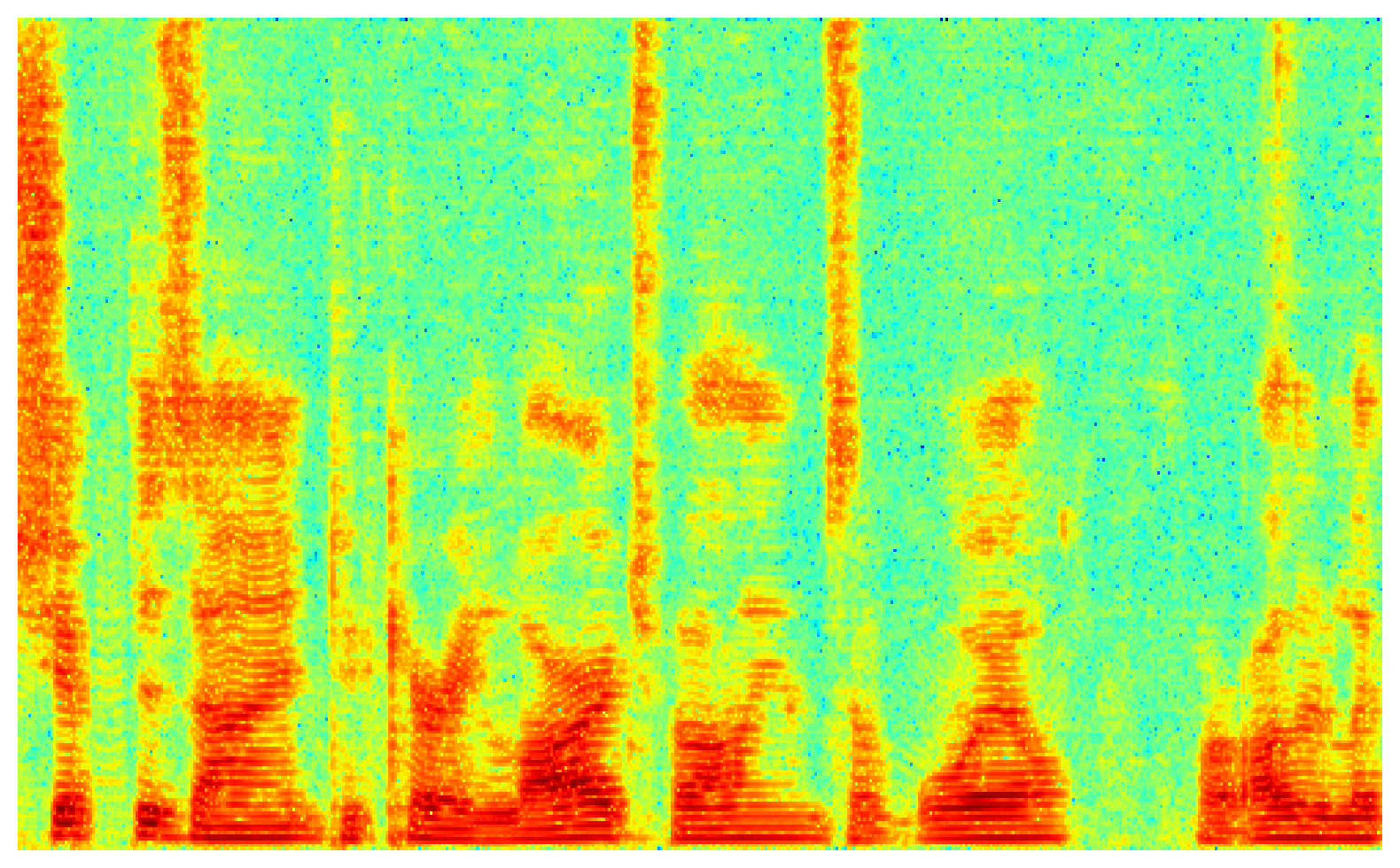

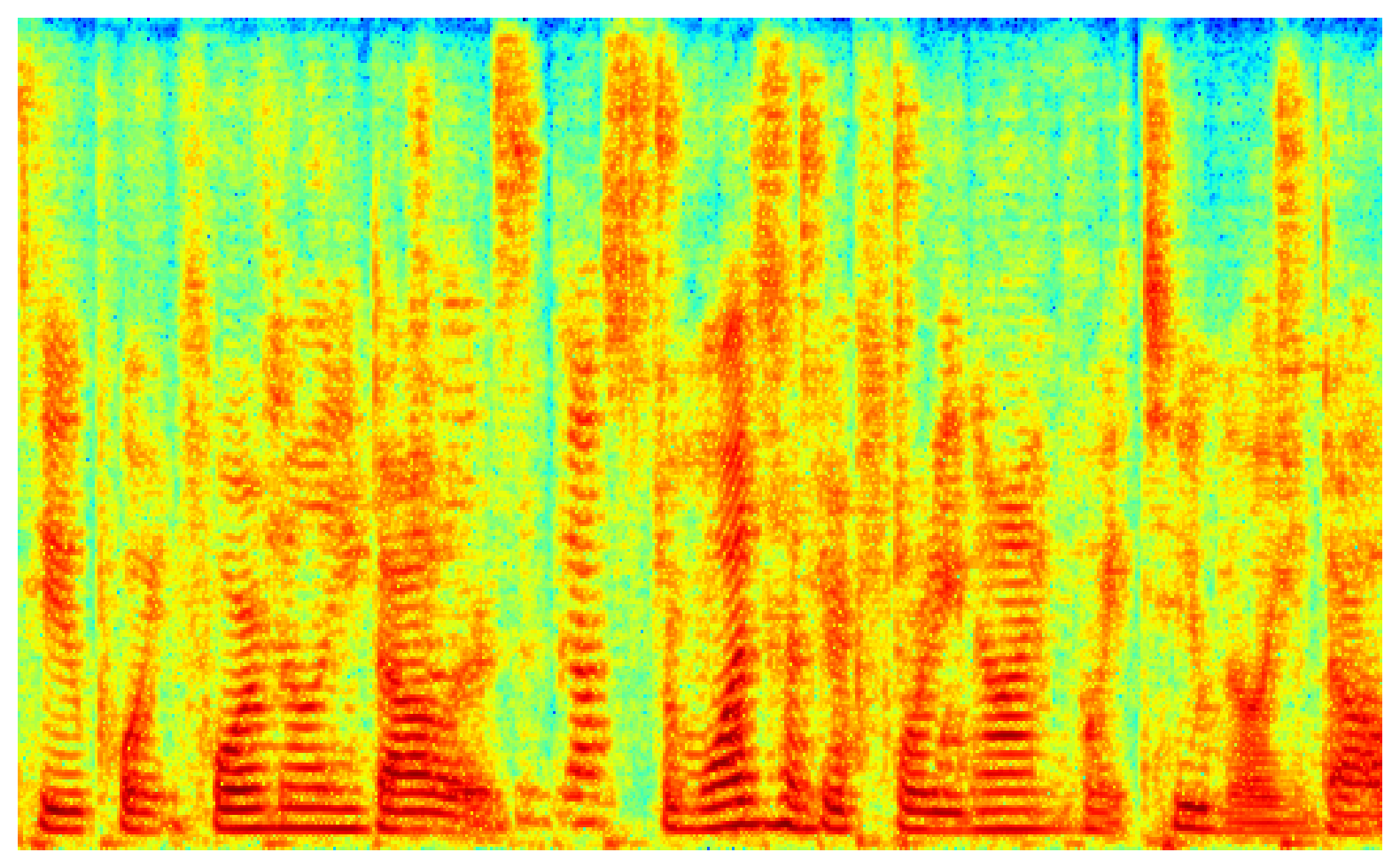

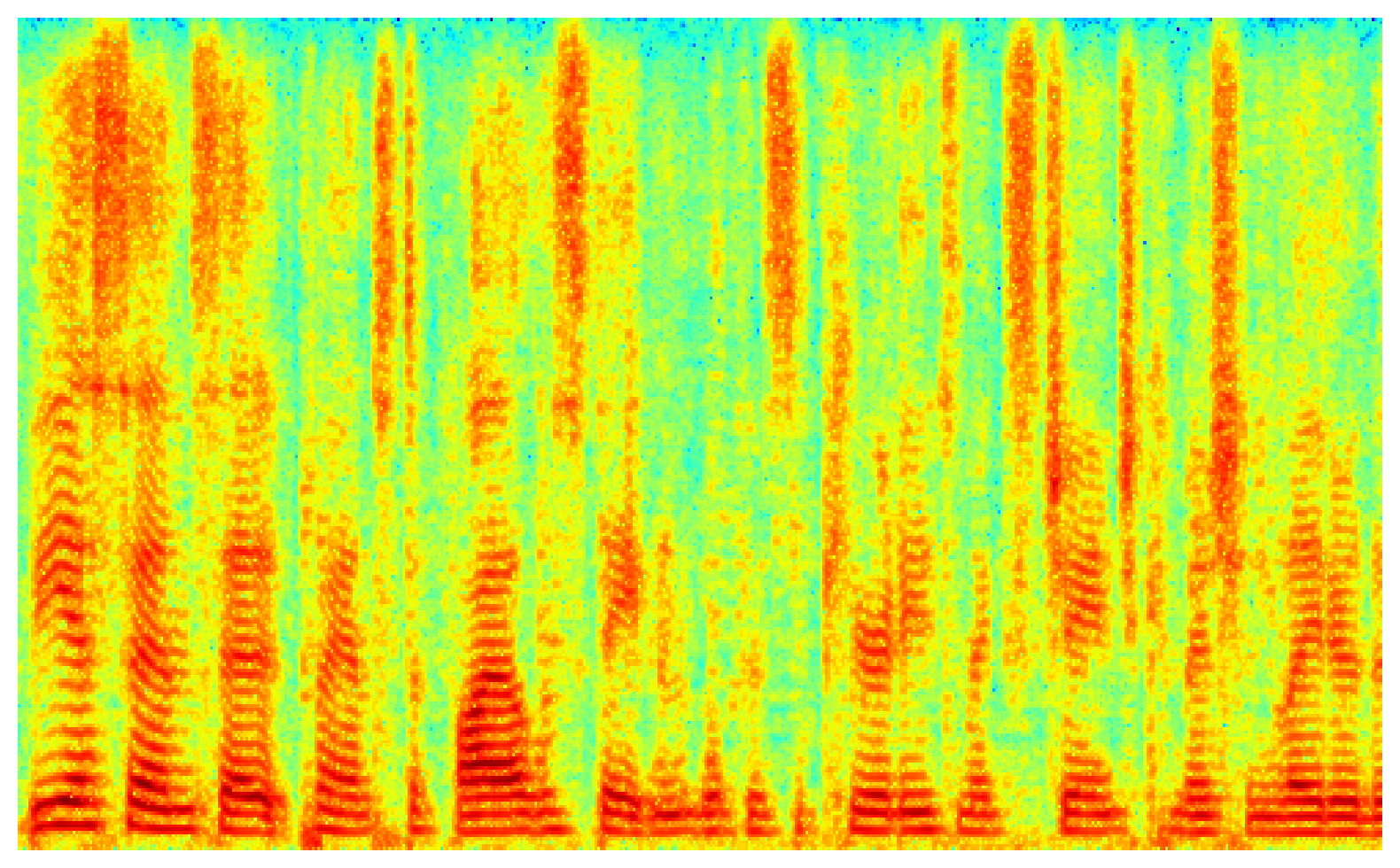

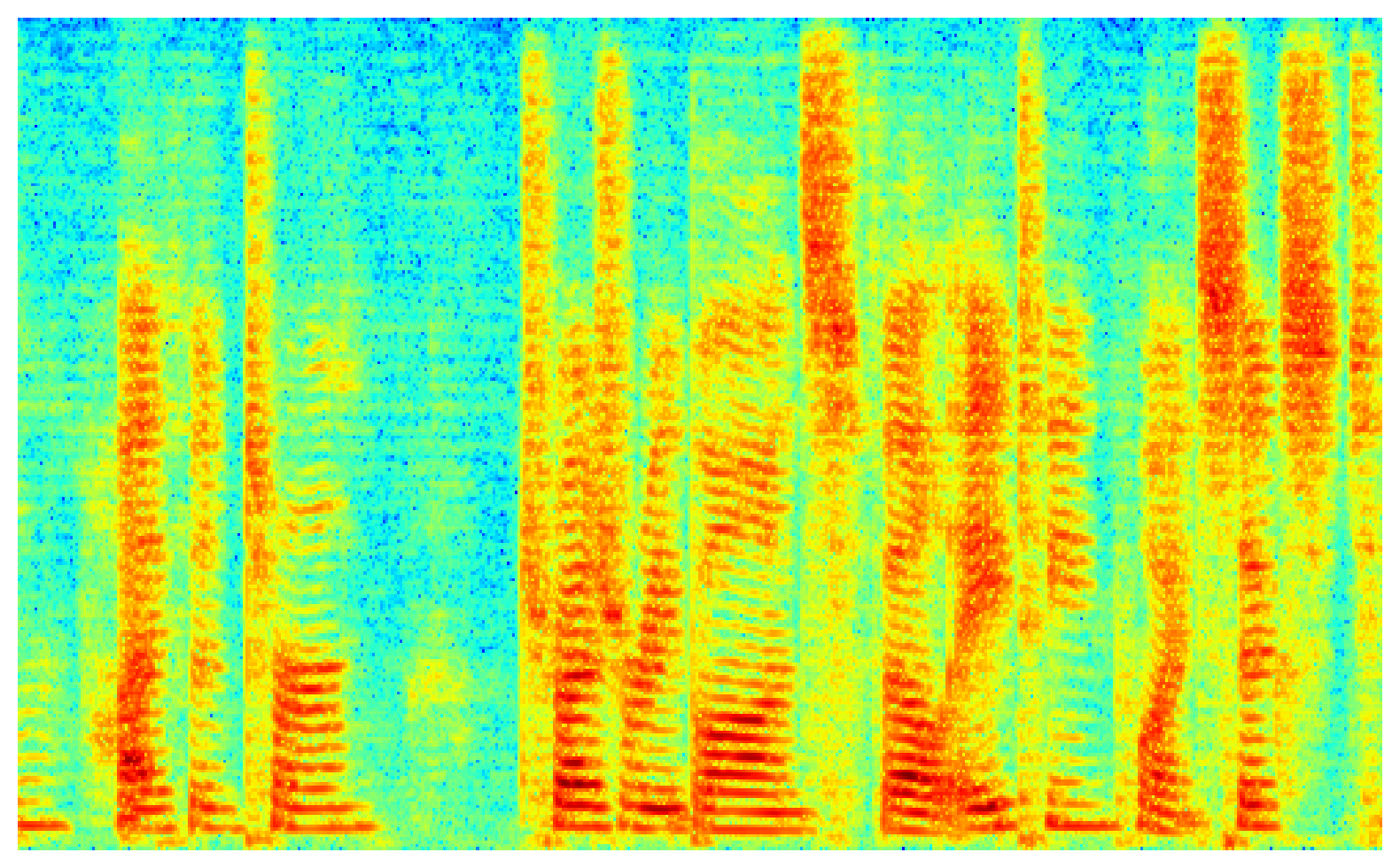

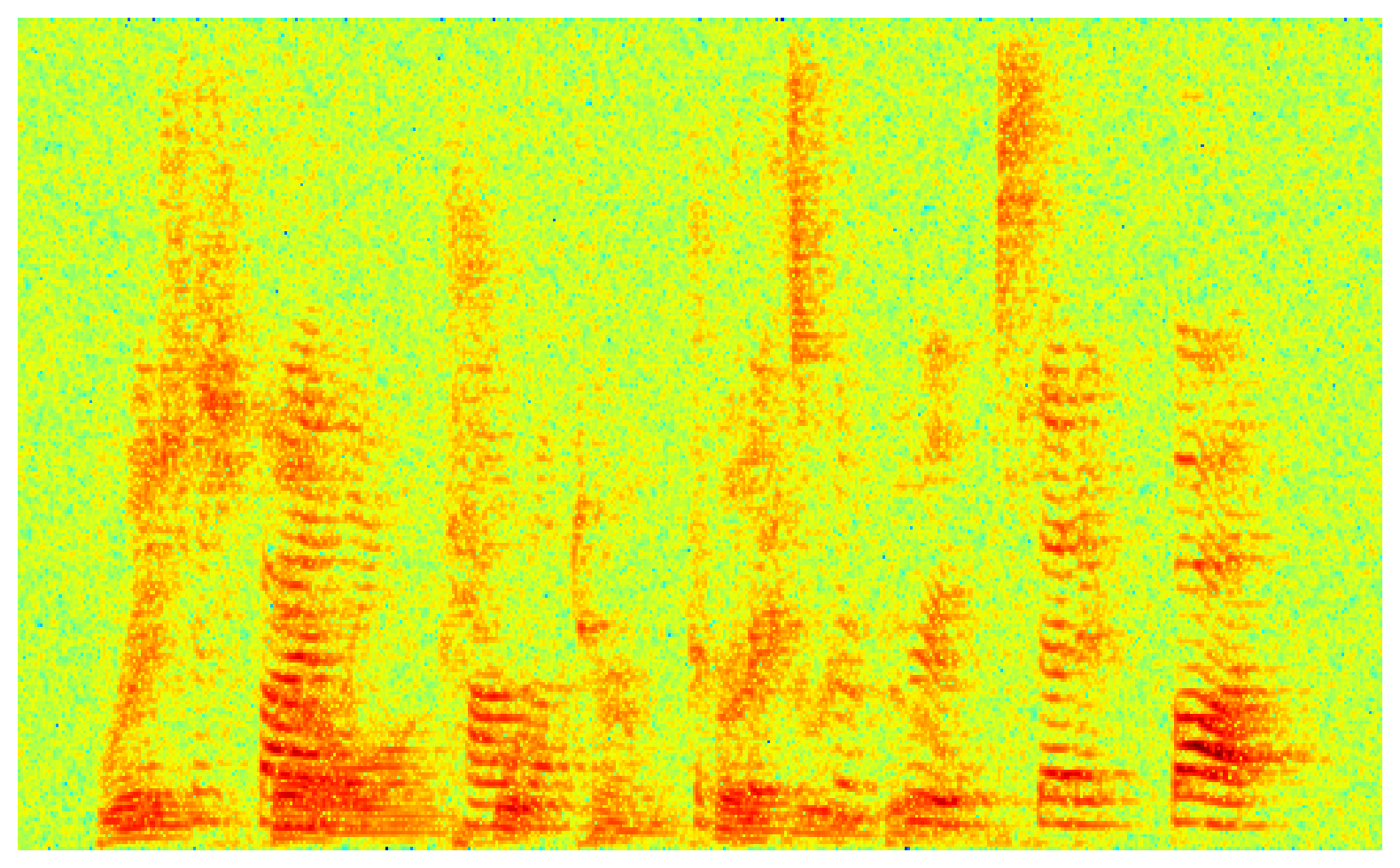

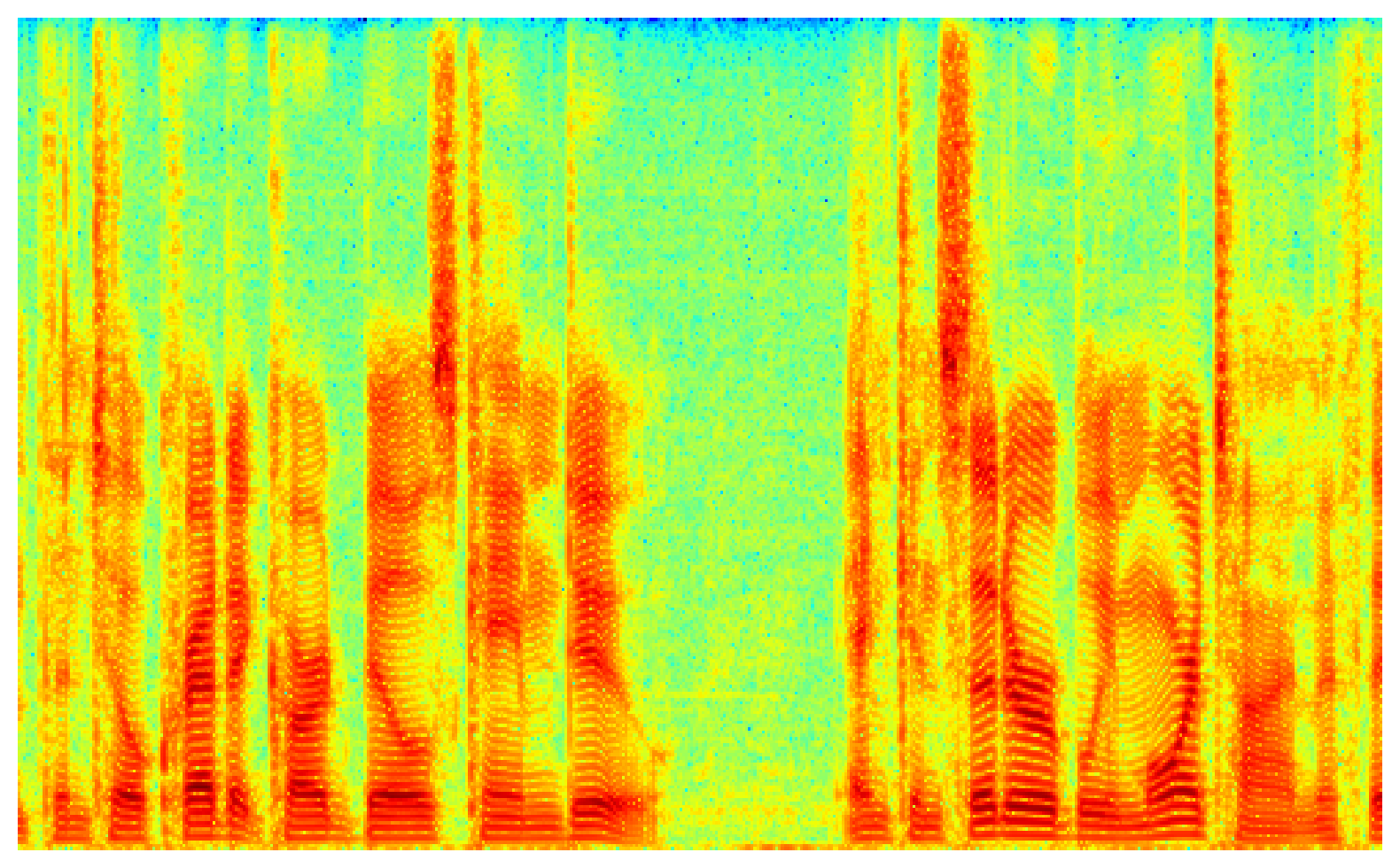

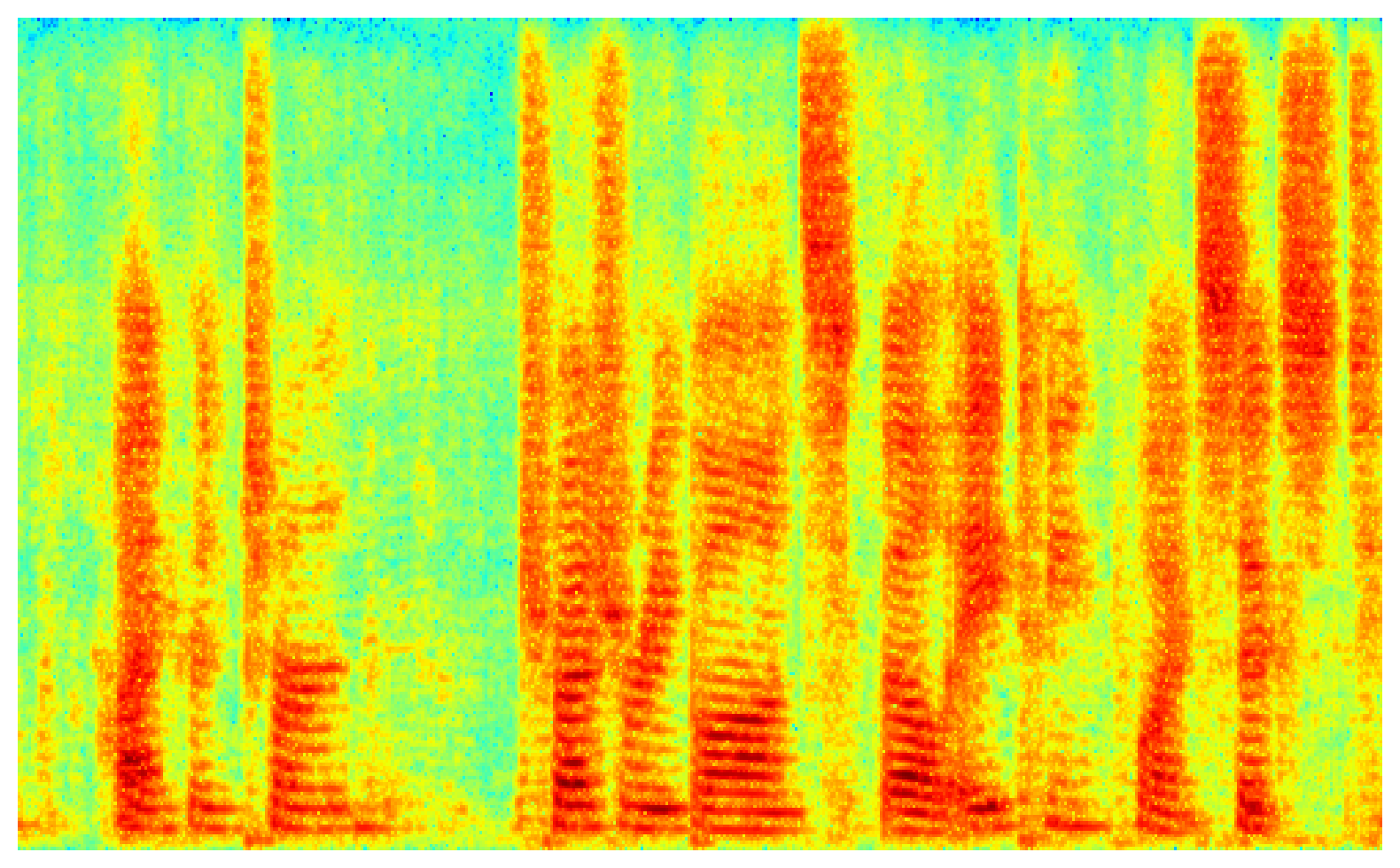

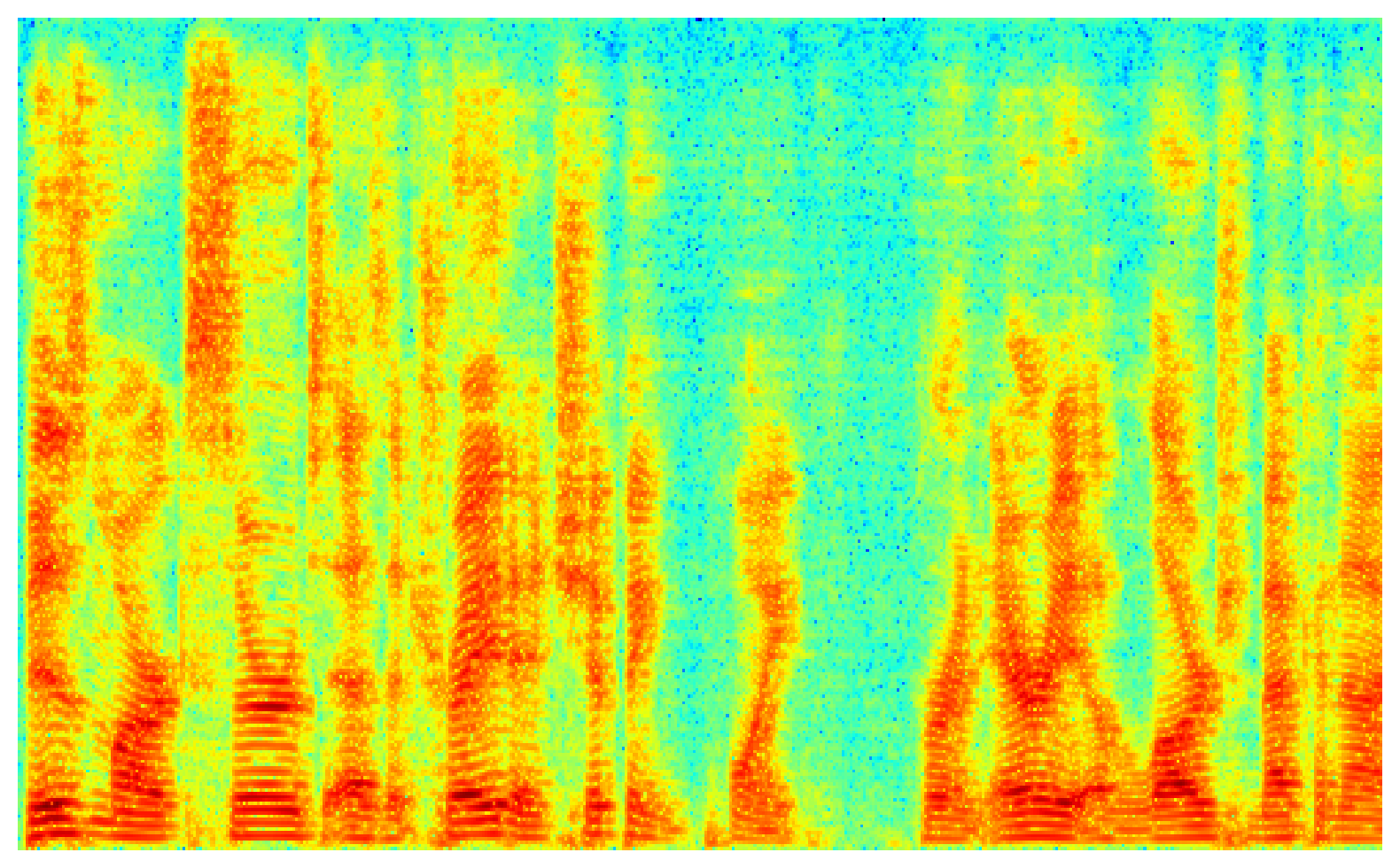

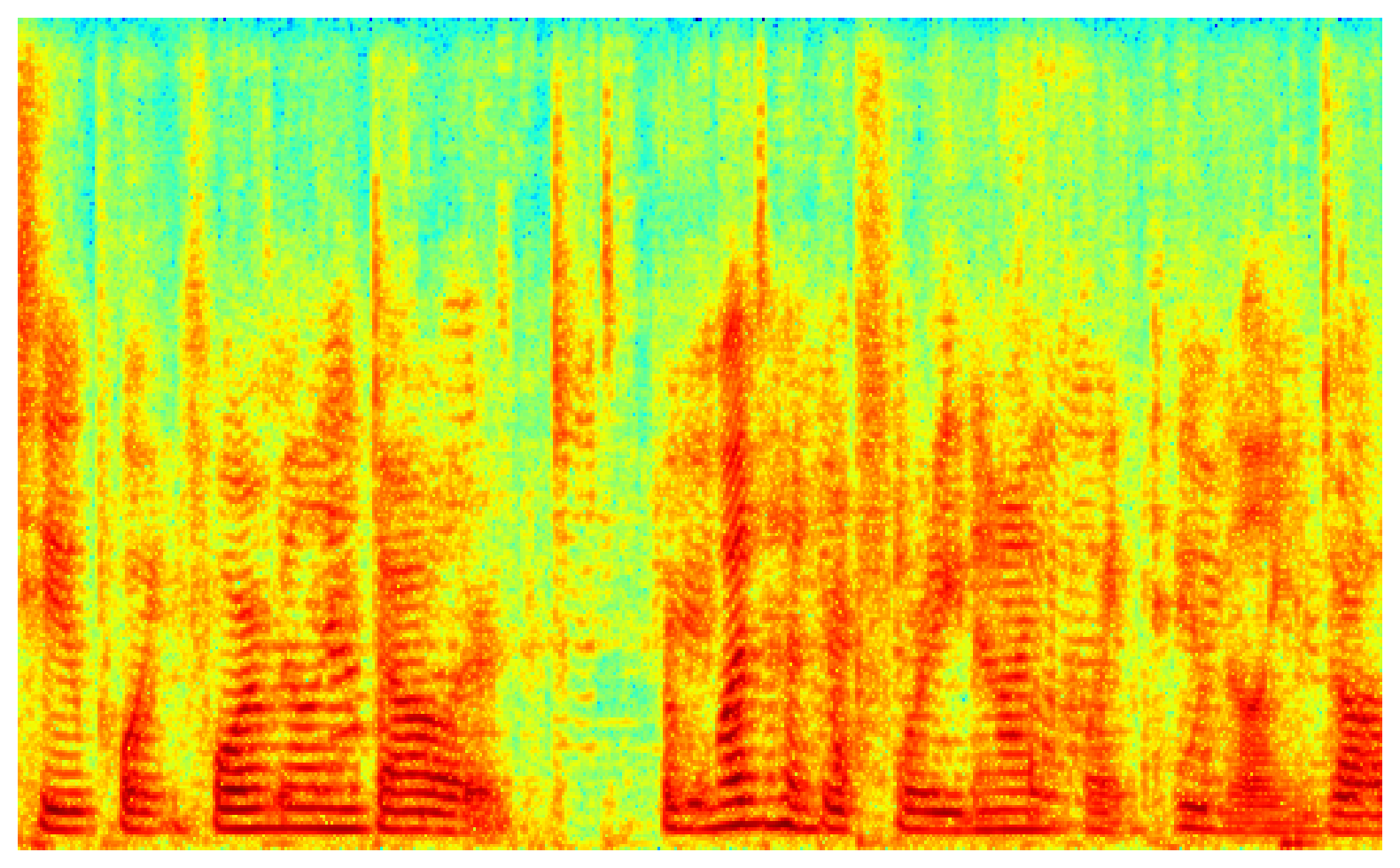

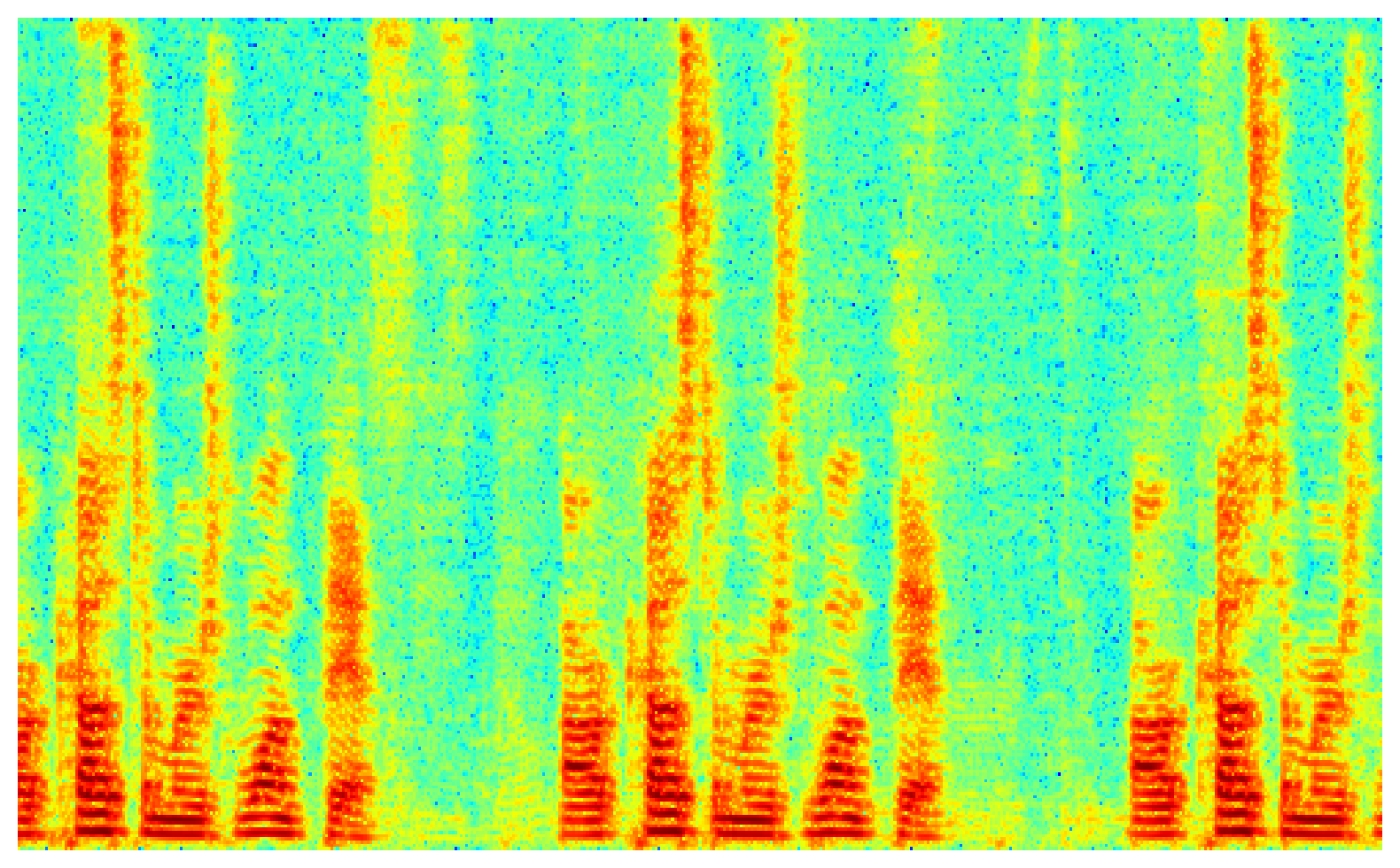

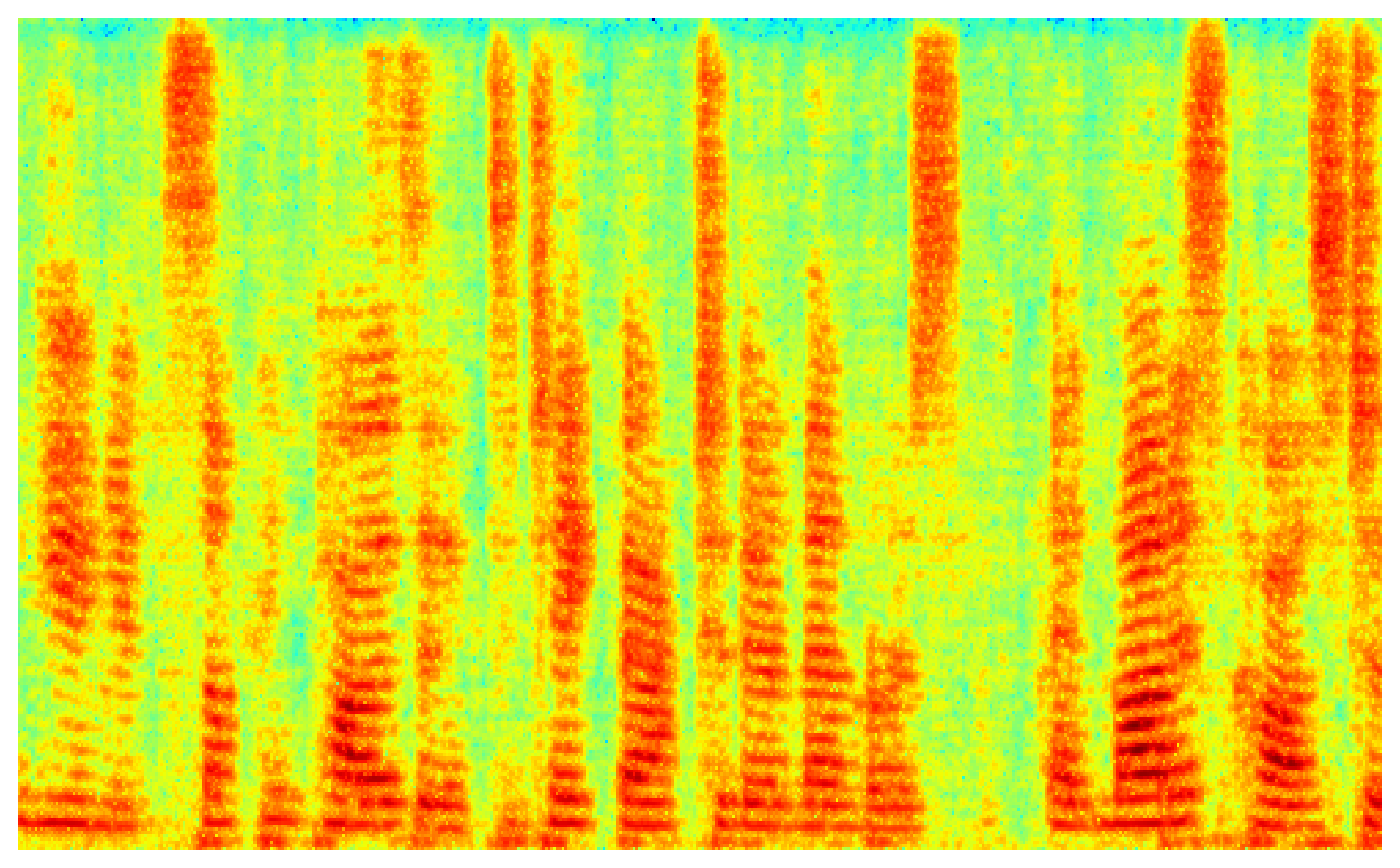

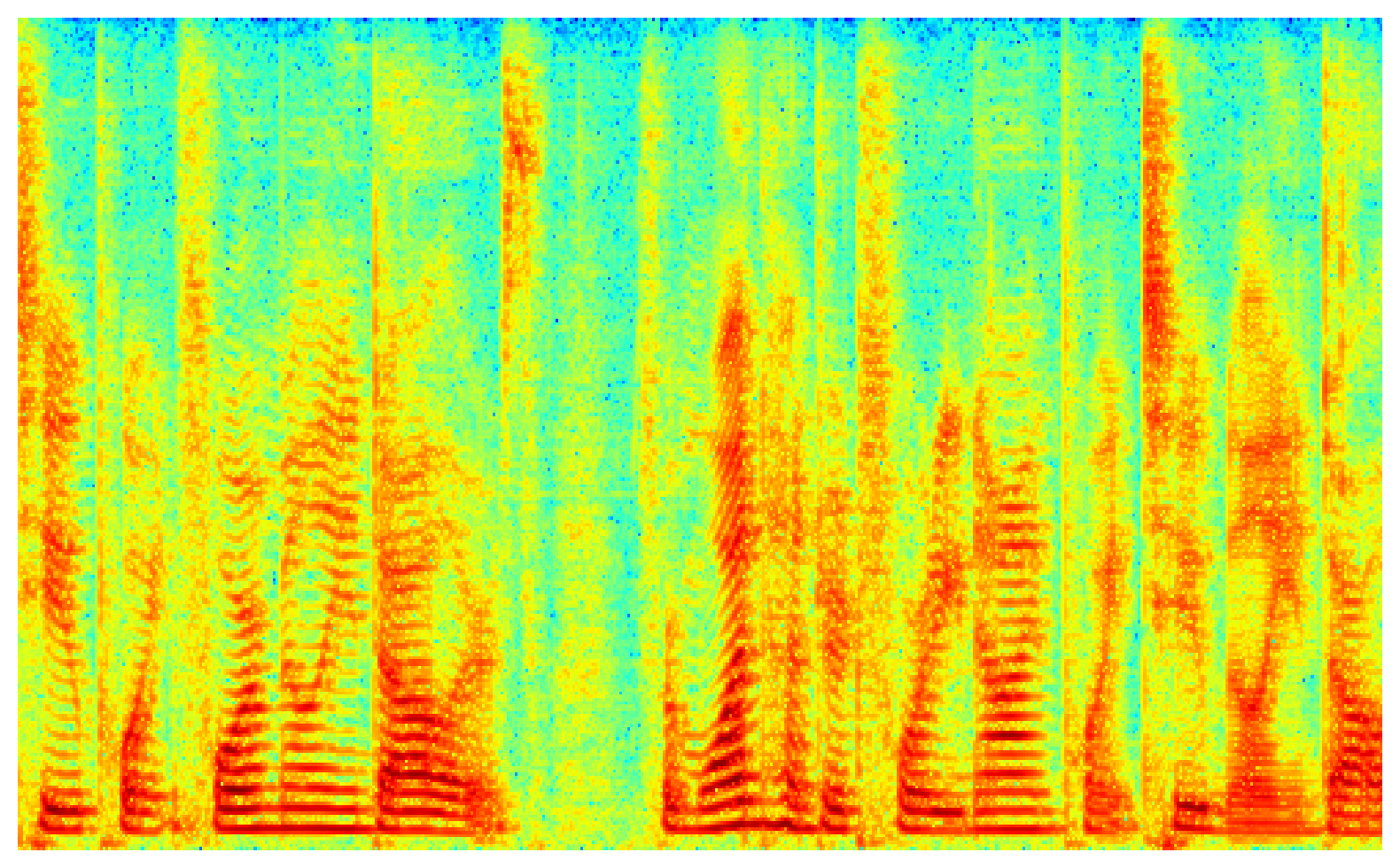

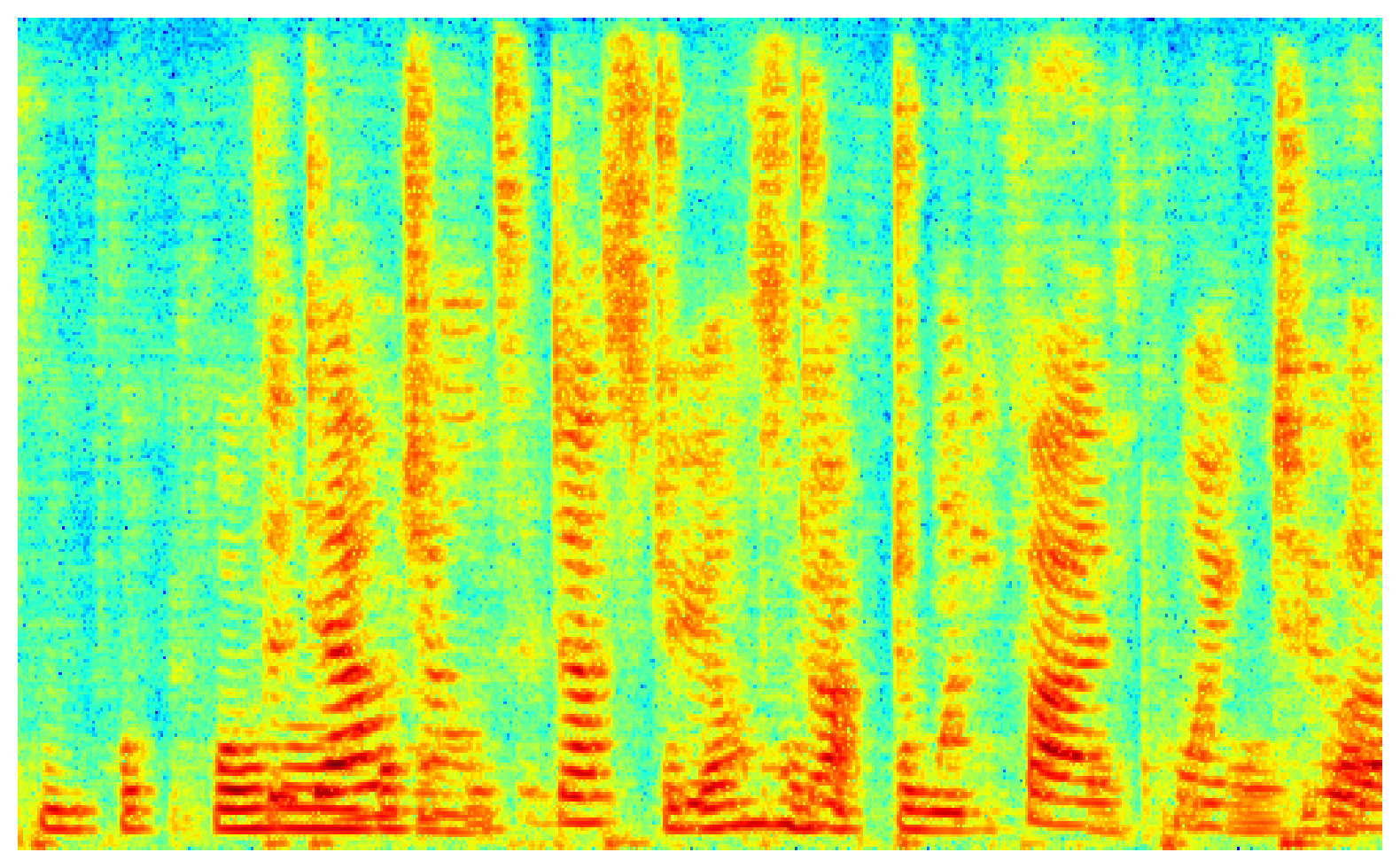

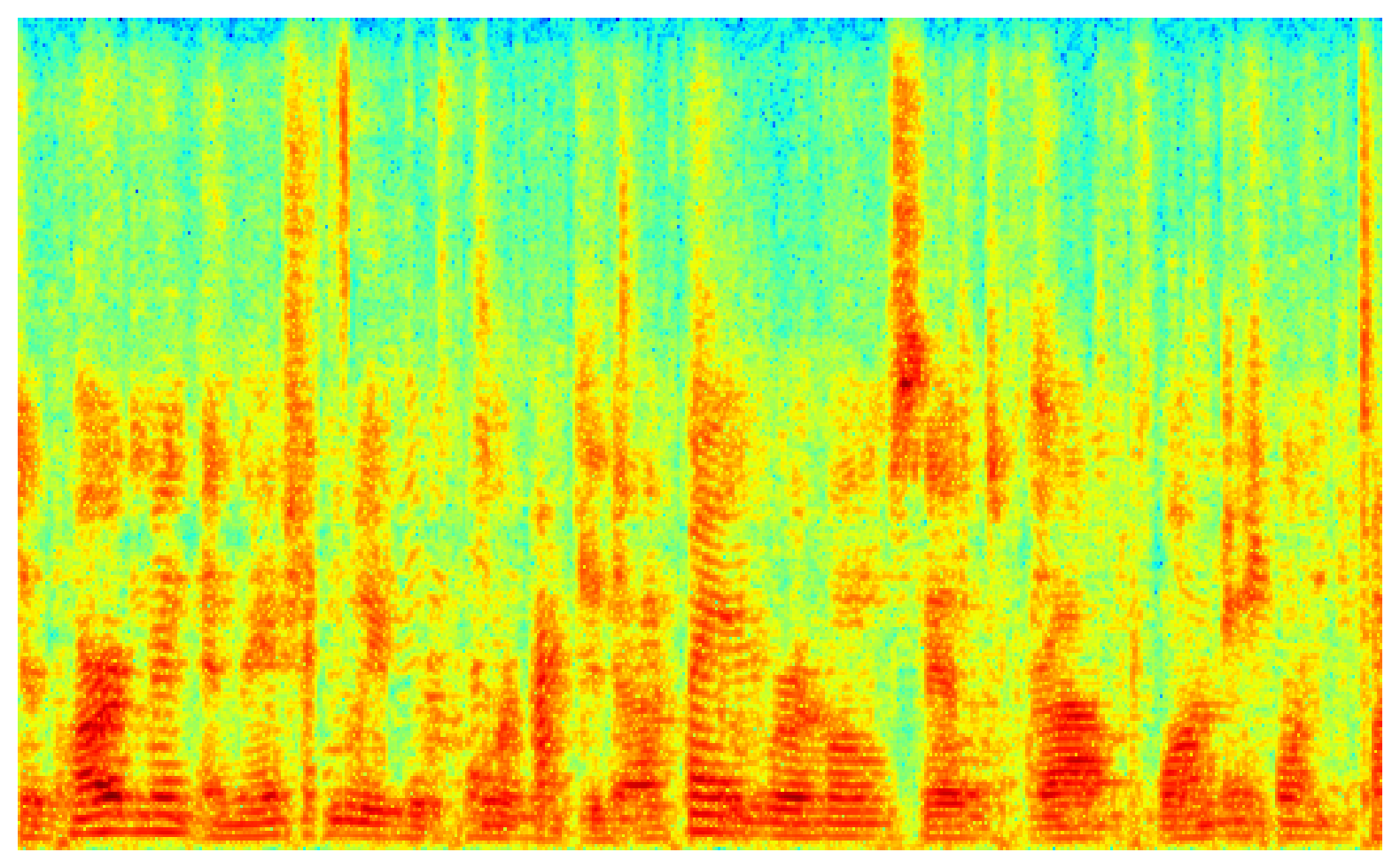

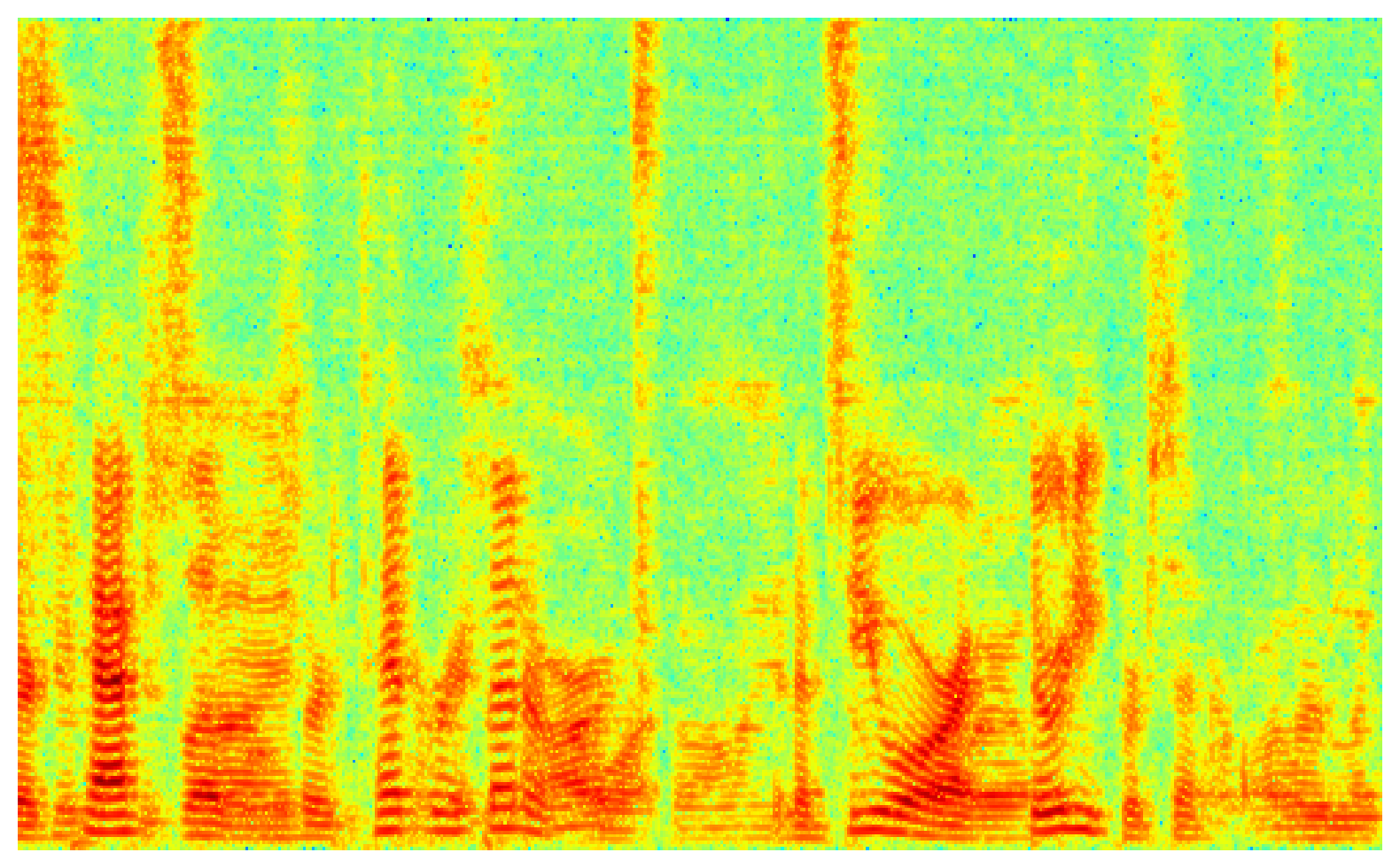

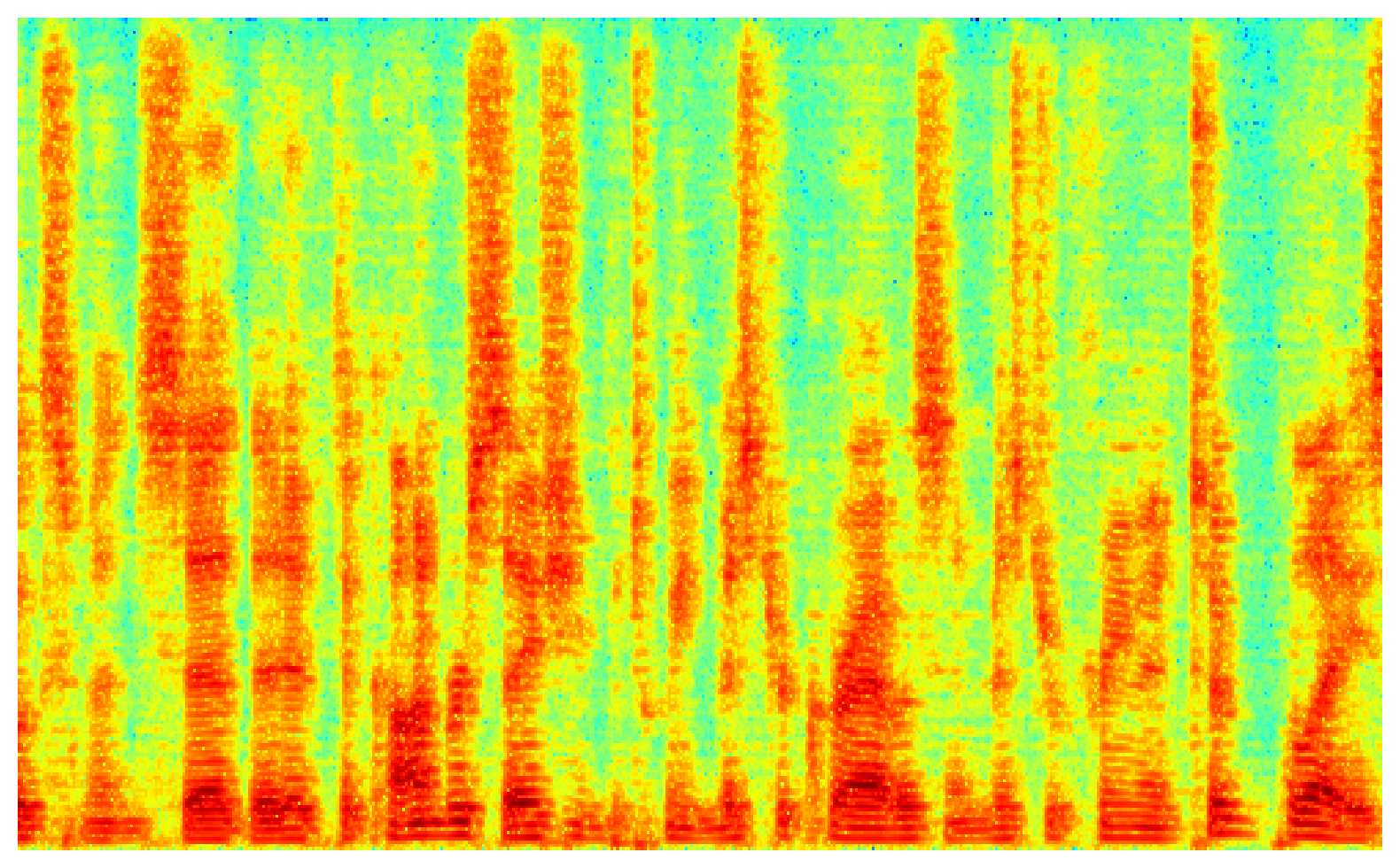

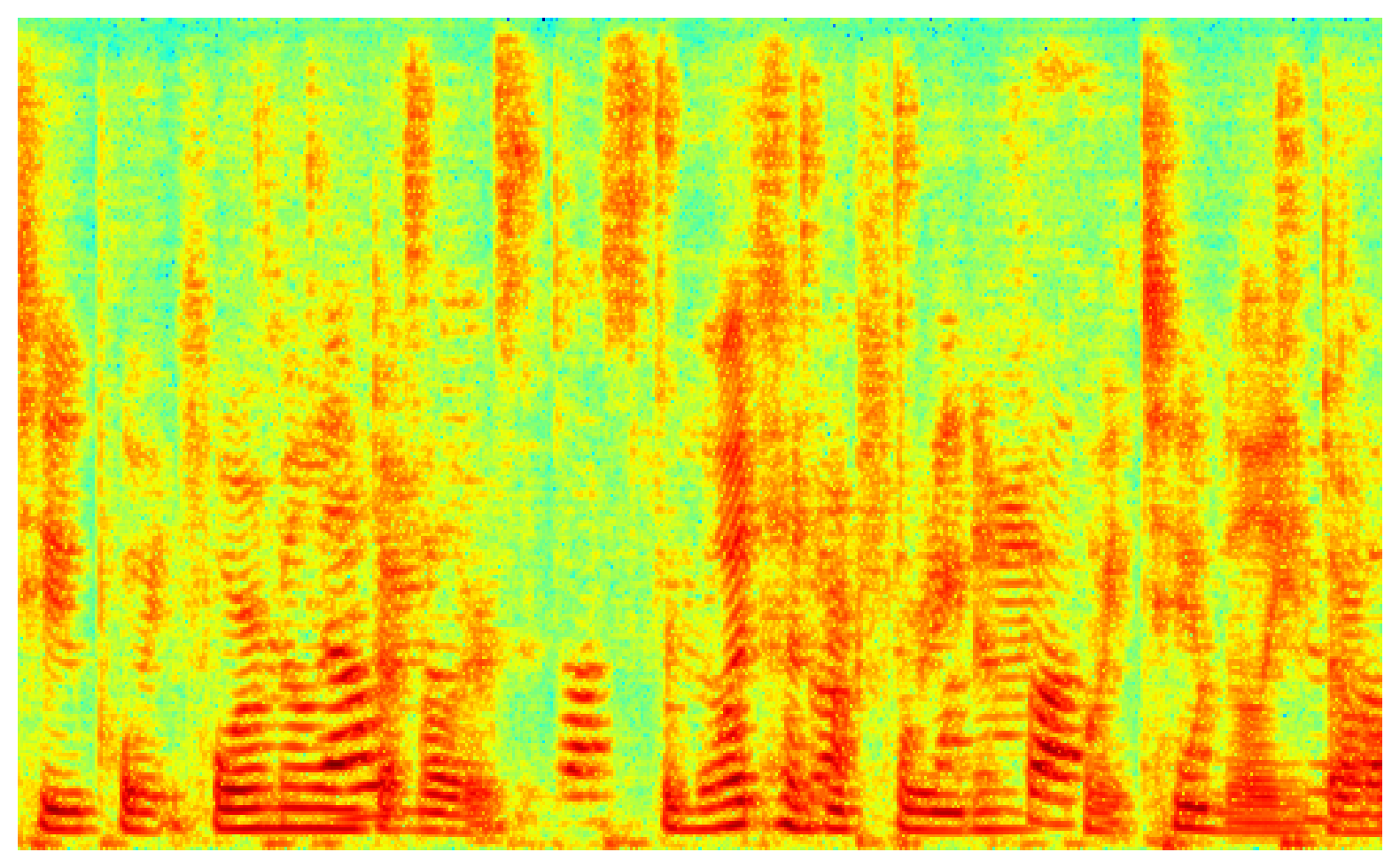

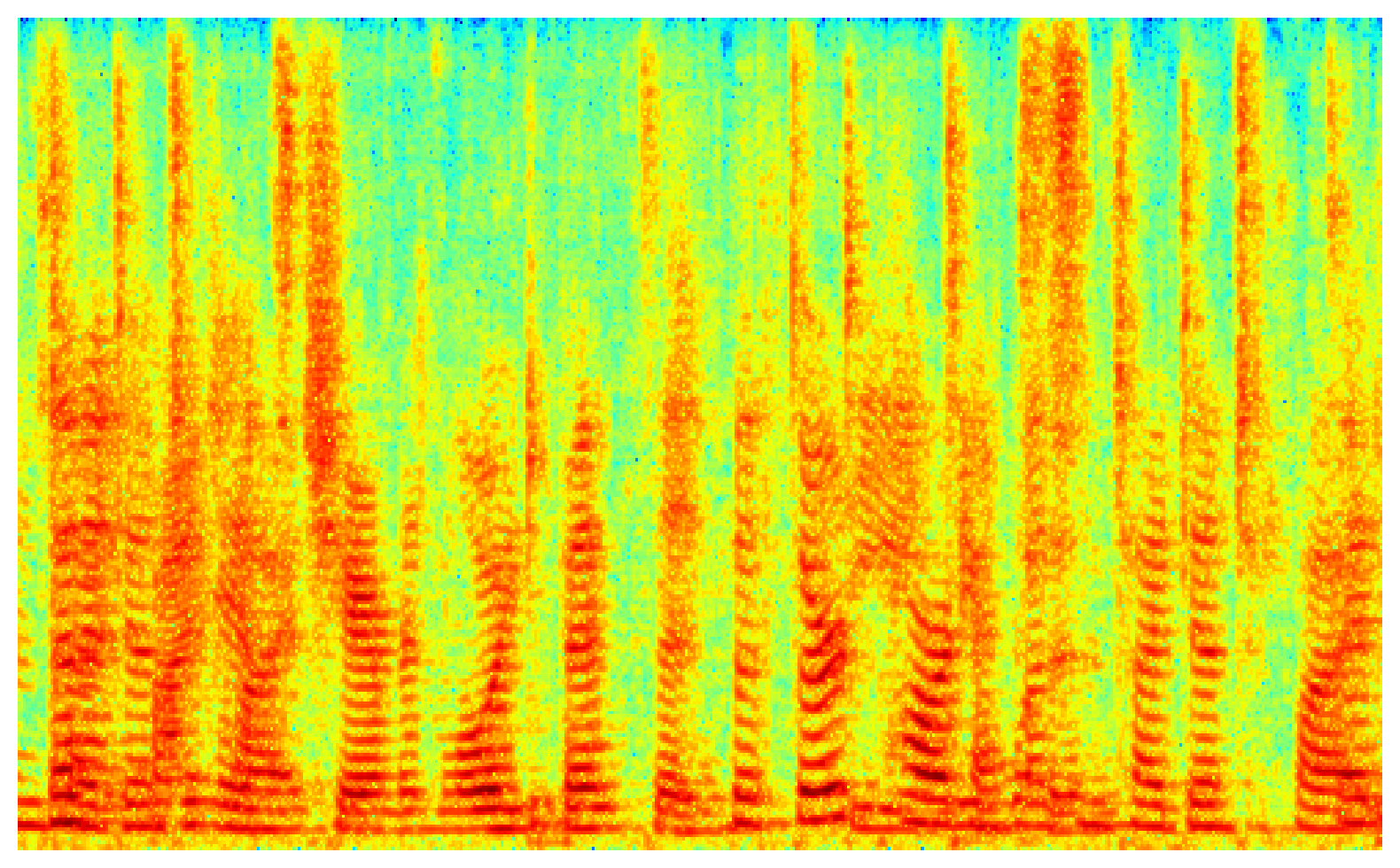

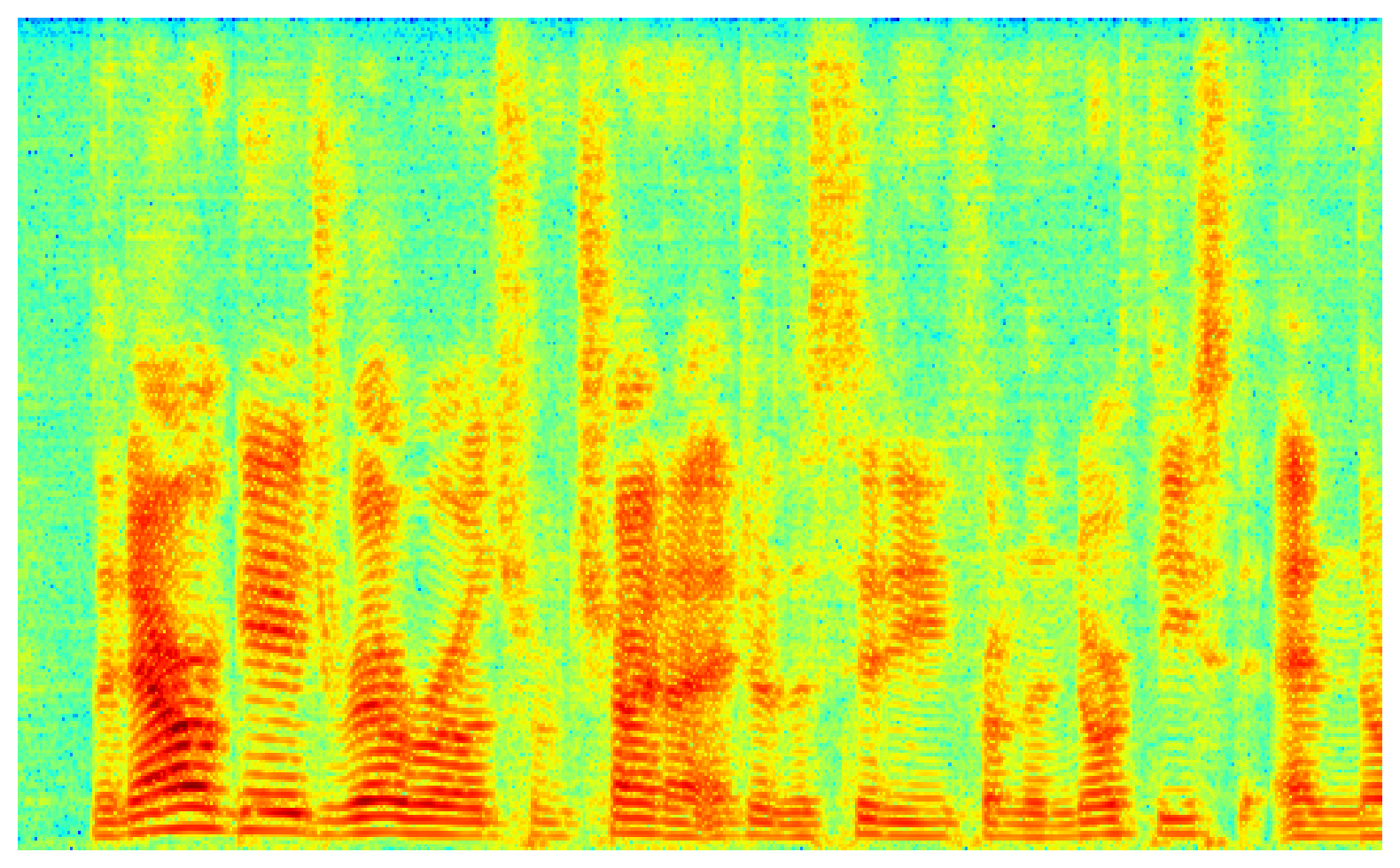

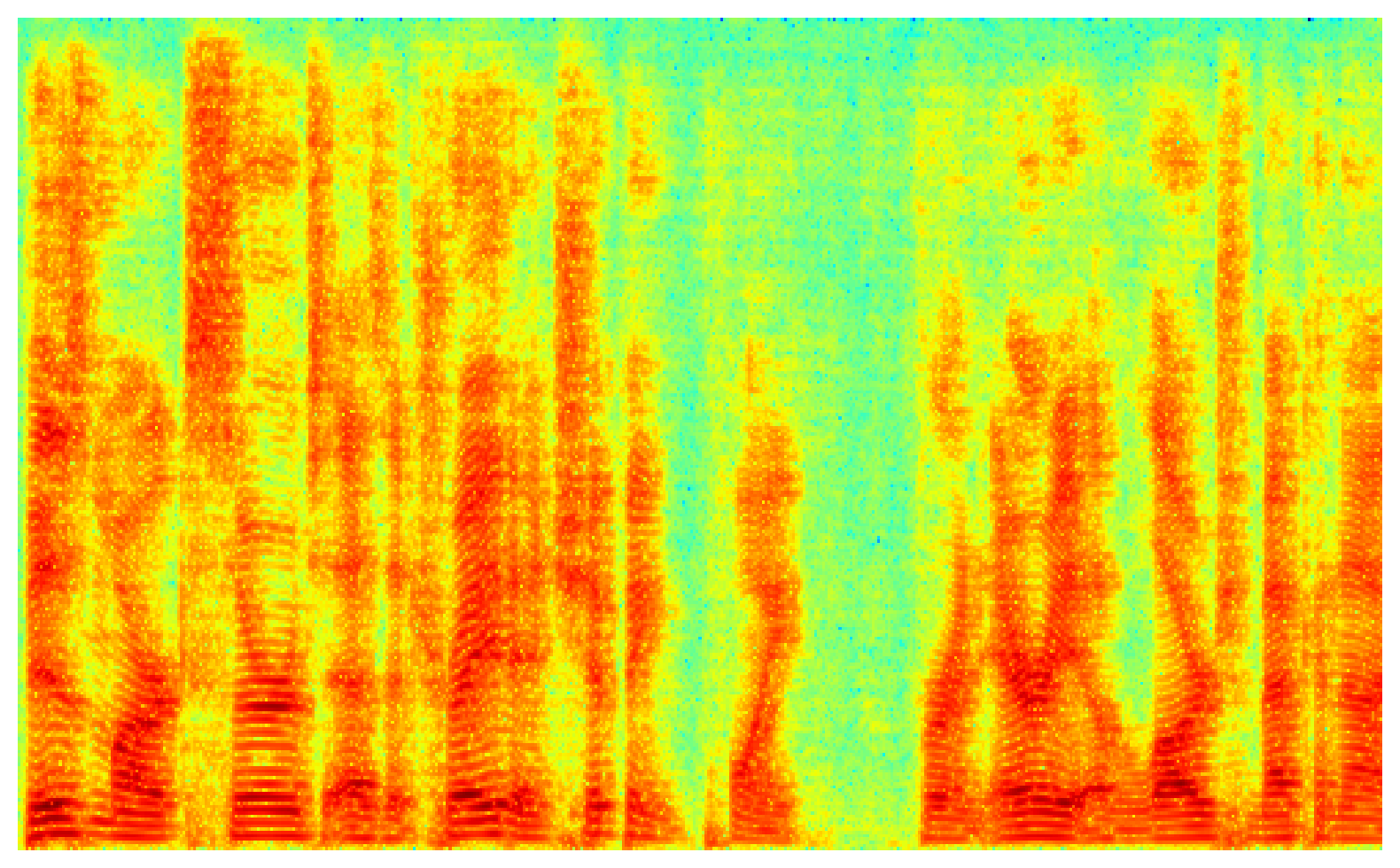

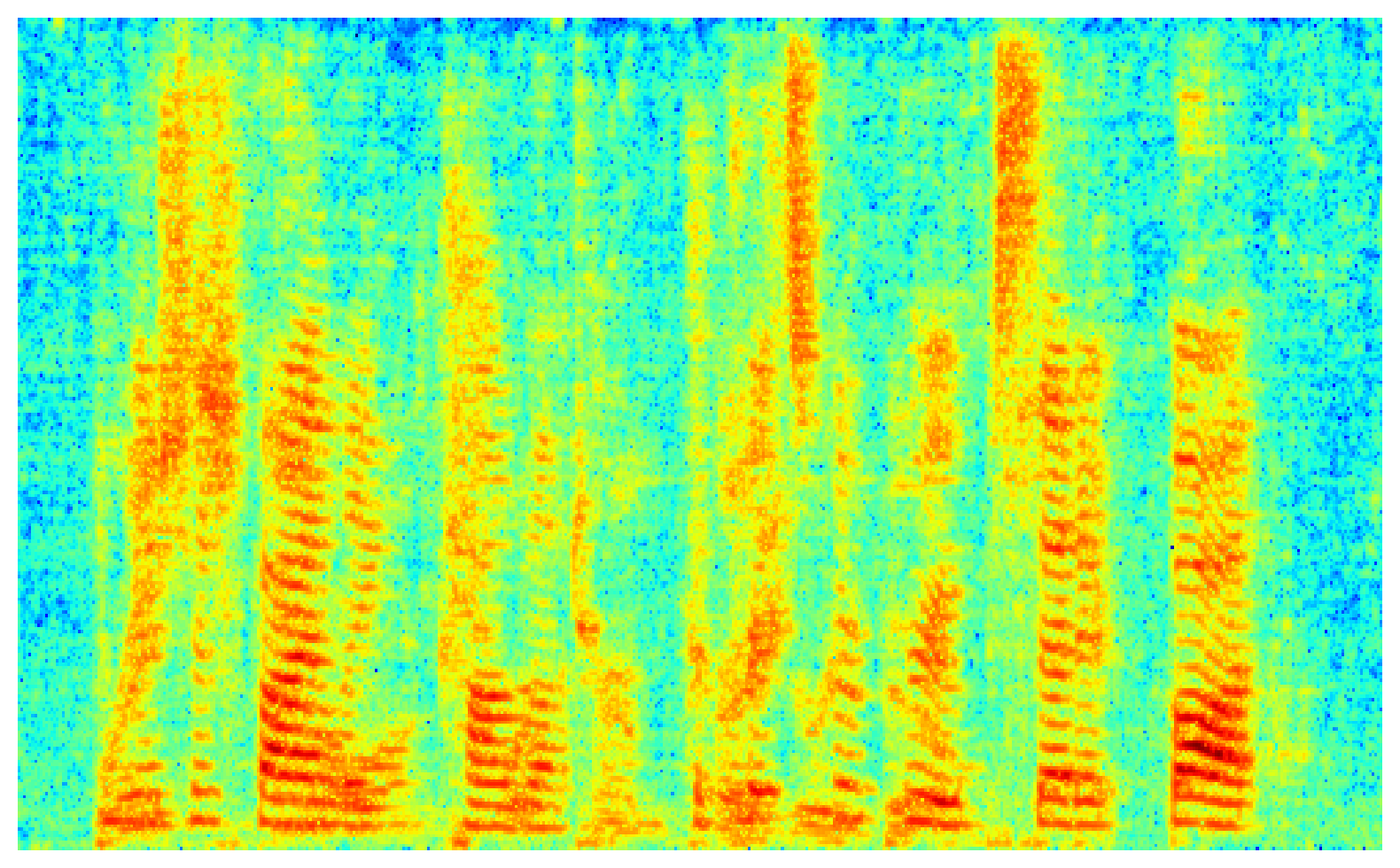

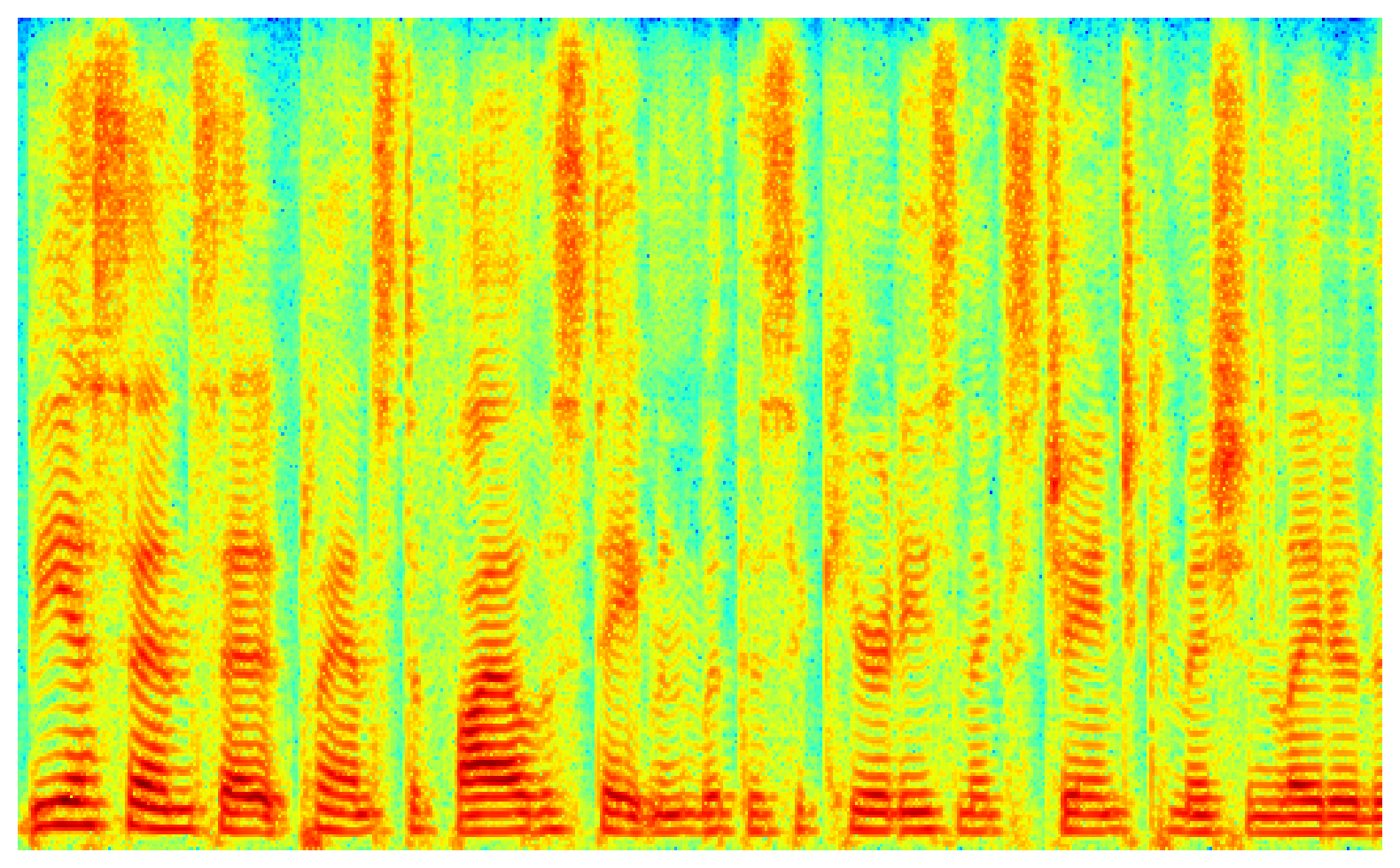

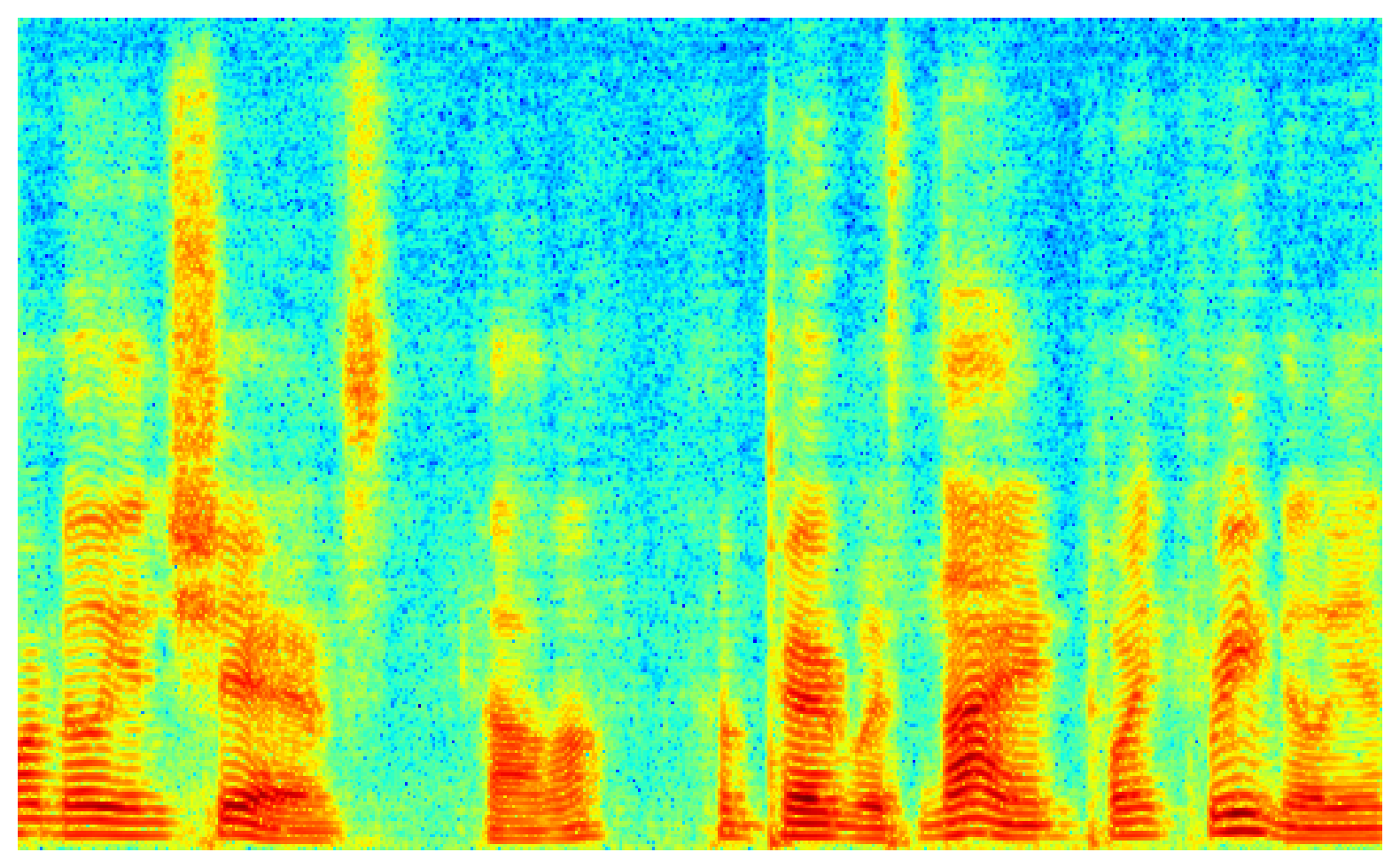

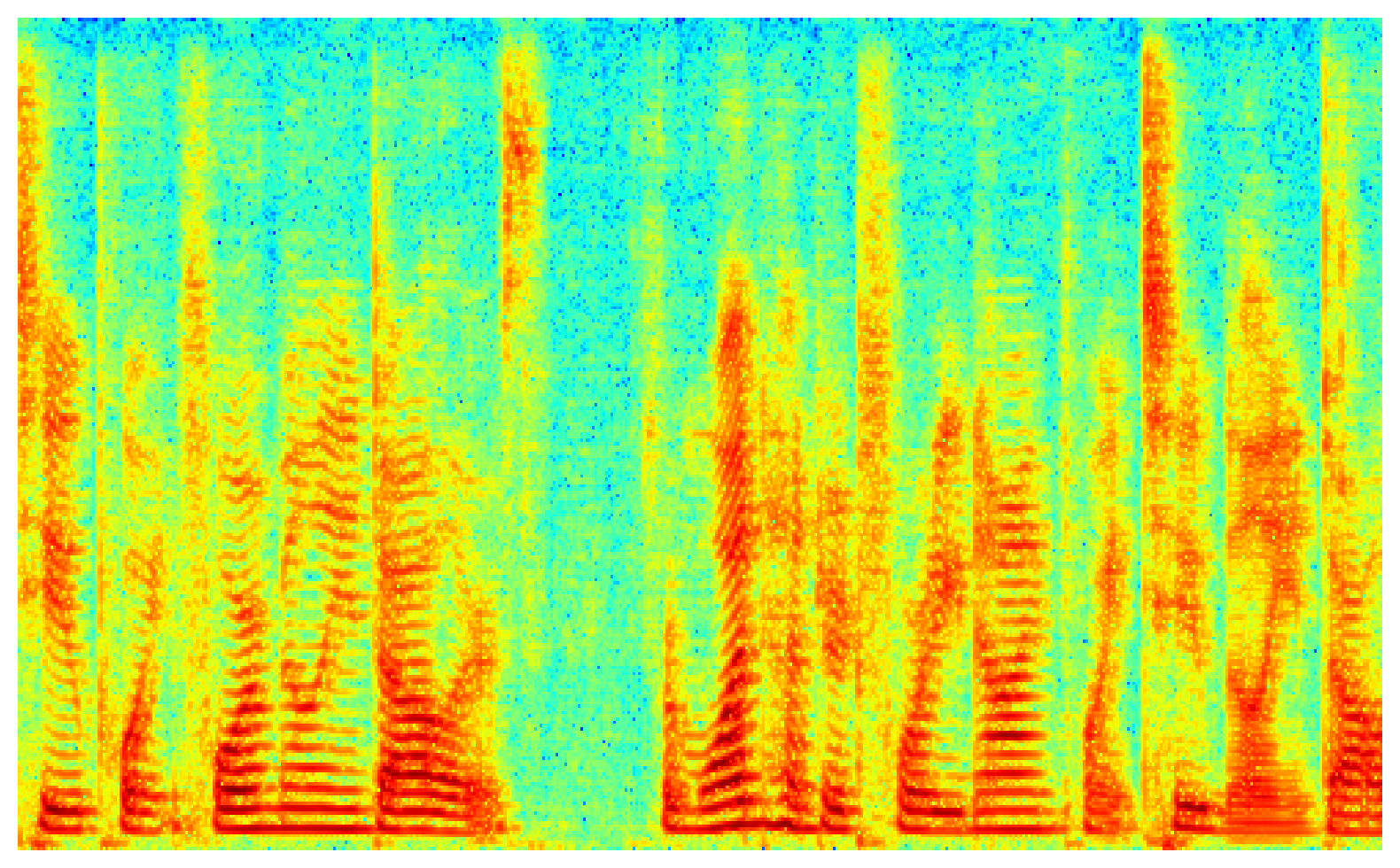

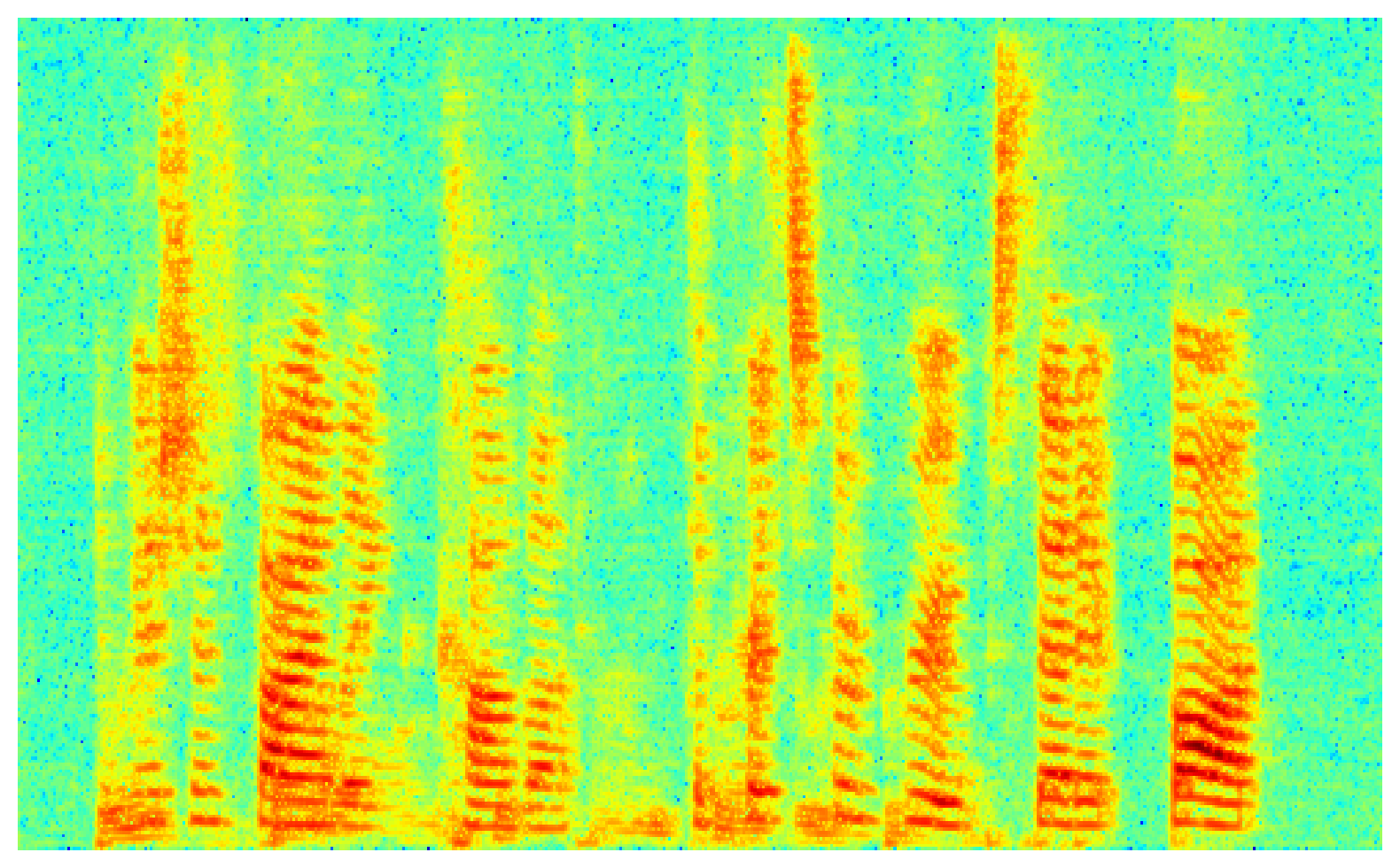

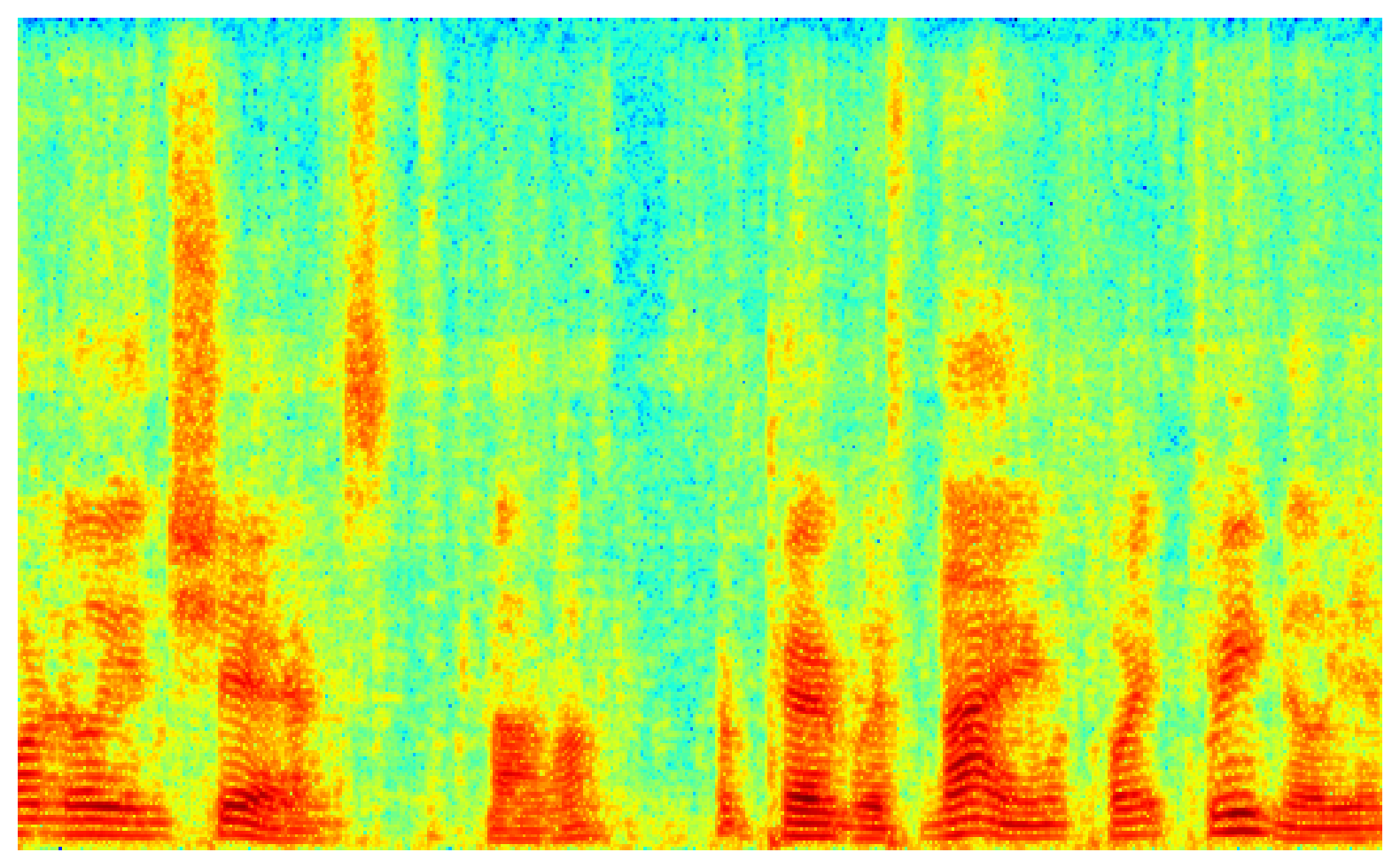

Audio samples (performance on two datasets)

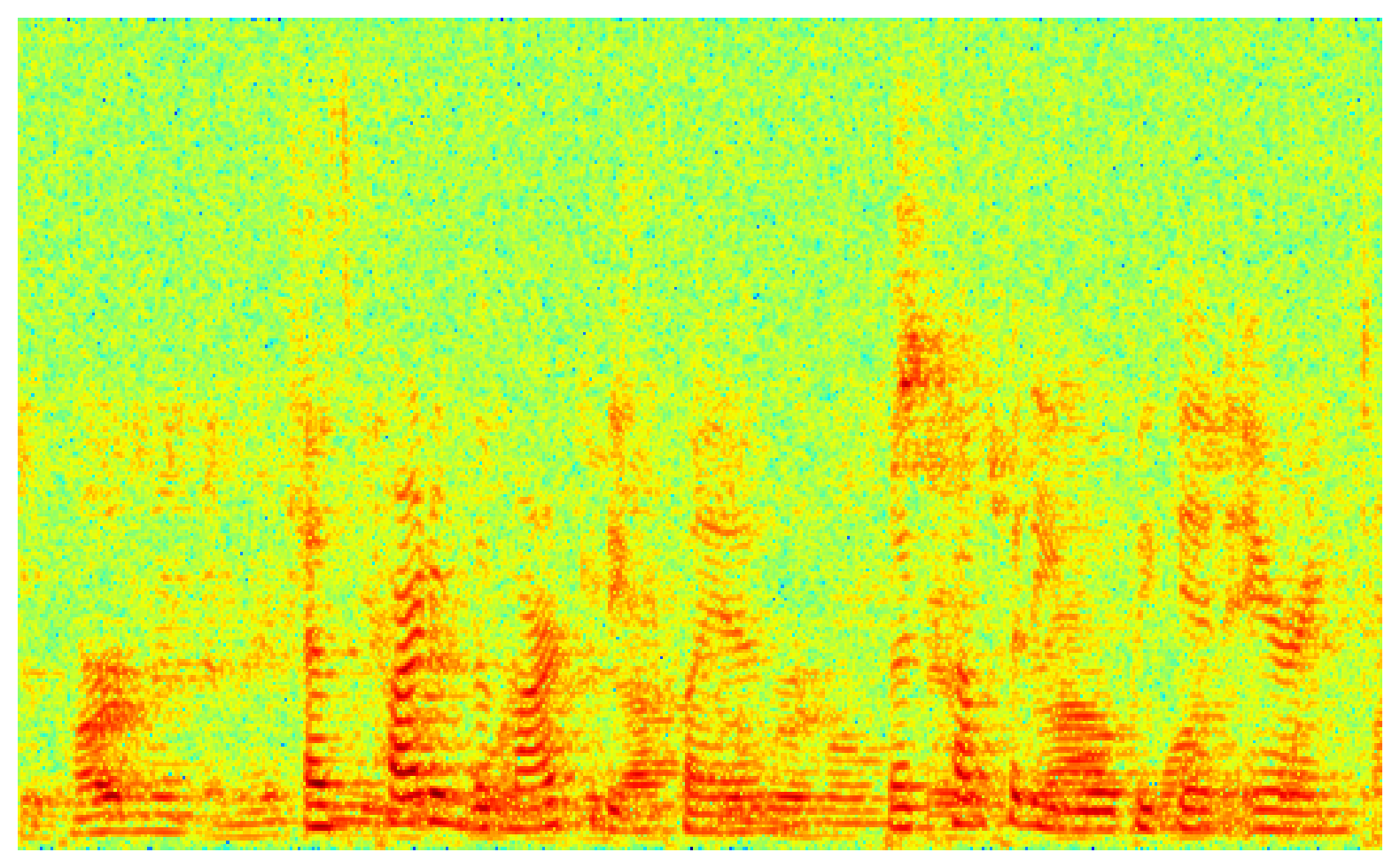

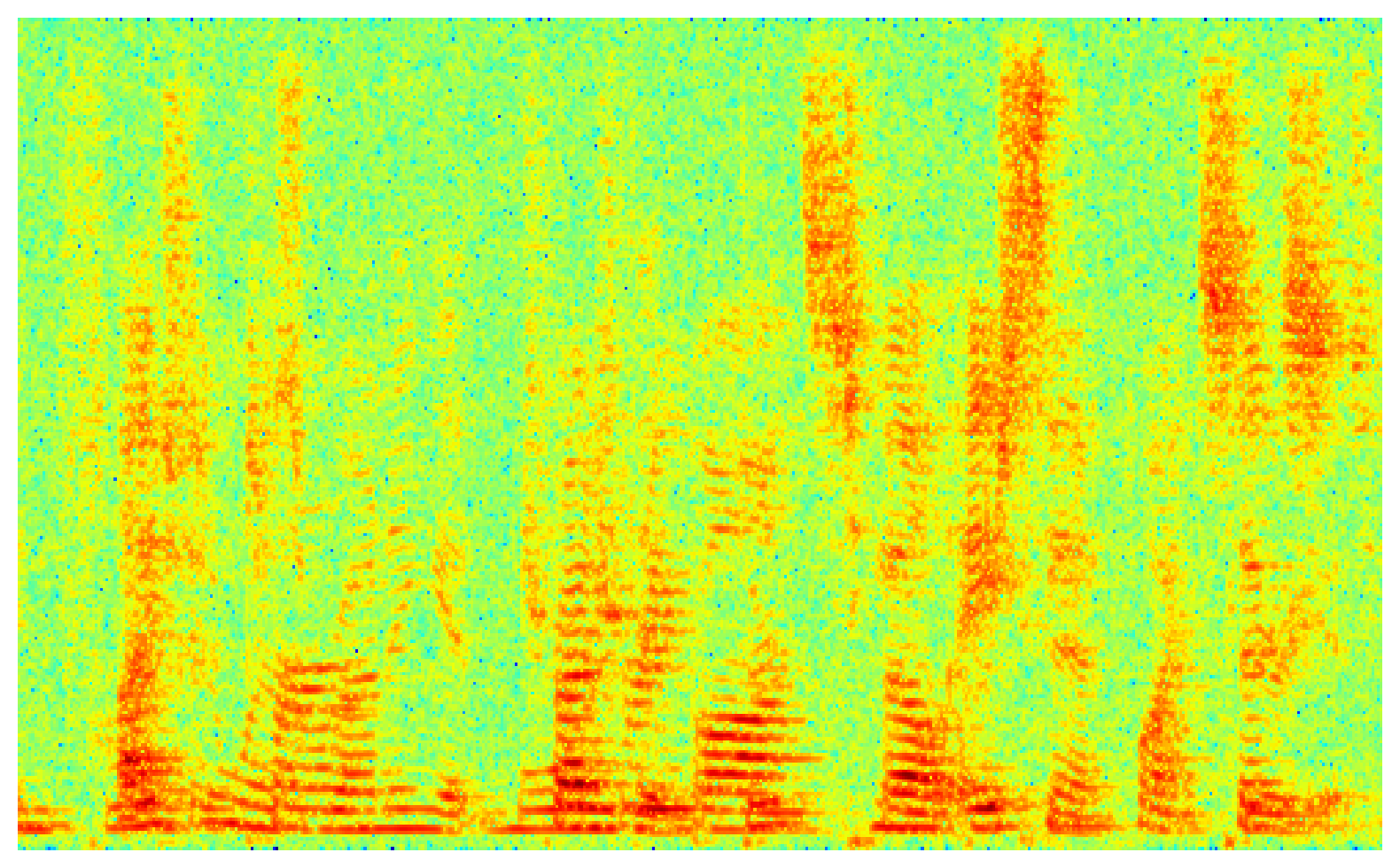

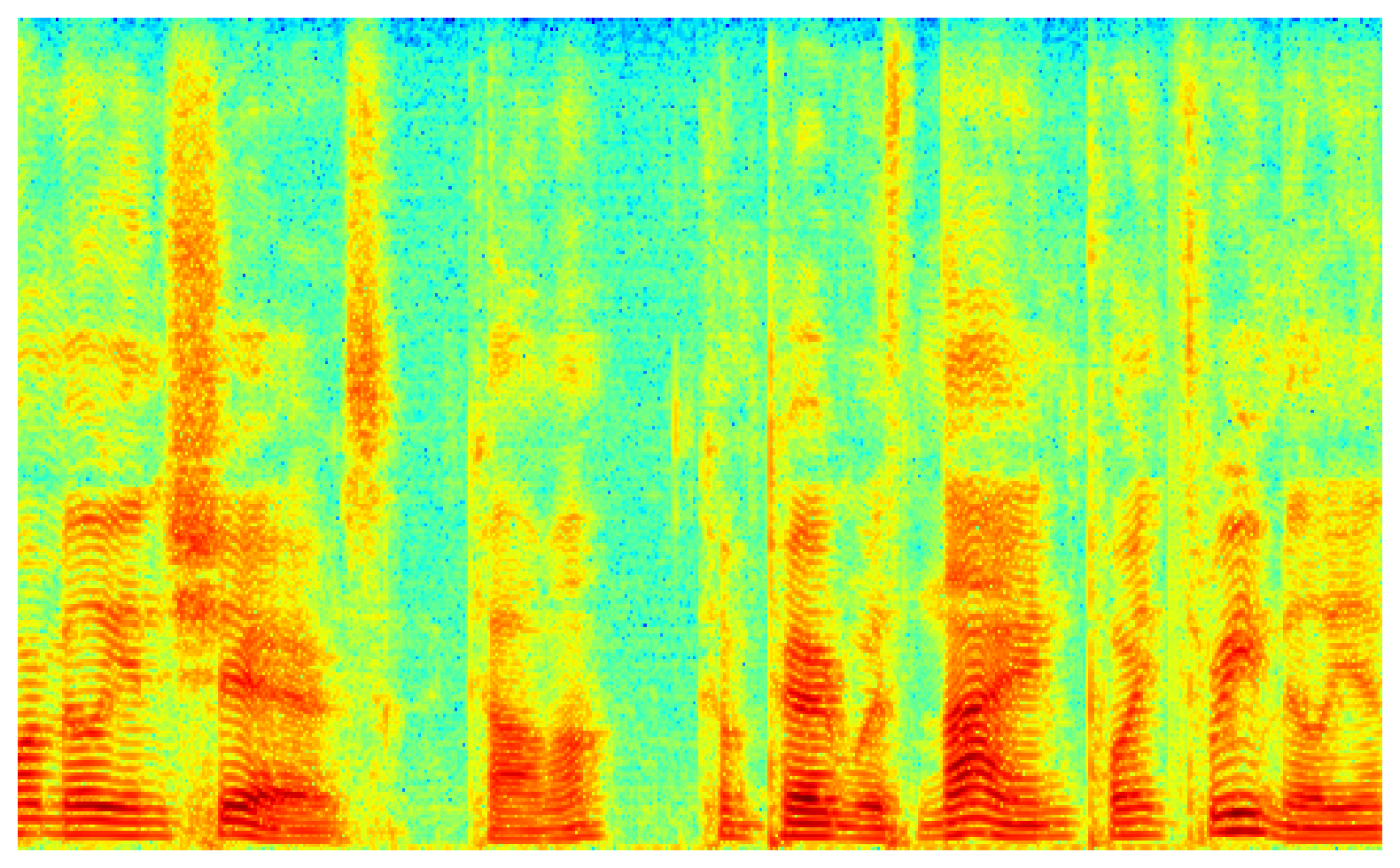

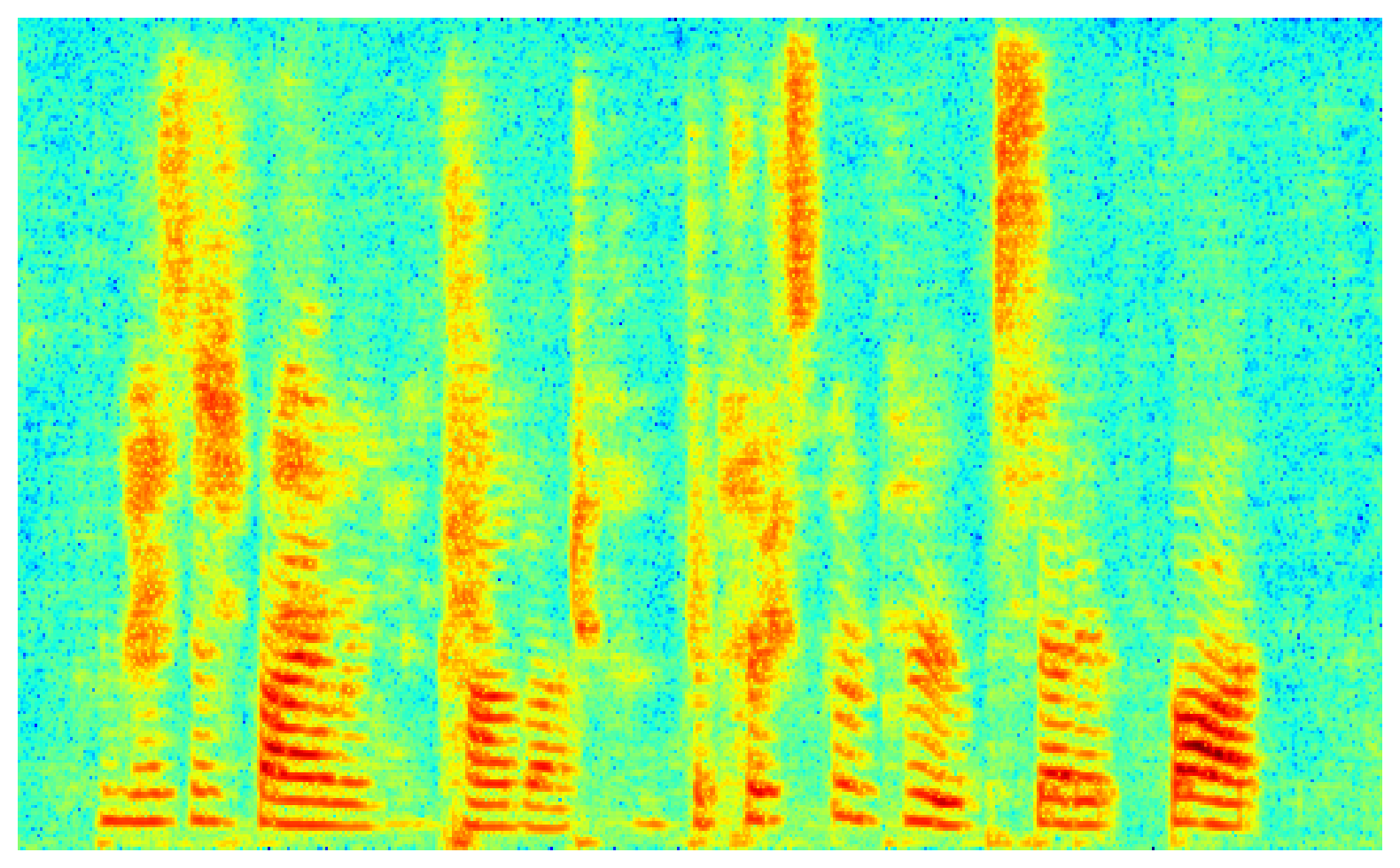

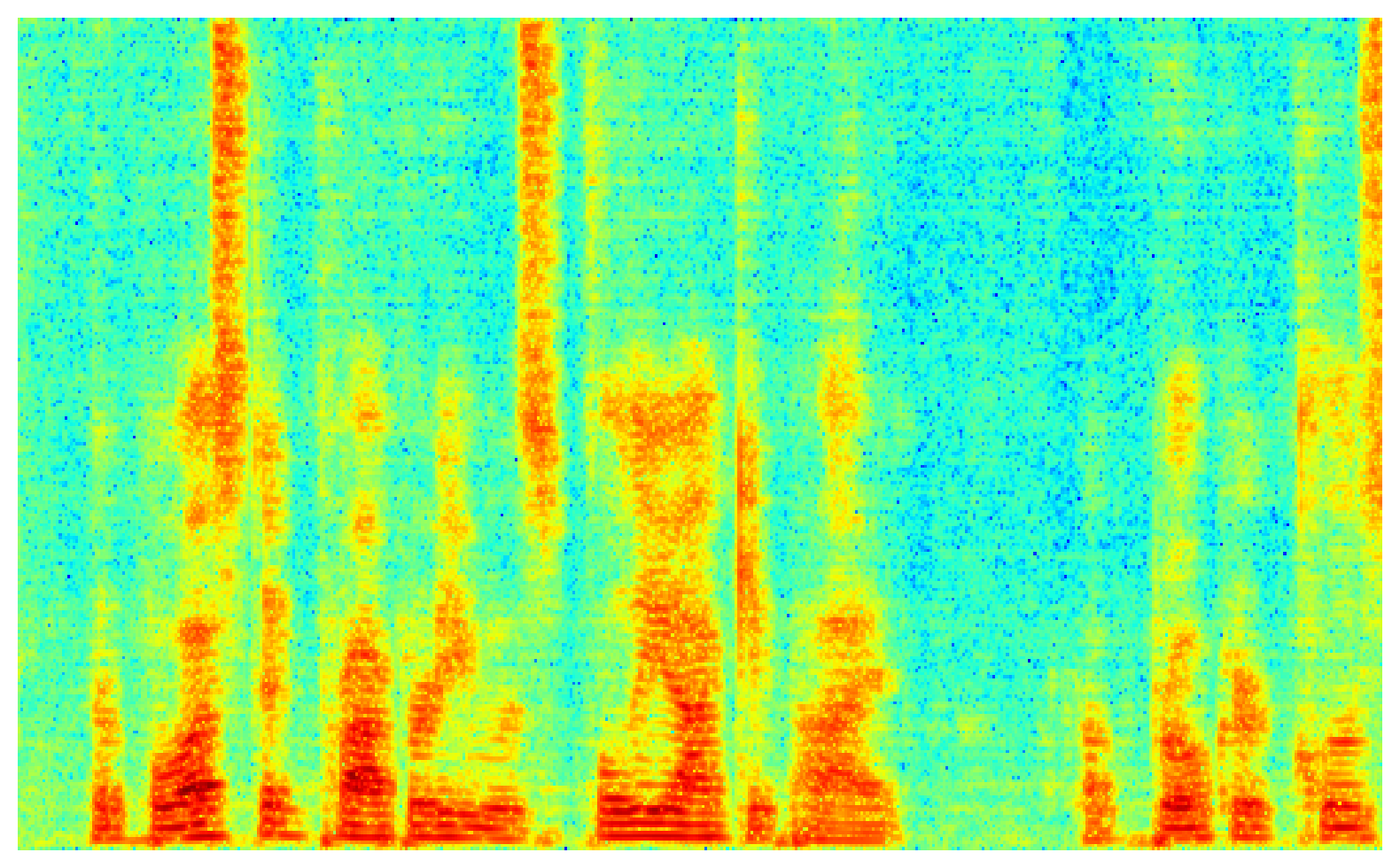

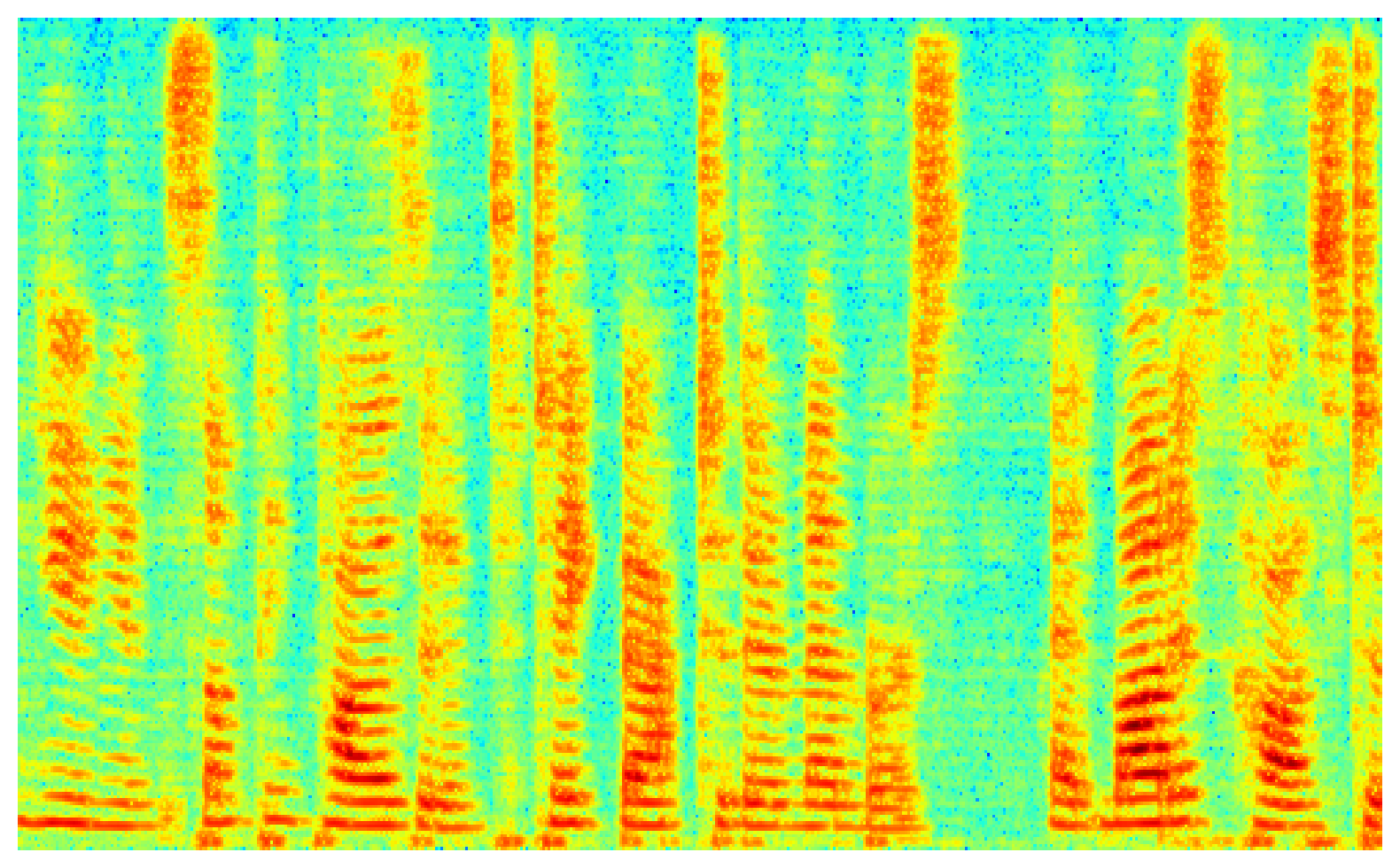

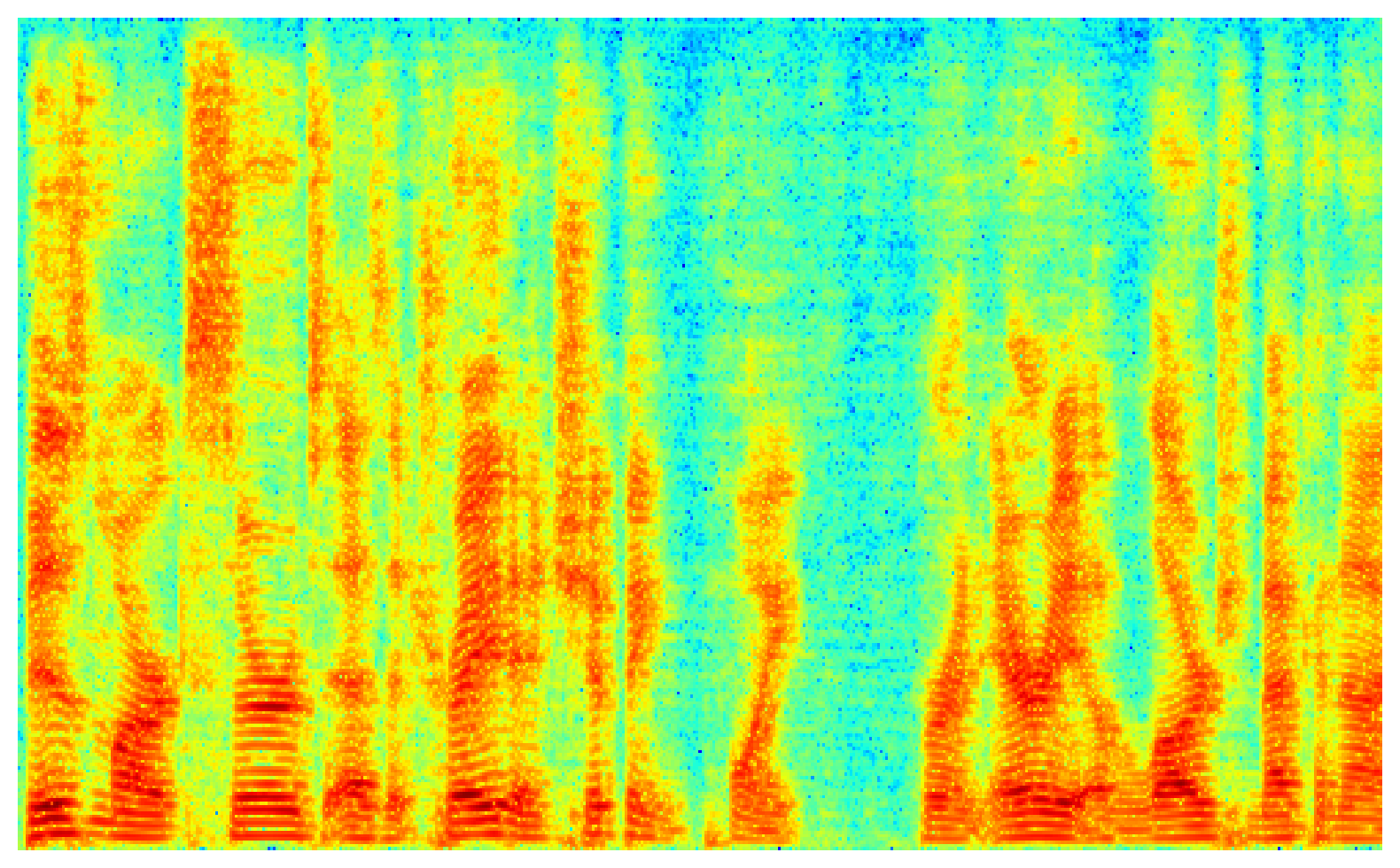

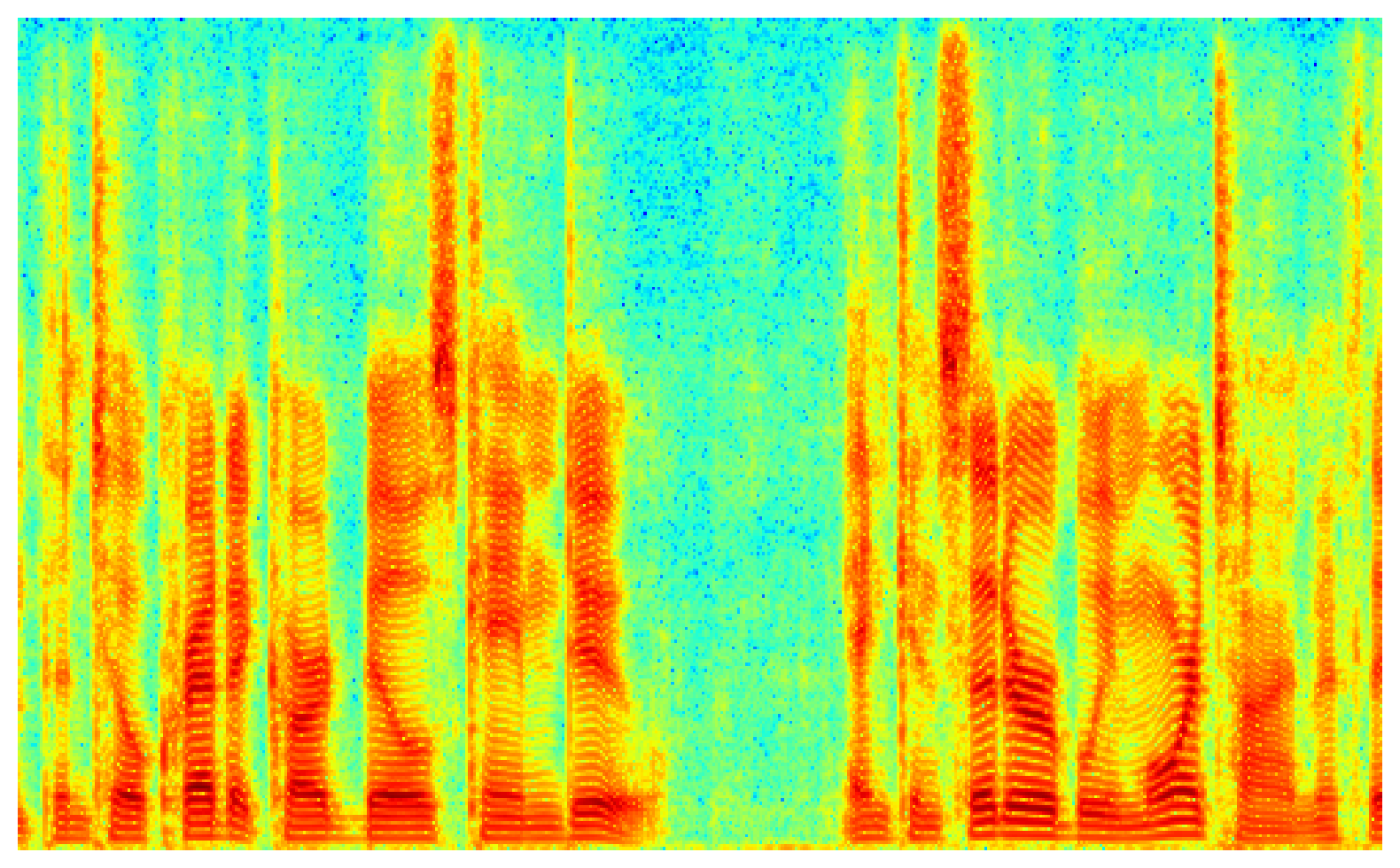

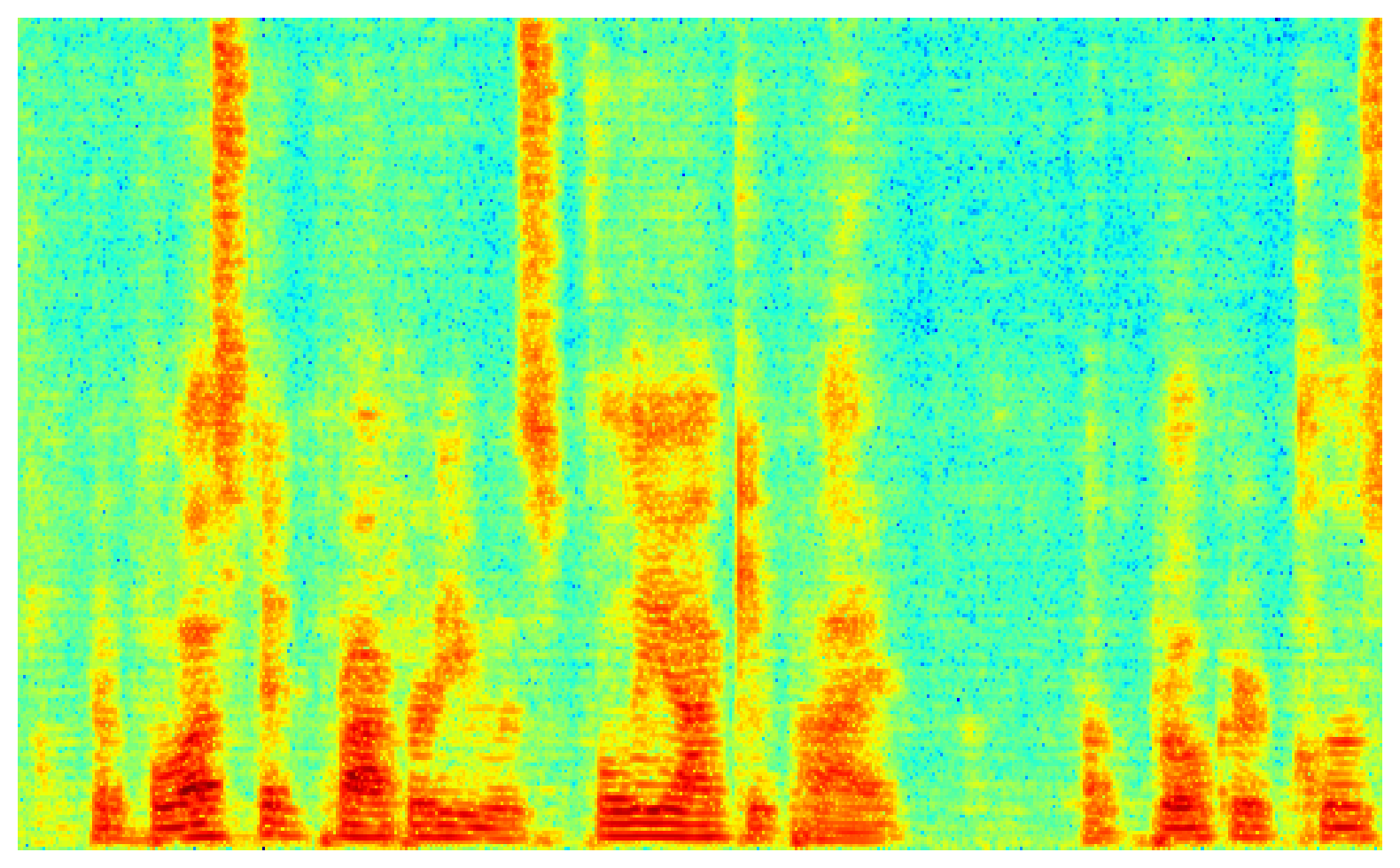

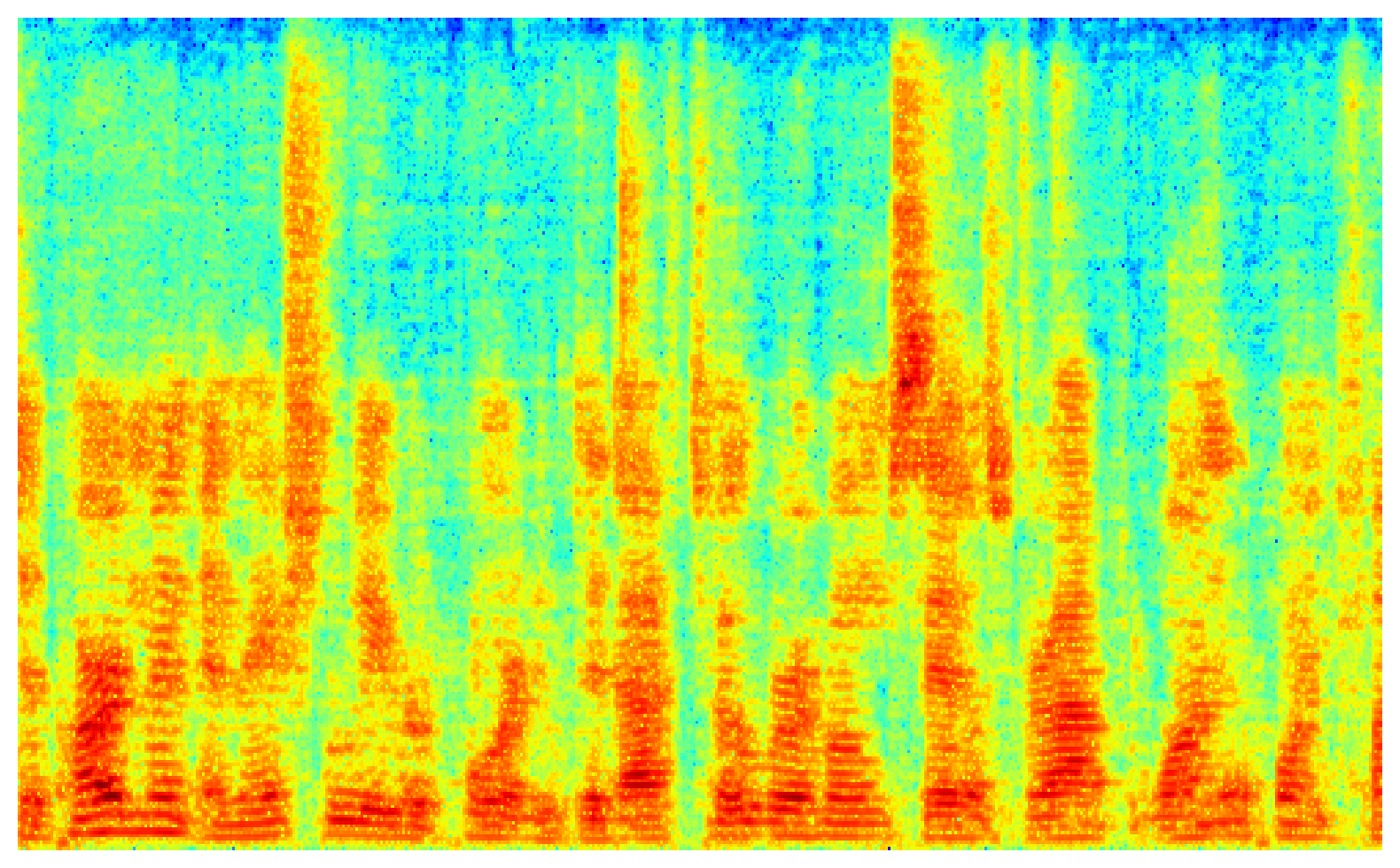

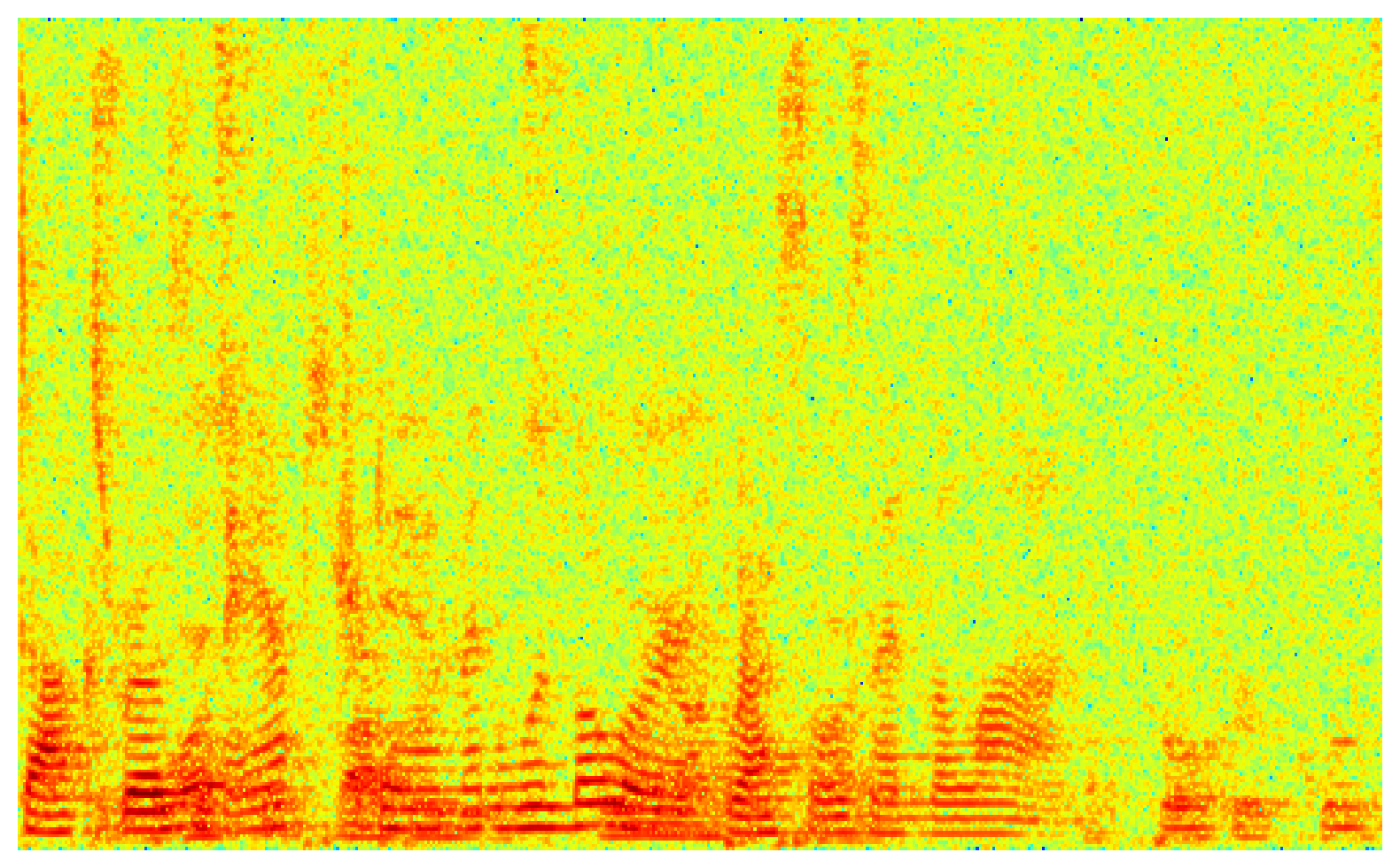

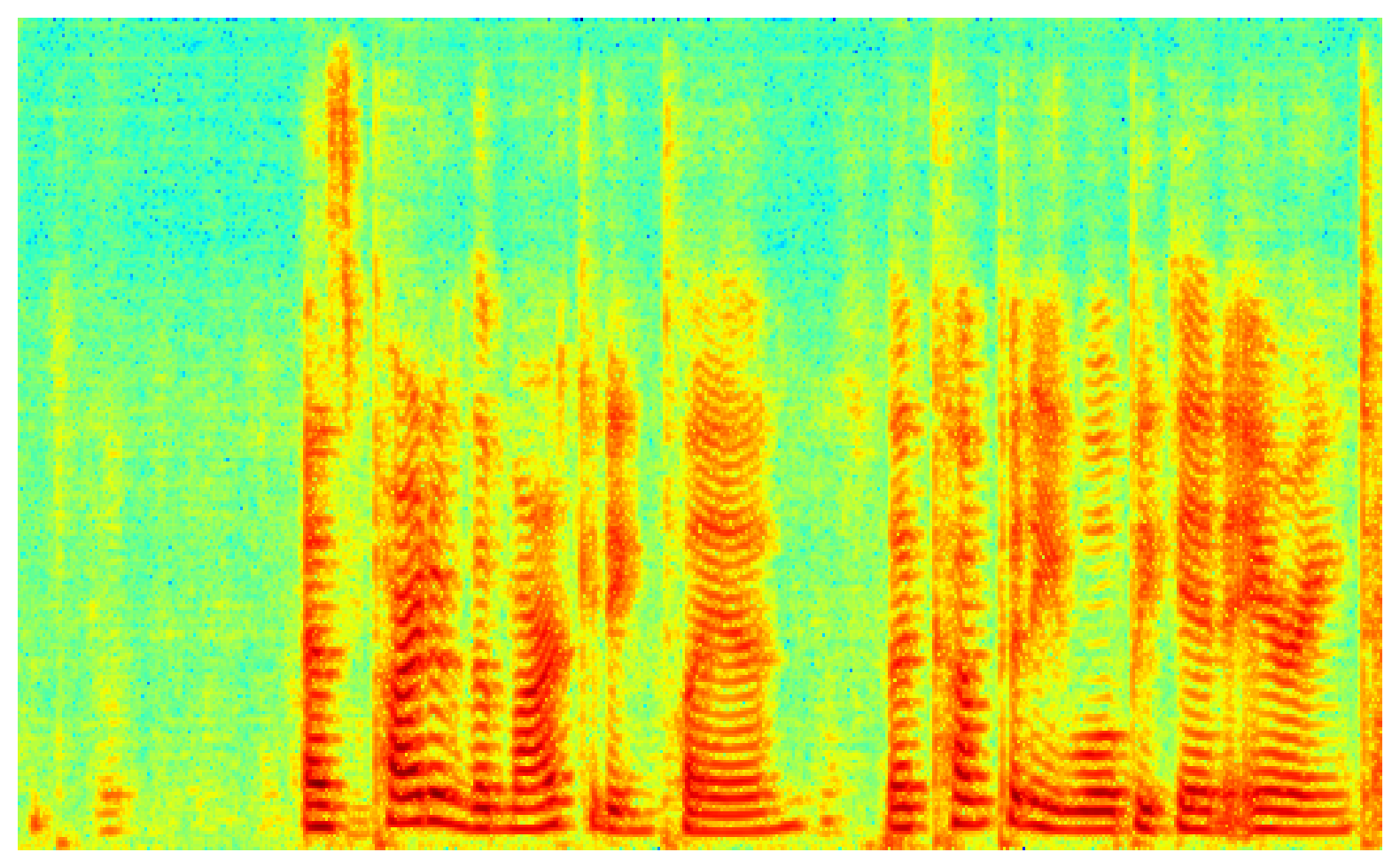

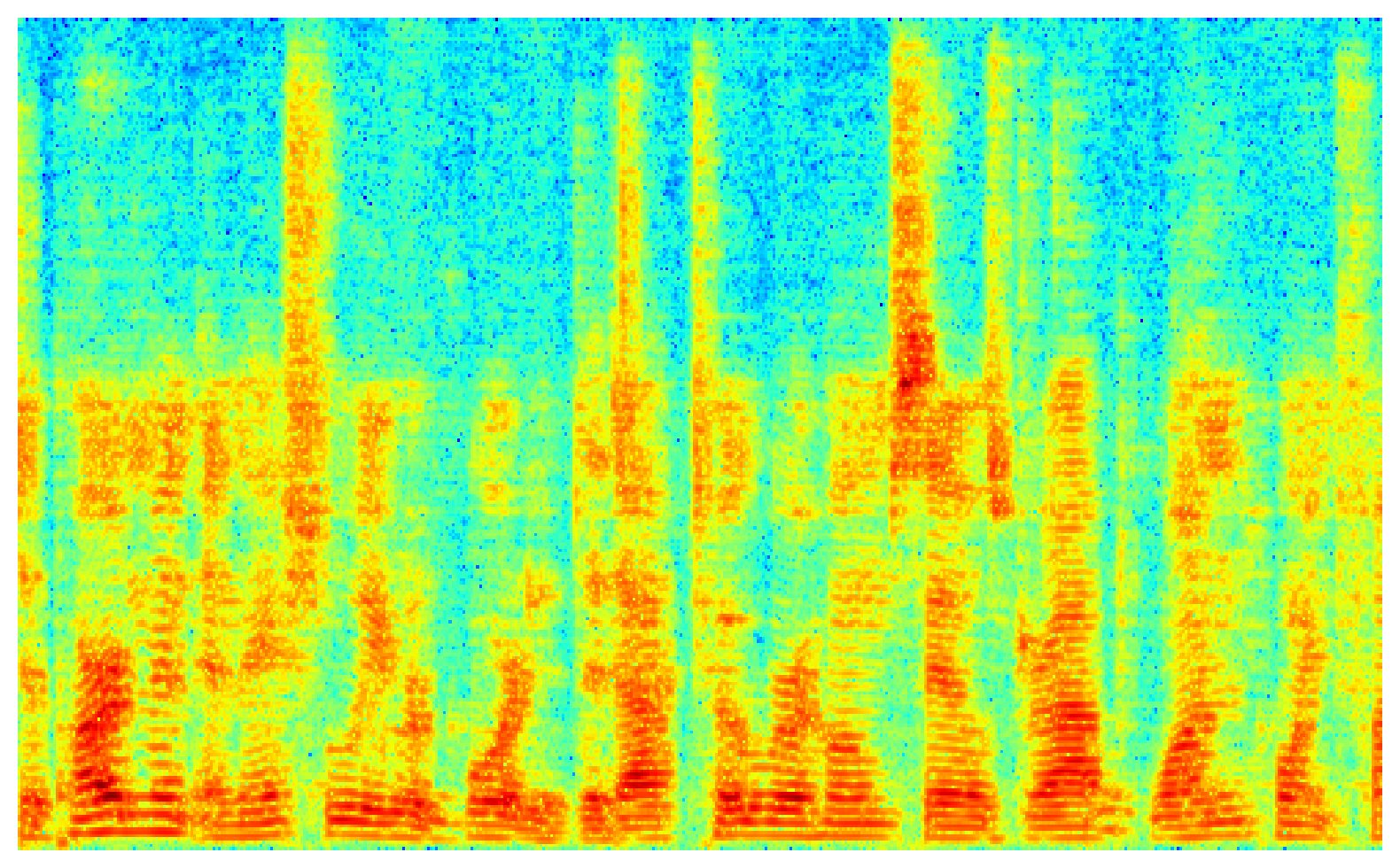

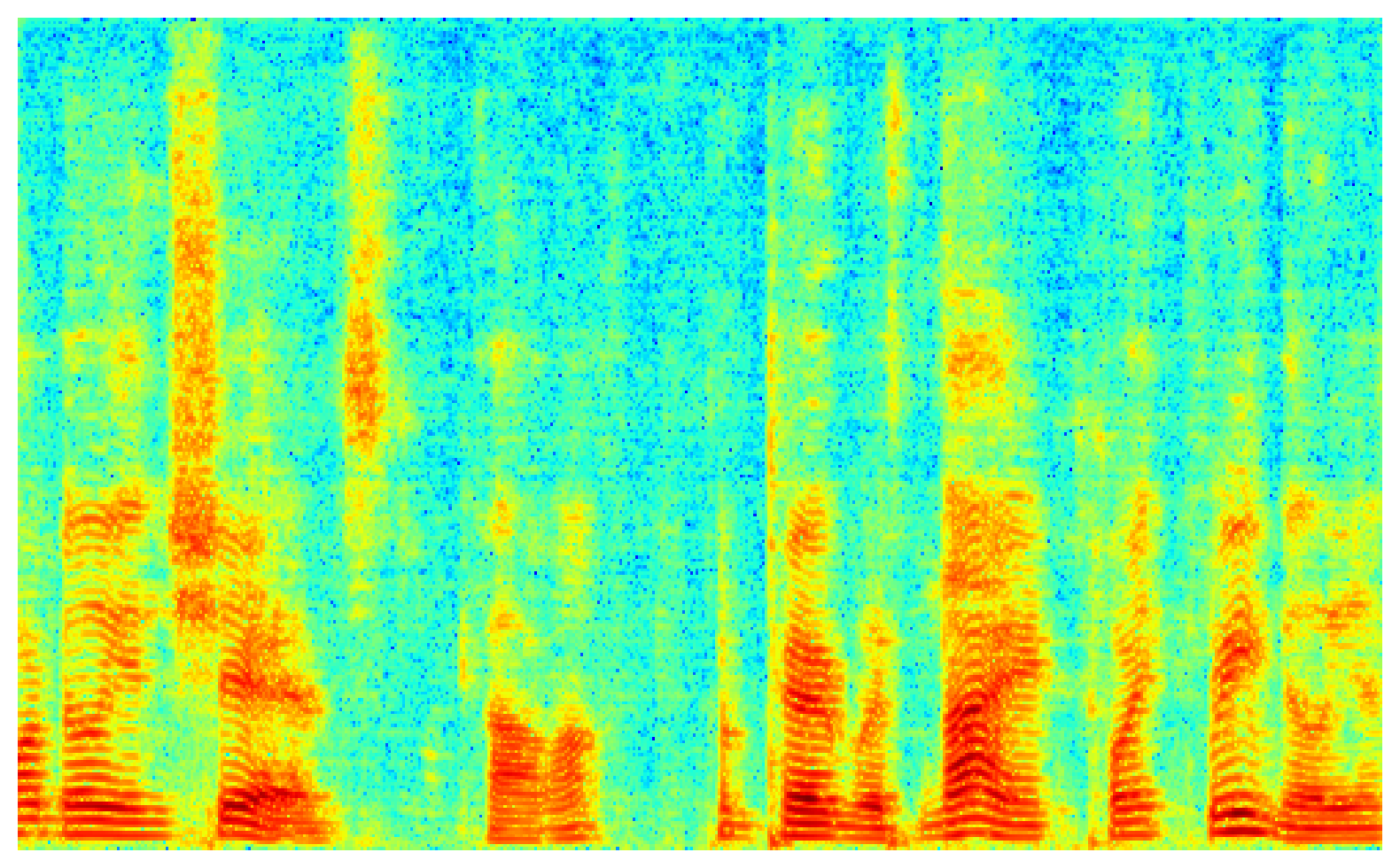

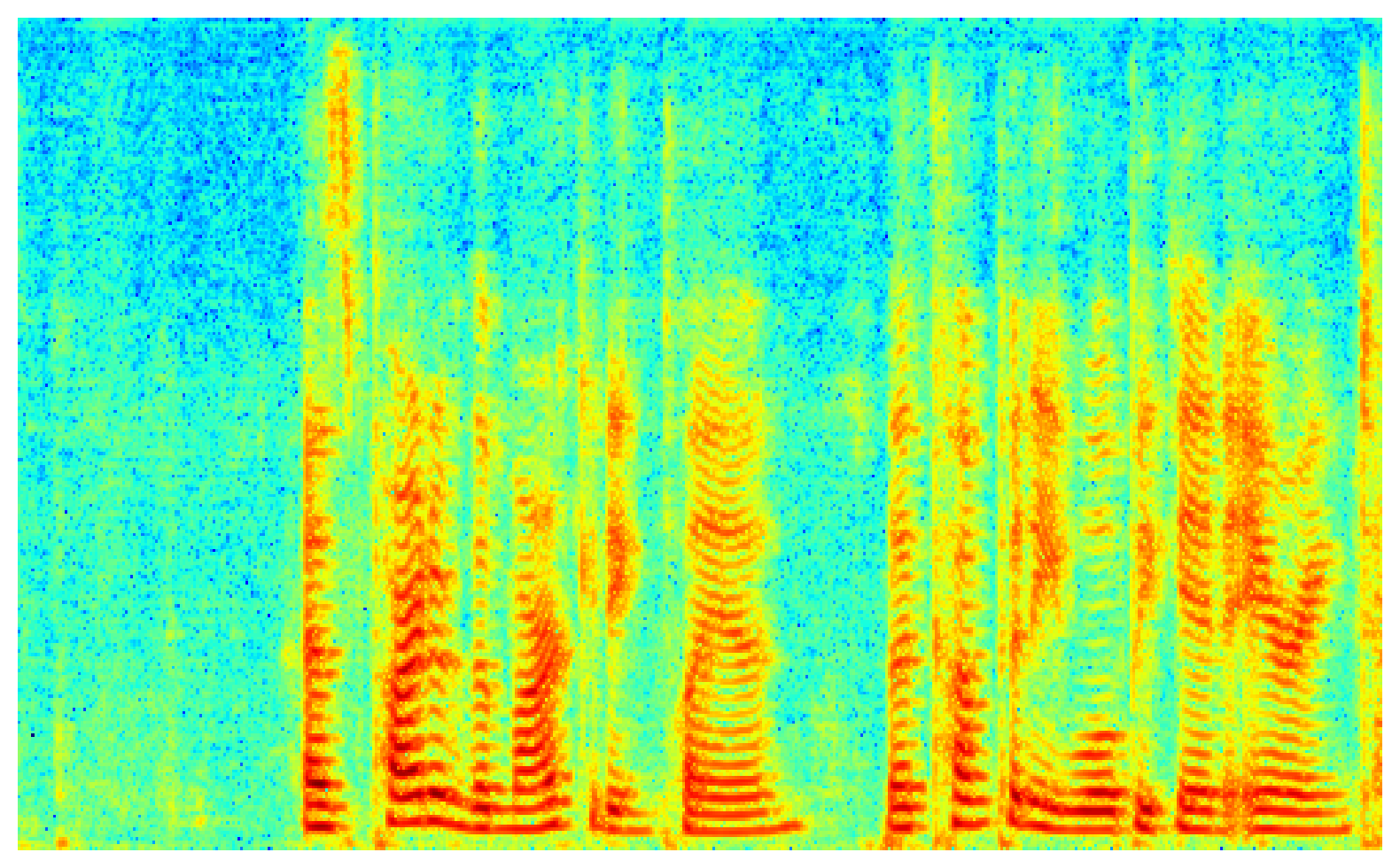

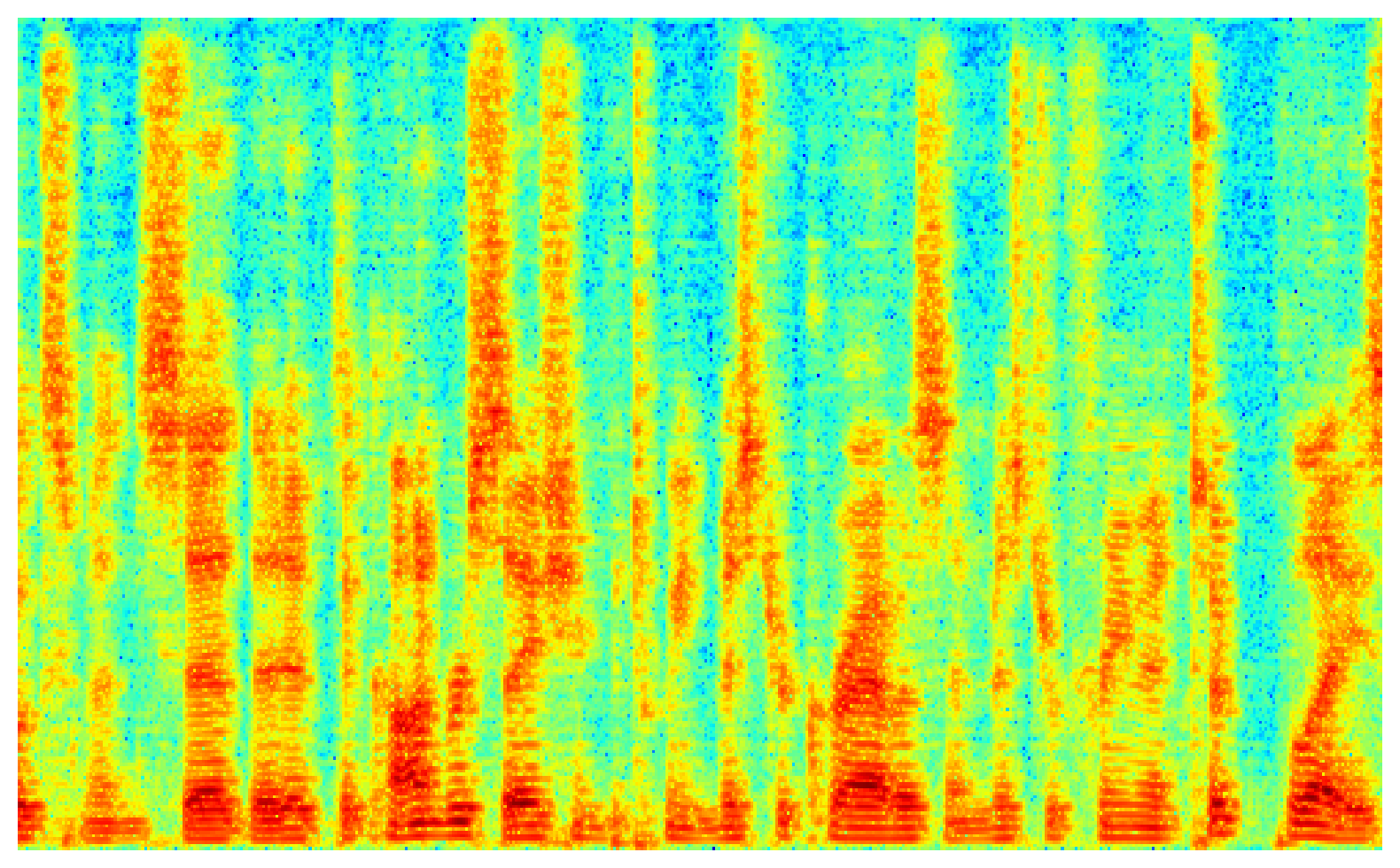

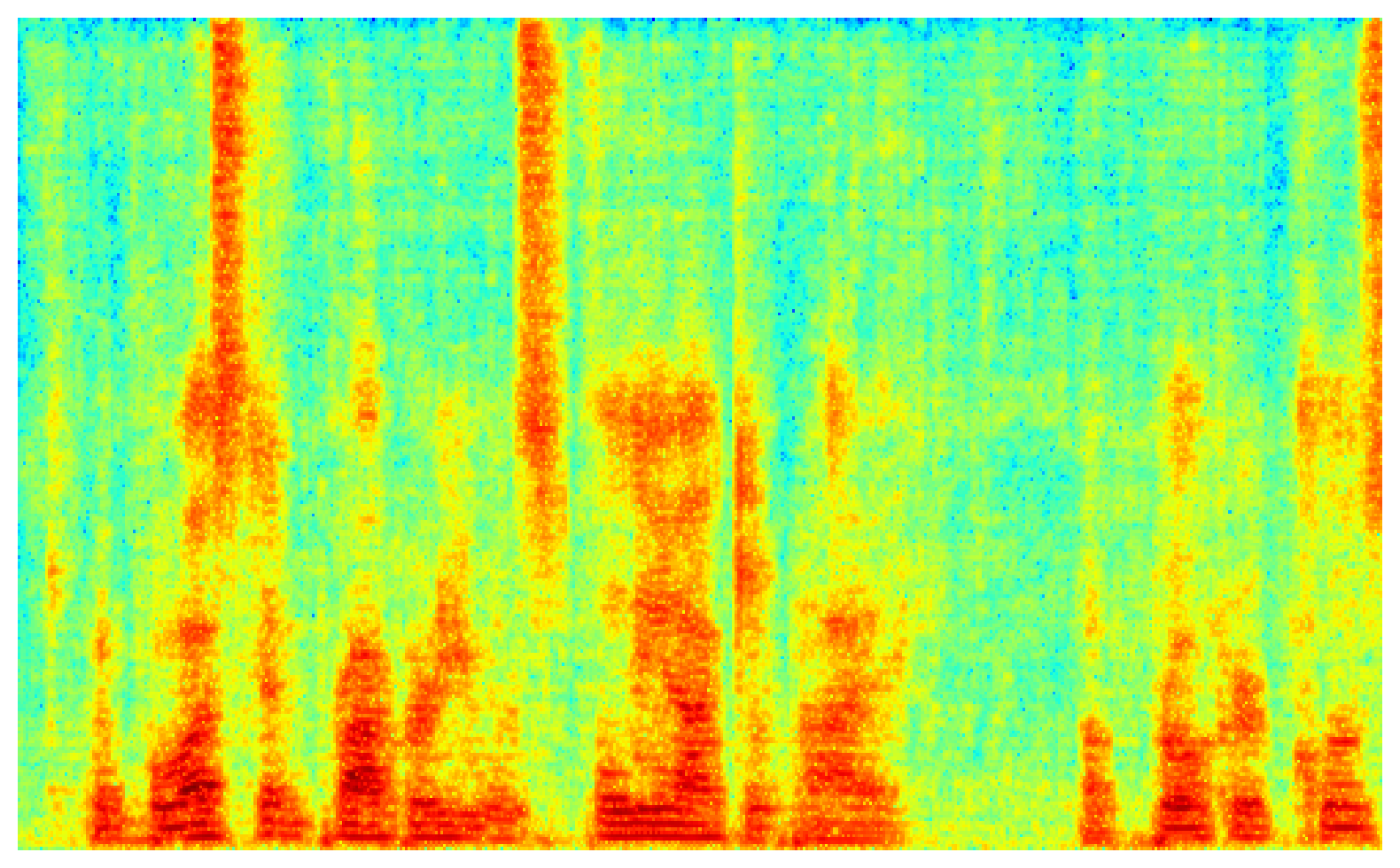

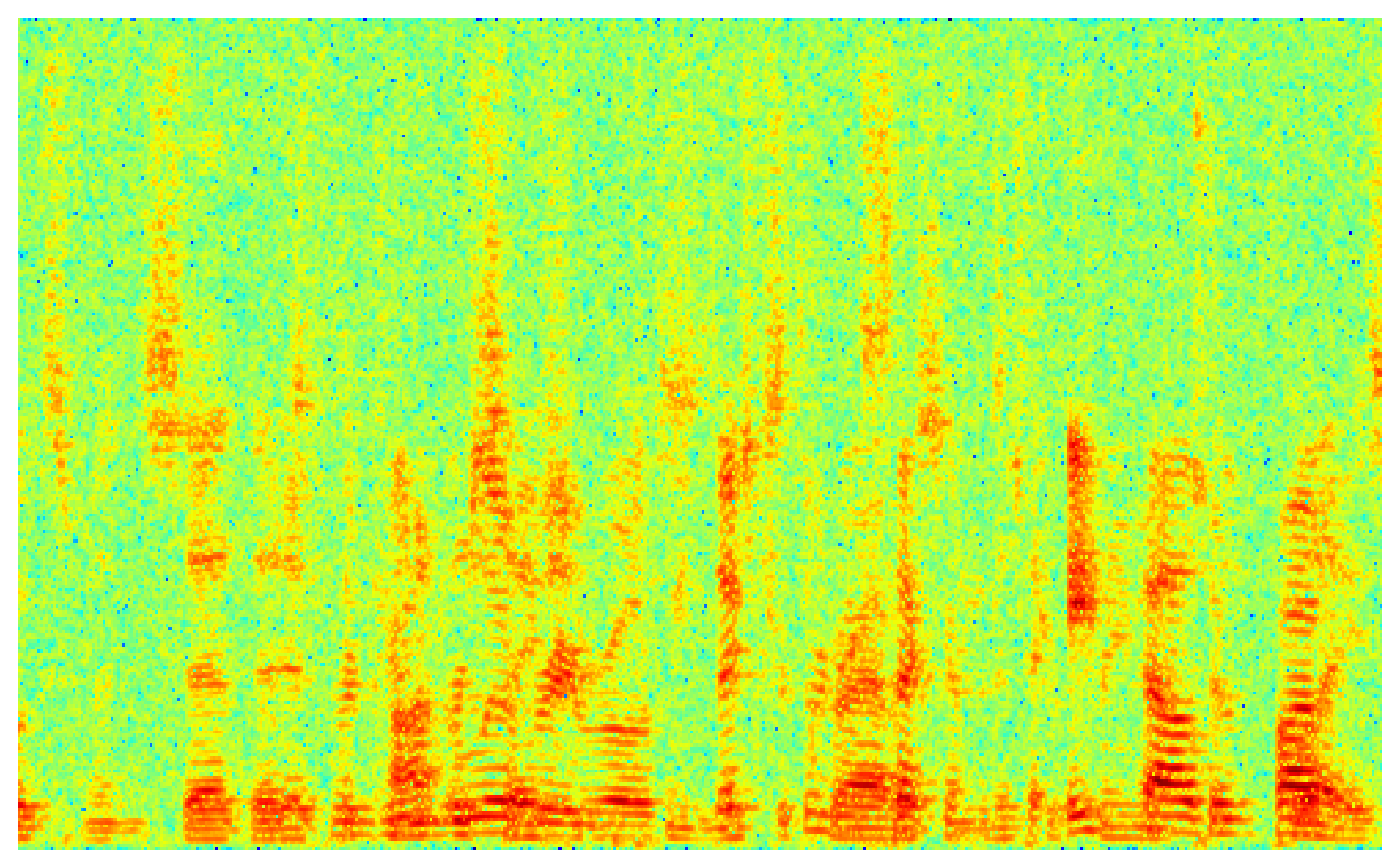

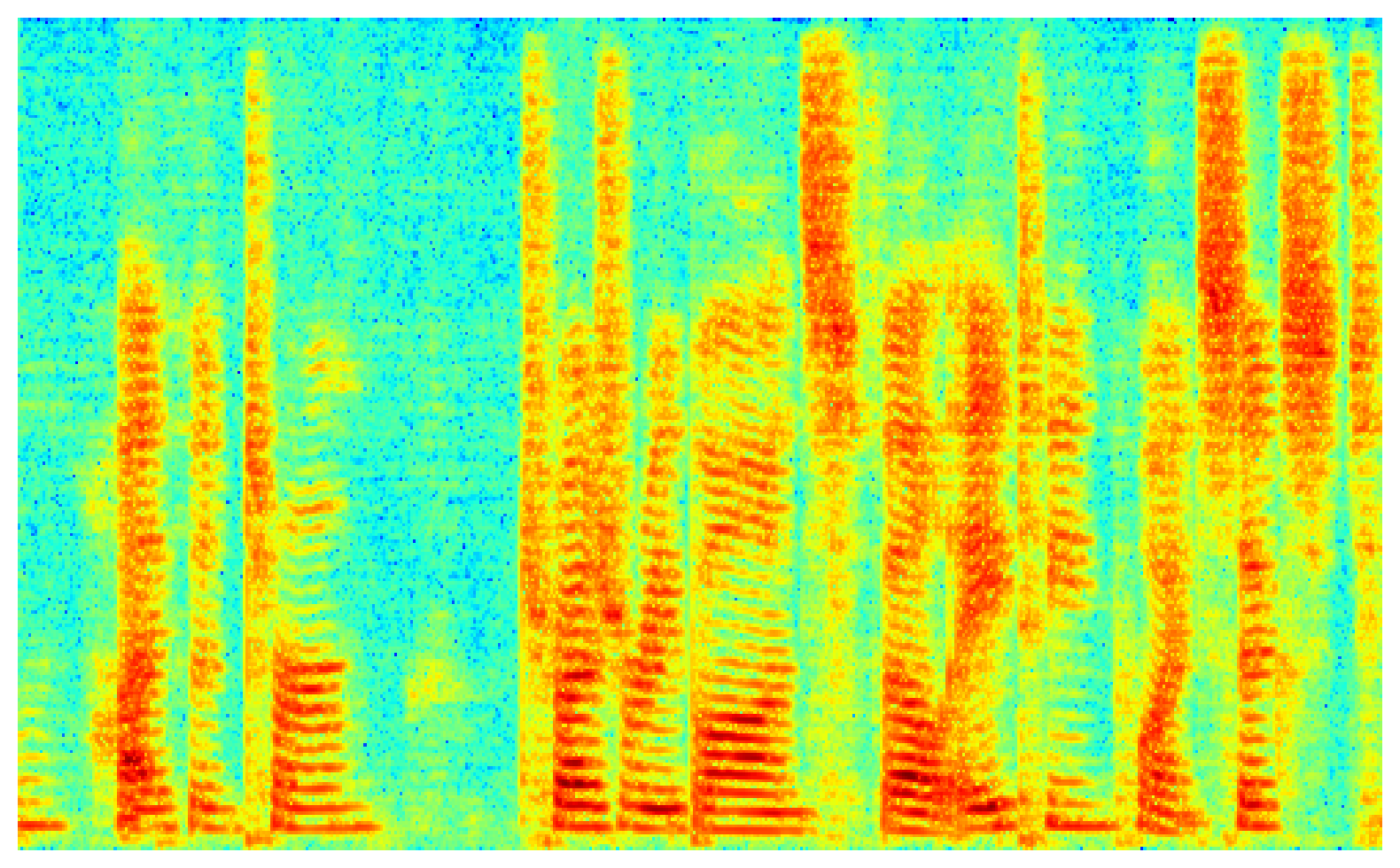

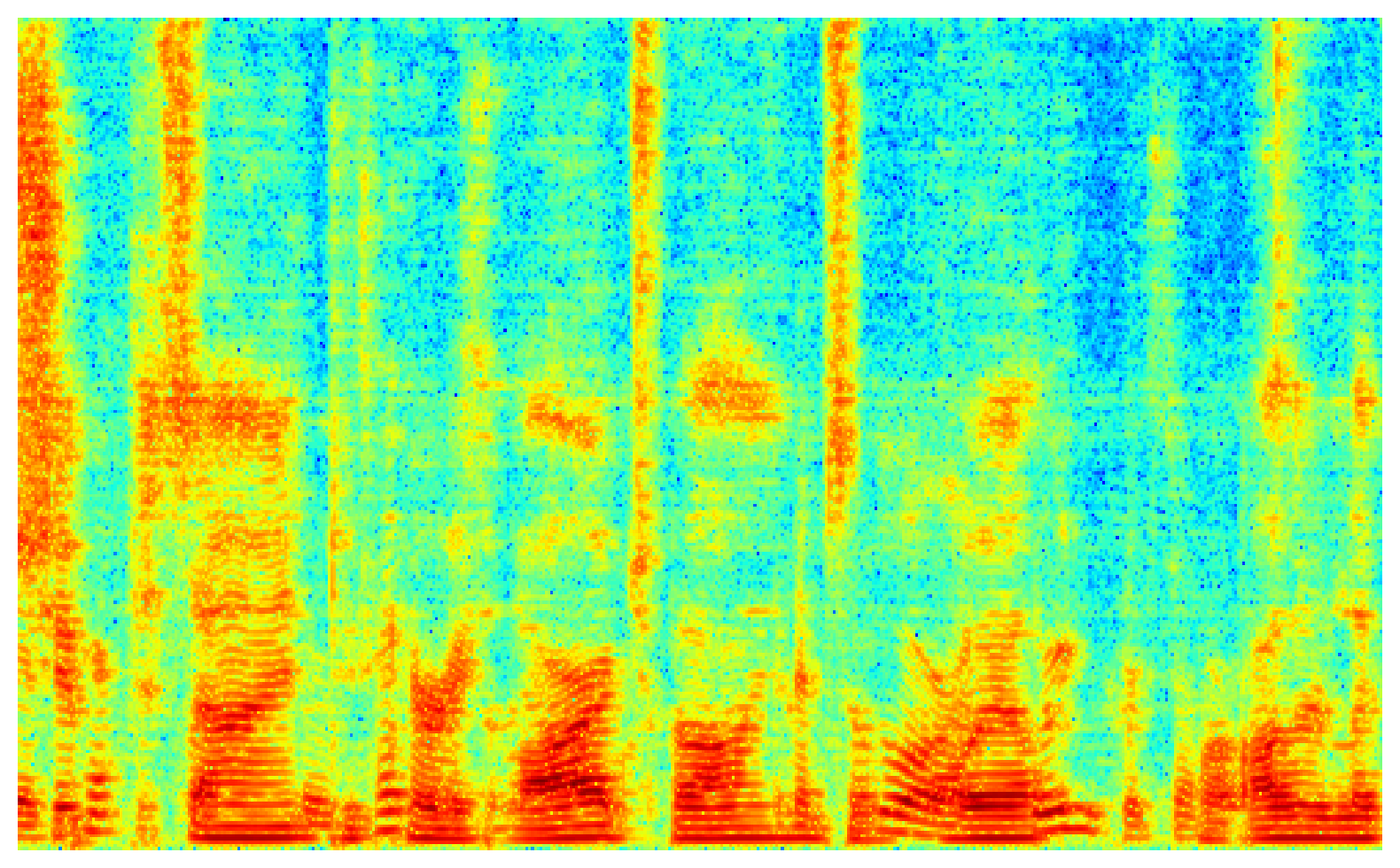

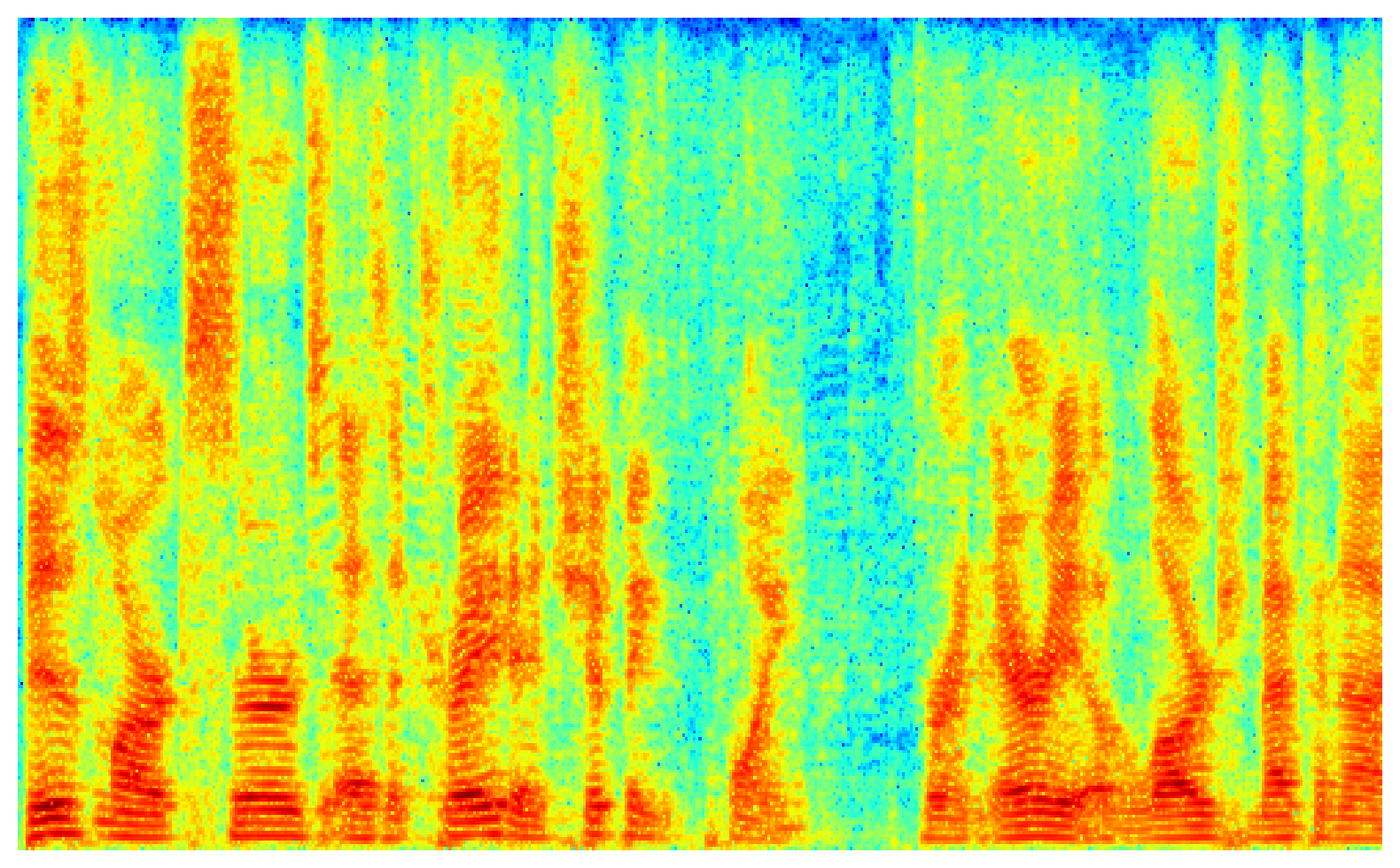

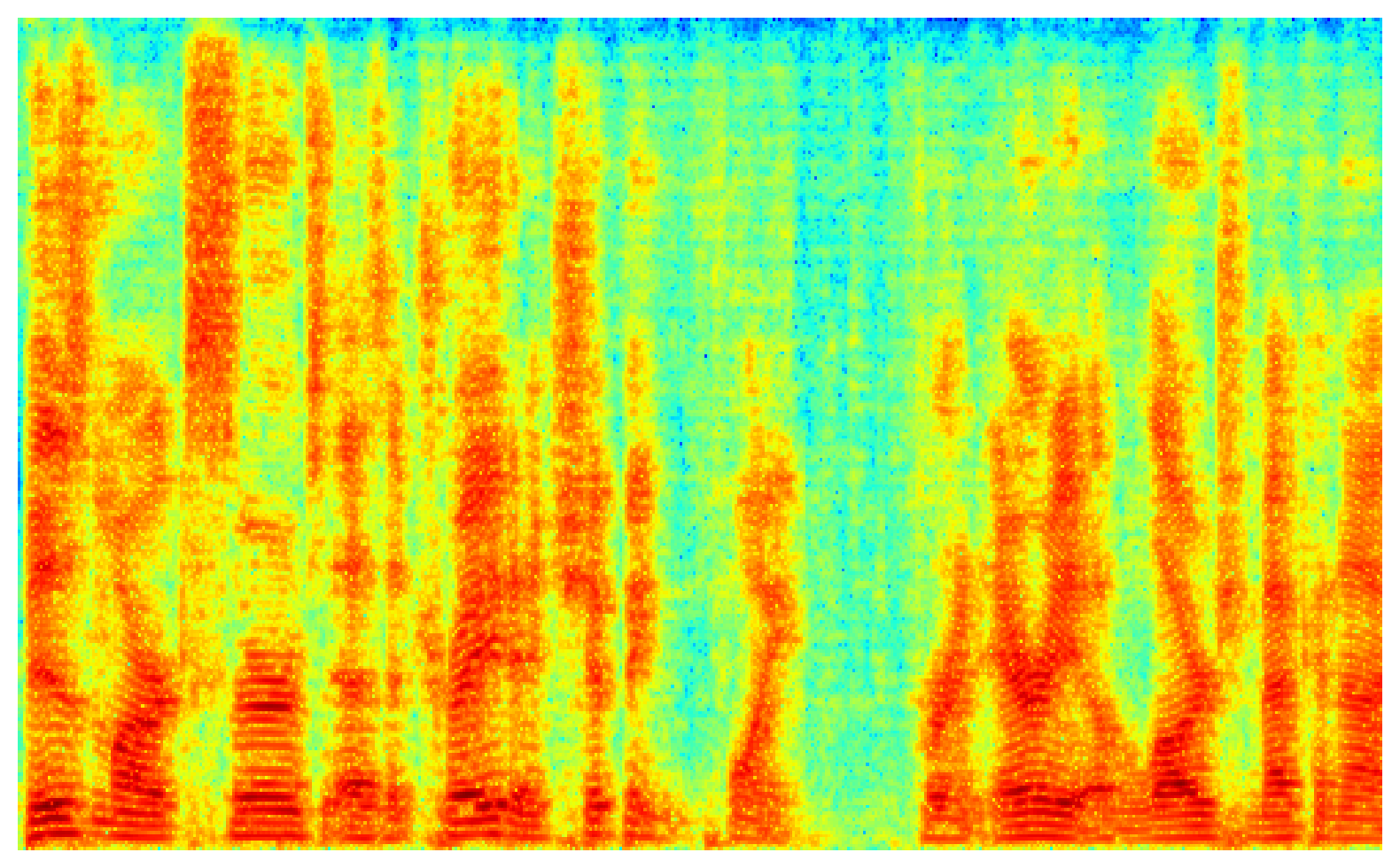

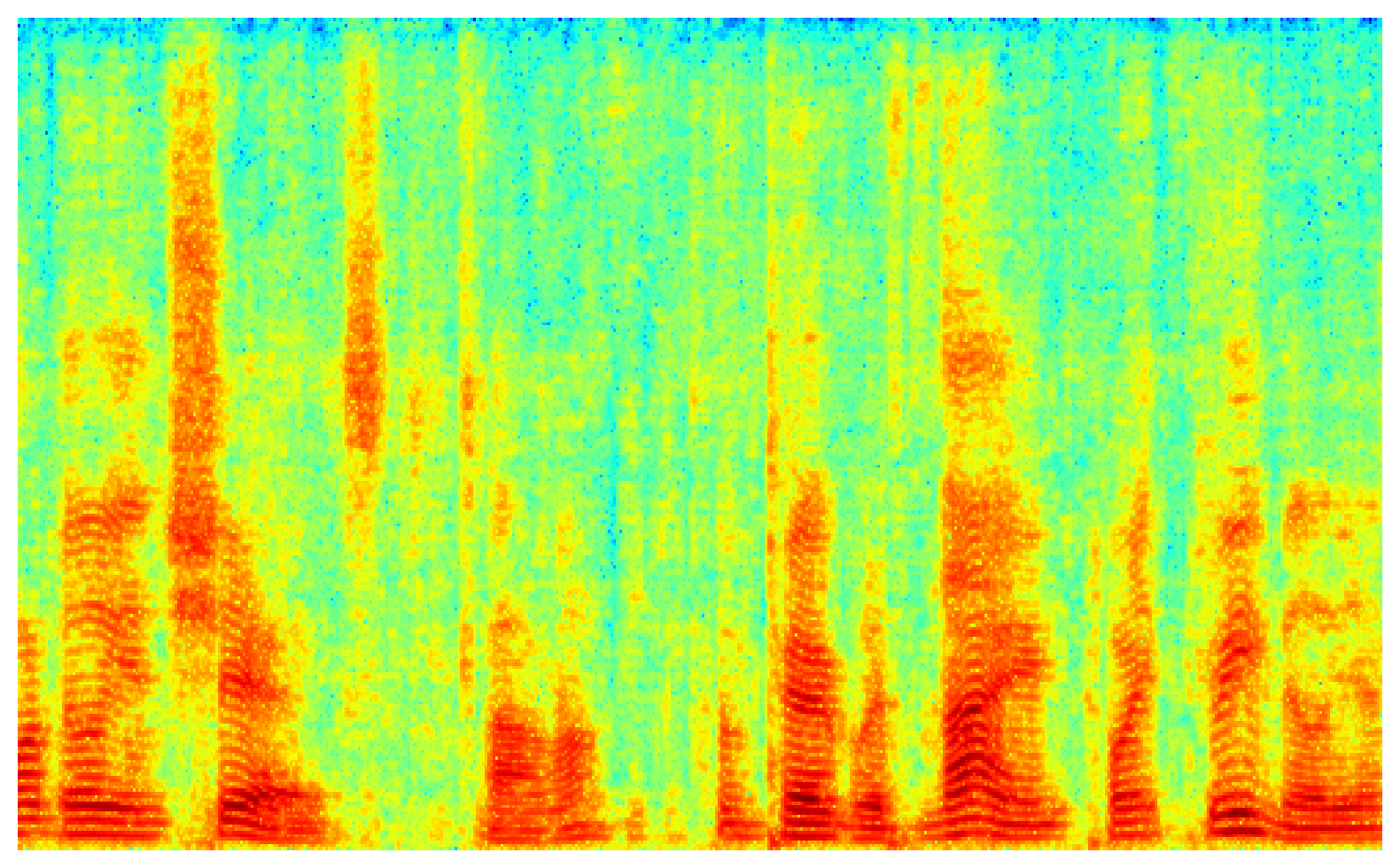

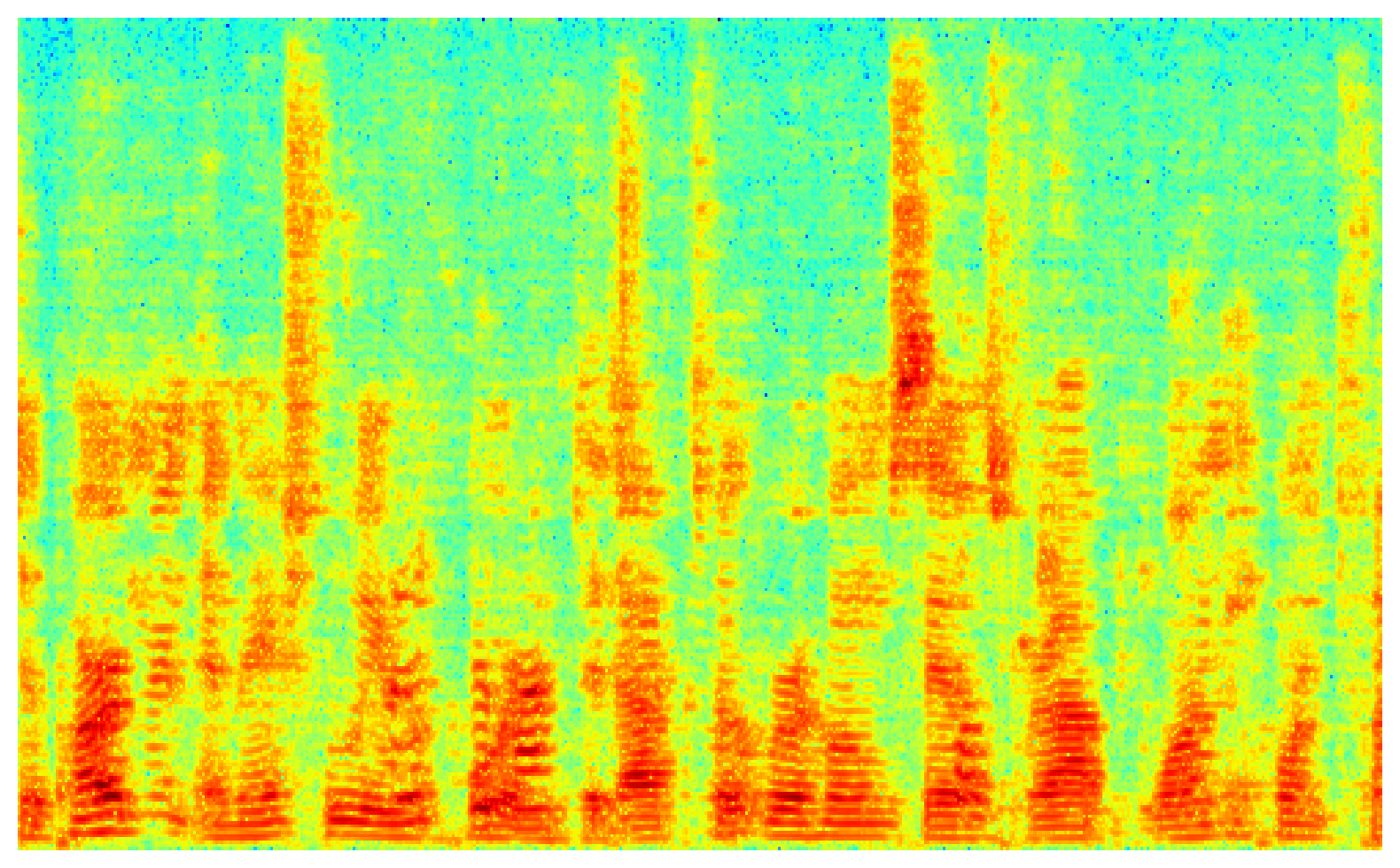

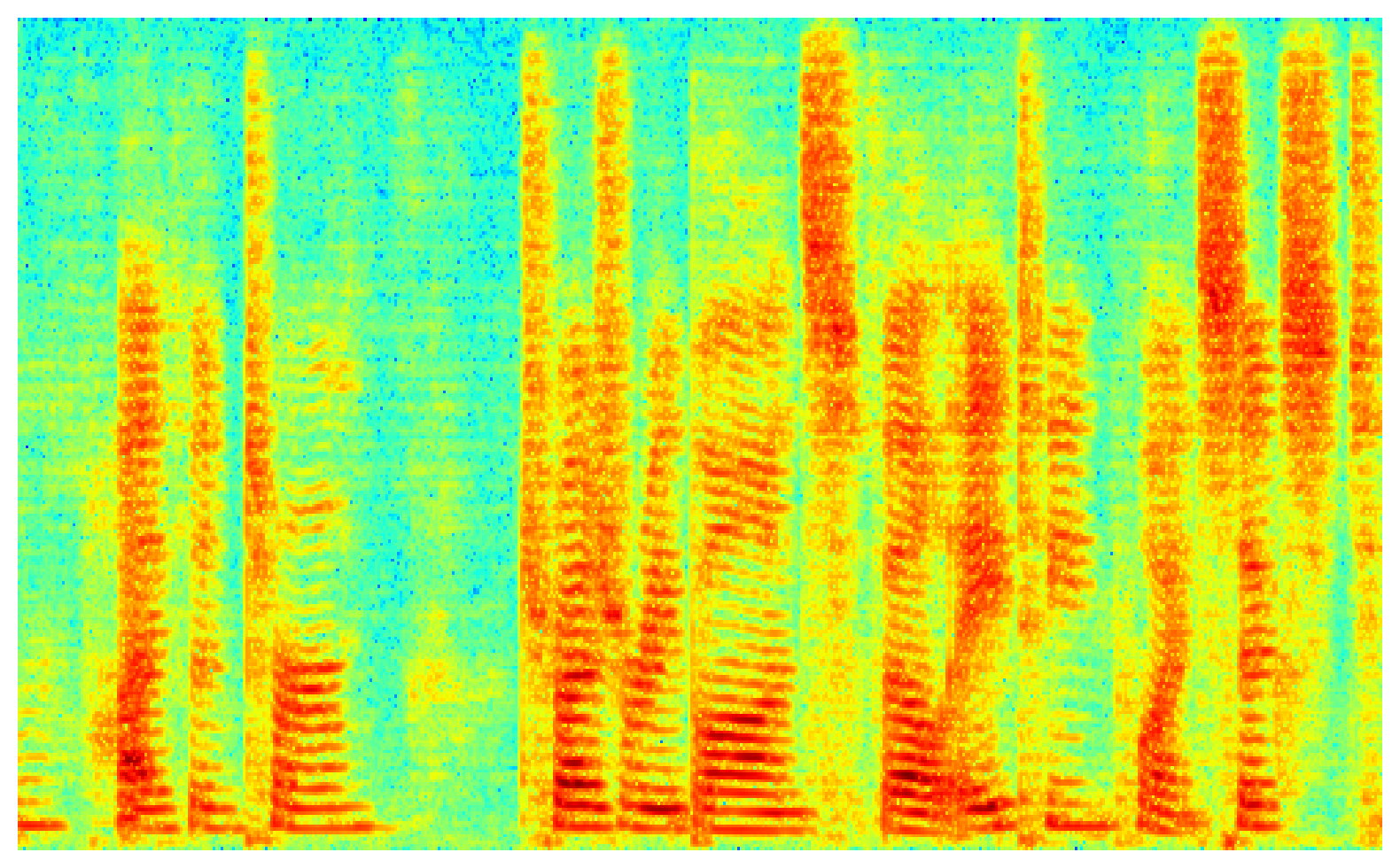

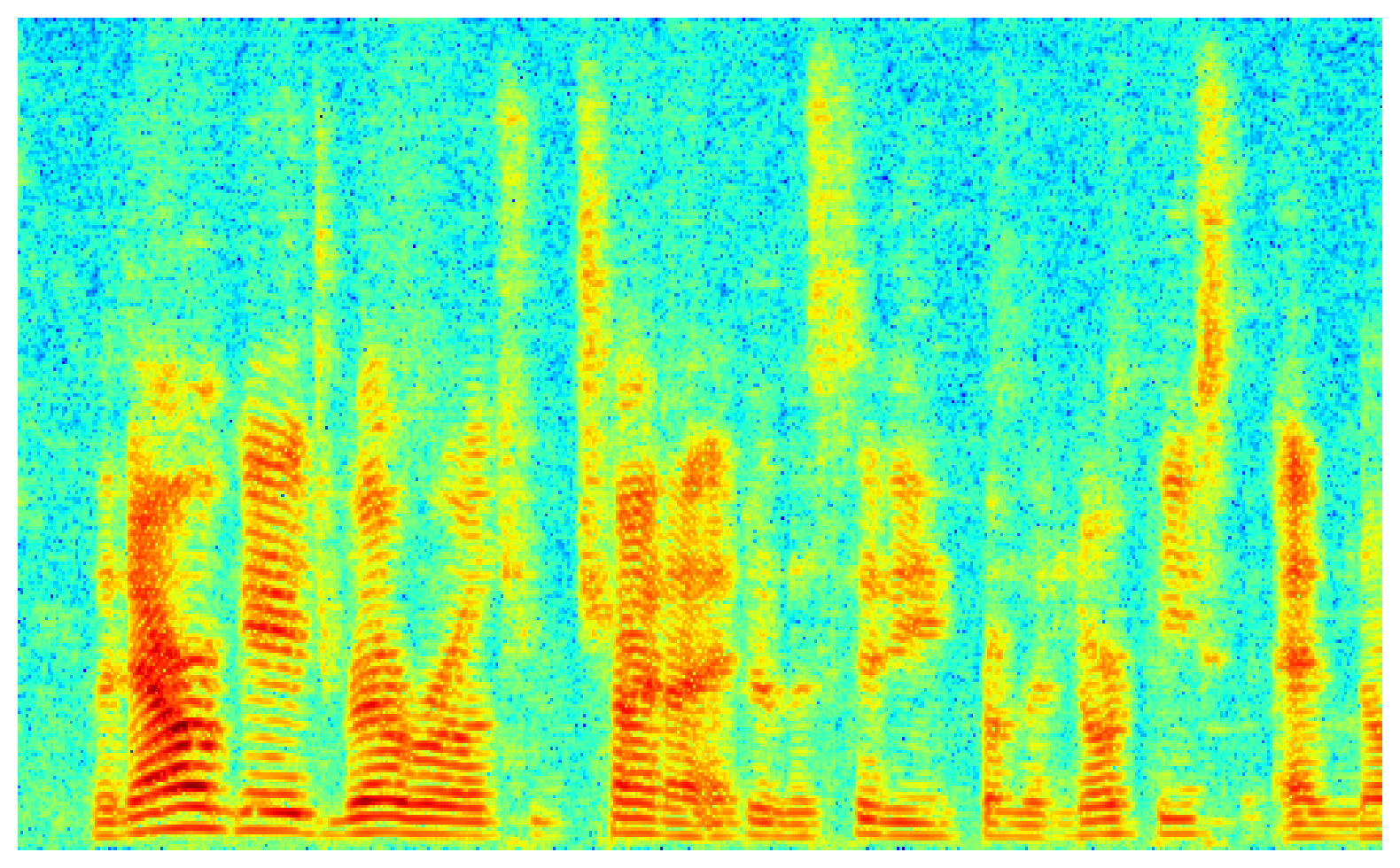

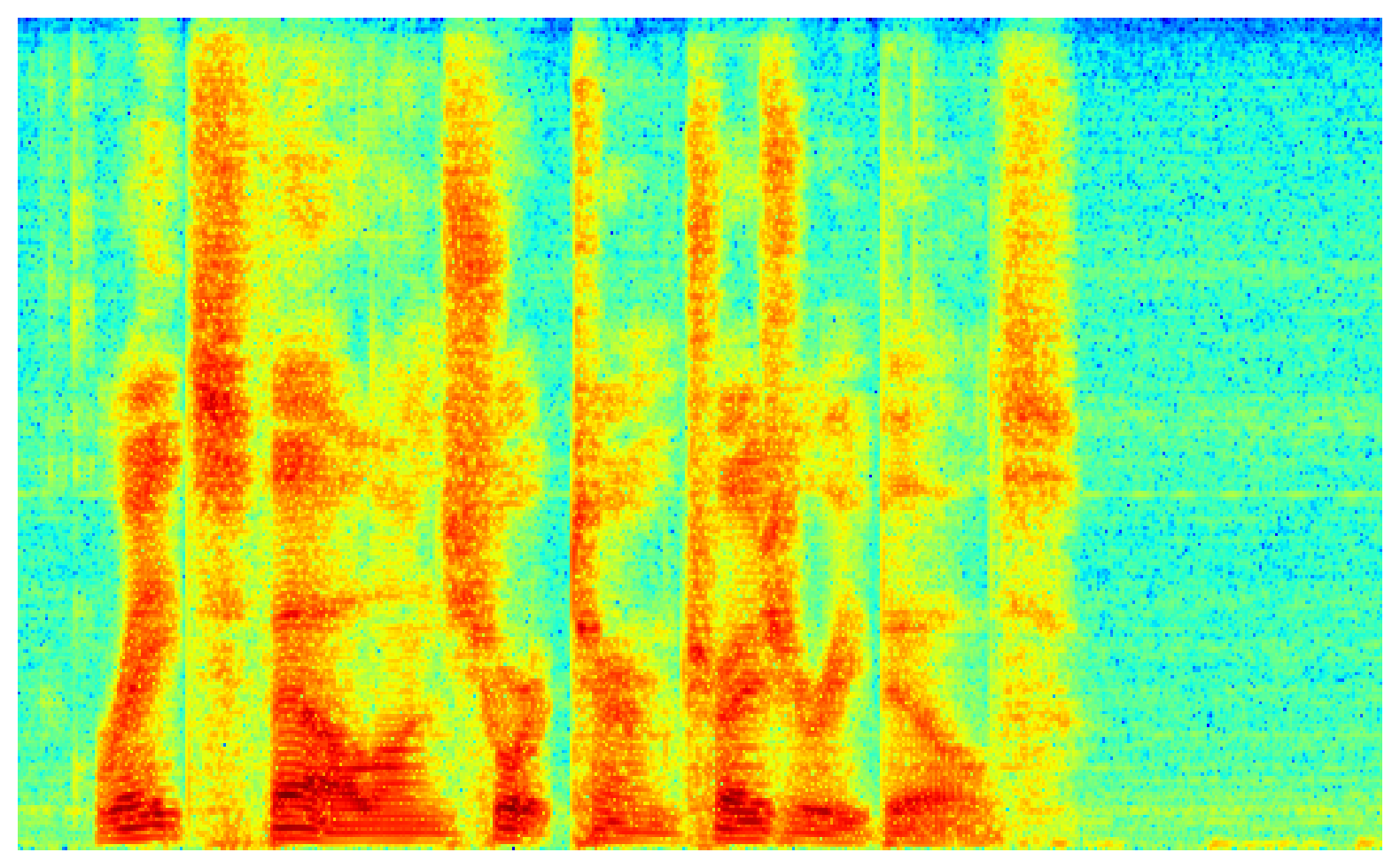

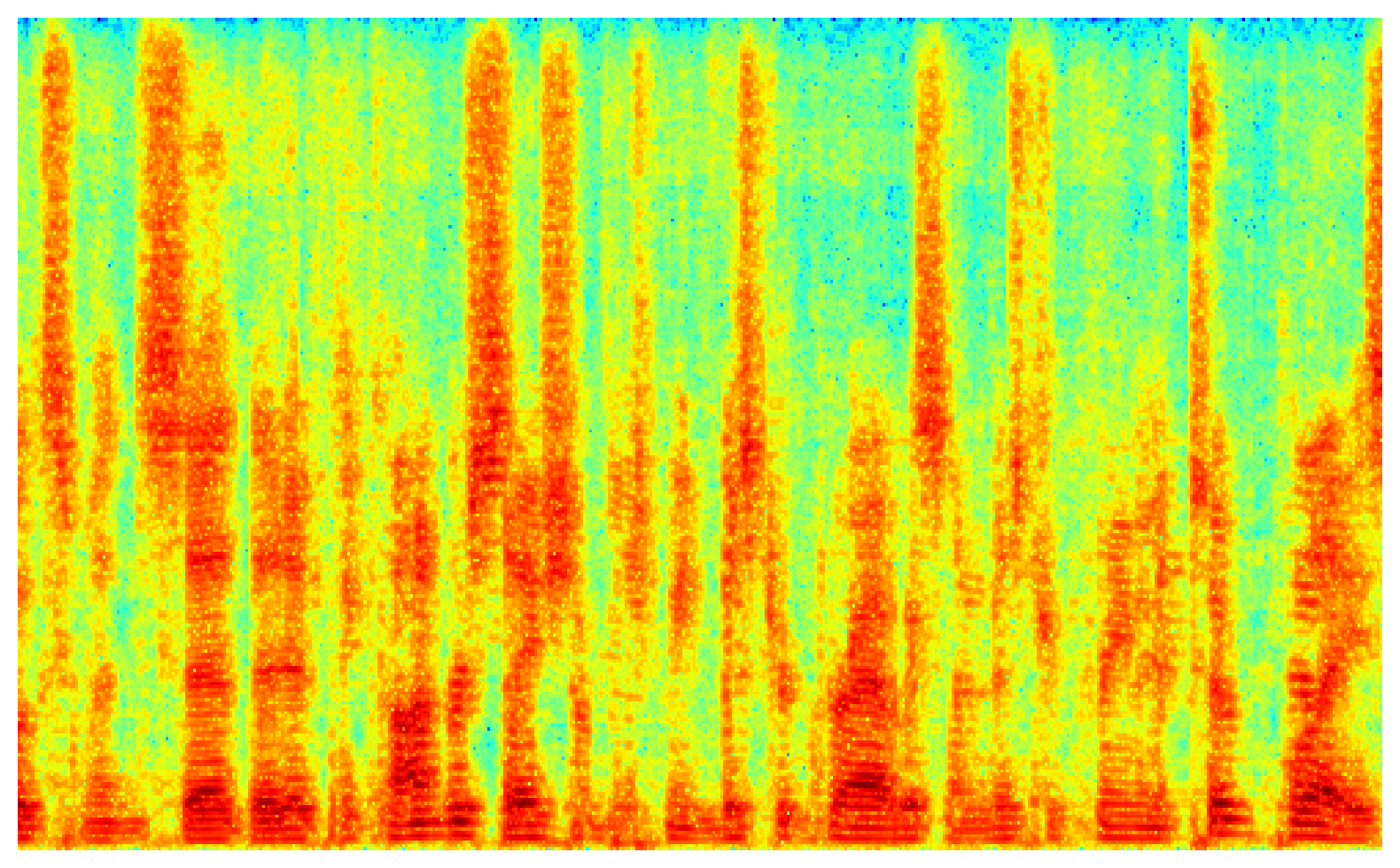

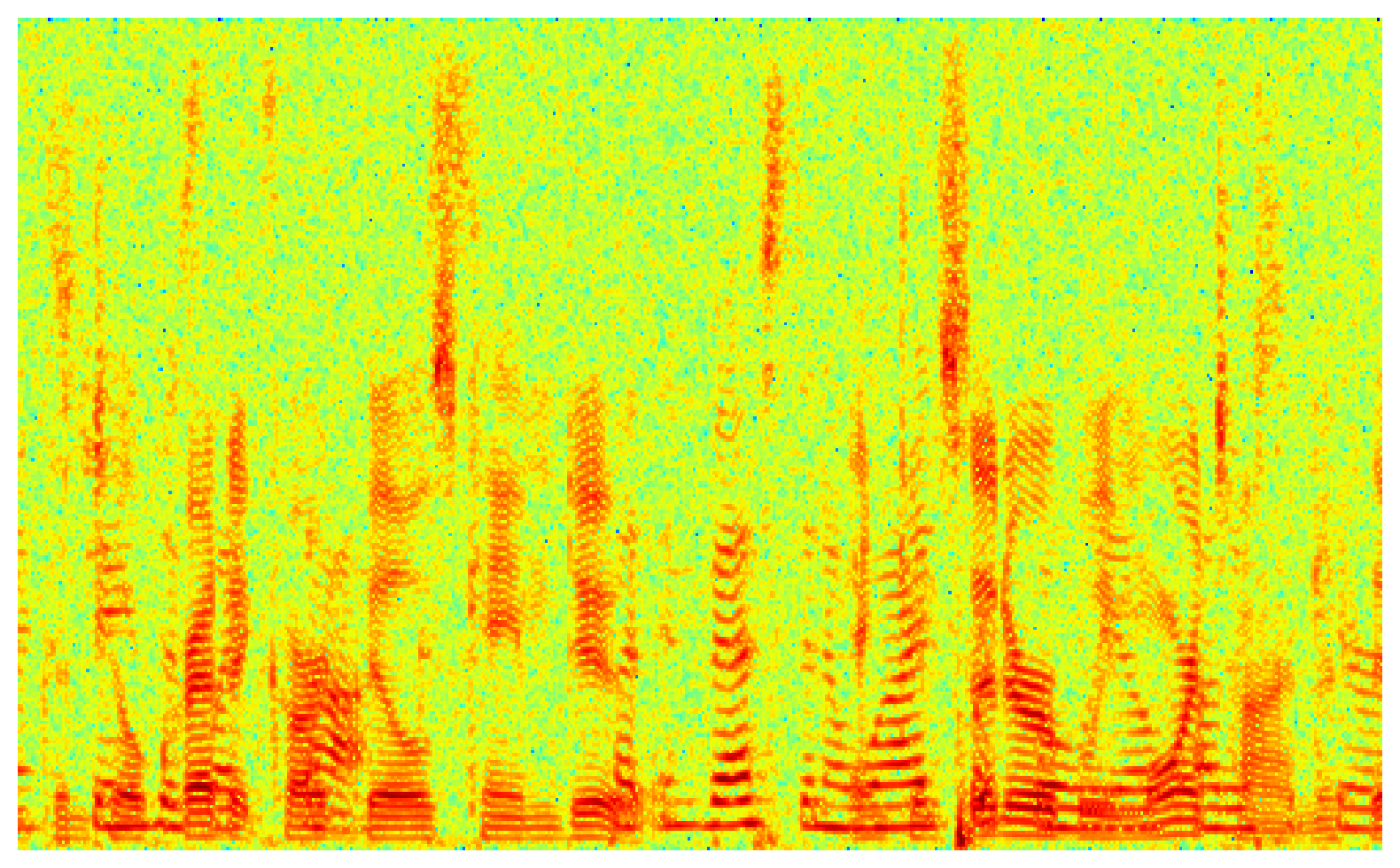

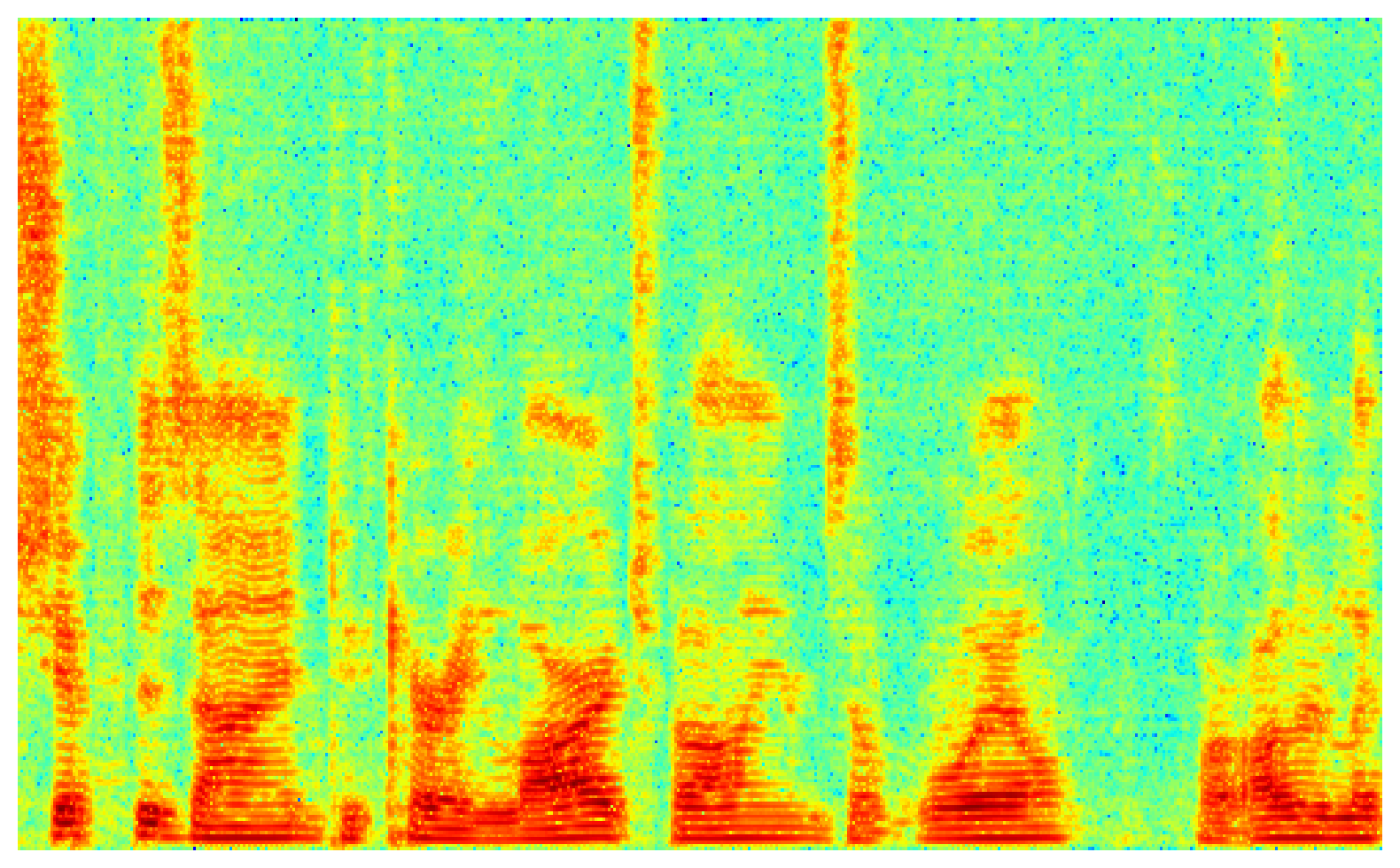

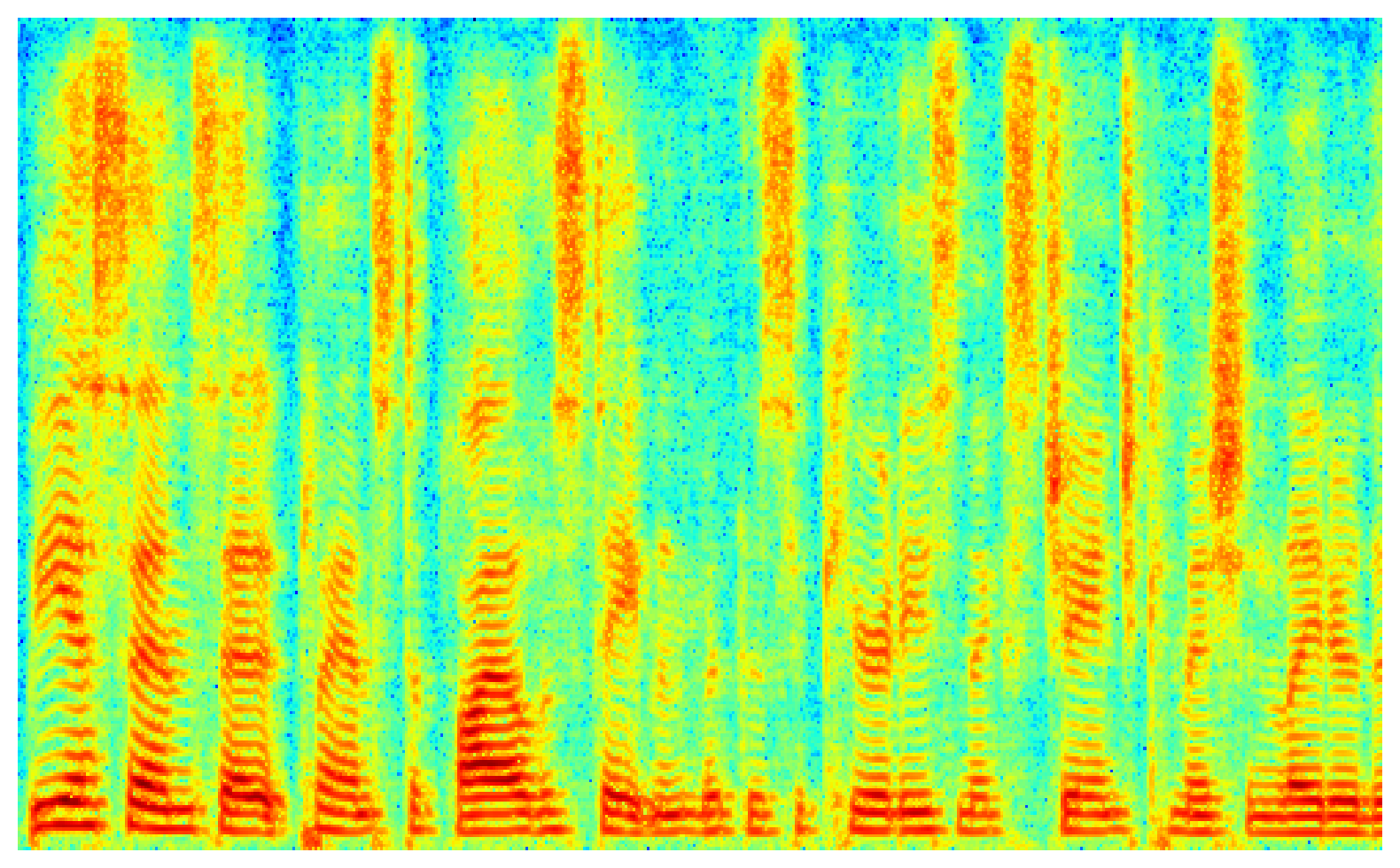

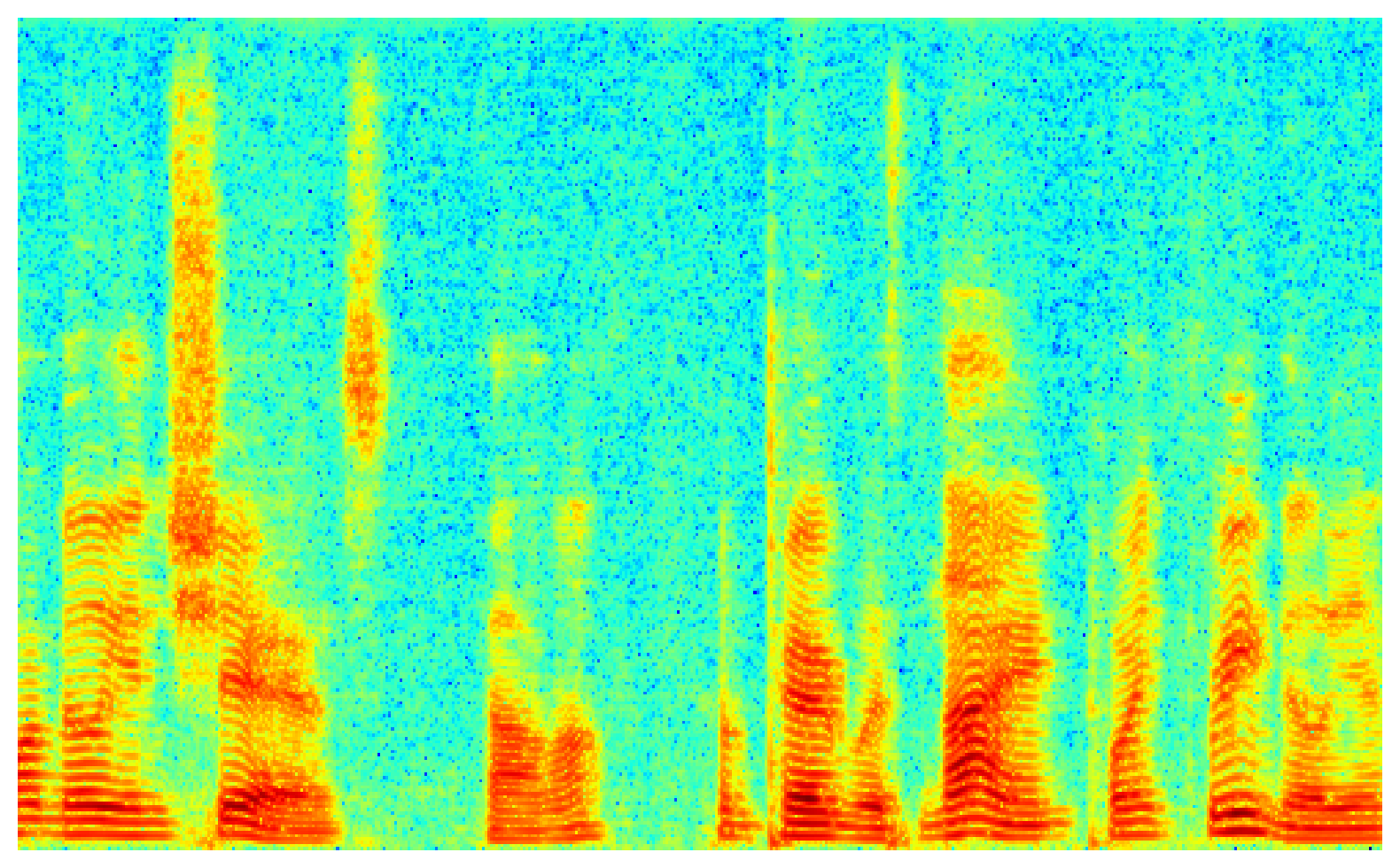

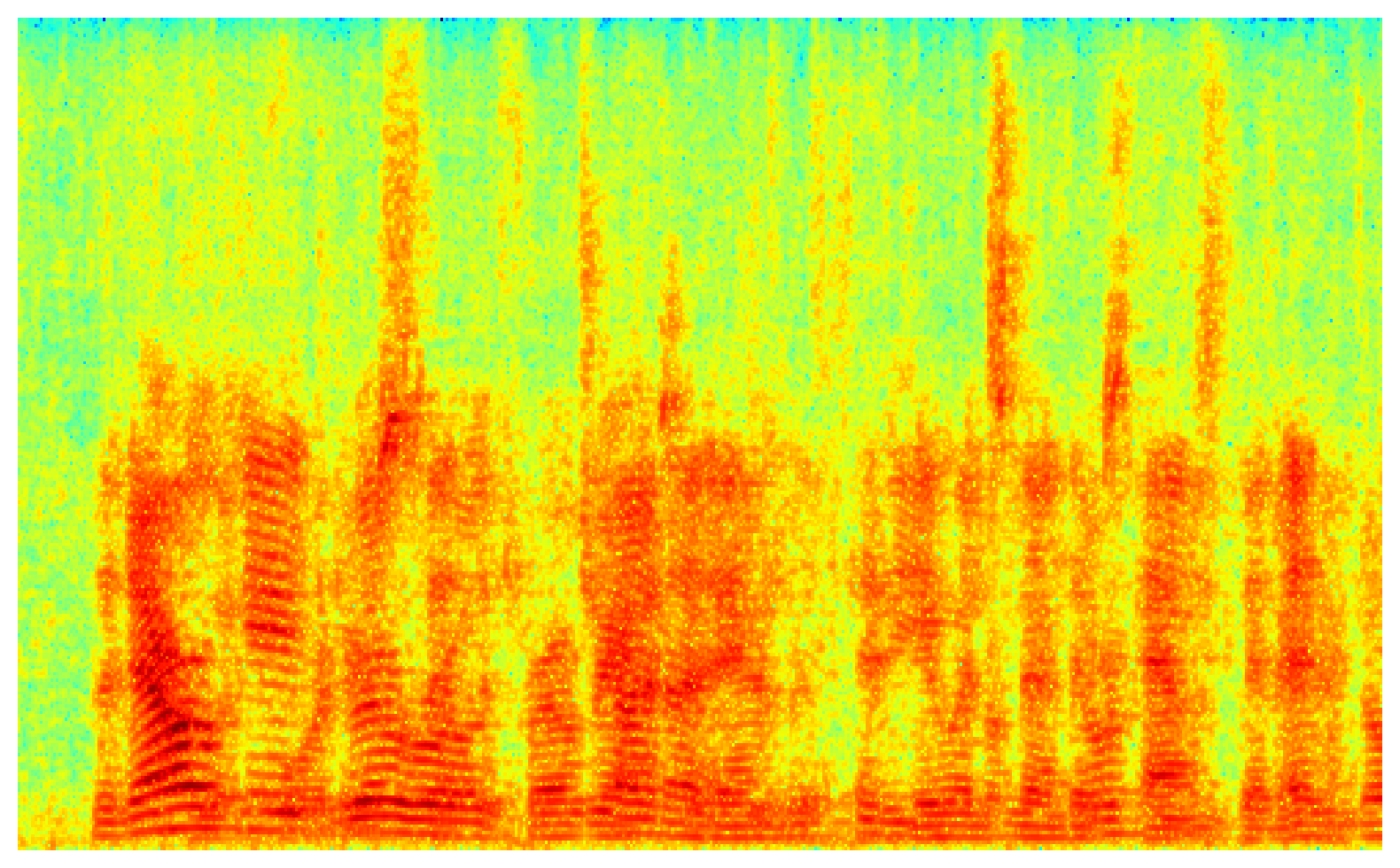

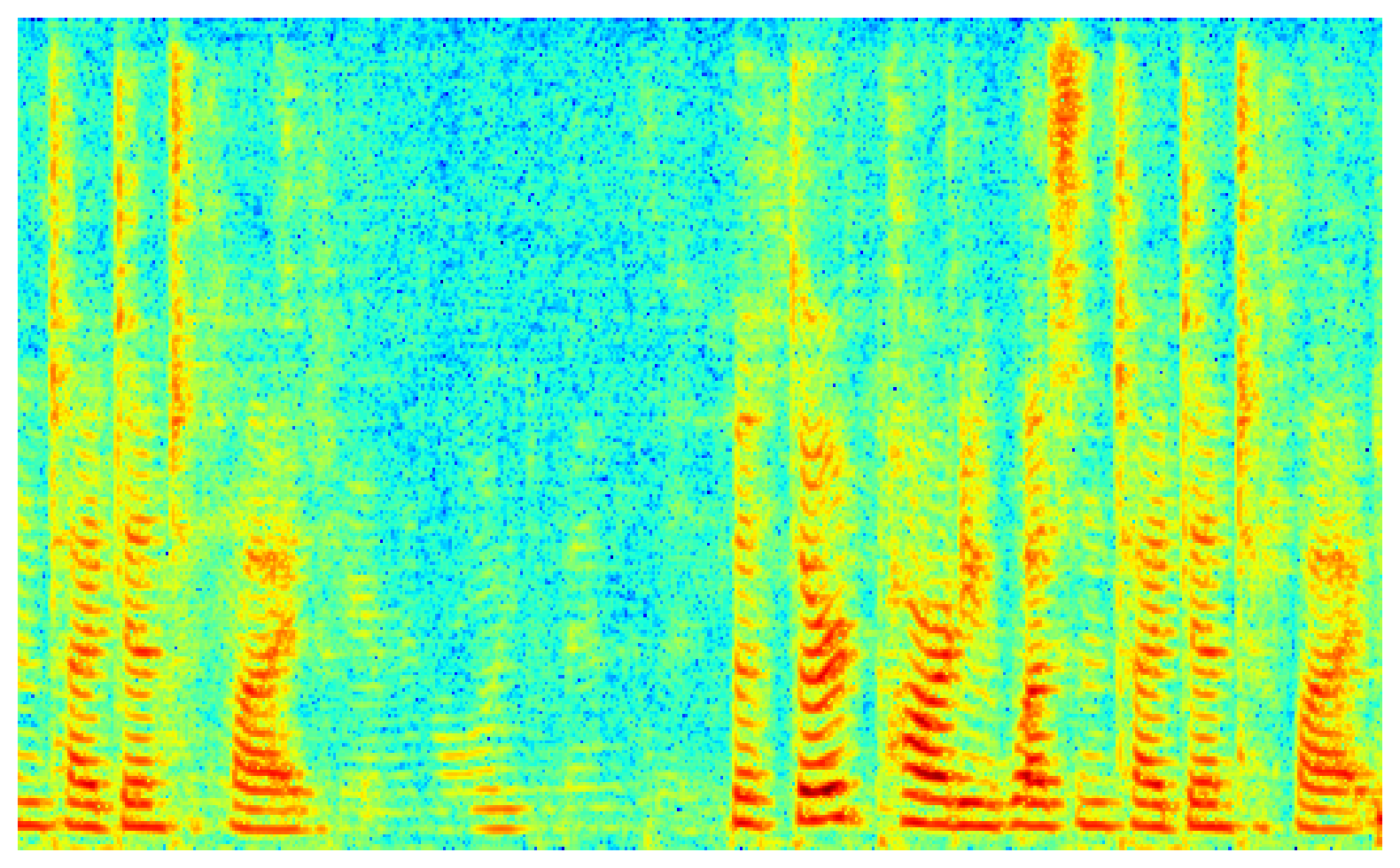

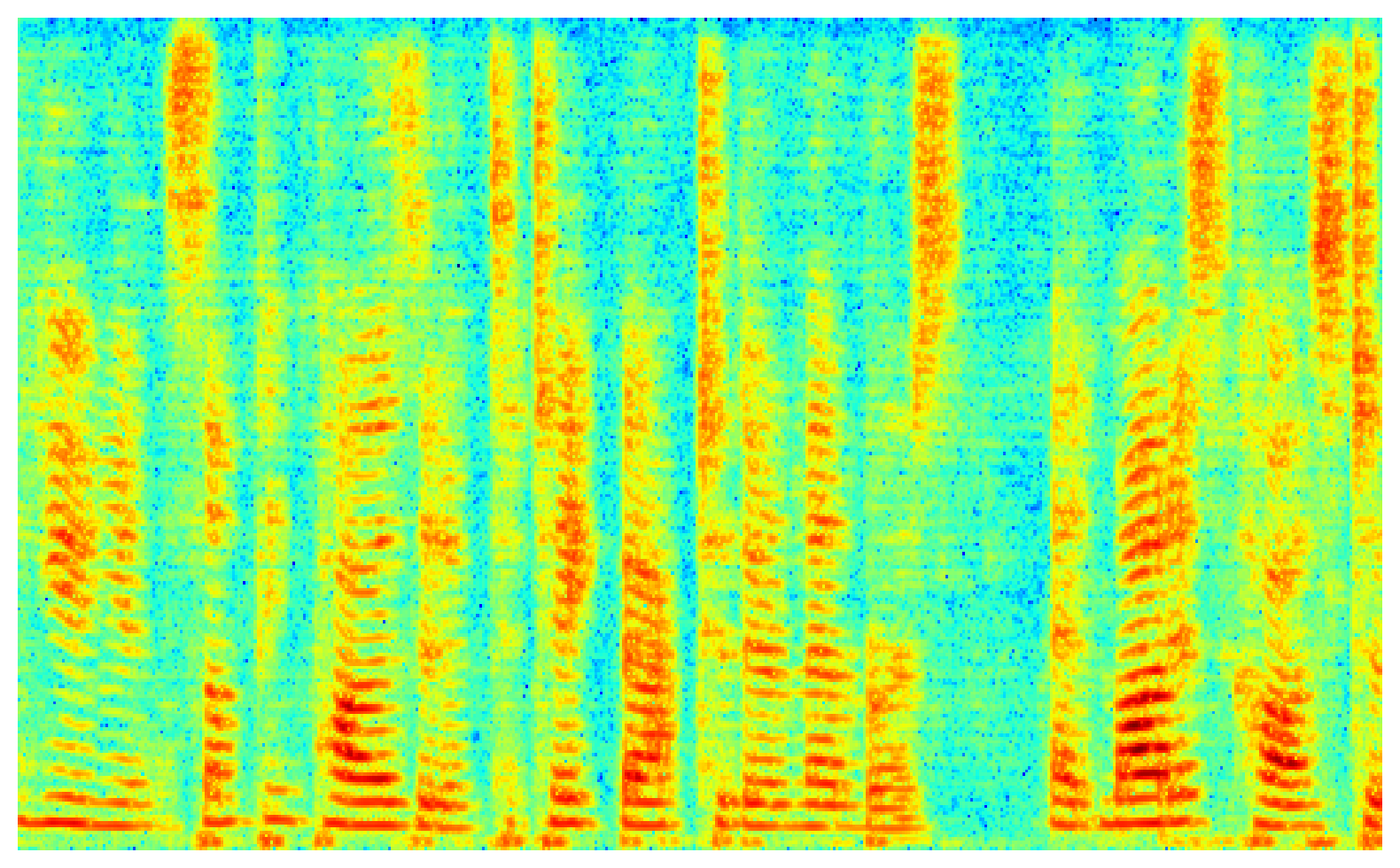

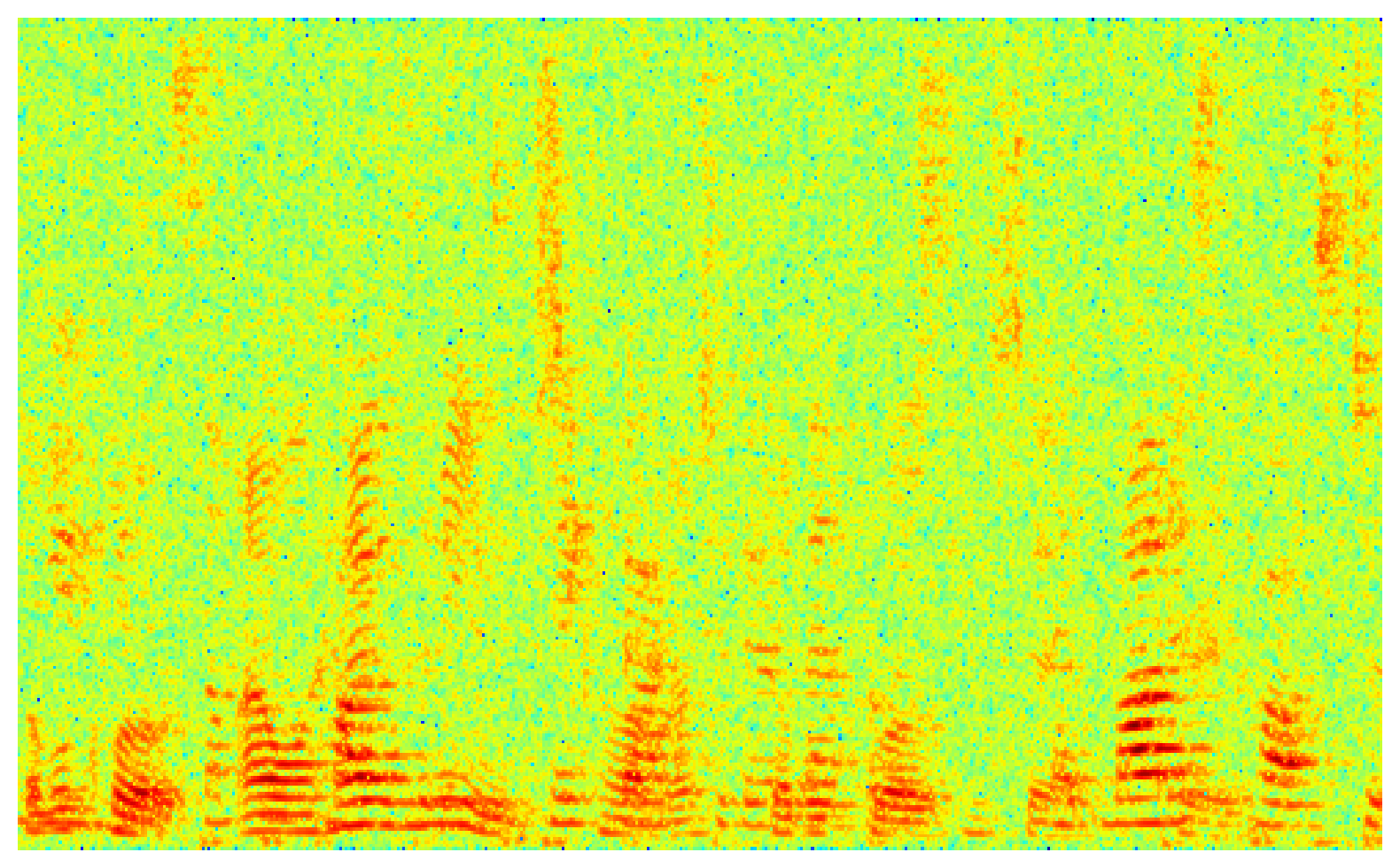

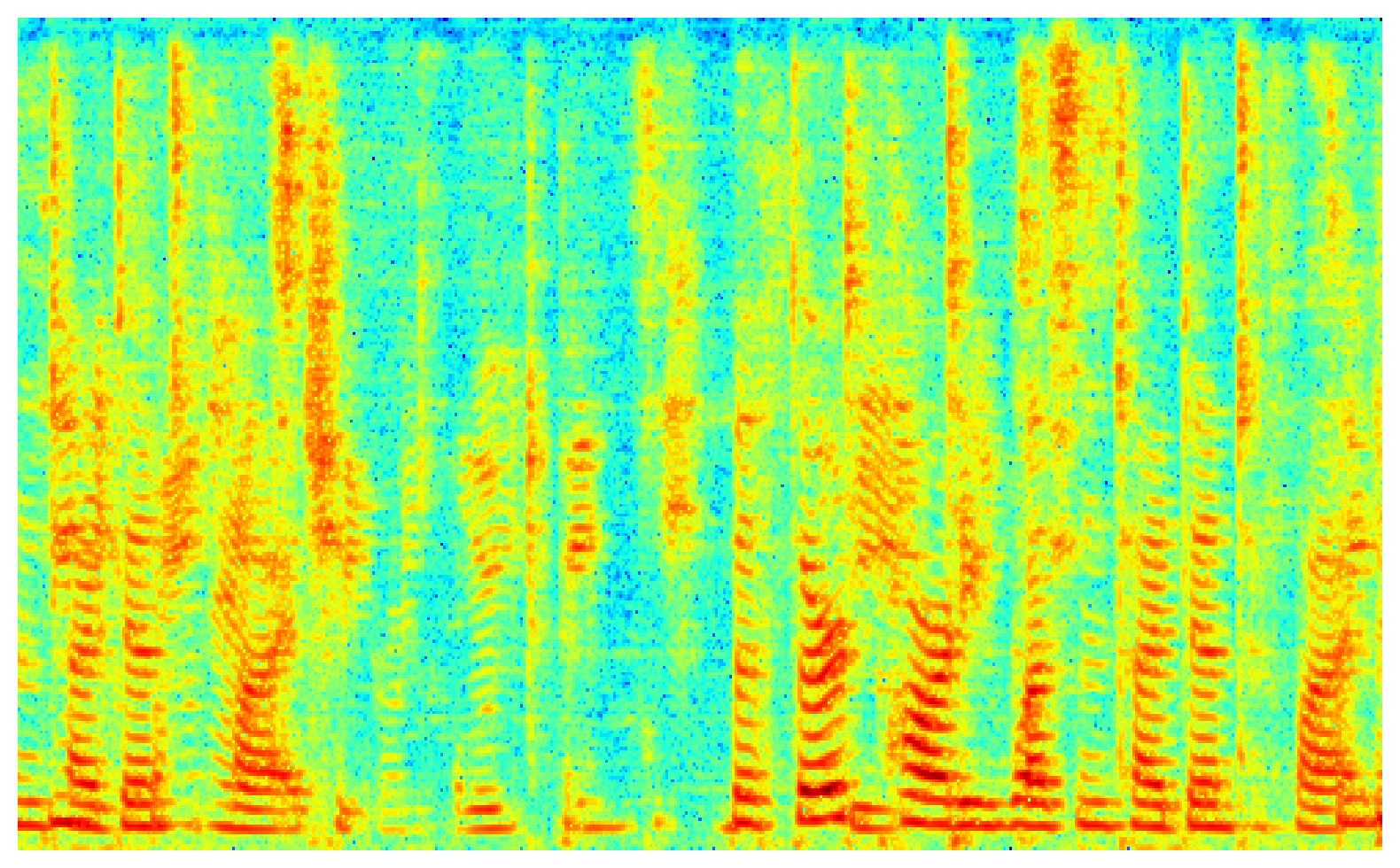

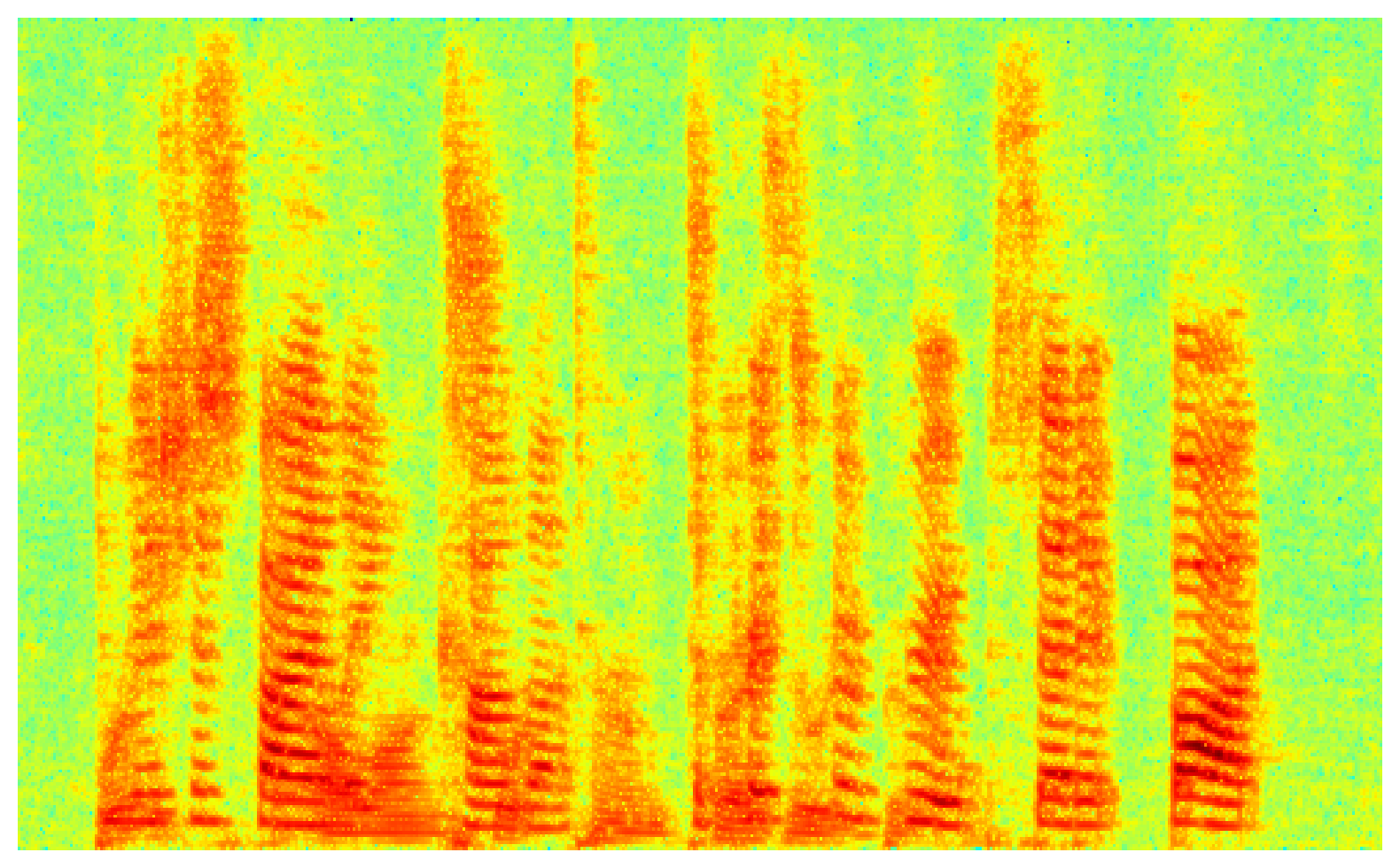

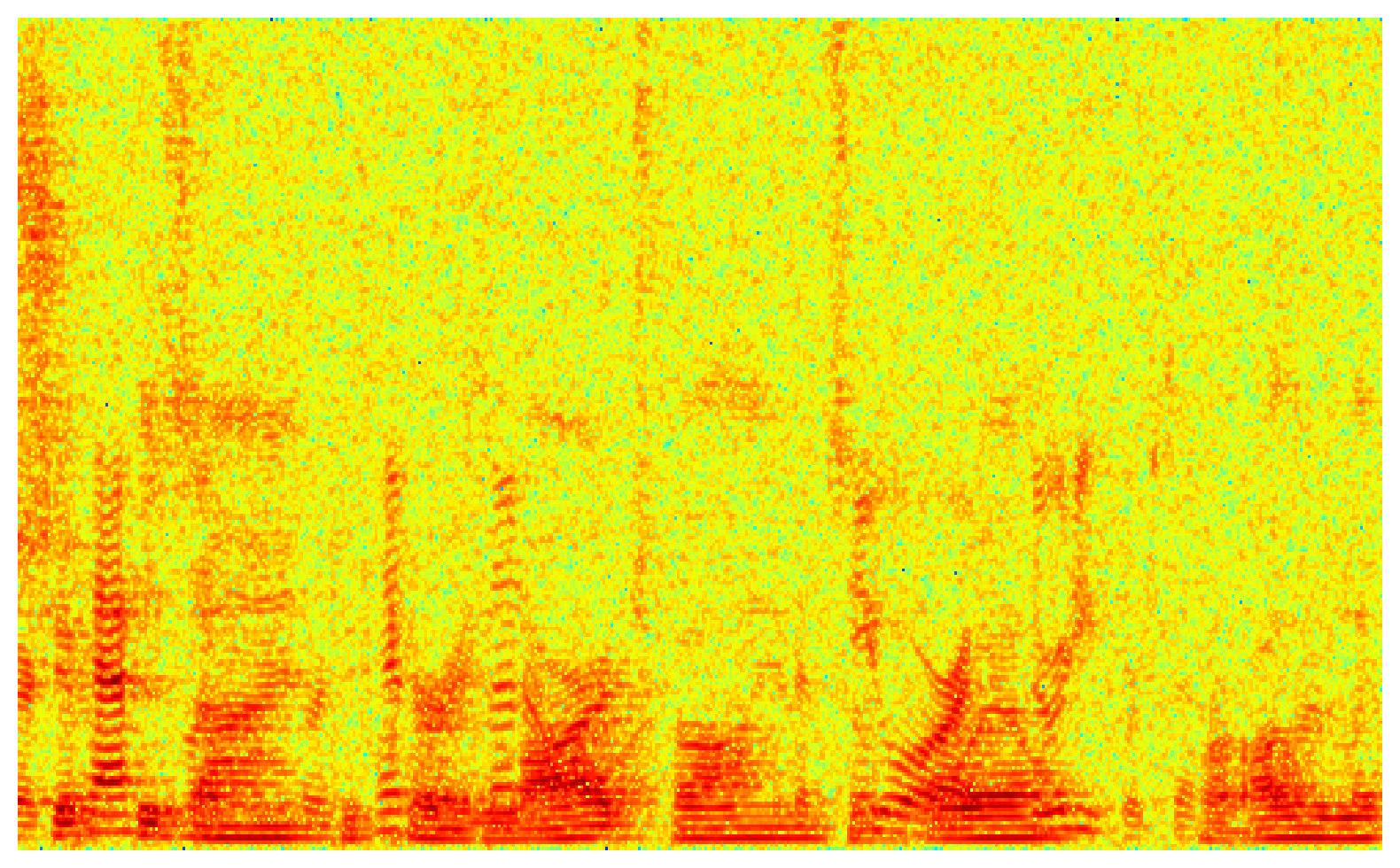

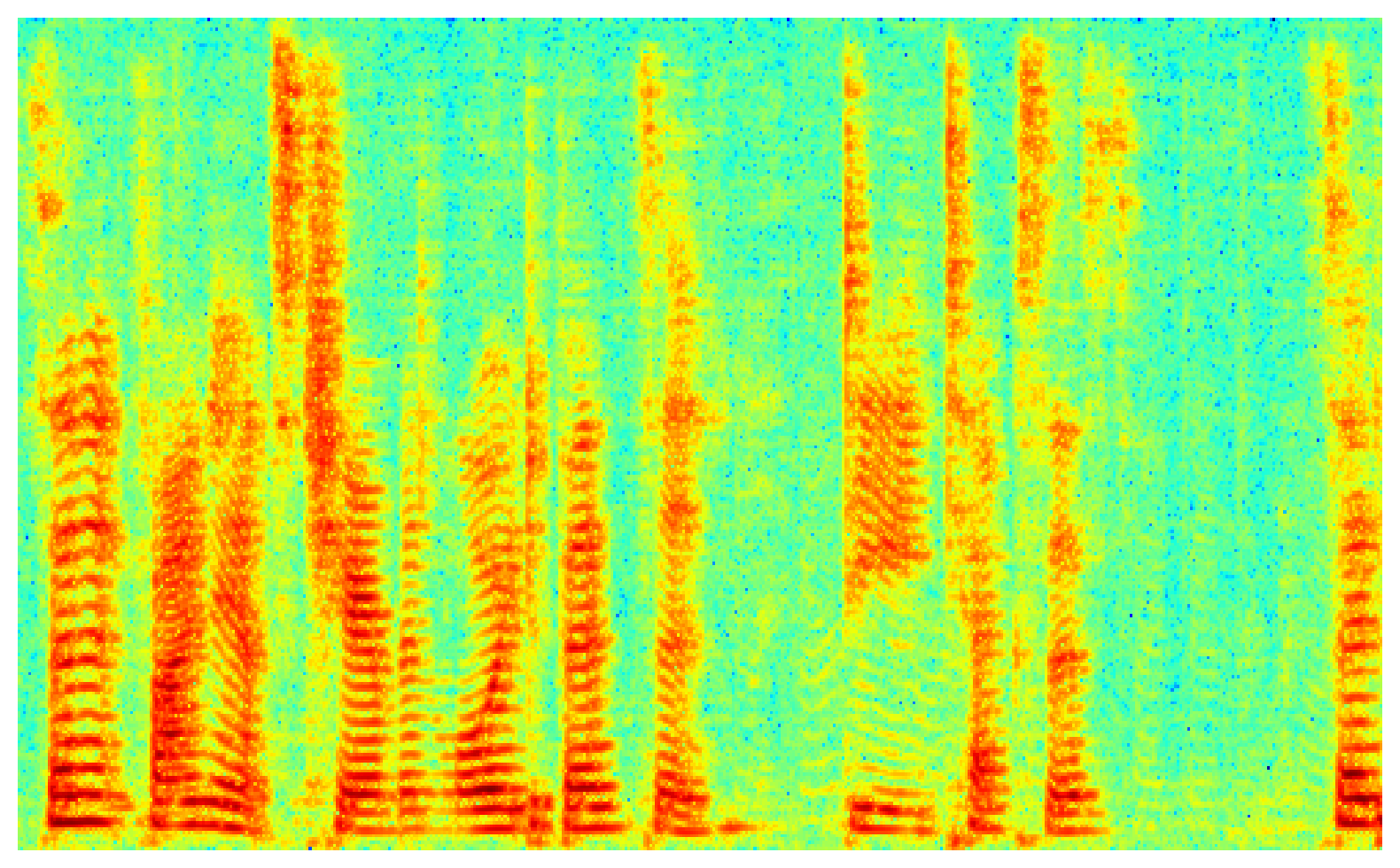

Sample	Mixture	Target	ReZero	DSS	DSENet	Ours(TDEG)	Ours(TDEG+scale dist)	Ours(TDEG+GK dist)	Ours(TDEG+DREG(DRR))
1	——	——	SI-SDR: 11.13dB	SI-SDR: 11.35dB	SI-SDR: 16.92dB	SI-SDR: 19.49dB	SI-SDR: 19.24dB	SI-SDR: 19.63dB	SI-SDR: 19.74dB
1	——	——	SI-SDR: 7.49dB	SI-SDR: 9.64dB	SI-SDR: 13.32dB	SI-SDR: 15.20dB	SI-SDR: 15.46dB	SI-SDR: 15.57dB	SI-SDR: 15.79dB
1	——	——	SI-SDR: 13.57dB	SI-SDR: 13.65dB	SI-SDR: 18.85dB	SI-SDR: 20.24dB	SI-SDR: 20.14dB	SI-SDR: 20.32dB	SI-SDR: 20.39dB
1	——	——	SI-SDR: 6.21dB	SI-SDR: 6.06dB	SI-SDR: 11.56dB	SI-SDR: 13.06dB	SI-SDR: 13.29dB	SI-SDR: 13.39dB	SI-SDR: 13.65dB
1	——	——	SI-SDR: 7.66dB	SI-SDR: 9.38dB	SI-SDR: 13.09dB	SI-SDR: 15.24dB	SI-SDR: 16.29dB	SI-SDR: 15.93dB	SI-SDR: 16.45dB

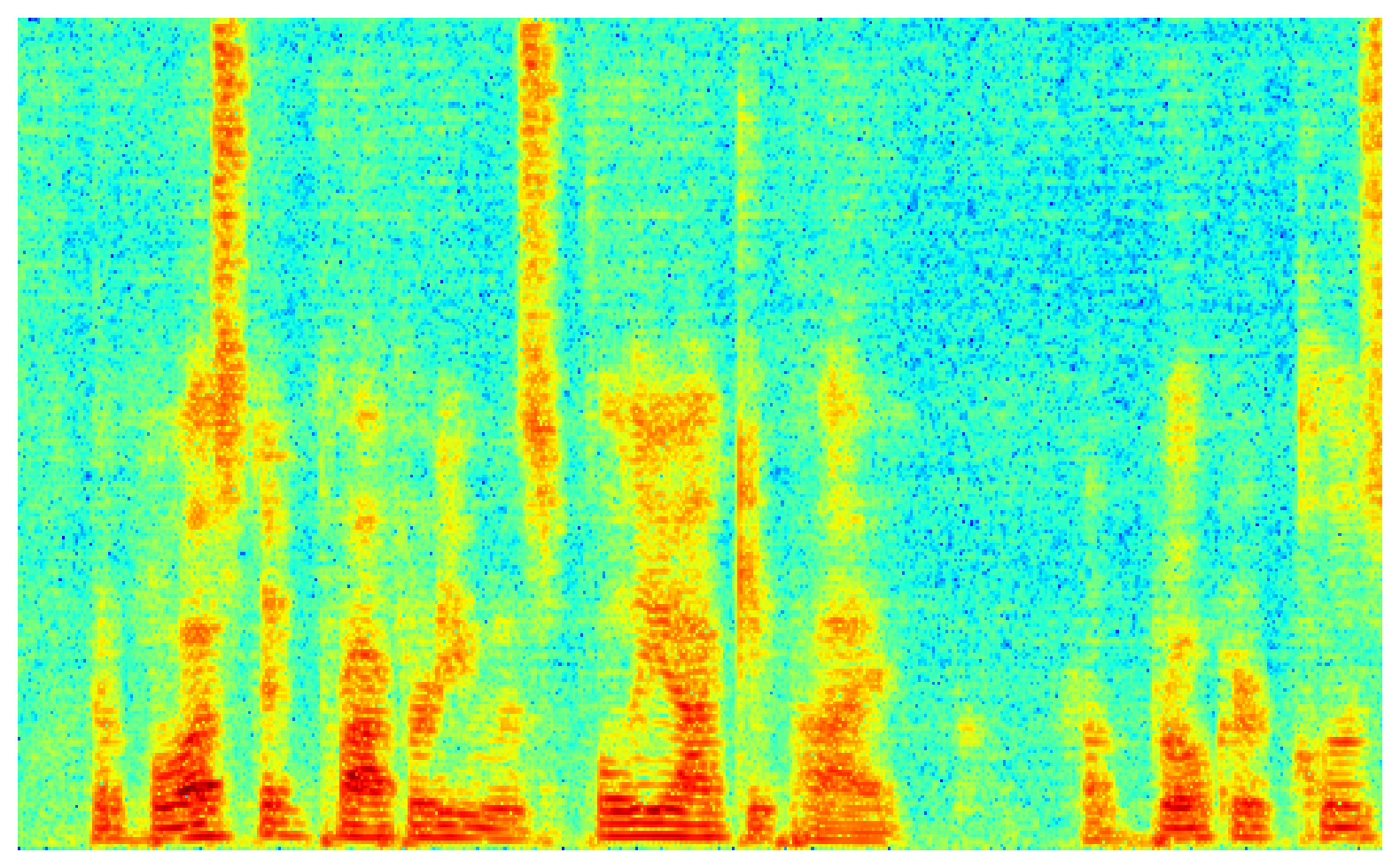

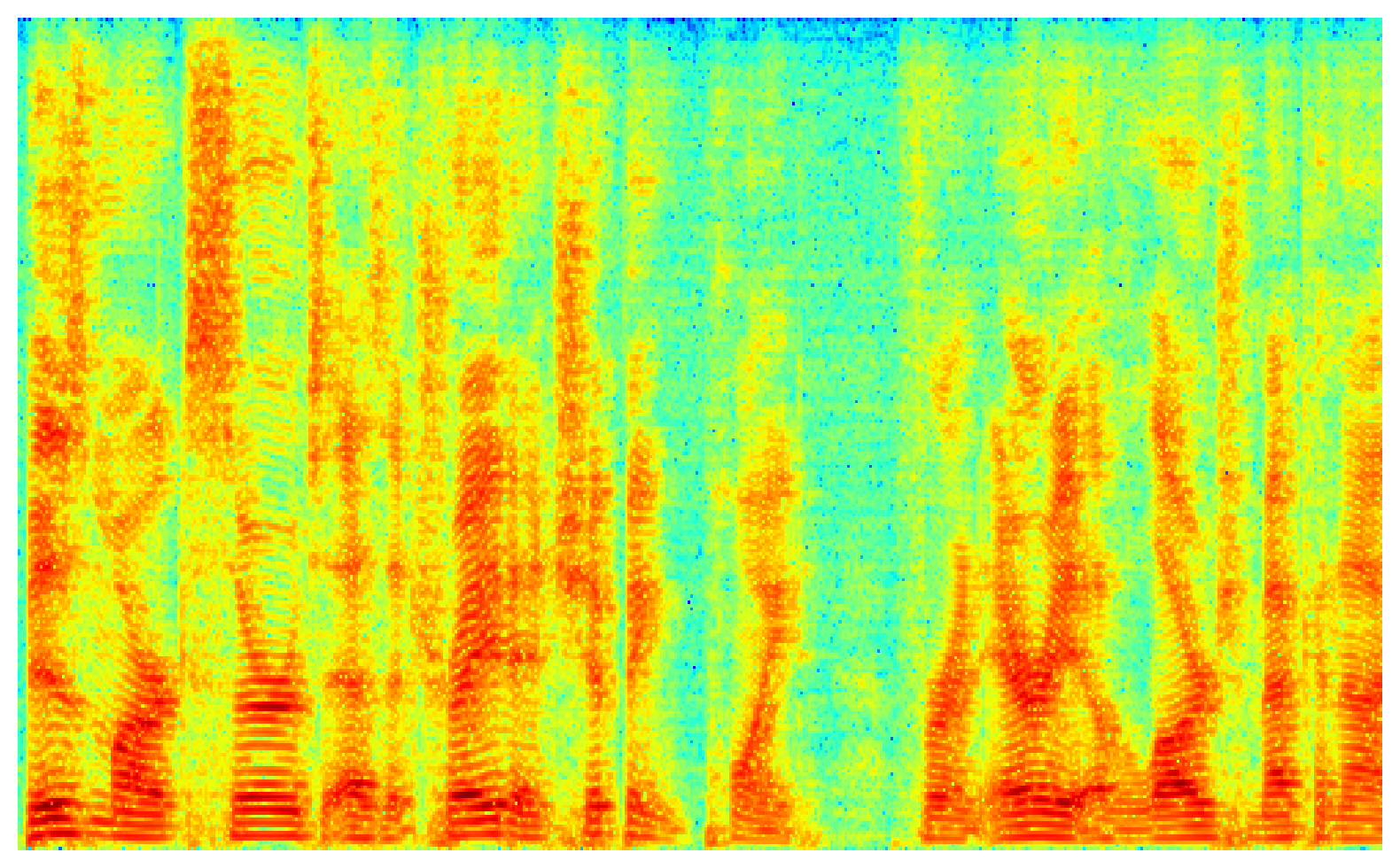

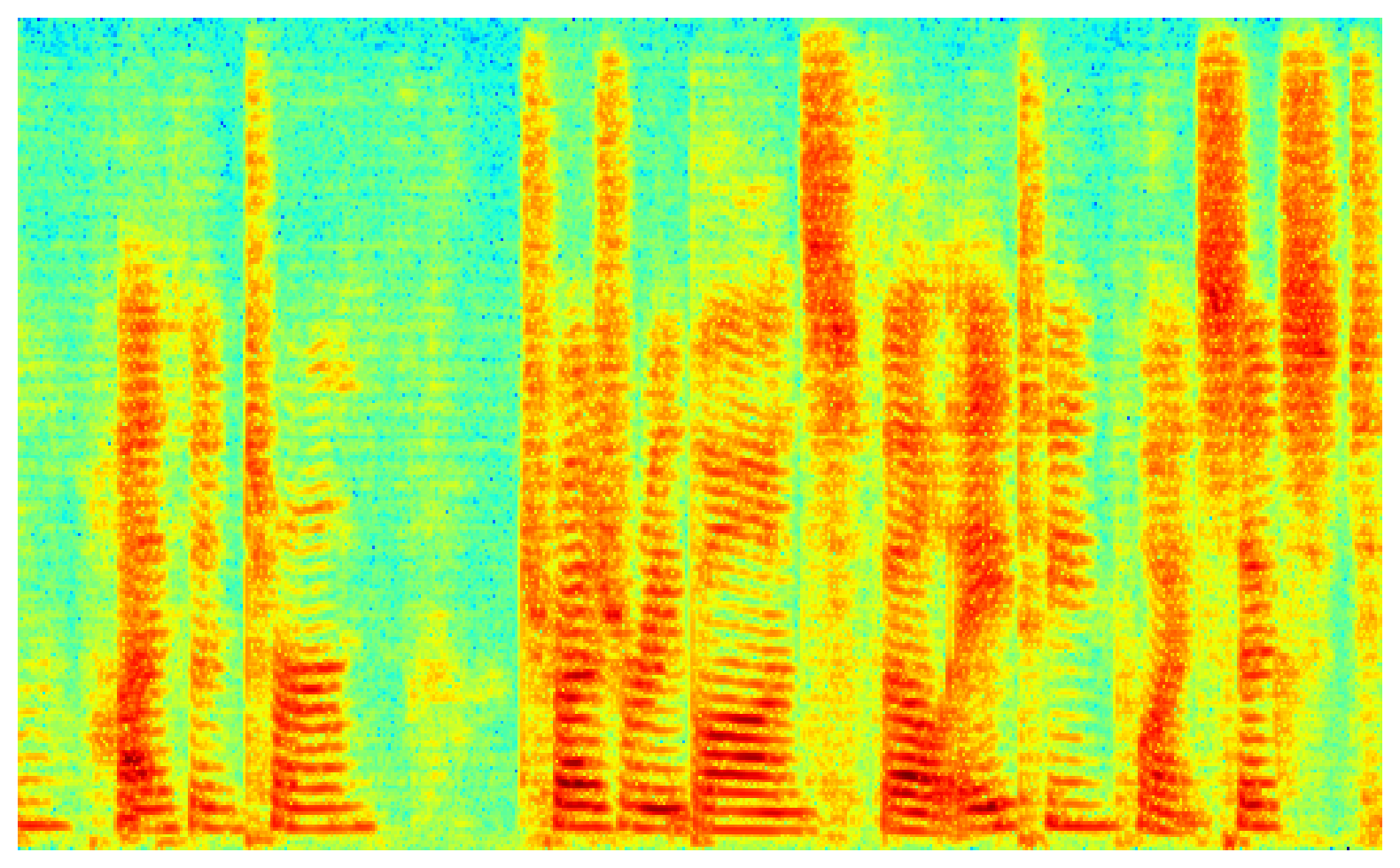

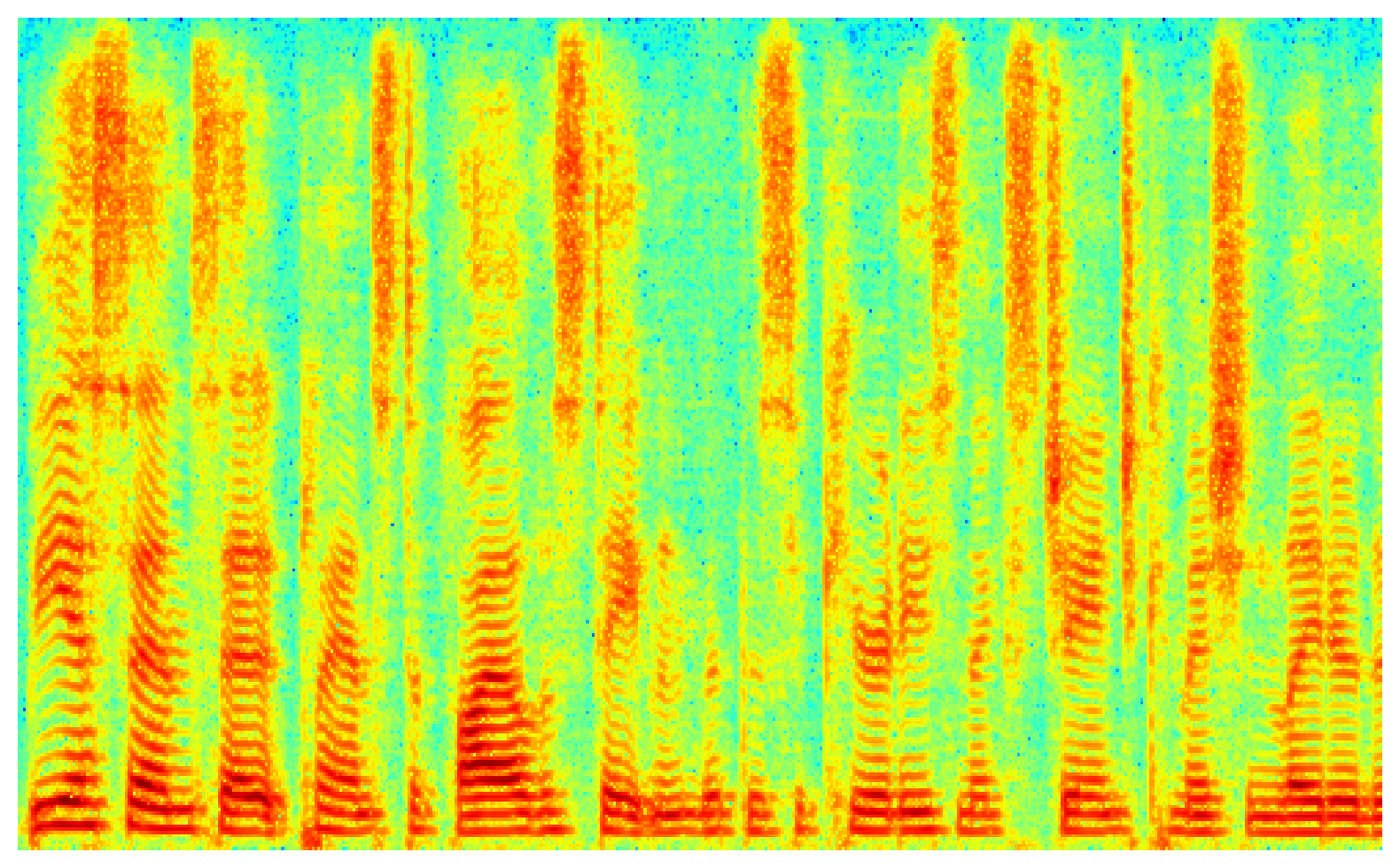

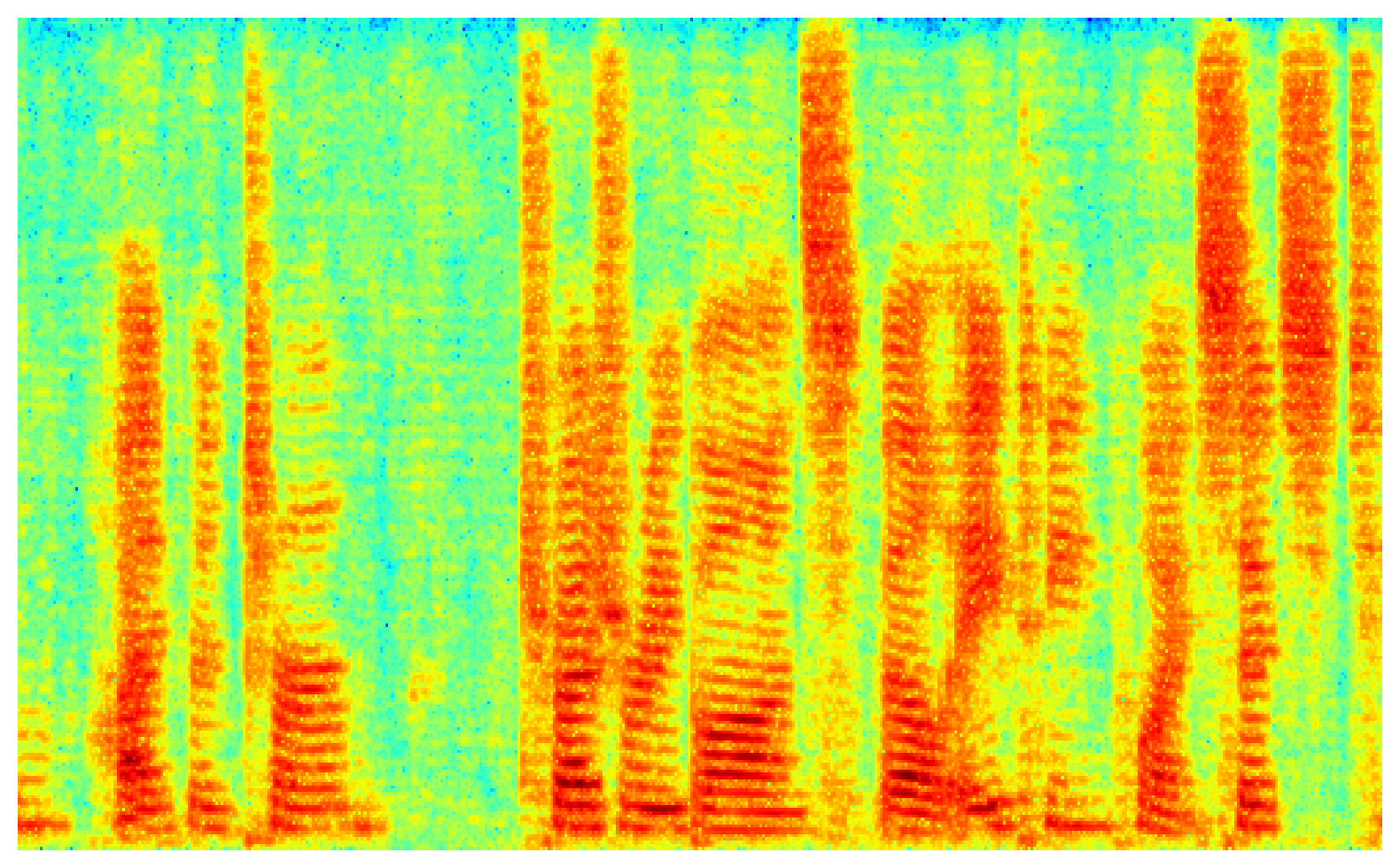

Audio samples (azimuth resolution capabilities)

Sample	Mixture	Target	ReZero	DSS	DSENet	Ours(TDEG)	Ours(TDEG+scale dist)	Ours(TDEG+GK dist)	Ours(TDEG+DREG(DRR))
[0°,0°]	——	——	SI-SDR: -18.22dB	SI-SDR: -25.61dB	SI-SDR: -14.86dB	SI-SDR: -41.66dB	SI-SDR: 17.01dB	SI-SDR: 16.95dB	SI-SDR: 17.49dB
[0°,5°]	——	——	SI-SDR: 5.17dB	SI-SDR: 8.66dB	SI-SDR: 0.18dB	SI-SDR: -6.79dB	SI-SDR: 17.69dB	SI-SDR: 17.60dB	SI-SDR: 17.92dB
[5°,10°]	——	——	SI-SDR: 8.77dB	SI-SDR: 9.57dB	SI-SDR: 12.42dB	SI-SDR: 13.98dB	SI-SDR: 15.44dB	SI-SDR: 15.34dB	SI-SDR: 15.98dB
[10°,15°]	——	——	SI-SDR: 8.71dB	SI-SDR: 10.71dB	SI-SDR: 15.62dB	SI-SDR: 17.85dB	SI-SDR: 17.81dB	SI-SDR: 18.01dB	SI-SDR: 18.39dB
[15°,20°]	——	——	SI-SDR: 14.54dB	SI-SDR: 13.04dB	SI-SDR: 19.19dB	SI-SDR: 20.23dB	SI-SDR: 20.14dB	SI-SDR: 20.43dB	SI-SDR: 20.48dB

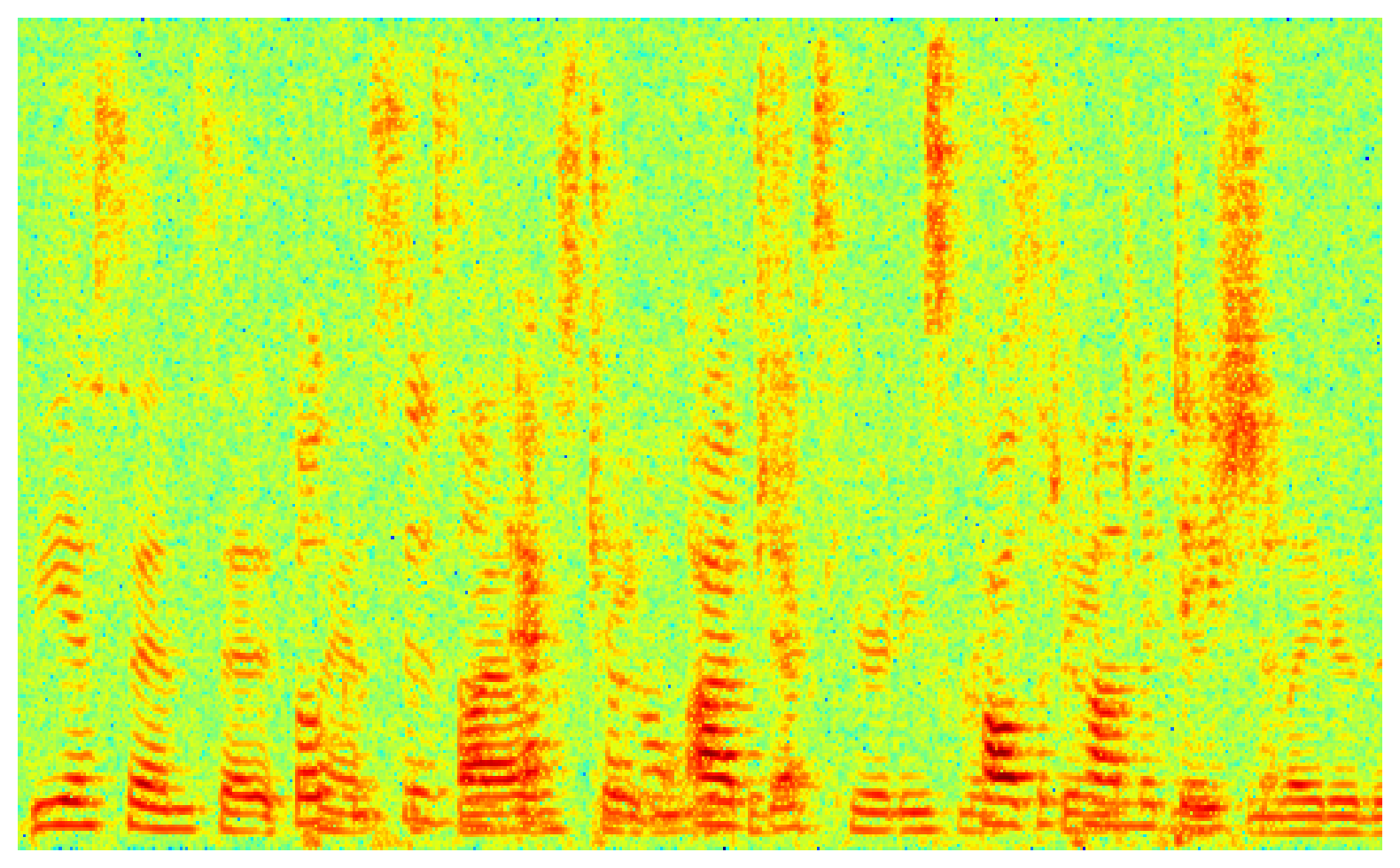

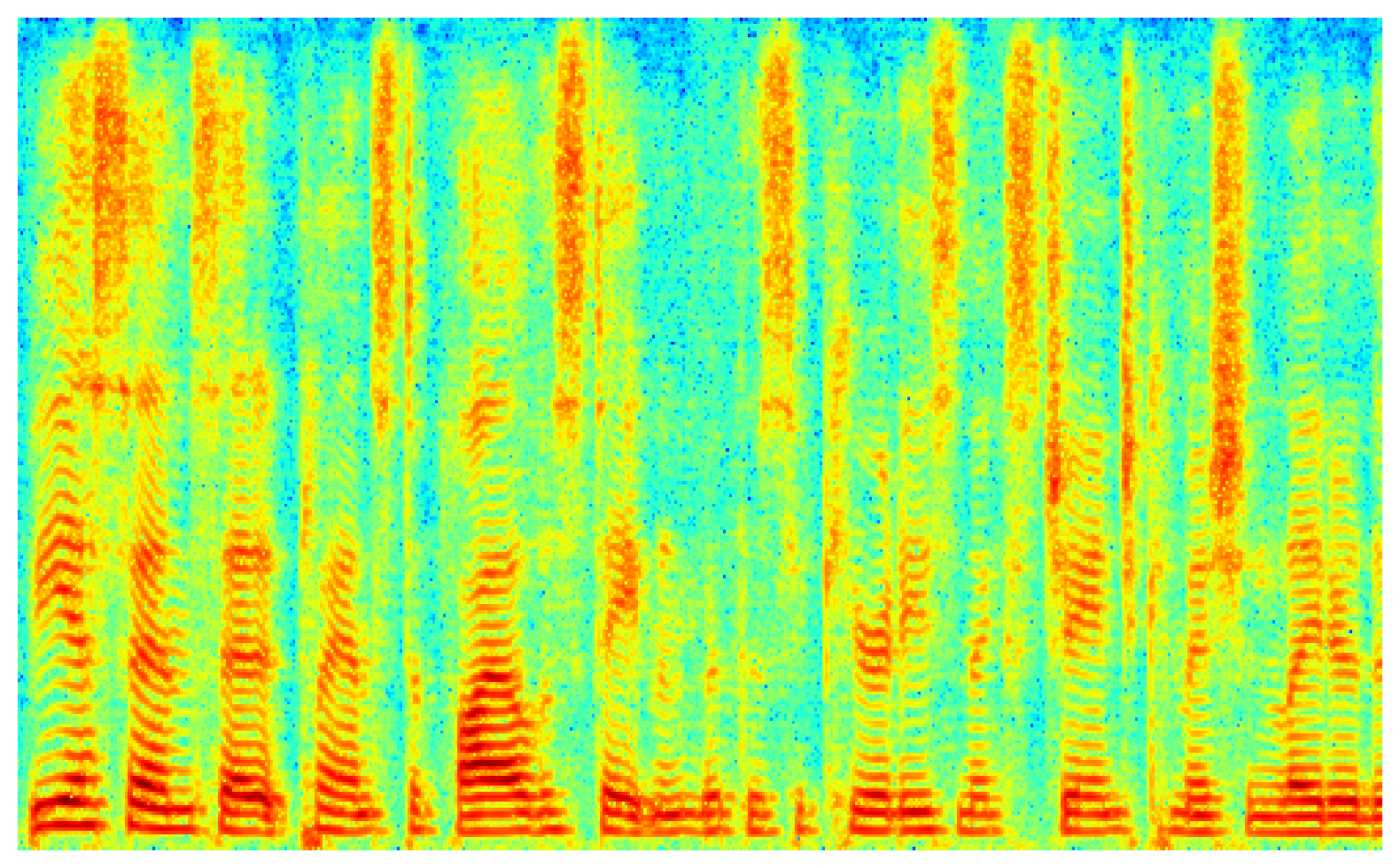

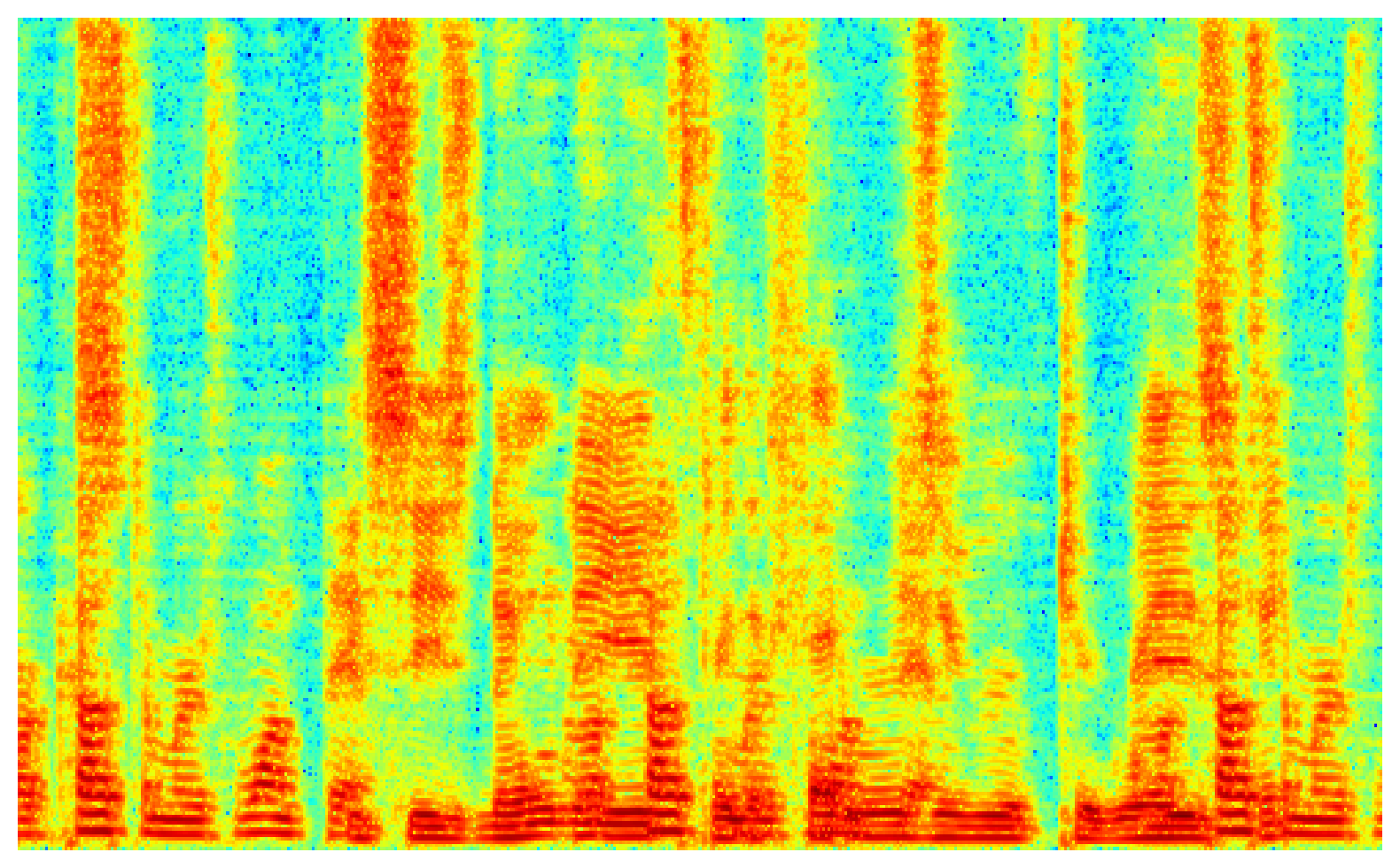

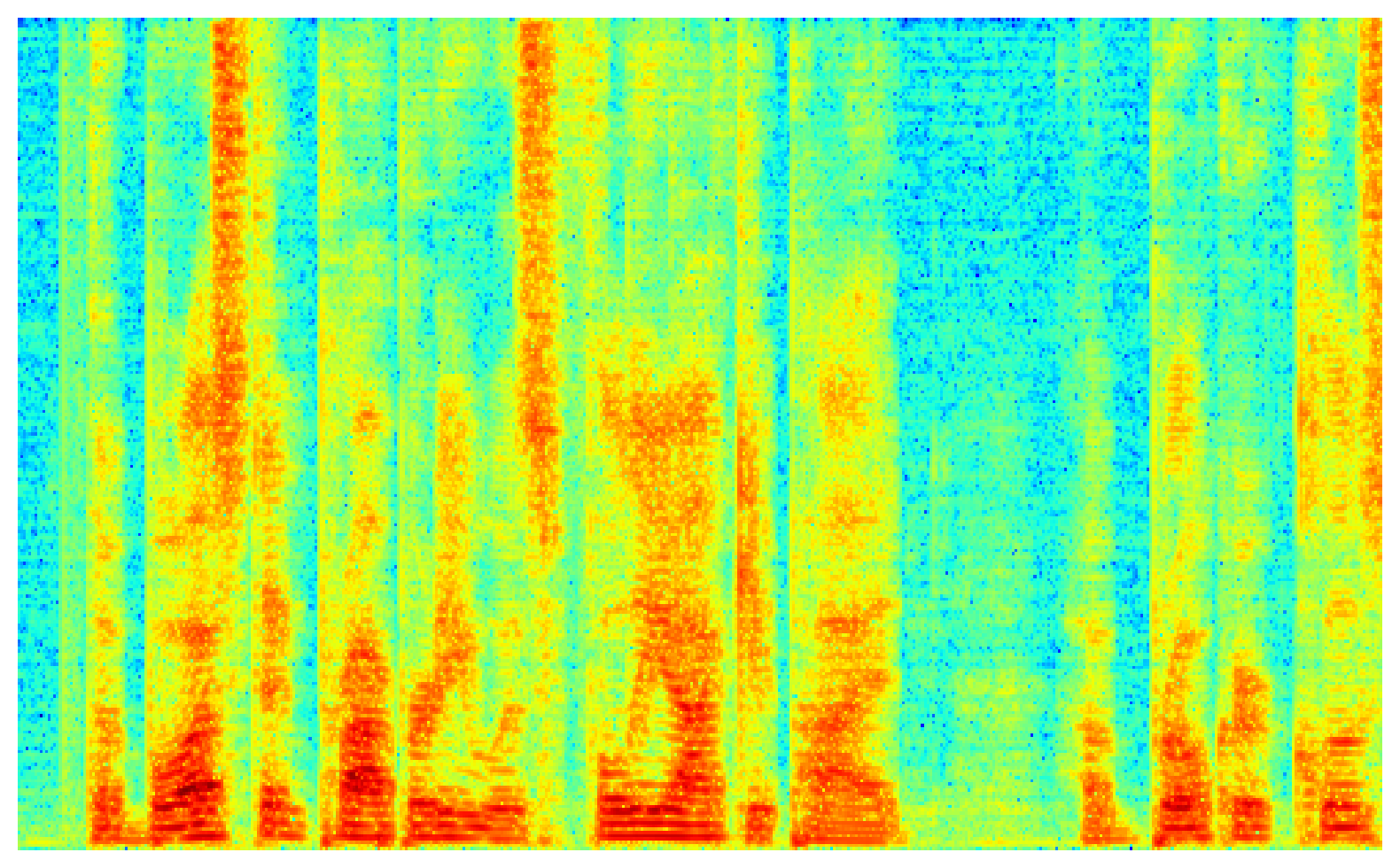

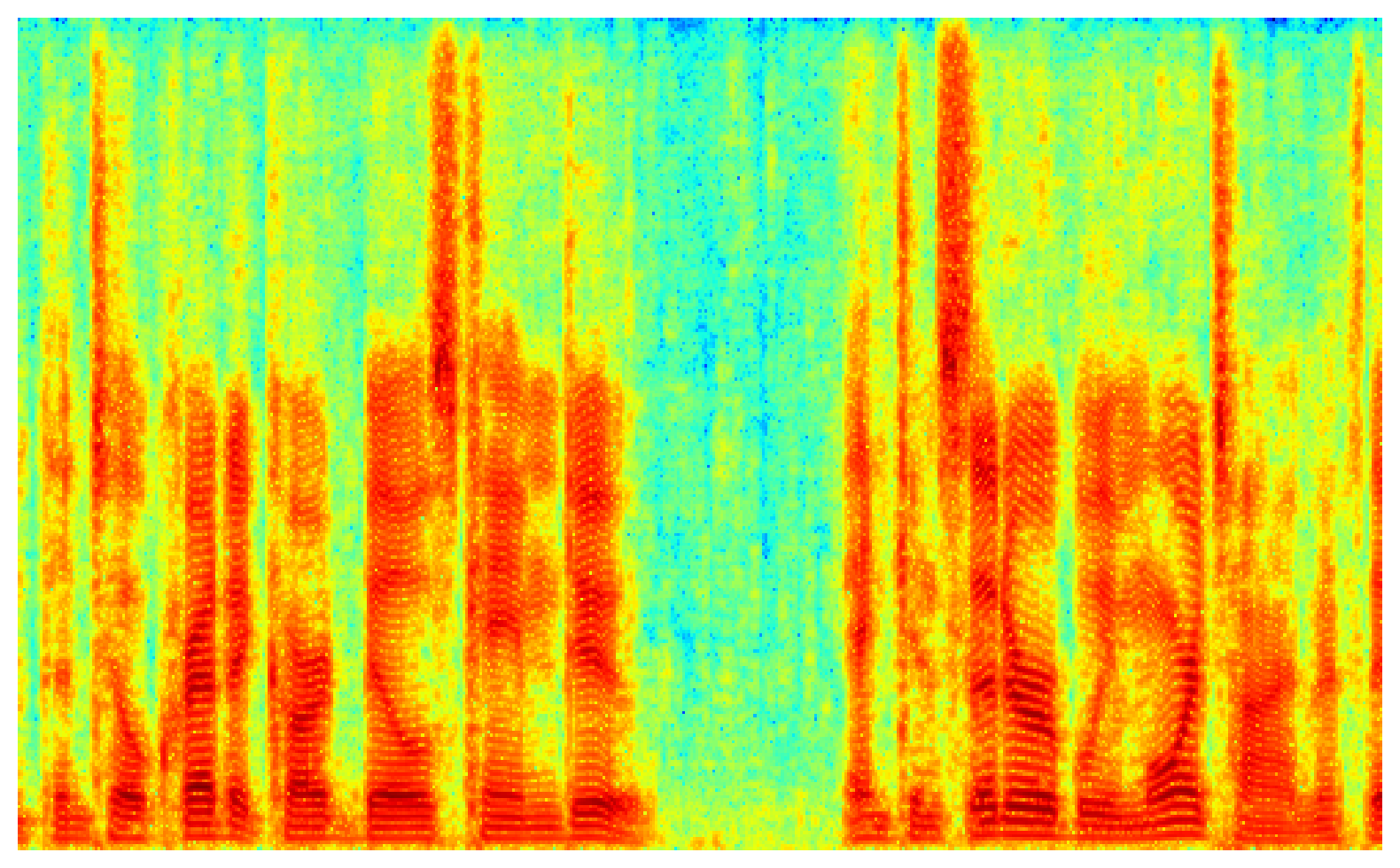

Audio samples (distance resolution capabilities)

Sample	Mixture	Target	ReZero	DSS	DSENet	Ours(TDEG)	Ours(TDEG+scale dist)	Ours(TDEG+GK dist)	Ours(TDEG+DREG(DRR))
[0m,0.1m]	——	——	SI-SDR: -6.22dB	SI-SDR: -12.83dB	SI-SDR: -8.21dB	SI-SDR: -34.83dB	SI-SDR: -11.58dB	SI-SDR: -18.73dB	SI-SDR: -20.51dB
[0.1m,0.3m]	——	——	SI-SDR: -3.40dB	SI-SDR: 7.94dB	SI-SDR: -2.29dB	SI-SDR: -5.04dB	SI-SDR: 6.96dB	SI-SDR: 11.01dB	SI-SDR: 14.71dB
[0.3m,0.5m]	——	——	SI-SDR: 4.59dB	SI-SDR: 8.64dB	SI-SDR: 4.64dB	SI-SDR: 3.87dB	SI-SDR: 13.02dB	SI-SDR: 11.37dB	SI-SDR: 15.87dB
[0.5m,0.7m]	——	——	SI-SDR: -1.65dB	SI-SDR: -1.16dB	SI-SDR: -13.28dB	SI-SDR: -11.83dB	SI-SDR: -24.82dB	SI-SDR: 13.41dB	SI-SDR: 15.48dB
[0.7m,0.9m]	——	——	SI-SDR: 2.90dB	SI-SDR: 3.46dB	SI-SDR: 3.09dB	SI-SDR: -8.91dB	SI-SDR: -12.01dB	SI-SDR: 14.90dB	SI-SDR: 15.77dB
